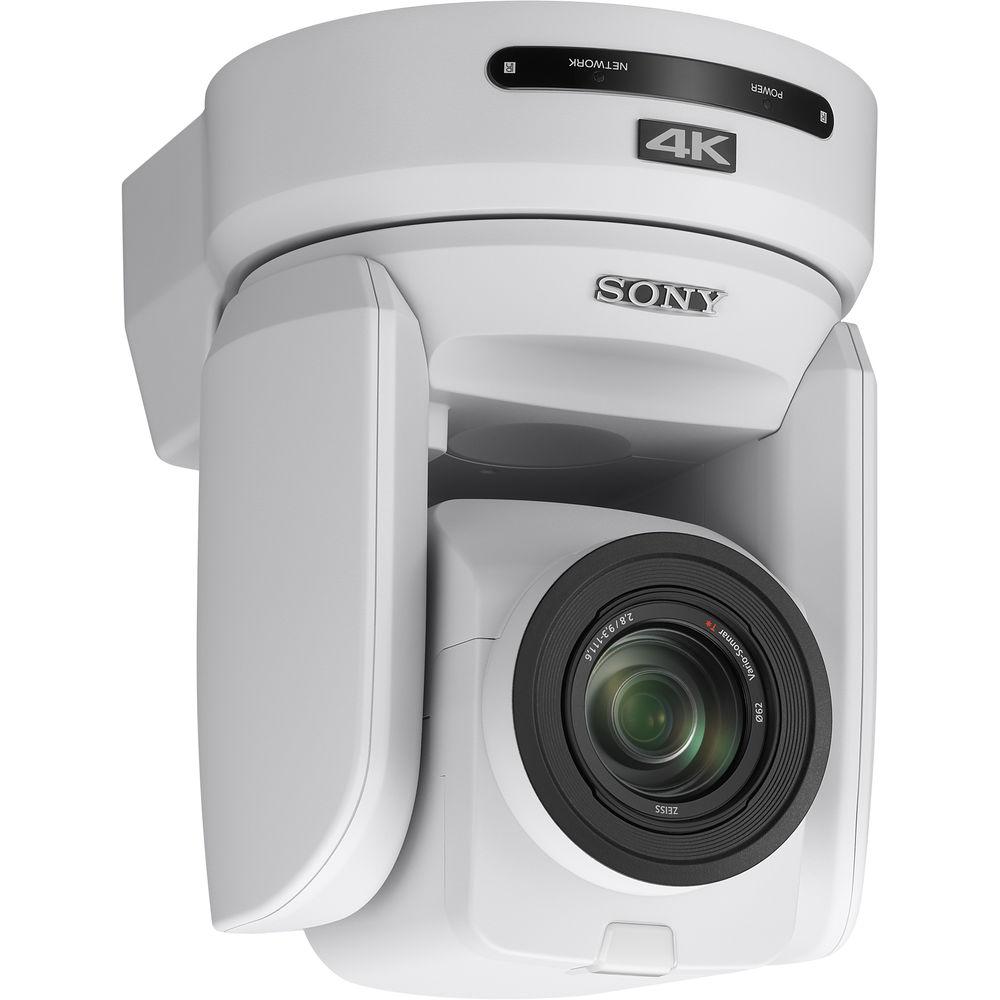

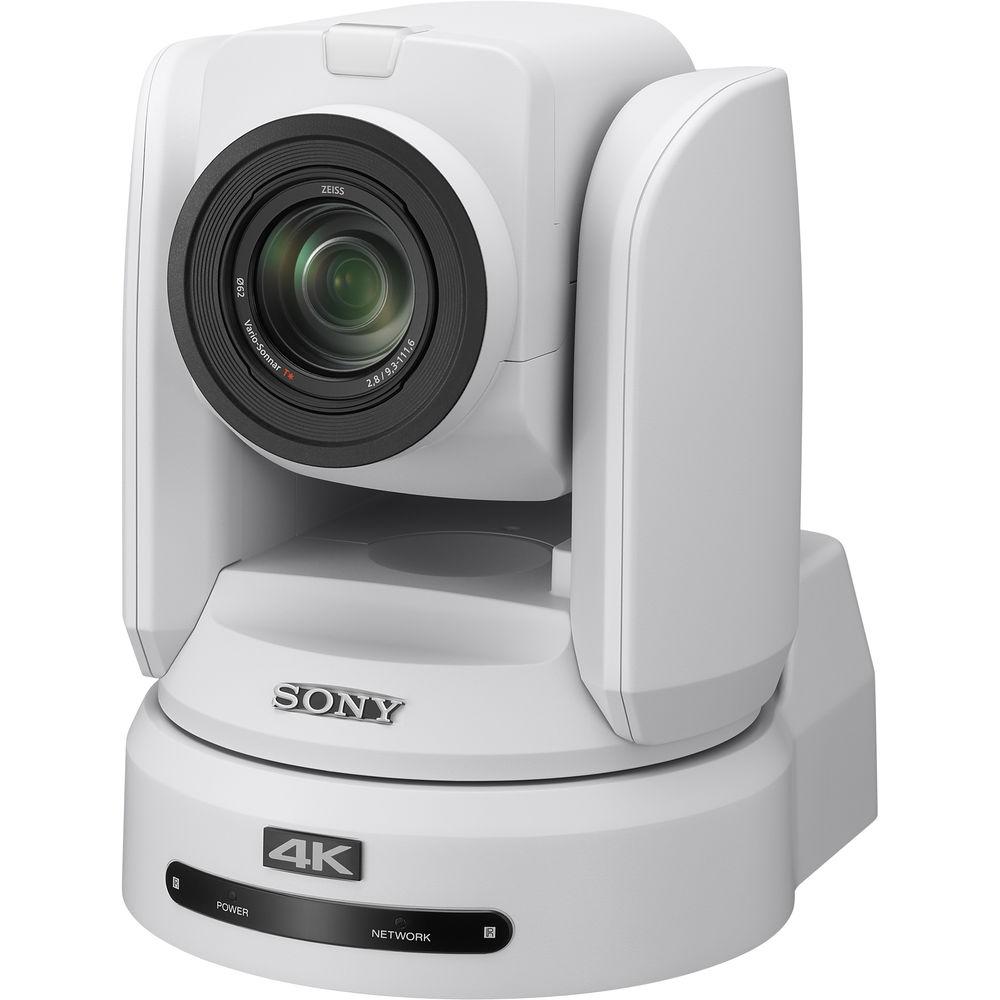

User Manual for Sony BRC-X1000 WPW 4K PTZ Camera with 1" CMOS Sensor and PoE Click to enlarge the picture
Contents of the user manual for the Sony BRC-X1000 WPW 4K PTZ Camera
- Product category: PTZ Cameras Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony PTZ Cameras
 |
User manual for the Sony BRC-X1000 WPW 4K PTZ Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description Smoothly capture UHD 4K video even in low-light settings with the white BRC-X1000/WPW 4K PTZ Camera from Sony. This compact camera features a 1" type Exmor CMOS image sensor, a 12x Zeiss optical zoom, and PoE+ support. It captures UHD 4K or HD video using the back-illuminated, 1" type Exmor R CMOS sensor and a 9.3-111.6mm / f/2.8-f/4.5 optical zoom lens. The large image sensor enables you to create attractive bokeh effects with shallow depth of field.Swiftly follow fast-moving action or use the low-speed zoom and slow pan/tilt modes to precisely track subjects. The PTZ Trace Memory function enables you to capture and repeat a series of movements, and the PTZ Motion Sync feature blends separate pan, tilt, and zoom into smooth transitions.For capturing tight sports shots, etc. Clear Image Zoom Technology increases the optical zoom to 24x in HD and 18x in 4K while maintaining the exceptional image quality of the Zeiss Vario-Sonnar zoom lens. The BRC-X1000 features flexible PoE+ (Power-over-Ethernet) installation, utilizing a single cable to carry both IP camera control and power. For multi-camera productions, a Genlock feature is used to integrate the BRC-X1000 with other systems. Up to 16 camera positions can be preset on the BRC-X1000, enabling a single operator to control multiple units.The BRC-X1000 camera features HDMI and dual-link 3G-SDI outputs, and Ethernet and RS-422 control interfaces. Remote control functions include pan, tilt, zoom, focus, iris, shutter speed, and gain. The BRC-X1000 is suitable for use in broadcast studios, remote on-air setups, houses of worship, and live sports applications. The front and rear tally lights are useful for on-air broadcasting and have adjustable brightness levels. Camera function upgrades may be applied by the user via its IP connection. The Sony BRC-X1000 4K PTZ Camera is ceiling- and desktop-mountable and comes with two brackets, screws, an HDMI cable clamp, and an IR remote commander. Key Features -
- PoE+ capability uses a single cable for IP camera control and power
- Dual-link 3G-SDI and HDMI outputs
- 4K and HD-resolution PTZ camera with remotely controllable pan, tilt, zoom, focus, iris, and shutter speed
- 1" type Exmor R CMOS back-illuminated image sensor and 1.7-lux sensitivity for optimal low-light performance
- Clear Image Zoom Technology increases the optical zoom to 24x in HD while maintaining the exceptional image quality of the Zeiss Vario-Sonnar 12x zoom lens
- PTZ Trace Memory and PTZ Motion Sync functions enable you to precisely repeat moves with smooth transitions
- Genlock function for integration with other systems in multi-camera setups
- Up to 100 preset pan/tilt/zoom positions; flexible desktop- or ceiling-mounting
- For on-air broadcasting, the camera features adjustable front and rear tally lights
- Firmware updates are user-accessible through the camera's IP connection
Camera Features -
- Day/Night, Visibility Enhancer, Image Flip, Picture Profile Preset
- ND Filter: Off, 1/4, 1/16, 1/64—switchable in Menu
- Color Gain (15-step), Color Hue (15-step)
- Color Matrix: Off/Standard/High Saturation/FL light/Movie/Still/Cinema/Pro/ITU709/B&W
- Gamma: Standard/Straight/Movie/Still/Cine1/Cine2/Cine3/Cine4/ITU709/Pattern
- Gamma Level (15-step), Black Level (97-step), Black Gamma (15-step)
- Knee Point (13-step), Knee Slope (15-step), Flicker Cancel: On/Off
UPC: 027242914773 In the Box Sony BRC-X1000/WPW 4K PTZ Camera with 1" CMOS Sensor and PoE+ (White) IR Remote Commander Ceiling Bracket A Ceiling Bracket B Wire Rope 7 x M3x8 Mounting Screw M4x8 Stainless Steel Screw HDMI Cable Clamp Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony BRC-X1000 WPW 4K PTZ Camera with 1" CMOS Sensor and PoE in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony BRC-X1000 Specs | | | Image Sensor | 1-Chip 1" CMOS Sensor | | Horizontal Resolution (TV Lines) | 1800 TV Lines 3G-SDI Output (Center) | | Sensor Resolution | 20.4 MP | | Effective Sensor Resolution | 14.2 MP | | Gain | -3 to 33 dB | | Minimum Illumination | 1.7 lux at 1/30 Shutter Speed | | | | Shutter Speed | 1/10000 to 1/8 sec 1/10000 to 1/8 sec (59.94/29.97)
1/10000 to 1/6 sec (50/25/23.98) | | Max Digital Zoom | 48x 48x in Tele Convert (HD Only)
24x Digital Zoom in HD
18x Digital Zoom in 4K | | Flip / Mirror Support | Image Flip | | | | Optical Zoom Ratio | 12x | | Focal Length | 9.3 to 111.6mm | | 35mm Equivalent Focal Length | 29 to 348mm | | Field of View | Horizontal: 64.6
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 58 owners. Add your rating and experience with the product.
