User Manual for Sony BRU-H700 Optical Multiplex Unit for BRC-H700 Click to enlarge the picture
Contents of the user manual for the Sony BRU-H700 Optical Multiplex Unit for
- Product category: Camera Accessories Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Camera Accessories
 |
User manual for the Sony BRU-H700 Optical Multiplex Unit for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|

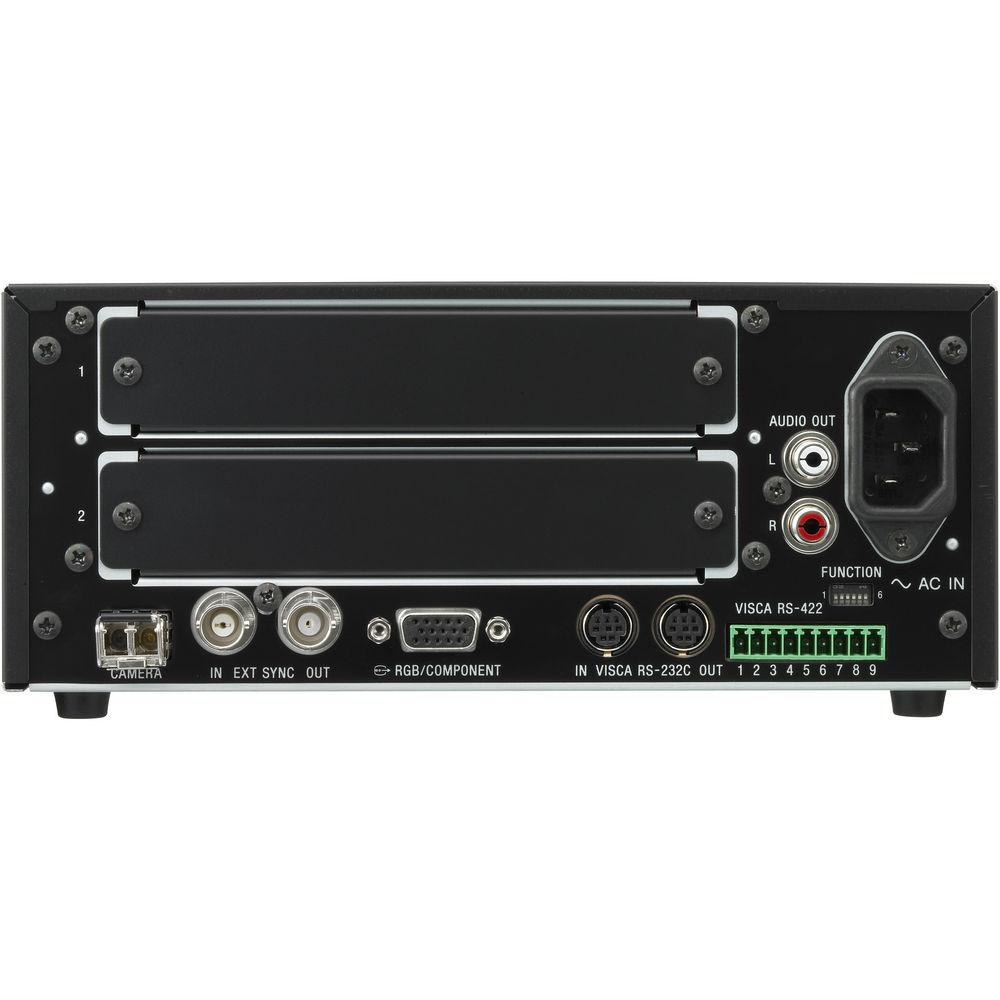

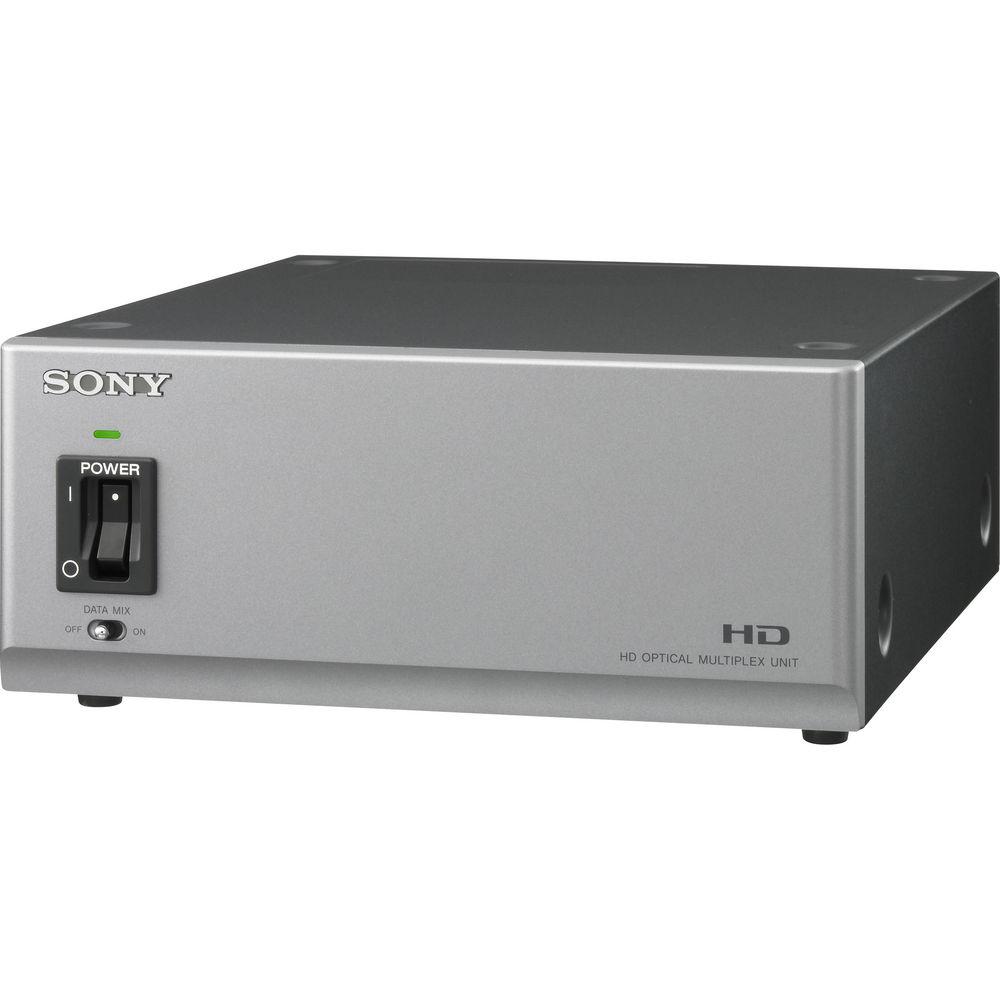

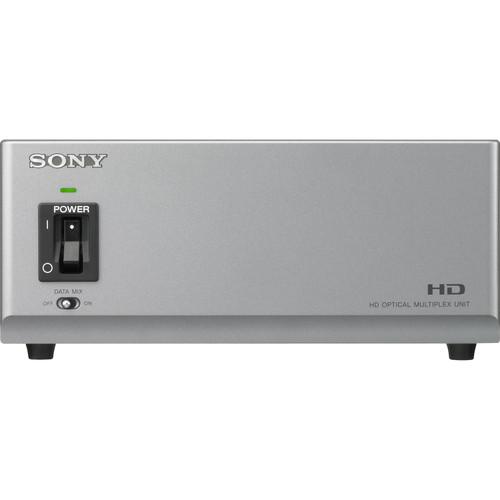

Product description The Sony BRU-H700 is an optical multiplex unit specifically designed for the BRC-H700 color video camera. The unit allows external sync, camera control, and audio signals to be transmitted over one single fiber-optic cable. The maximum cable length being up to 1000 m, allowing cameras to be placed virtually anywhere. The one-cable configuration makes setup both quick and easy. - Optional Input Slots
- The BRU-H700 is fitted with 2 option board slots, allowing user to customize the unit the way they fit for their personal needs. This assures simple integration within any existing network while making it easy to upgrade when necessary.
UPC: 027242684379 In the Box Sony BRU-H700 Optical Multiplex Unit for BRC-H700 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony BRU-H700 Optical Multiplex Unit for BRC-H700 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony BRU-H700 Specs | Signal System | 1080i/60, 1080i/50 | | Number of Cameras | 7 | | Resolution | 1920 x 1080 | | Recording Rate | Not Applicable | | Display Modes | Not Applicable | | Video Connectors | HFBK-HD1: HD-SDI:
With Optional Card
HFBK-SD1: Down converted SD (RGB, Y/Cb/Cr, Y/C, Composite, SDI) HFBK-XG1: WXGA, XGA, VGA
HFBK-TS1: HDV | | Alarm I/O | No | | Motion Detection | No | | Control Ports | RS-232C | | Control Protocol | RS-232C/RS-422 (VISCA) | | Power Requirements | 60i: 100-240 VAC, 50/60 Hz
50i: 220-240 VAC, 50/60 Hz | | Power Consumption | 10W | | Operating Temperature | 32-104°F (0-40°C) | | Dimensions (WxHxD) | 8.4 x 3.5 x 9.5" (21 x 8.6 x 24 cm) | | Weight | 6 lb (2.7 kg) | | | | Package Weight | 8.95 lb | | Box Dimensions (LxWxH) | 14.4 x 12.5 x 8.6" |
