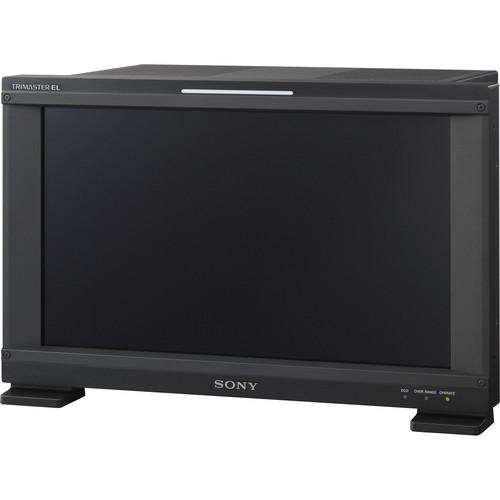

Product description The Sony BVM-E170 Trimaster EL OLED Master Monitor (16.5" / 420mm) delivers high levels of color accuracy and reproduction, precision imaging and consistent picture quality with a resolution of up to 1920 x 1080 (full HD).
Incorporating Super top emission technology, the OLED display panel delivers excellent black performance, quick response with minimal motion blur, and a wide color gamut. With a micro-cavity structure, the monitor uses an optical resonance effect which enhances color purity and improves light emission. Color filter for each RGB enhances the display's color purity and also reduces ambient light reflection.
Featuring a dedicated 12-bit output accuracy digital signal processing engine with a nonlinear cubic conversion color-management system, the BVM-E170 Trimaster monitor delivers excellent uniformity of display, gamma performance, picture quality consistency for strain-free viewing, and a highly-accurate I/P conversion with low image-processing delay. The monitor utilizes a RGB panel driver that supports 10-bit color depth for high image quality. In addition, it also includes features such as HD frame capture, pixel zoom and P&P.
The BVM-E170 supports standard inputs that include 3G/HD/SD-SDI, HDMI, and a display port input. Four additional slots on the monitor allow you to attach 6 optional BKM input boards. - Offers a 16.62" (420mm) screen and delivers higher levels of color accuracy and reproduction, precision imaging, and consistent picture quality
- Supports resolutions of up to 1920 x 1080 (full HD)
- Incorporates Super Top Emission technology and delivers outstanding black performance, quick response with minimal motion blur, and a wide color gamut
- Micro-cavity structure - uses an optical resonance effect to enhance color purity and improve light emission
- Color filter for each RGB enhances color purity and reduces ambient light reflection
- Includes a dedicated 12-bit output accuracy digital signal processing engine
- Offers a nonlinear cubic conversion color management system
- Delivers excellent uniformity of display, gamma performance, picture quality consistency for strain-free viewing, and a highly-accurate I/P conversion with low image processing delay
- Utilizes an RGB panel driver that supports 10-bit color depth for high image quality display
- Supports standard inputs including 3G/HD/SD-SDI, HDMI, and a display port input
- Offers HD frame capture, pixel zoom, and P&P features
- 4 additional slots for attaching 6 optional BKM input boards
- Compatible with the BVML170 Master Monitor
In the Box Sony BVM-E170 Trimaster EL OLED Master Monitor (16.5" / 420mm) Limited 1-Year Warranty AC Power Cord AC Plug Holder Bracket Operation Manual (Japanese) Operation Manual (English) CD-ROM Manual 2 Rack Mount Brackets Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony BVM-E170 Trimaster EL OLED Master Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony BVM-E170 Specs | Panel | OLED panel | | Picture Size | 16.62" (420mm) (diagonal) | | Effective Picture Size (H x V) | 14.5 x 8.12" (365.8 x 205.7 mm) | | Resolution | 1920 x 1080 pixels (Full HD) | | Aspect Ratio | 16:9 | | Pixel Efficiency | 99.99% | | Panel Drive | RGB 10-bit | | Panel Frame Rate | 48 Hz / 50 Hz / 60 Hz / 72 Hz / 75 Hz (48 Hz, 60 Hz, and 72 Hz are also compatible with 1/1.001 frame rates) | | Viewing Angle | 89°/89°/89°/89° (typical) (up/down/left/right contrast > 10:1) | | Luminance | 100 cd/m2 (preset1 to preset5)
48 cd/m2 (preset (D-Cine))
(1.0 Vp-p reference signal, 100% white signal input) | | Input Connectors | SDI: 2 BNC
HDMI: 1 HDMI (HDCP correspondence, deep color correspondence)
DisplayPort: 1 display port connector
Option port: 4 ports
Parallel remote: 1 D-sub 9-pin (female)
Serial remote (LAN): Ethernet (10BASE-T/100BASE-TX), 1 RJ-45 | | Output Connectors | 1 SDI BNC
DC 5 V out: 1 circle 4-pin (female) | | | | Power Requirements | AC 100 V to 240 V, 1.4 A to 0.7 A, 50/60 Hz
DC 24 V to 28 V, 4.7 A to 4.0 A | | Power Consumption | Approx. 115 W (AC), 106 W (DC) (at maximum load, the luminance compensation due to the aged deterioration included.)
Approx. 65 W (AC), 60 W (DC) (input from the standard HDMI input, the default status.) | | Dimensions (WxHxD) | 17.25 x 11.25 x 8.5" (436 x 282.4 x 214.7 mm) | | Weight | 18lb 11oz (8.5 kg) | | | | Package Weight | 28.65 lb | | Box Dimensions (LxWxH) | 22.1 x 16.8 x 14.1" |
