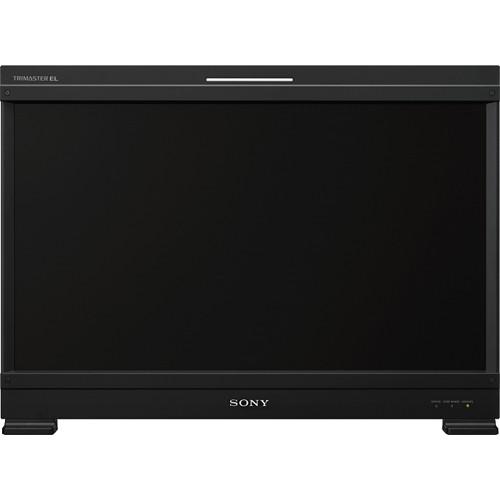

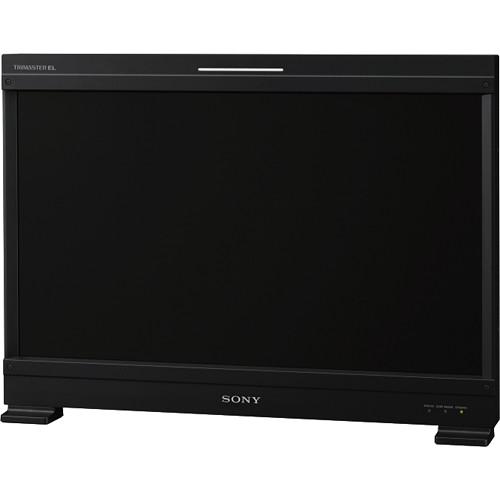

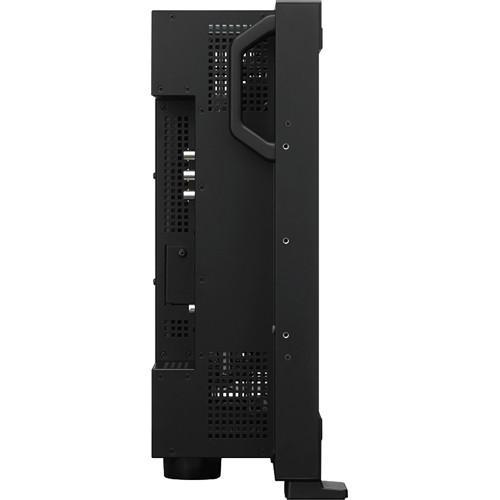

User Manual for Sony BVM E251 24.5" TRIMASTER EL OLED Critical Reference Monitor Click to enlarge the picture
Contents of the user manual for the Sony BVM E251 24.5" TRIMASTER EL
- Product category: Production Monitors Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Production Monitors
 |
User manual for the Sony BVM E251 24.5" TRIMASTER EL contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The BVM E251 24.5" TRIMASTER EL OLED Critical Reference Monitor from Sony features a wide viewing angle for critical picture evaluation in the studio and on-set for professional applications such as color grading, high-end editing, broadcasting and scientific research. Sony’s leading edge Organic Light-Emitting Diode (OLED) technology and signal processing technology ensures high performance with the BVM-E171. It allows several people to evaluate the image with accuracy at the same time, increasing the monitor’s versatility in top end monitoring solutions. - Technology
- Top Emission technology enhances OLED's benefits to deliver outstanding black performance, a quick response time with virtually no motion blur, and a wide color gamut. A 12-bit output digital signal processing engine provides a non-linear cubic conversion color-management system that delivers precise color reproduction, picture uniformity, gamma performance, and picture quality consistency.
- Flicker Free Mode
- The TRIMASTER EL OLED panel's quick response and scan-driving performance delivers remarkable picture quality with virtually no motion blur. However, there is a possibility that flicker is just visible especially when a lower frequency signal is displayed (24p, 24PsF, and 50i). To remove visible flicker, the BVM E251 is equipped with flicker-free mode.
- DC Operation
- The BVM E251 can be DC operated. This feature gives more flexibility and mobility to users who want the larger size screen for the on-set application.
- Support for 4K Production
- The BVM E251 is an HD monitor that conforms to ITU-R BT.709 color space. Responding to an increase of the demand of using an HD monitor in a 4K production, the monitor supports ITU-R BT.2020 color space and transfer matrix.
- Accepts Computer Signals via HDMI
- The BVM E251 accepts various computer signals input up to 1920 x 1080 through its HDMI connector. It is also equipped with Digital Cinema 2048 x 1080 signals.
- Picture Performance
- Sony TRIMASTER EL technology combines the ultimate performance of Sony OLED display with the TRIMASTER technology to provide the highest level of picture performance:
- Wide viewing angle
- Accurate Black Reproduction
- High purity and accurate color reproduction
- Quick response time with virtually no motion blur
- Very high contrast ratio
- Sony Display Engine
- High-precision signal processing engine has been developed to fulfill the reference monitor criteria and is optimized to maximize OLED panel performance. This engine incorporates 12-bit output accuracy at each process, and provides both a high quality I/P conversion algorithm and a highly accurate color management system.
- Multi-Format Signal Support
- The BVM E251 monitor can accept almost any SD or HD video format, such as analog composite video, HDMI and SDI, and variable computer signals through HDMI.
- Auto White Balance
- The color temperature and white balance of BVM Series monitors can be automatically adjusted by the Auto White Balance function using specified color temperature probes, such as:
- Konica Minolta: CA-210, CA-310, CS-200
- DK-Technologies: PM5639/06
- X-Rite: i1 (Eye-One) Pro and i1Pro2
- Photo Research: PR-655, PR-670
- Klein: K-10
- Jeti: Specbos 1211
- I/P Conversion Technology
- The BVM E251 monitor uses I/P conversion technique that keeps artifacts that are often seen in flat panel displays to a minimum such as edge jaggedness, conversion errors, and more.
- Low Video Delay
- The BVM E251 display engine ensures a picture delay that is less than one field.
- Panel Calibration
- Every BVM E251 monitor is carefully calibrated at the factory on an individual basis, providing a high level of accuracy and stability for characteristics such as gamma and uniformity.
- Interlaced Display Mode
- The monitor reproduces interlaced signals, emulating CRT monitors.
- Picture & Picture Mode
- The Picture & Picture function of the BVM E251 allows simultaneous display of two input signals on the monitor's screen. This function is extremely convenient for making instant adjustments to two input sources. Four modes are available to provide users with enhanced operational flexibility: Side by Side, Wipe, Butterfly, and Blending.
- Pixel Zoom Mode
- A selected area of the displayed picture can be enlarged on a pixel basis, up to eight times in size both vertically and horizontally.
- Gamut Error Display
- The monitor incorporates a Gamut Error Display function that detects irregular signal input.
- S-Log3 and S-Log2 EOTF
- The monitor incorporates EOTF tables to reproduce images captured using S-Log3 and S-Log2. S-Log3 and S-Log2 are techniques used in Sony's digital cinematography cameras that allows the full latitude of the camera sensor to be maintained throughout the production chain.
- 2K Picture Resolution
- The 2048 Image Slide function of the BVM E251 allows 2K resolution (2048 x 1080p) images to be mapped, pixel-to-pixel, on the Full HD (1920 x 1080p) panel without picture degradation. The monitor is equipped with a slide function that allows the display of missing pixels in native mode from the left and right part of the picture.
- Scan Switch
- The Scan Switch function allows switching between under scan (-3%), normal scan (0%), and over scan (5%).
- Native Scan (Pixel-To-Pixel Display)
- The Native Scan function is a unique display mode that reproduces images without changing the input signal's pixel count.
- HD Frame Capture Mode
- The HD Frame Capture function of the BVM Series allows a picture frame from the 3G-SDI and HD-SDI input to be captured and saved as a picture file on a USB memory media (BKM-17R) or a Memory Stick media (BKM-16R) (both sold separately). This picture file can be used as a reference for various purposes, for example, for picture-tone adjustments between past images and for camera-framing adjustments.

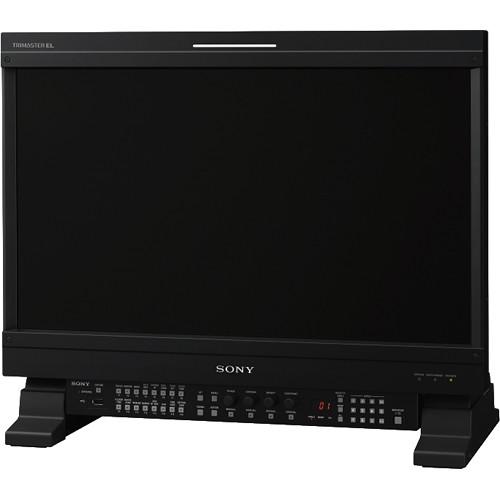

- Separate Control Unit with USB Memory Slot
- A separate BKM-17R Monitor Control Unit is available for the BVM E251. It is equipped with a USB Memory slot enables users to download and save all monitor set-ups such as input channel configuration, control preset adjustments, white balance settings and maintenance parameters.
- Centralized Monitor-Wall Control
- The BVM Series monitor and the BKM-17R Monitor Control Unit are equipped with an Ethernet port, allowing remote control of display parameters across a standard Ethernet connection. One BKM-17R Monitor Control Unit can control up to 32 BVM monitors.
- Character Off Button
- To facilitate parameter adjustments, the On-Screen Menu indication can be taken off the screen, while in Menu mode. The On-Screen Menu indication can be toggled on or off with a simple press of a button on the BKM-17R's front panel.
- Copy Function for Monitor Setup and Adjustment Data
- The optional BKM-17R Monitor Control Unit includes a USB Memory slot to save and load monitor configuration and adjustment settings. This is useful for multiple monitor systems, allowing the transfer of one monitor's setup and adjustment data to another. This data can also be transferred via the BVM's Ethernet connection.
- +12dB Chroma UP Function
- A Chroma UP button located on the front panel of the BKM-17R allows the chroma level to be boosted by +12dB. This is a convenient feature for adjusting camera white balance with a higher degree of accuracy.
- Marker Settings
- BVM Series monitors can display various markers, including an aspect marker, safe area marker and center marker. In addition to this flexible selection of marker types, detailed display settings of each marker are offered. For example, the color, brightness, horizontal/vertical position and width of aspect markers can all be controlled, while the height and width of safe area markers can be adjusted.
- Aspect Switch
- The aspect ratio can be switched between 4:3, 16:9, 2.39:1 and 1.896:1 depending on the input signal.
- Wide Variety of Functions
- The user has a wide variety of over 40 functions to choose from. Each of these can be assigned to any of the 16 function buttons (F1 to F16) on the BKM-17R controller. Press ENTER to display the F1 to F8 (or F9 to F16) button assignment on screen.
- Status Display
- Simply assign STATUS to one of the function buttons (F1 to F16) on the BKM-17R Monitor Control Unit. The user can instantly grasp the whole monitor status and configurations without having to search through menus.
In the Box Sony BVM E251 24.5" TRIMASTER EL OLED Critical Reference Monitor AC Power Cord AC Plug Holder HDMI Cable Holder Handle 2 x Rackmount Bracket (L/R) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony BVM E251 24.5" TRIMASTER EL OLED Critical Reference Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

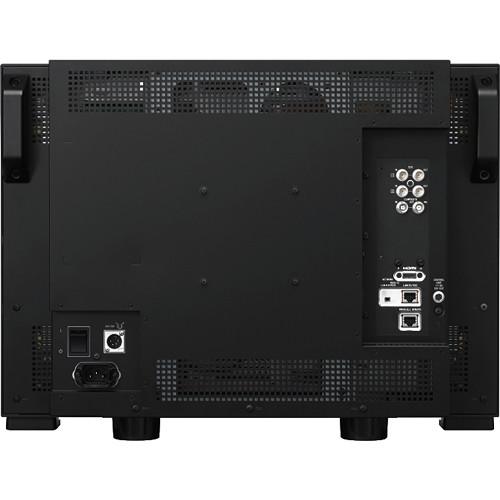

Technical parametersSony BVM E251 Specs | Panel | OLED panel | | Picture Size | 24.5" (622 mm) | | Effective Picture Size (H x V) | 21.5 x 12.1" (546.1 x 307.3 mm) | | Resolution (H x V) | 1920 x 1080p (Full HD) | | Aspect Ratio | 16:9 | | Pixel Efficiency | 99.99% | | Panel Drive | RGB 10-bit | | Panel Frame Rate | 48 Hz / 50 Hz / 60 Hz (48 Hz and 60 Hz are also compatible with 1/1.001 frame rates) | | Viewing Angle | 89°/89°/89°/89° (typical) (up/down/left/right contrast >10:1) | | Luminance | 100 cd/m2 (preset1 to preset5 at EOTF 2.4)
48 cd/m2 (preset (DCI)) (1.0 Vp-p reference signal, 100% white signal input) | | Color Temperature | D55, D61, D65, D93, DCI, DCI XYZ and user 1-5 (5000K to 10,000K adjustable) | | Color Space | ITU-R BT.2020*2, ITU-R BT.709, EBU, SMPTE-C, DCI-P3*2, BVM E251 Native, S-Gamut/S-Gamut3, S-Gamut3.cine | | Transmission | Matrix: ITU-R BT.2020 (Non-constant luminance is supported), ITU-R BT.709, ITU-R BT.601, SMPTE 240M | | EOTF | 2.2, 2.4, 2.6, CRT, S-Log3 (SDR), S-Log2 (SDR) | | Input | SDI: 2 x BNC
HDMI: 1 x (HDCP correspondence, deep color correspondence)
Composite Video: 1 x BNC
Parallel Remote: 1 x RJ45 modular connector 8-pin (Pin-assignable)
Serial Remote (LAN): 1 x Ethernet (10BASE-T/100BASE-TX), RJ45
DC Input: 1 x XLR | | Output | SDI: 2 x BNC
Composite Video: 1 x BNC
12 VDC Output: 1 x Circle 4-pin (female) | | Power Requirement | 100 to 240 VAC, 1.2 to 0.6 A, 50/60 Hz, 24 to 28 VDC, 4.5 to 3.9 A | | Power Consumption | Approximately 117 W (AC power supply)
Approximately 107 W (DC power supply)
Approximately 55 W (AC power supply)
Approximately 51 W (DC power supply) average power consumption in the default status | | Operating Temperature | 32 to 95°F (0 to 35°C)
Recommended: 68 to 86°F (20 to 30°C) | | Operating Humidity | 30% to 85% (no condensation) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Storage Humidity | 0% to 90% | | Pressure Level | Operating, Storage, and Transport: 700 hPa to 1060 hPa | | Dimensions | 22.7 x 16.7 x 5.8" (576 x 424 x 148 mm)
Height without Legs: 16" (408 mm) | | Weight | Approximately 22.6 lb (10.3 kg) |
