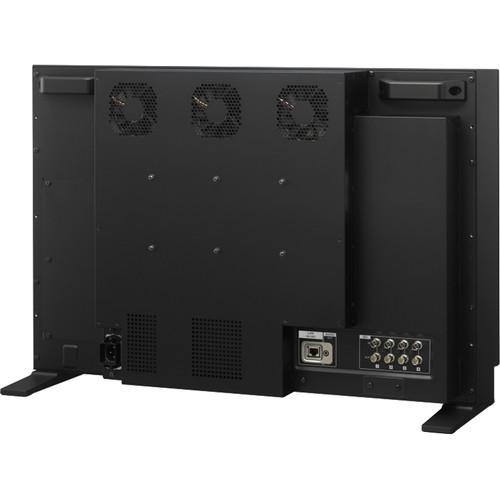

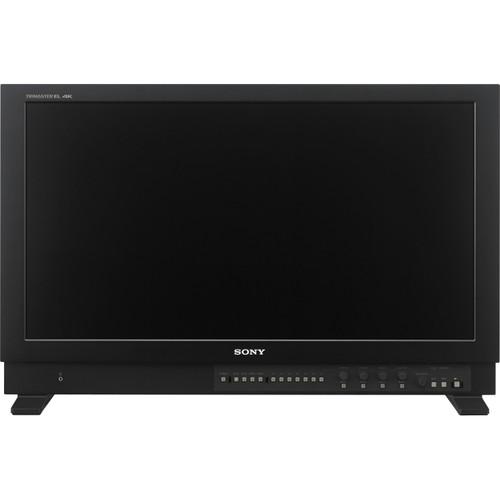

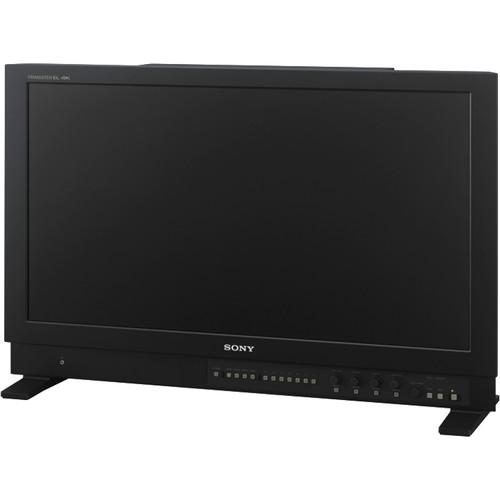

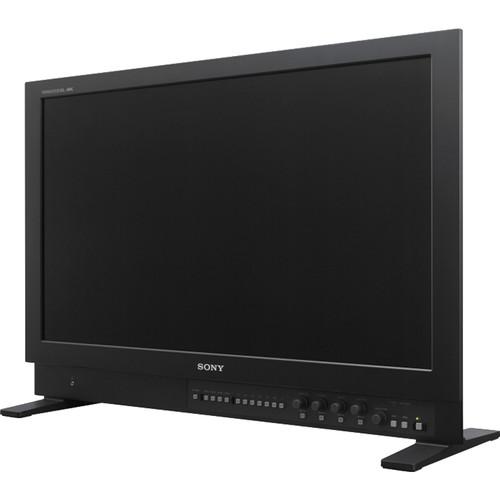

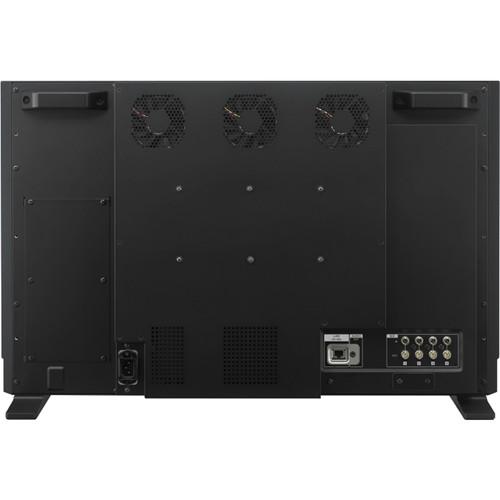

Product description Sony's BVM-X300 4K OLED Master Monitor is a reference-quality monitor designed for color-critical applications in studio and post-production. The display panel itself can display 10-bits of tonality, and the processor can handle 12-bits of color information. Combined with the OLED panel, the processing capabilities yield smooth color transitions and true blacks which remain consistent over a wide viewing angle of 178°. With support for HDR, S-Log, and wider color spaces such as BT.2020 and DCI-P3, the BVM-X300 is designed beyond SD and HD broadcast specifications for producing UHD and cinema 4K content. The rear panel hosts the available SDI and HDMI I/O. Four BNC spigots can be connected to support HD and 4K formats up to 60p at all resolutions. With the SDI outputs connected, the display can be connected in-line with other equipment. Use the front panel controls to set custom functions, display markers, and adjust the display parameters. HDMI 2.0 input is also available for DCI/UHD 4K content in HDR or SDR. - Full 4K Picture Resolution
-
- The OLED panel is equipped with 4K (4096 x 2160) pixels, making the monitor ideal for covering cinema applications and 4K color grading

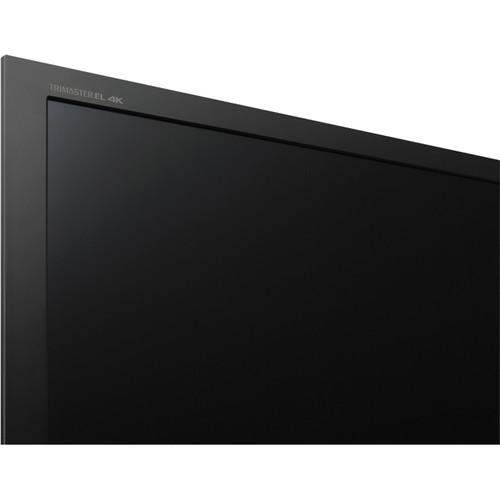

- TRIMASTER EL is capable of reproducing accurate black with each individual pixel, enabling users to evaluate each picture image faithfully to the signal
- High Dynamic Range
-
- Offers remarkable image reproduction
- Reproduces peak brightness realistically with colors that are typically saturated in a conventional standard dynamic range
- When [S-Log3 (Live HDR)] is selected, the monitor reproduces an S-Log3 HDR image with System Gamma, which is optimized for HDR live production
- EOTFs of S-Log3, S-Log3 (Live HDR), S-Log2, SMPTE ST2084, HLG SG1.2, and HLG SG variables are supported
- Supports DCI P3 and ITU-R BT.2020 Wide Color Spaces
-
- Supports a wide color gamut conforming to DCI-P3 and most of the ITU-R BT.2020 standard
- S GAMUT3.cine and S GAMUT3 color space are also supported to achieve coherent cinematography production workflow with Sony’s 4K cinematography cameras
- HDMI and SDI Inputs
- This master monitor supports HDMI and both 2 Sample Interleave (2SI) and Square Division signals on SDI. HDMI support HD signals and 4K/UHD signals up to 560 fps, YCbCr 4:2:2 12-bit. It also supports HD signals including 3G-SDI single link for 1080p50/60, YCbCr 4:2:2 10-bit, and 3G-SDI dual link for 1080p50/60, 4:4:4 12/10-bit. 3G/HD-SDI Quad link and Dual link are supported for 4K/UHD and 3G/HD-SDI Single link and Dual link are supported for 2K/HD. XYZ signals as well as RGB and YCbCr are supported.
- Multi-Format Capability
-
- Displays various formats including 4K, 2K, UHD, and HD at various frame rates
- 3G/HD-SDI Quad link and Dual link are supported for 4K/UHD
- 3G/HD-SDI Single link and Dual link are supported for 2K/HD
- Supports XYZ signals as well as RGB and Y/CB/CR
- Gamut Marker
-
- When Rec.2020 colors out of Rec.709 or DCI-P3 color gamuts are detected, this master monitor indicates this with a zebra pattern over the relevant area of the picture
- Gamut Marker is a convenient feature that instantly shows the viewers such colors
- Flicker-Free Mode
-
- TRIMASTER EL OLED panel’s quick response and scan-driving performance deliver high-quality picture with virtually no motion blur
- This mode removes a flicker visible when a lower frequency signal is displayed (24p, 24PsF, and 50i)
- Interlace Mode
-
- Offers an interlace display feature for 1080i input, enabling input to be presented as a true interlace display
- For Native Scan function, Interlace Display mode offers faithful reproduction of the input signal, and the displayed interlace fields are free from the picture degradation that can occur as a result of typical I/P conversion processes
- Safe Area and Aspect Markers
-
- Displays various markers including an aspect marker, safe area marker, and center marker
- In addition to this flexible selection of marker types, detailed display settings of each marker are offered.
- Color, brightness, horizontal/vertical position, and width of aspect markers can all be controlled, while the height and width of safe area markers can be adjusted
UPC: 027242885028 In the Box Sony BVM-X300 4K V2 OLED Master Monitor AC Power Cord AC Plug Holder Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony BVM-X300 4K V2 OLED Master Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony BVM-X300 V 2.0 Specs | | | Panel Type | OLED | | Size | 29.5" / 75 cm | | Area | 364.1 in² / 2321.9 cm² (26.25 x 13.9" / 66.4 x 35 cm) | | Resolution | 4096 x 2160 | | Aspect Ratio | 17:9 / 1.89:1 | | Pixel Efficiency | 99.99% | | Bit Depth | 10-bit (1.07 billion colors) | | Refresh Rate | 48/50/60 Hz (48 and 60 Hz are also compatible with 1/1.001 frame rates) | | Viewing Angle (H/V) | 178/178° | | Color Temperature | D55, D61, D65, D93, DCI*1, custom (5,000 K to 10,000 K adjustable), DCI XYZ | | Brightness | 100 cd/m² | | Color Spaces Supported | ITU-R BT.2020*2, ITU-R BT.709, EBU,SMPTE-C, DCI-P3, BVM-X300 Native*3, S-GAMUT3, S-GAMUT3.cine | | EOTF | 2.2, 2.4, 2.6, CRT, 2.4 (HDR), S-Log3 (HDR), S-Log2 (HDR), SMPTE ST 2084, HLG SG1.2 (HDR), HLG SG Variable (HDR) | | | | Format Support | 4096 x 2160p 24/25/30/48/50/60
4096 x 2160PsF 24/25/30
3840 x 2160p 24/25/30/48/50/60
3840 x 2160PsF 24/25/30
2048 x 1080p 24/25/30/48/50/60
2048 x 1080PsF 24/25/30
1920 x 1080p 24/25/30/48/50/60
1920 x 1080PsF 24/25/30
1920 x 1080i 50/60
1280 x 720p 24/25/30/50/60
Note: drop-frame formats (frame rate/1.001) are supported | | Chroma Subsampling | 8/10/12-bit 4:2:2 YCbCr, 4:4:4 YCbCr, 4:4:4 RGB, 4:4:4 XYZ | | | | Inputs | 4 x BNC, Quad 3G/3G/HD-SDI
1 x HDMI type A, v2.0
1 x Ethernet, control | | Outputs | 4 x BNC, Quad 3G/3G/HD-SDI
1 x 3.5 mm analog stereo audio | | Environmental | Operating Temperature: 32 to 95°F / 0 to 35°C
Storage Temperature: -4 to 140°F / -20 to 60°C
Operating Humidity: 30-85%, non-condensing
Storage Humidity: 0-90%
Storage Pressure: 700-1060 hPa | | Dimensions | 29.25 x 20 x 8.1" / 74 x 48 x 21 cm | | Weight | 35.3 lb / 16 kg | | | | Package Weight | 45.45 lb | | Box Dimensions (LxWxH) | 35.0 x 24.8 x 11.3" |
