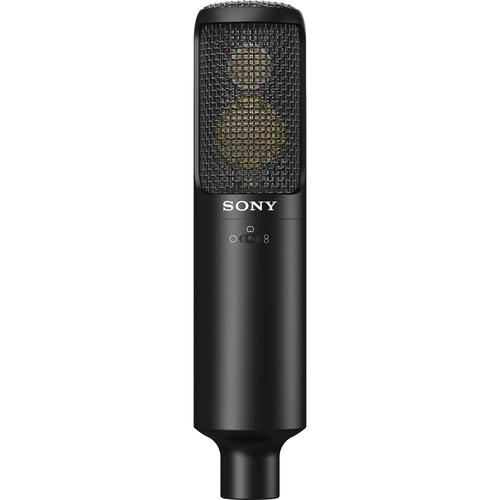

User Manual for Sony C-100 High-Resolution 2-Way Microphone Click to enlarge the picture
Contents of the user manual for the Sony C-100 High-Resolution 2-Way Microphone
- Product category: Large Diaphragm Condenser Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Large Diaphragm Condenser
 |
User manual for the Sony C-100 High-Resolution 2-Way Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description NAMM 2018: New Sony C-100, ECM-100U, ECM-100N Studio Microphones Released Read More - Sony C100 & ECM100 Hi-Res Mics - Todd Whitelock at Power Station/BerkleeNYC
The Sony C-100 is a 2-way condenser microphone capable of recording high-resolution material up to 50 kHz and is well suited for capturing vocals and critical instruments. The microphone features selectable pickup patterns with cardioid, omni, and figure-8 to choose from. Additionally, there is a 70 Hz low cut filter to help remove rumble, while the -10dB pad helps the mic accommodate louder signals without distorting.

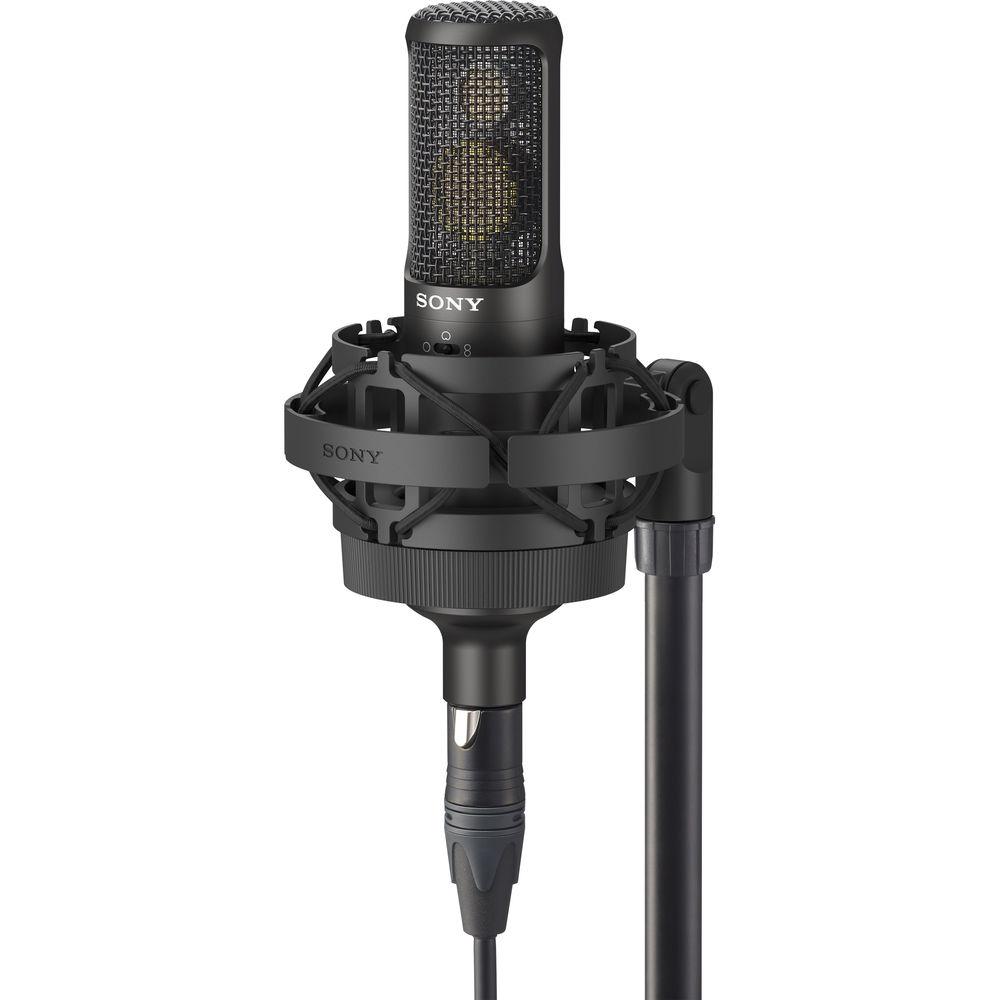

The 2-way capsule features a 25mm diaphragm for capturing frequencies from 20 Hz to 25 kHz, while the secondary 17mm diaphragm captures from 25 kHz to 50 kHz. The microphone borrows the noise elimination structure used in the C-800G microphone to prevent acoustic vibration resulting in low noise and clear sound. The Sony C-100 ships with a shock mount, wind screen, mic stand adapter, and a carrying case. -
- Professional-Quality Sound: Two-way diaphragm structure realizes both broad high range and resonant mid-low range and gives great vocal presence
- Wide Frequency Response: The C-100 microphone has a broad frequency response (20 Hz to 50kHz) and provides superb sound reproduction quality for High-Resolution Audio
- Noise Elimination Construction: Two-part metallic body structure employed in C-800G microphone prevents acoustic vibration resulting in low noise and clear sound
- Switchable Polar Patterns: The C-100 microphone features switchable cardioid, omni-directional, and figure-8 polar patterns for various recording applications
- Low-Cut Filter: Low-cut filter switch helps eliminate low-frequency noise and proximity effect
- Pad Switch: A -10dB pad switch on C-100 microphone provides added headroom and minimizes distortion caused by transient peaks.
UPC: 027242910911 In the Box Sony C-100 High-Resolution 2-Way Microphone Shock Mount Windscreen Mic Stand Adapter Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony C-100 High-Resolution 2-Way Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony C-100 Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient
Pressure Operated | | Transducer | Condenser, Electret Condenser | | Diaphragm | 0.98" / 25 mm (Condenser)
0.67" / 17 mm (Electret Condenser) | | Polar Pattern | Cardioid, Figure-8, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 50 kHz | | Signal to Noise Ratio | Cardioid: 76 dB A-Weighted
Omnidirectional: 71 dB A-Weighted
Figure 8: 73 dB A-Weighted | | Equivalent Noise Level | Cardioid: 19 dB A-Weighted
Omnidirectional: 24 dB A-Weighted
Figure 8: 22 dB A-Weighted | | Maximum SPL | Cardioid: 132 dB SPL RMS
Omnidirectional: 138 dB SPL RMS
Figure 8: 136 dB SPL RMS | | Pad | -10 dB | | Impedance | 90 Ohms ± 15% | | Sensitivity | Cardioid: 31 dB at 1 kHz
Omnidirectional: 37 dB at 1 kHz
Figure 8: 35 dB at 1 kHz | | Low-Cut Filter | @ 70 Hz | | Dynamic Range | Cardioid: 113 dB
Omnidirectional: 114 dB
Figure 8: 114 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 4.5 mA | | Operating Voltage | 44 to 52 V | | Length | 6.89" / 175 mm | | Diameter | 1.57" / 40 mm | | Weight | 10.23 oz / 290 g | | | | Package Weight | 4.05 lb | | Box Dimensions (LxWxH) | 12.4 x 10.8 x 5.1" |
