User Manual for Sony C-800G Studio Tube Condenser Microphone PAC Click to enlarge the picture
Contents of the user manual for the Sony C-800G Studio Tube Condenser Microphone
- Product category: Tube Microphones Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Tube Microphones
|
User manual for the Sony C-800G Studio Tube Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|

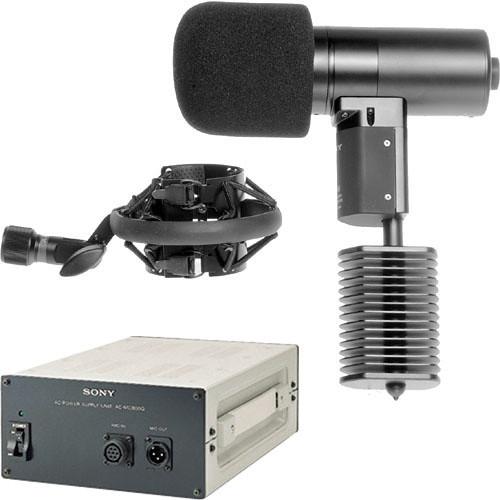

Product description The C-800G Studio Tube Condenser Microphone PAC from Sony is a tube condenser microphone kit designed for vocal and instrument recording where professional-level signal reproduction is crucial. At the core of the C-800G's excellent sonic character is a 6AU6 vacuum tube, which provides outstanding warmth and presence to the input signal to make the microphone a viable solution for instrument and vocal recording.The large diaphragm condenser element yields a true frequency response of 20 Hz to 18 kHz, with a dynamic range of 113 dB. The result is an even, flat frequency response that maintains detail with low signals and transients. Cardioid and Omni-directional polar patterns are user switchable at the front of the microphone. This allows complete pickup control for instrument and vocal capturing. The microphone sports a Peltier-based cooling system, keeping the vacuum tube at a safe operating temperature and adding to the unique look of the microphone. - Vacuum Tube Electronics
- At the core of the C-800G's excellent sonic character is a 6AU6 vacuum tube. The tube provides outstanding warmth and presence to the input signal making the C-800G a viable solution for instrument and vocal recording.
- Exceptional Signal Response
- The large diaphragm condenser element yields a true frequency response of 20 Hz to 18 kHz with a dynamic range of 113 dB. The result is an even, flat frequency response that maintains detail with low signals and transients.
- Switchable Polar Patterns
- Cardioid and Omni-directional polar patterns are user switchable at the front of the microphone. This allows complete pickup control for instrument and vocal capturing.
- Peltier-Based Cooling System
- The microphone sports a Peltier-based cooling system, keeping the vacuum tube at a safe operating temperature and adding to the unique look of the microphone.
UPC: 027242708327 In the Box Sony C-800G Studio Tube Condenser Microphone PAC Shockmount Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony C-800G Studio Tube Condenser Microphone PAC in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony C-800G Specs | | | Transducer | Condenser | | Tube | Yes | | Polar Pattern | Cardioid, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 18 kHz | | Signal to Noise Ratio | Cardioid: 76 dB
Omnidirectional: 73 dB | | Equivalent Noise Level | Cardioid: 18 dB
Omnidirectional: 21 dB | | Maximum SPL | Cardioid: 131 dB SPL
Omnidirectional: 134 dB SPL | | Sensitivity | Cardioid: 32 dB
Omnidirectional: 35 dB | | Dynamic Range | 113 dB | | | | Cable Length | 26' / 7.9 m | | Length | 9.38" / 238.25 mm | | Diameter | 2.25" / 57.15 mm | | Weight | 1.16 lb / 0.53 kg | | | | Package Weight | 30.0 lb | | Box Dimensions (LxWxH) | 25.0 x 24.0 x 15.0" |
