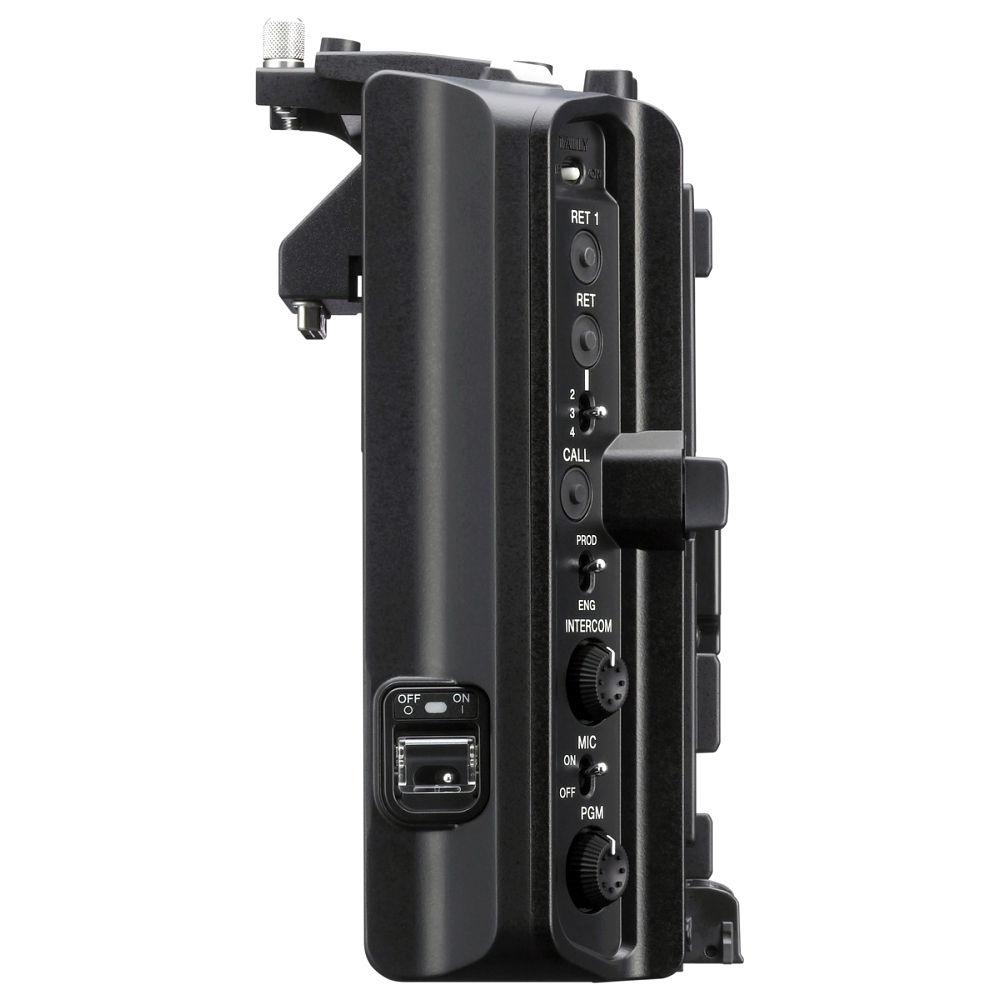

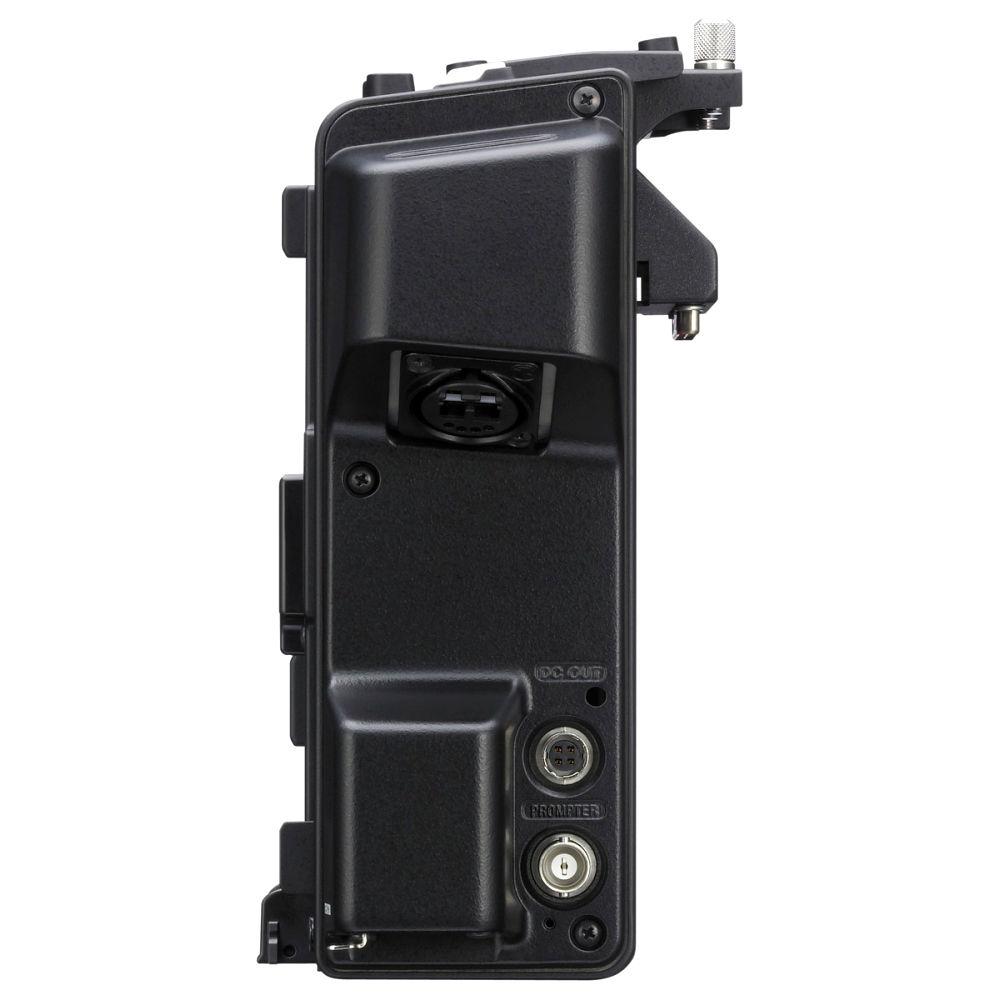

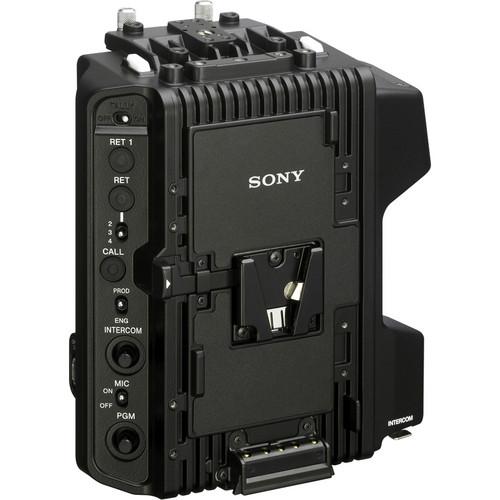

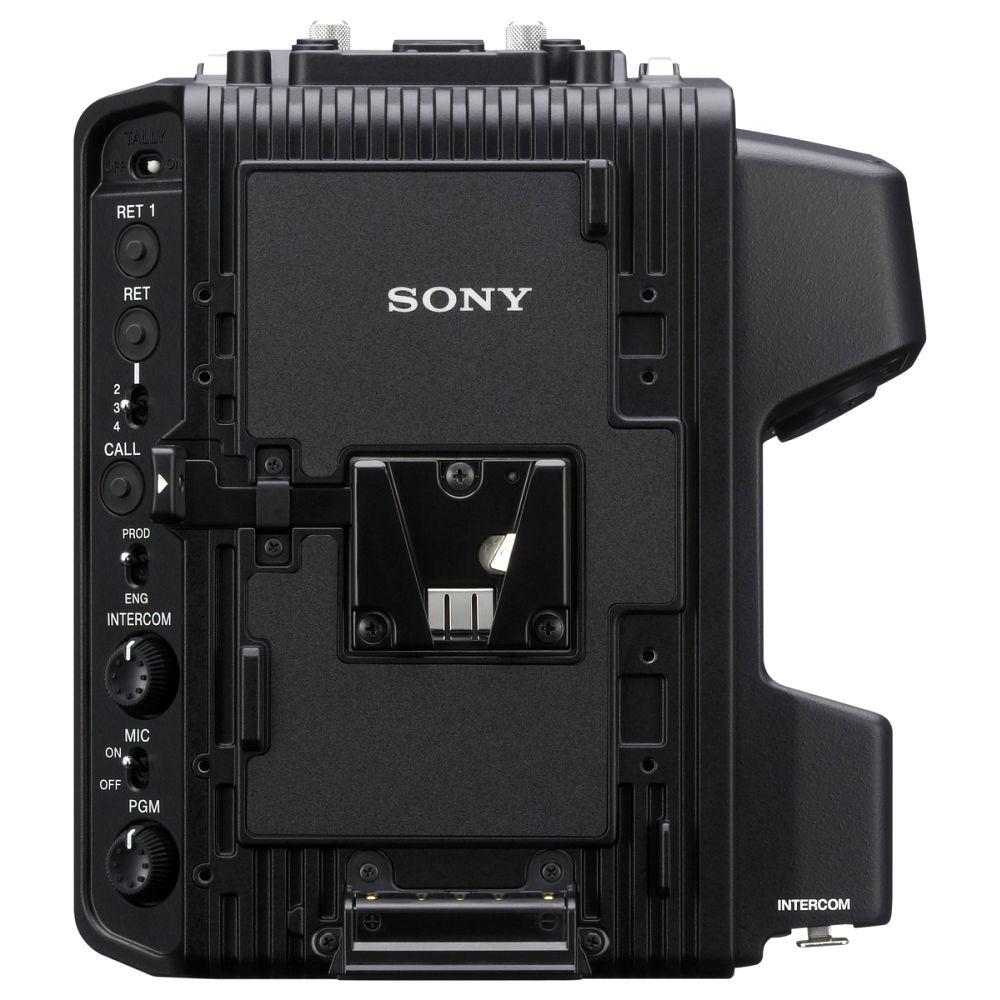

User Manual for Sony CA-FB70 Optical Fiber Camera Adapter Click to enlarge the picture
Contents of the user manual for the Sony CA-FB70 Optical Fiber Camera Adapter
- Product category: Camera Adapters & Interfaces Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Camera Adapters & Interfaces
 |
User manual for the Sony CA-FB70 Optical Fiber Camera Adapter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The Sony CA-FB70 Optical Fiber Camera Adapter is designed for use with the HXC-D70 HD Transmission Studio Camera and the PMW320 / 350 / 500 XDCAM Camcorders. - Cost-effective optical fiber transmission solution for the HXC-D70 HD studio camera and the PMW-320 / 350 / 500 XDCAM camcorders
- High-quality & long distance image transmission
In the Box Sony CA-FB70 Optical Fiber Camera Adapter Operation Instructions CD-ROM Cable Clamp Belt (1 set) Accessory Shoe Kit Warranty Booklet CA Bracket 2 x Screw for CA bracket 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony CA-FB70 Optical Fiber Camera Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony CA-FB70 Specs | | | Camera | Camcorder: 50-pin (1x) | | CCU | Optical multi-connector | | Output | Prompter: BNC (1x), 1 Vpp, 75 Ω | | Intercom | XLR 5-pin, female (1x) | | DC Input | XLR 4-pin (1x) | | DC Output | 4-pin (1x) | | | | Operation Temperature | 14 to 113°F (-10 to 45°C) | | Power Supply | 48 VDC via CCU connector / DC 11 V to 17 V via DC Input | | Power Consumption | Maximum 75 W (at 48 VDC), maximum 70 W (at 12 VDC) (including power supply for the camera) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Dimensions (W x H x D) | 6.25 x 6.75 x 3.62" (158.75 x 171.45 x 91.94 mm) | | Weight | 1.75 lb (0.79 kg) | | | | Package Weight | 2.85 lb | | Box Dimensions (LxWxH) | 11.0 x 8.7 x 6.8" |
