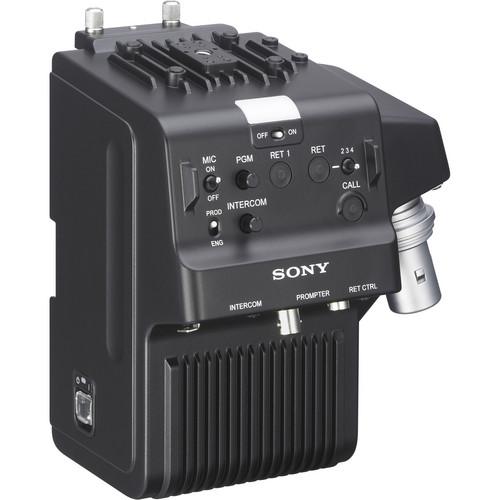

User Manual for Sony CA-TX70 Digital Triax Camera Adapter for HXC-D70, PMW320 400 500 Click to enlarge the picture
Contents of the user manual for the Sony CA-TX70 Digital Triax Camera Adapter
- Product category: Camera Adapters & Interfaces Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Camera Adapters & Interfaces
|
User manual for the Sony CA-TX70 Digital Triax Camera Adapter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The Sony CA-TX70 Digital Triax Camera Adapter for HXC-D70, PMW320/400/500 is for camera owners who wish to integrate their cameras into a production environment that uses Digital Triax to control the camera functions. It attaches to the camera/camcorder body and adapts the HXC-D70, PMW320/400/500 for use with an available HXCU-100 camera control unit, expanding the capabilities of your camera.
When connected to the compatible HXCU-100 CCU (not included), the system provides the camera with tally, intercom connections, mic switch, and return signal select. The CA-TX70 features a prompter output, and the adapter allows the camera/camcorder to communicate with a CCU at distances up to 1968' when using the appropriate cable and CCU. - Triax System
- Allows the HXC-D70, PMW200/400/500 to interface with Triax cable systems, providing the following features when using an available CCU:
- Tally (red/green light)
- Intercom functions including connector for headset, intercom level adjustment, mic switch, and call button
- Prompter output
- Return signal allows the operator to select and view what the other camera operators are shooting
- Requirements
-
- The adapter allows compatible cameras to interface with an HXCU-100
- A specific firmware version is required for the HXC-D70, PMW-320/350, or PMW-500 to attach the CA-FB70 or CA-TX70. Please contact your nearest Sony sales office for details
- When combining PMW-320/350/500 camcorders and the CA-FB70 or the CA-TX70, TC (timecode), REC trigger signals are unavailable on the SDI output from the camera CCU. For more details, please contact your nearest Sony office
- CBK-HD02 is required when the CA-FB70 or CA-TX70 is configured with PMW-500. CBK-CE01 is required when the CA-FB70 or CA-TX70 is configured with PMW-350/320
In the Box Sony CA-TX70 Digital Triax Camera Adapter for HXC-D70, PMW320/400/500 Cable Clamp Belt Set Accessory Shoe Kit CA Bracket 2 x Screw for CA Bracket Limited 1-Year Warranty on Parts Limited 90-Day Warranty on Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony CA-TX70 Digital Triax Camera Adapter for HXC-D70, PMW320 400 500 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony CA-TX70 Specs | Inputs/Outputs | Camera/Camcorder
1 x 50-Pin
CCU
Triax Connector
Prompter Output
1 x BNC (1 Vpp, 75 Ohms)
Intercom
1 x 5-Pin XLR, Female
Return Control
1 x 6-Pin | | Power Supply | 180 VDC via CCU Connector | | Power Consumption | Max: 95 W | | Operating Temperature | 14 to 113°F / -10 to 45°C | | Storage Temperature | -4 to 140°F / -20 to 140°C | | Dimensions (W x H x D) | 5.6 x 6.9 x 5.5" / 14.2 x 17.5 x 13.9 cm | | Weight | 3.64 lb / 1.65 kg | | | | Package Weight | 4.5 lb | | Box Dimensions (LxWxH) | 9.5 x 8.4 x 8.3" |
