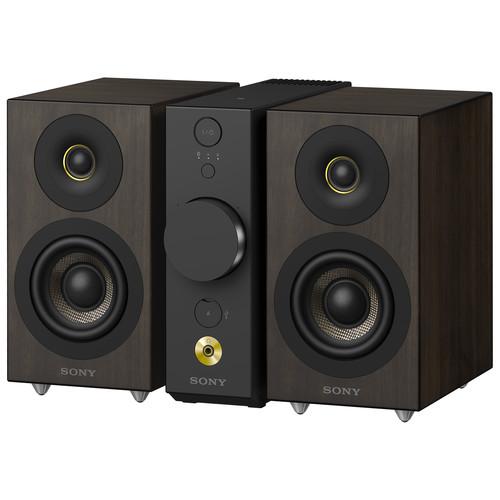

User Manual for Sony CAS-1 High-Resolution Desktop Audio System with Headphone Amplifier Click to enlarge the picture
Contents of the user manual for the Sony CAS-1 High-Resolution Desktop Audio System
- Product category: Wireless Home Speakers Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Wireless Home Speakers
 |
User manual for the Sony CAS-1 High-Resolution Desktop Audio System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|

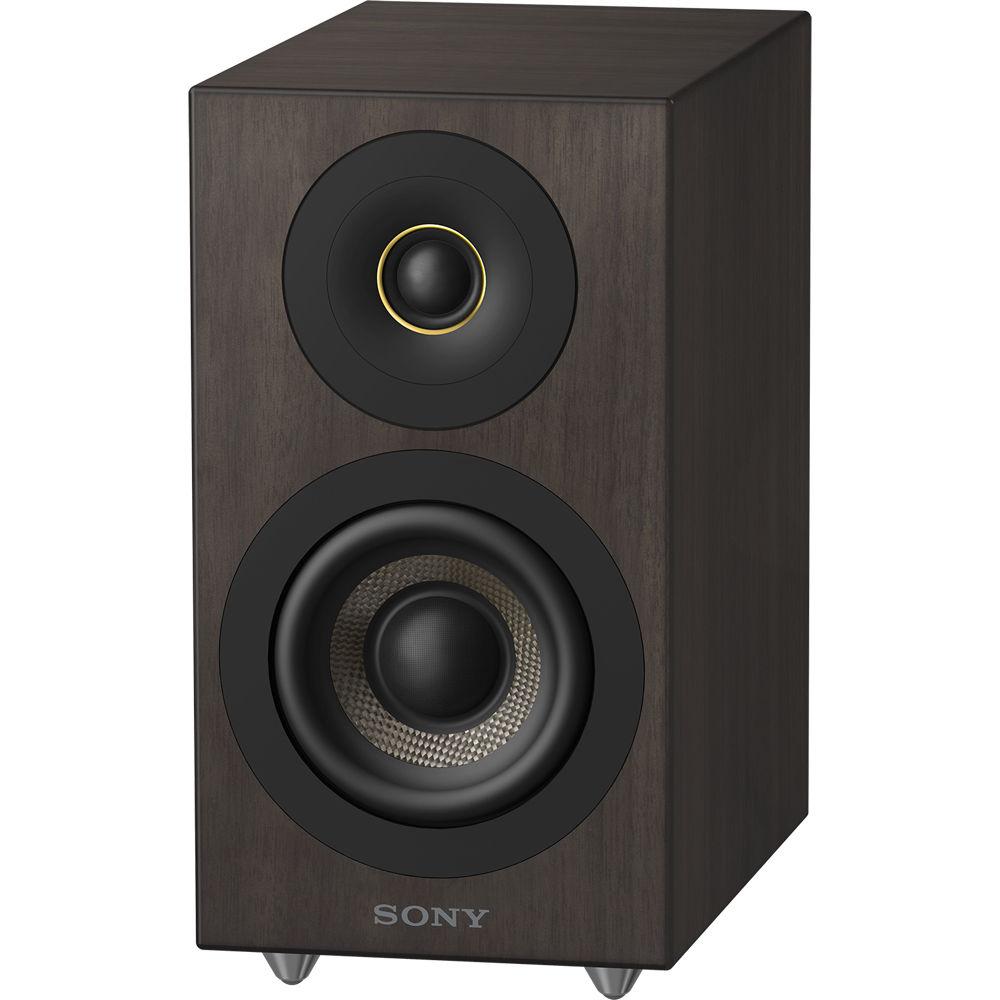

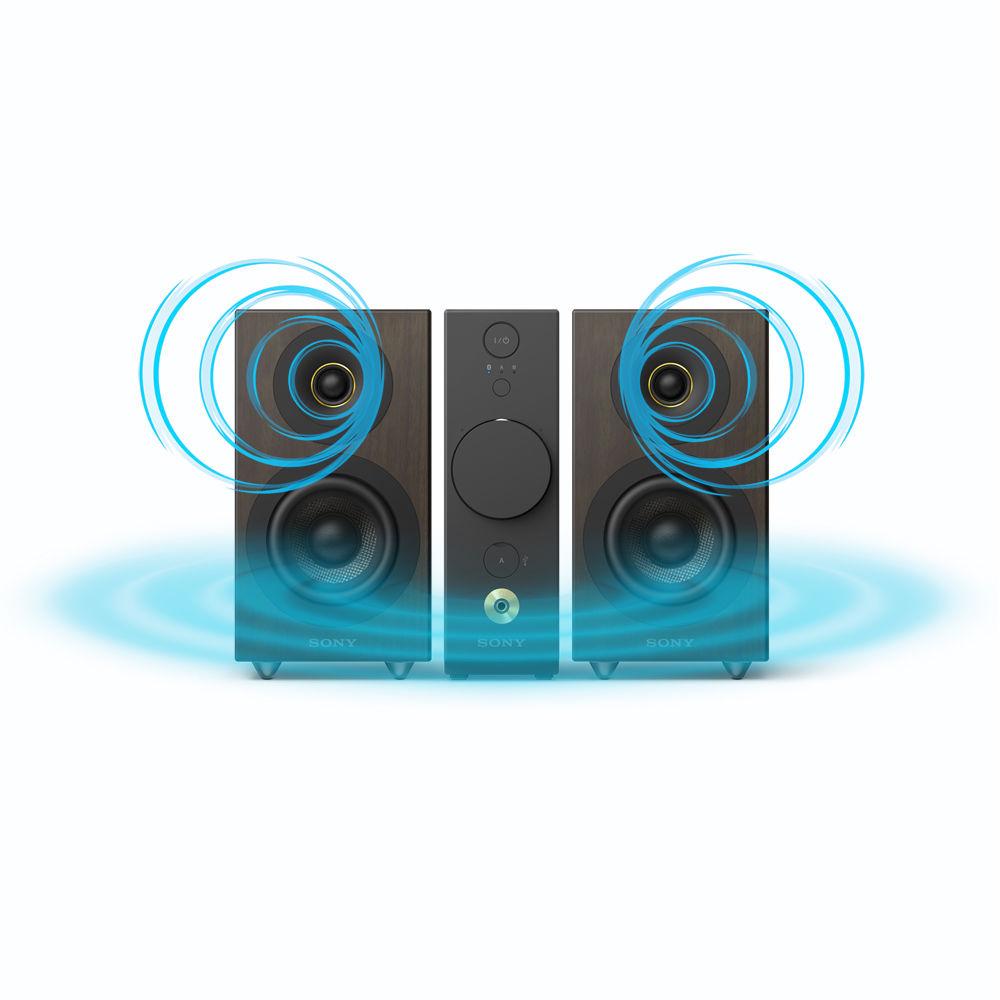

Product description Featuring the ability to play high-resolution audio from USB connections—or even over Bluetooth via Sony's proprietary LDAC technology—the CAS-1 is a desktop audio system with an integrated headphone amp. It's capable of driving a total of 40W RMS to its dual speakers, both of which are configured with 0.6" soft-dome tweeters and 2.4" cone-type woofers.

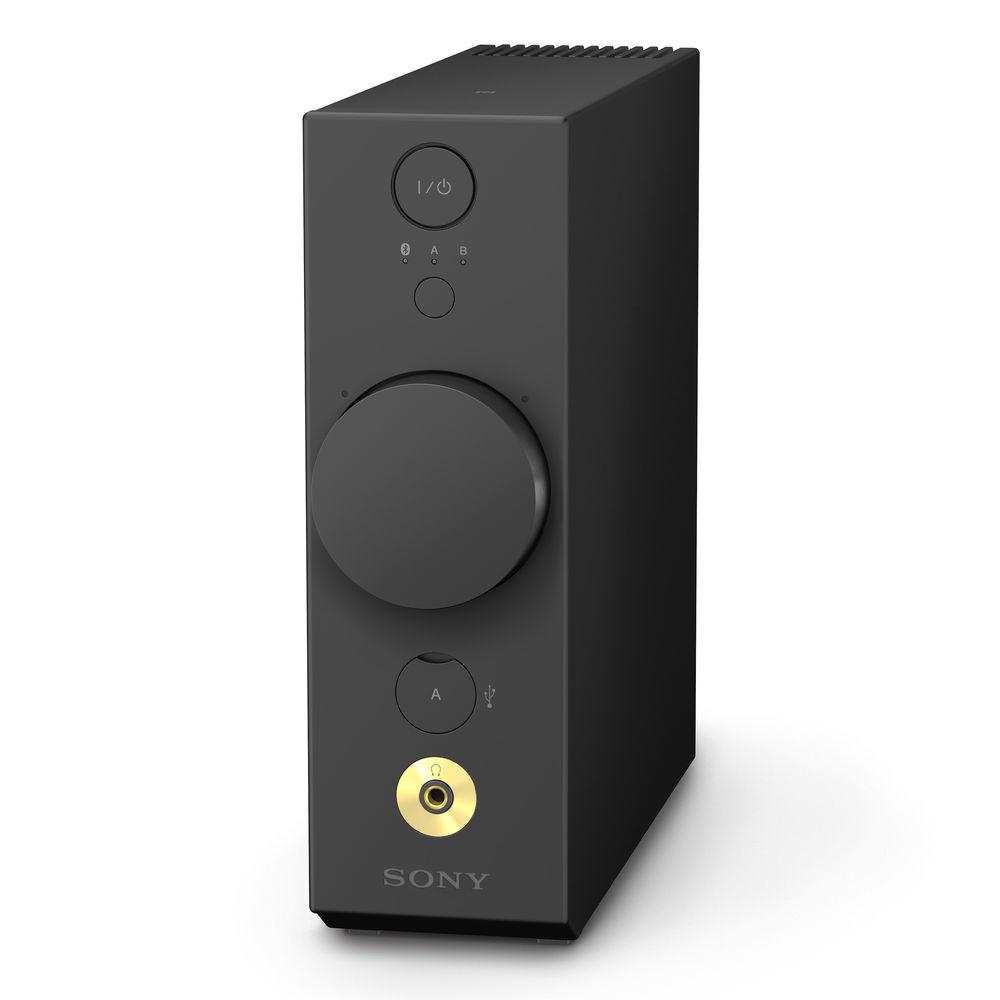

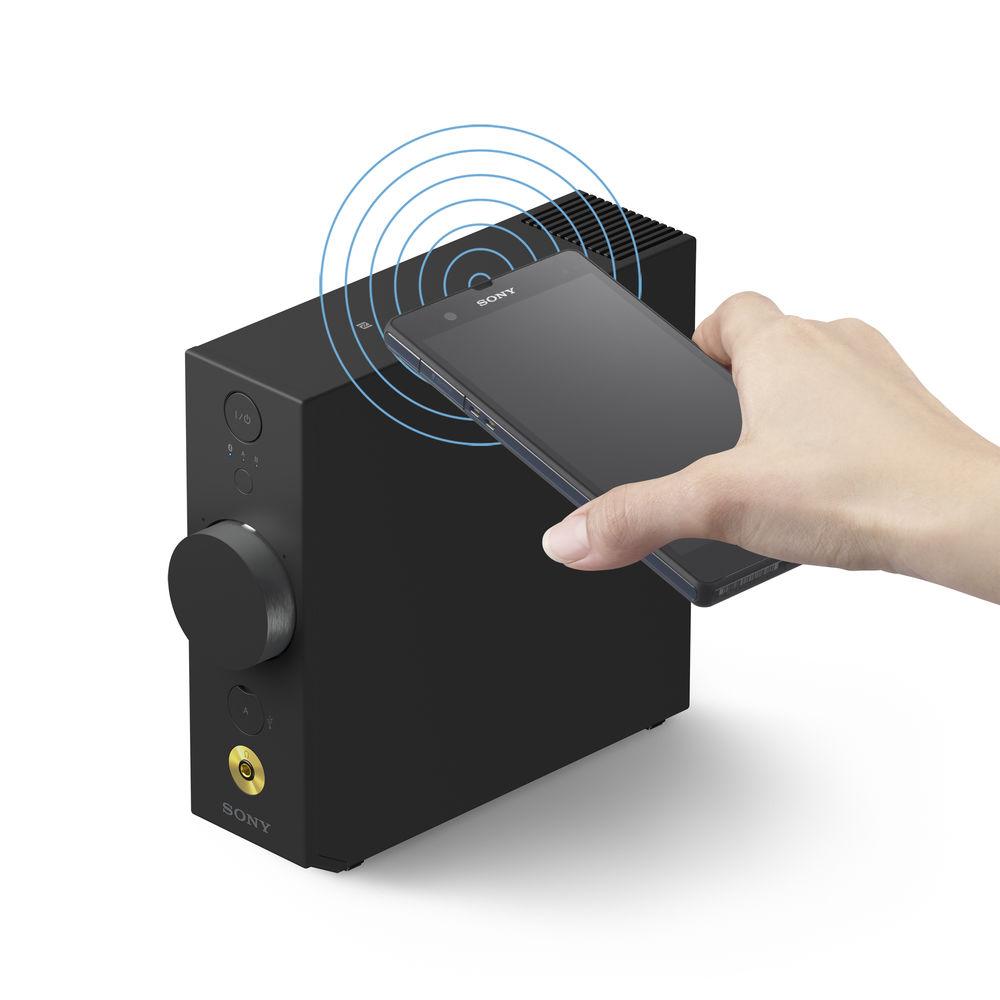

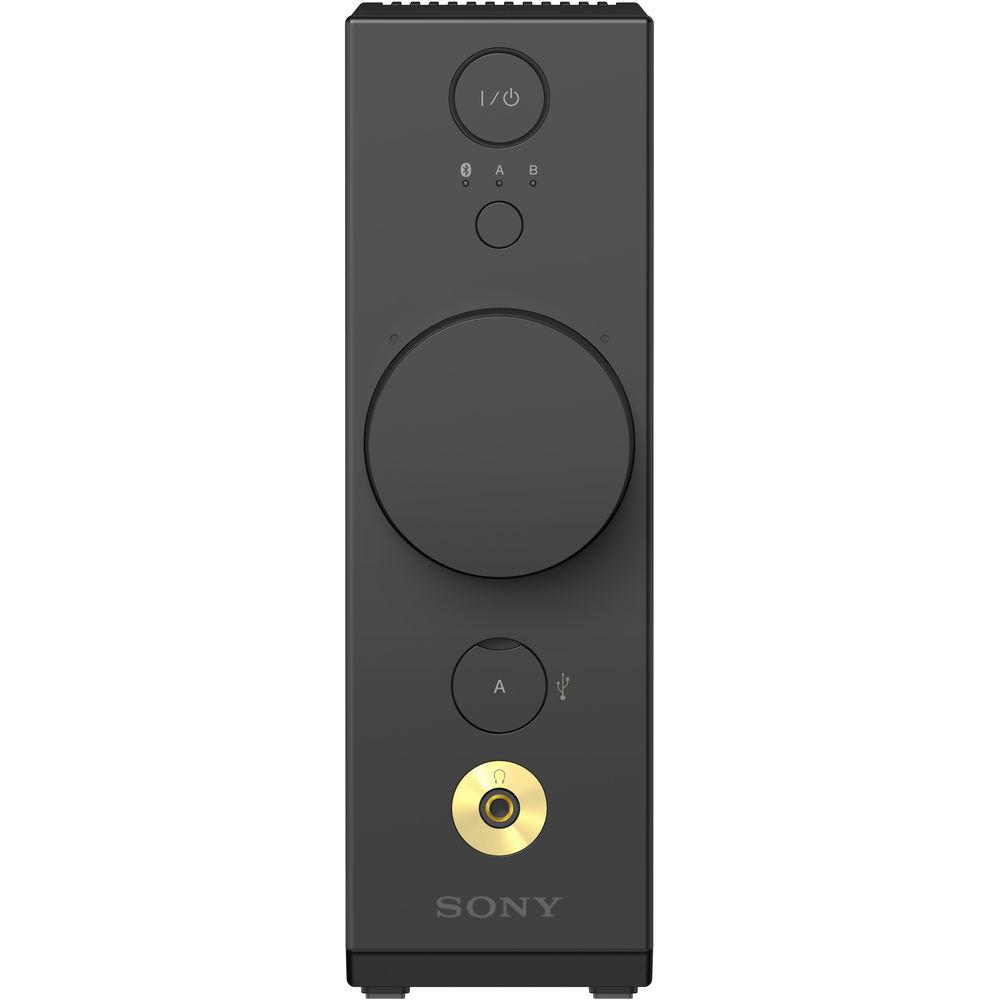

The system accepts USB type-A and type-B connections, allowing you to play MP3s, WAVs, FLACs, AACs, and more. Should you wish to stream audio straight from your phone or device via Bluetooth, NFC pairing is supported. Furthermore, the CAS-1 can pair with up to nine devices at any one time. Its control panel is relatively streamlined, with a large volume control front and center, and on/off button located at the top of the amplifier, and a selector button for switching between USB type-A, USB type-B, and Bluetooth wireless connections. An on-board LED alerts you to your specific volume at any time. A remote is included with the CAS-1, as are the relevant speaker cables, power cable, AC Adapter, Mounting Spikes, and more. - Wireless Streaming
- Wirelessly connect mobile devices to the CAS-1 over Bluetooth.
- LDAC Streaming Technology
- Sony's proprietary LDAC technology aims to stream high-resolution audio over Bluetooth without down-sampling.
- High-Resolution Audio
- This system can support DSD files, as well as audio playback at higher-than-CD qualities.
- Proprietary Up-Scaling Technology
- Sony's proprietary DSEE HX technology up-scales conventional audio sound sources to higher resolution.
- S-Master HX Amplifier
- Developed for high-resolution audio, Sony's proprietary S-Master HX amplifier aims to provide low distortion and noise levels across a wide range of frequencies.
- Dual Amplifiers
- This system includes independent amplifiers for speakers and headphones.
- Extended Bass
- A customized bass-reflex port allows the speakers to reproduce bass faithfully.
- On-Board Isolation
- Brass spikes elevate speakers to dampen high frequencies, fix woofer-tweeter route discrepancy, and minimize comb filtering
- Accurate Playback at Any Volume
- Technologies such as Pulse Height Volume and Low Volume Mode help ensure a dynamic audio response at any output level.
- Supports Multiple Headphone Types

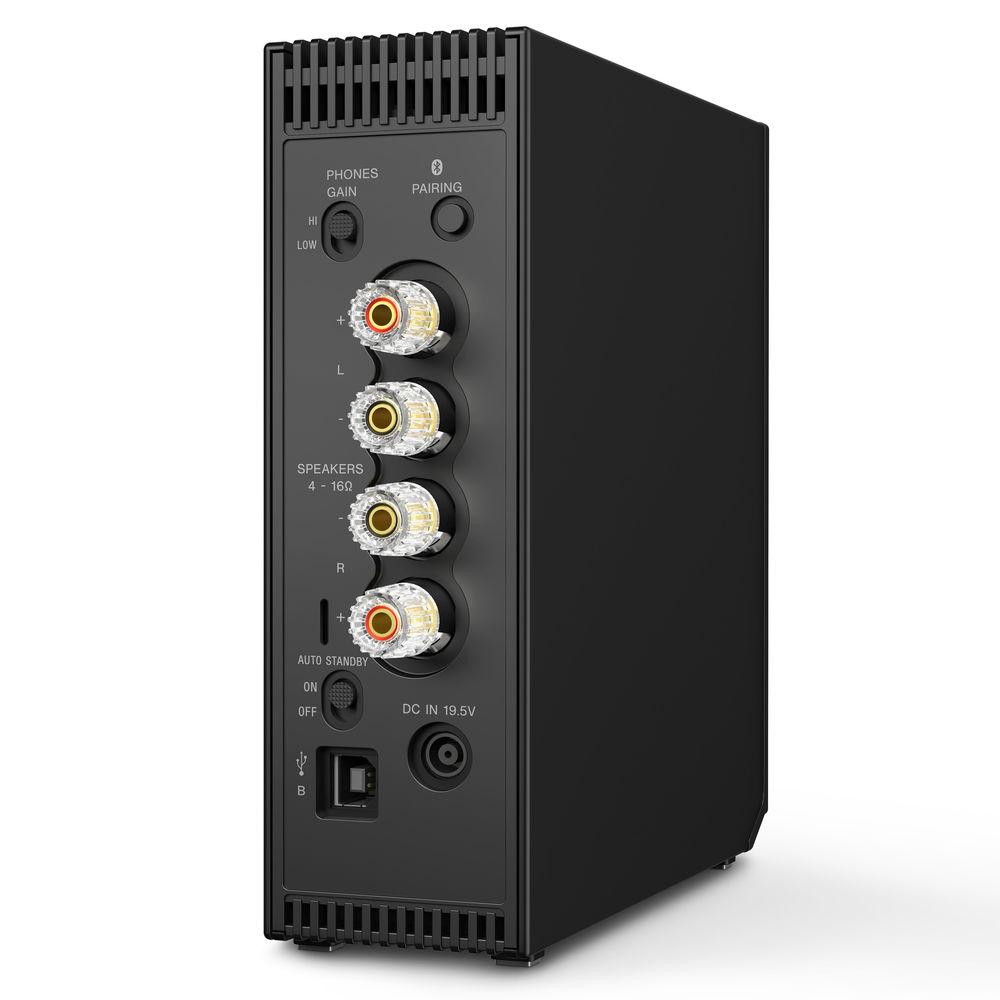

- The built-in headphone amplifier can drive the sound for both in-ear and over-ear headphones, with an on-board DAC adjusting output signals for a more isolating headphone listening experience. An on-board gain toggle switch allows you to match impedance to your headphone type.
UPC: 027242889804 In the Box Sony CAS-1 High-Resolution Desktop Audio System with Headphone Amplifier AC Adapter AC Cord (Mains Lead) USB Cable 2 x Speaker Cord 4 x Mounting Spikes 2 x Speaker Bases Stand Remote Control Limited 1-Year Warranty More from Manufacturer wdbasbauyzycbczaasxccrtbtxf Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony CAS-1 High-Resolution Desktop Audio System with Headphone Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony CAS-1 Specs | | | Power Output | Reference: 2 X 24 W (5 Ohms, 1 kHz, THD 10%)
Rated: 2 x 20 W (5 Ohms, 20 Hz to 20 kHz, THD 10%) | | Impedance Matching | 5 to 16 Ohms | | Frequency Response | 10 Hz to 40 kHz (+0 and -3 dB) | | | | Output | Bluetooth specification power class 2 | | Maximum Range | Approximately 32.8' / 10.0 m, line of sight | | Bluetooth Pairing | Up to 9 devices
Please note: When the unit has been already been paired with 9 Bluetooth devices and you attempt to pair with an additional device, the pairing information of the oldest connected device is deleted automatically | | Radio Frequency | 2.4 GHz band (2.4 to 2.48 GHz) | | Bluetooth Specification | Version 3.0 | | Bluetooth Profiles | A2DP, AVRCP | | Content Protection | SCMS-T method | | Transmission | Bandwidth: 20 Hz to 20 kHz (at 44.1 kHz)
20 Hz to 40 kHz (at LDAC 96 kHz, 990 kbps) | | | | Supported Formats | USB type-A port:
MP3: 16 / 22.05 / 24 / 32 / 44.1 / 48 kHz, 32 to 320 kbps (CBR/VBR)
AAC: 16 / 22.05 / 24 /32 / 44.1 / 48 / 88.2 / 96 kHz, 40 to 320 kbps (CBR/VBR)
WMA: 32 / 44.1 / 48 kHz, 16 to 320 kbps (CBR/VBR)
WAV: 16 / 22.05 / 24 / 32 /44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (16/24-bit)
AIFF: 32 / 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (16/24-bit)
FLAC: 44.1 / 48/ 88.2 / 96 / 176.4 / 192 kHz (16/24-bit)
ALAC: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (16/24-bit)
DSD (DSF / DSDIFF): 2.8 MHz (1-bit)
This port supports USB flash drives and compatible Walkmen
USB type-B port:
PCM: 44.1 / 48 / 88.2 / 96 /176.4 / 192 kHz (16/24/32-bit)
DSD (DSF / DSDIFF): 2.8 MHz (1-bit)
This port supports compatible PC and other devices via included USB cable | | Transfer Speed | Type-A: High-speed | | USB Device Support | Type-A: Mass Storage Class (MSC) | | Maximum Output Current | Type-A: 1 A Max (Depending on the device, the charge current might be limited to 500 mA) | | Supported File Systems | Type-A: FAT, FAT32, exFAT | | Headphones | 2 x 250 mW (8 Ohms, THD 1%) 2 x 180 mW (32 Ohms, THD 1%) 2 x 35 mW (300 Ohms, THD 1%) | | Speaker System | 2-way, 2-drivers, Bass reflex | | Speaker Size | Tweeter: 1 x 0.6" / 14 mm, soft dome type
Woofer: 1 x 2.4" / 62 mm, cone type | | Speaker Impedance | Rated: 5 Ohms | | | | Power Requirements | 19.5 VDC (using the supplied AC adapter connected to 100 - 240 VAC, 50 Hz/60 Hz power supply) | | Power Consumption | 29 W with supplied AC adapter
0.5 W (Standby mode with Bluetooth standby set to off) 2 W (Standby mode with Bluetooth standby set to on) | | Dimensions (W x H x D) | Amplifier: 2.2 x 7.0 x 8.3" / 5.5 x 17.8 x 21.0 cm
Speaker system: 3.7 x 7.0 x 6.8" / 9.5 x 17.8 x 17.2 cm | | Weight | Amplifier: 2.9 lb / 1.3 kg
Speaker: 3.3 lb / 1.5 kg | | | | Package Weight | 16.65 lb | | Box Dimensions (LxWxH) | 16.0 x 10.6 x 10.0" |
