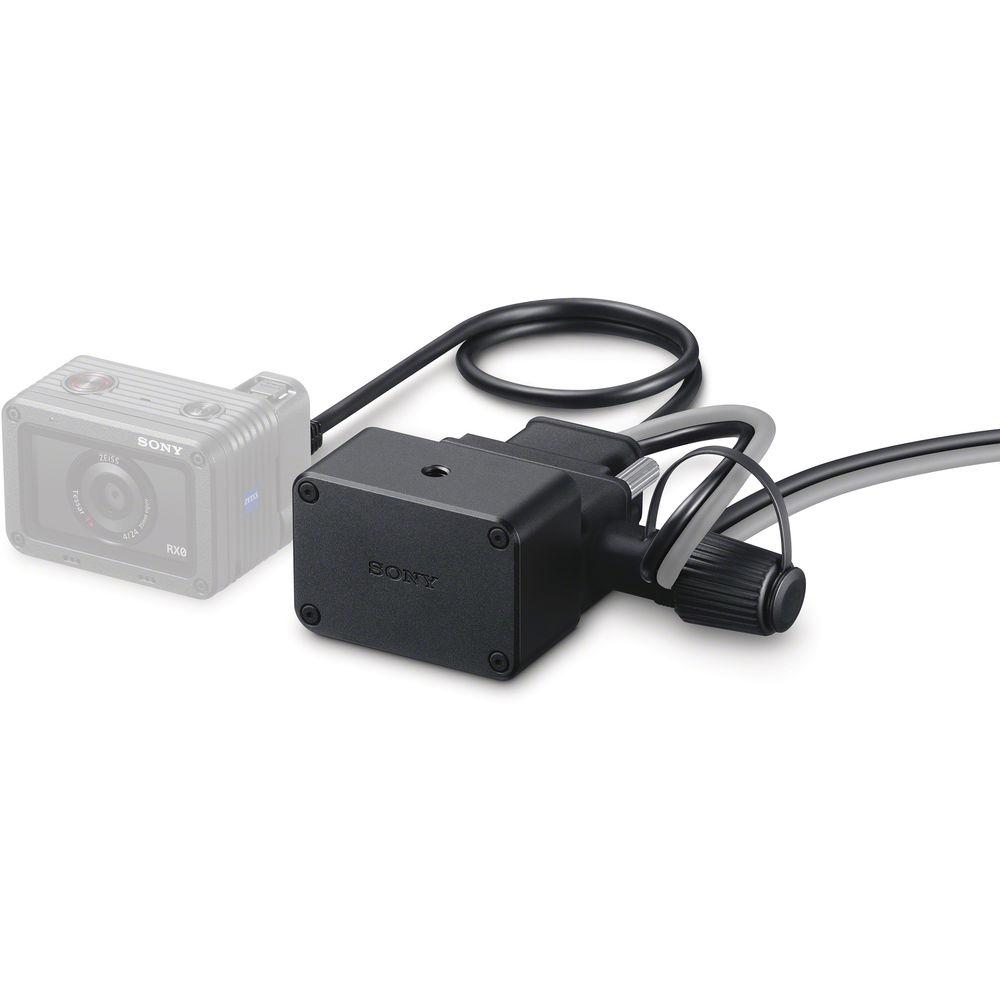

User Manual for Sony CCB-WD1 Wired Control Box for RX0 Camera Click to enlarge the picture
Contents of the user manual for the Sony CCB-WD1 Wired Control Box for
- Product category: Remote Controls Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Remote Controls
 |
User manual for the Sony CCB-WD1 Wired Control Box for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|

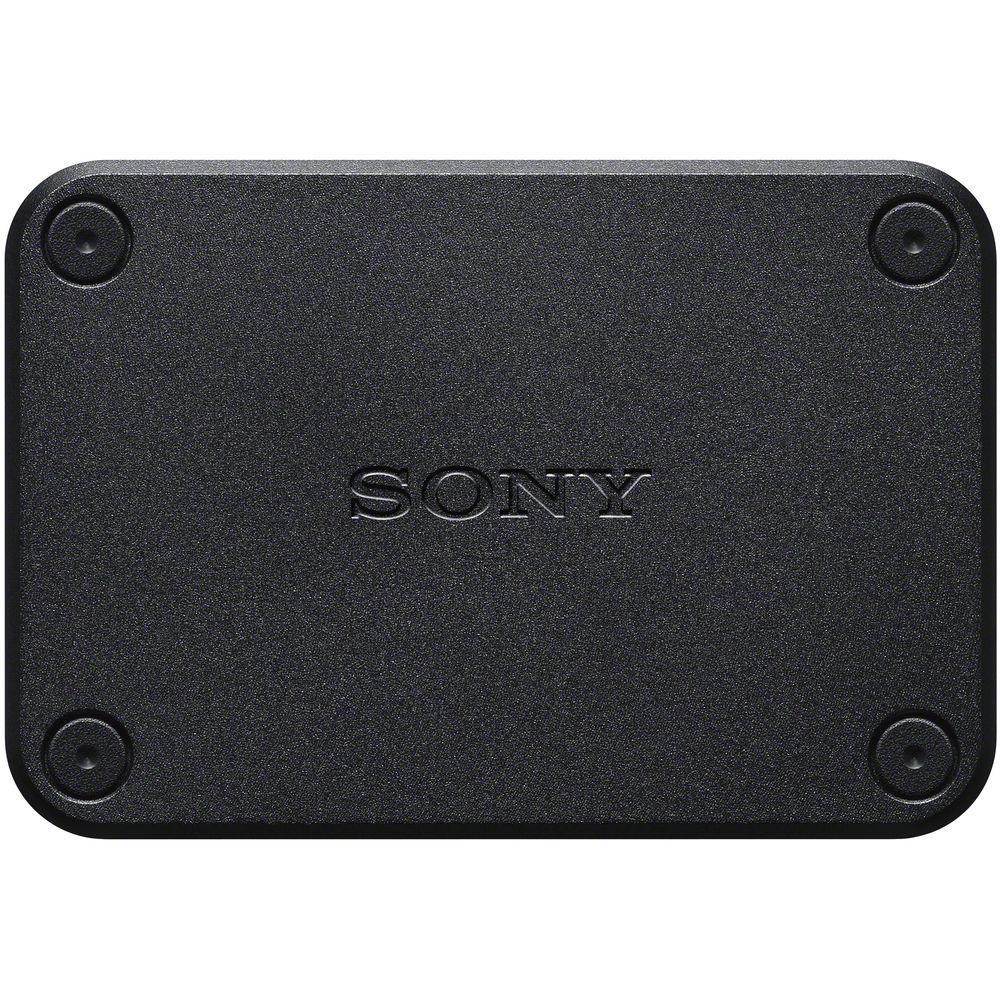

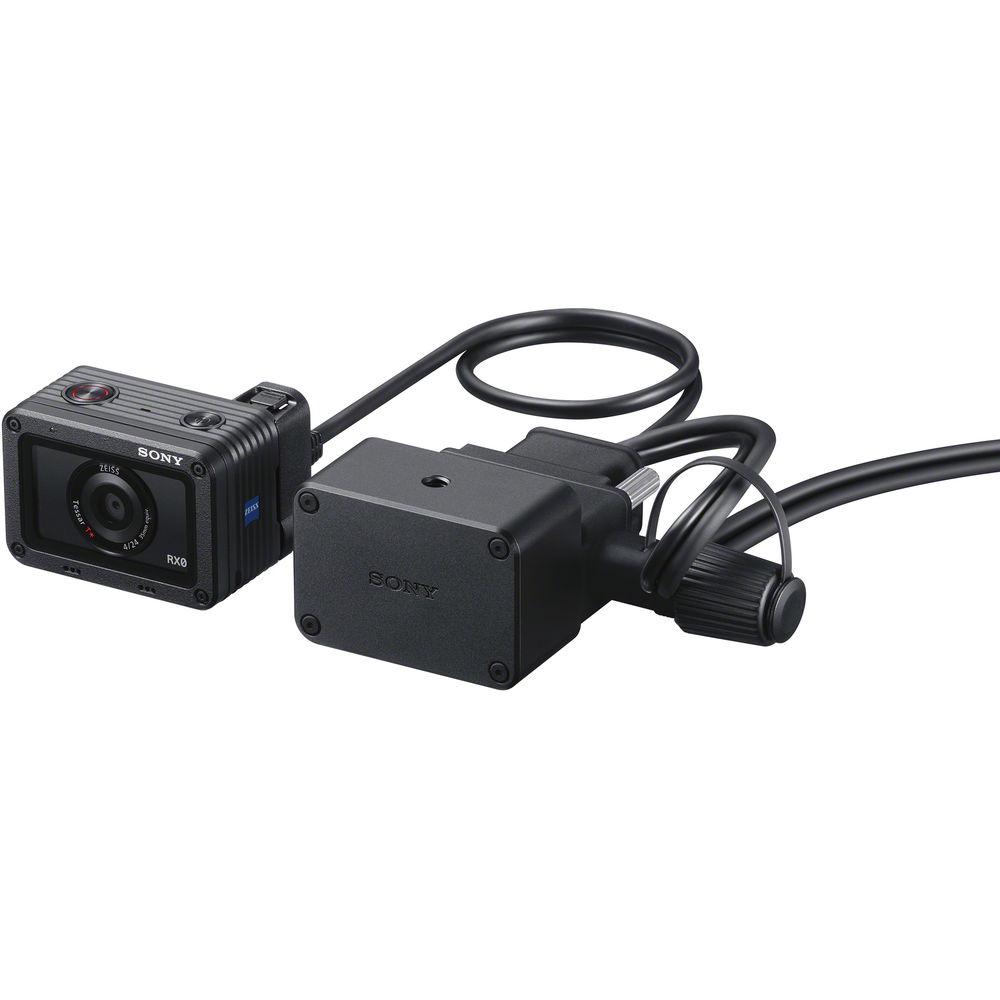

Product description The compact CCB-WD1 Wired Control Box from Sony provides precise, frame-accurate syncing and control for the ultra-compact, 4K UHD RX0 camera. Up to 100 cameras and control units can be synced, using PC-based web browser control via a wired IP connection. This wired system offers seamless control for creating minutely detailed, "bullet-time" and other F/X shots. Camera settings and record start/stop of all linked cameras can be controlled and triggered simultaneously, and a video sync function enables frame-accurate syncing. The CCB-WD1 is compatible with both Windows and iOS environments. Features include live preview, up to 4GB file transfer, a compact form factor, and USB power. An individual IP address can be assigned to each camera, enhancing accuracy in multi-camera setups. - Key Features
-
- Remote single, and frame-accurate multi-camera control
- Link up to 100 controls and cameras
- Create stunning VR and "bullet-time" effects shots
- View a multi-cam live preview, adjust settings, and manage files via a web browser
- Windows and Mac iOS compatible
- Instantly transfer up to 4GB files
- Control on/off trigger, shutter release, and camera settings

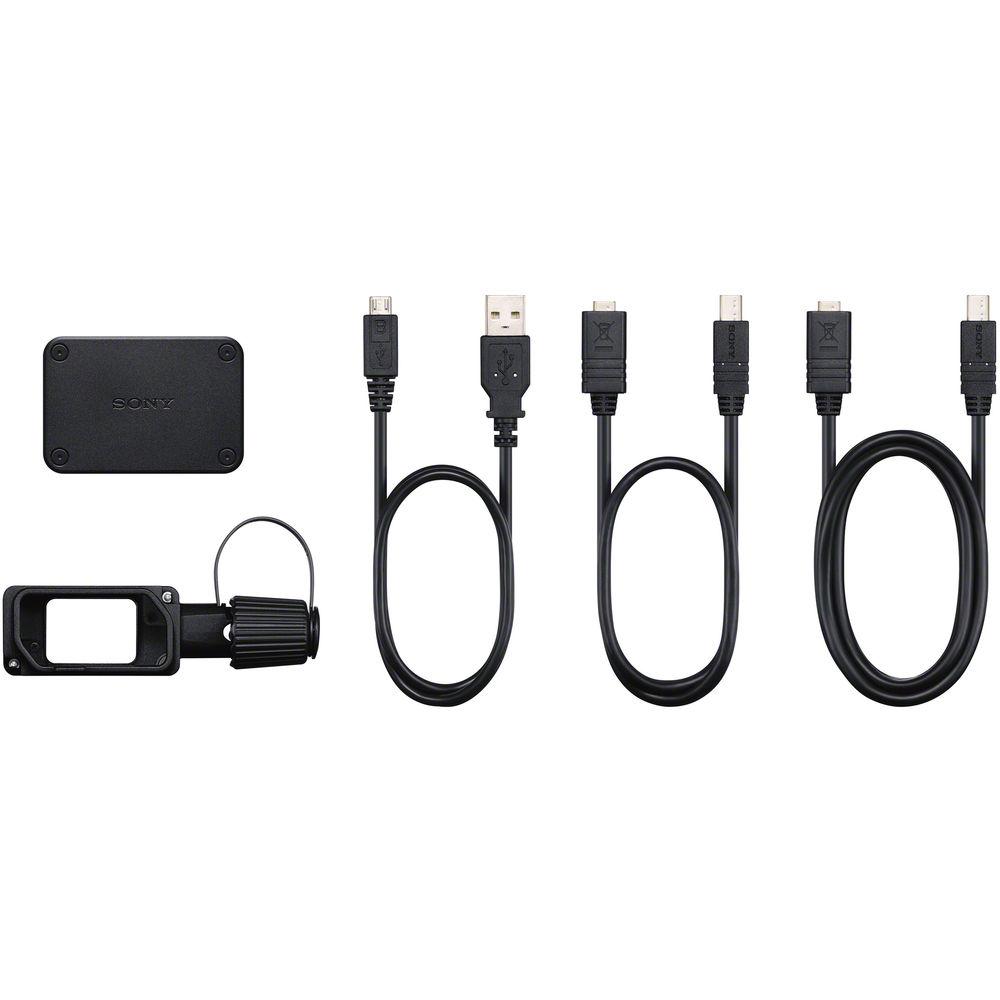

UPC: 027242911796 In the Box Sony CCB-WD1 Wired Control Box for RX0 Camera AC Adapter bwdytdswwztbtxzcfdwytwubsz Micro-USB Cable Cable Protector for RX0 Camera 2 x Multi-Terminal Connector Cable Limited 1-Year Warranty More from Manufacturer bwdytdswwztbtxzcfdwytwubsz Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony CCB-WD1 Wired Control Box for RX0 Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

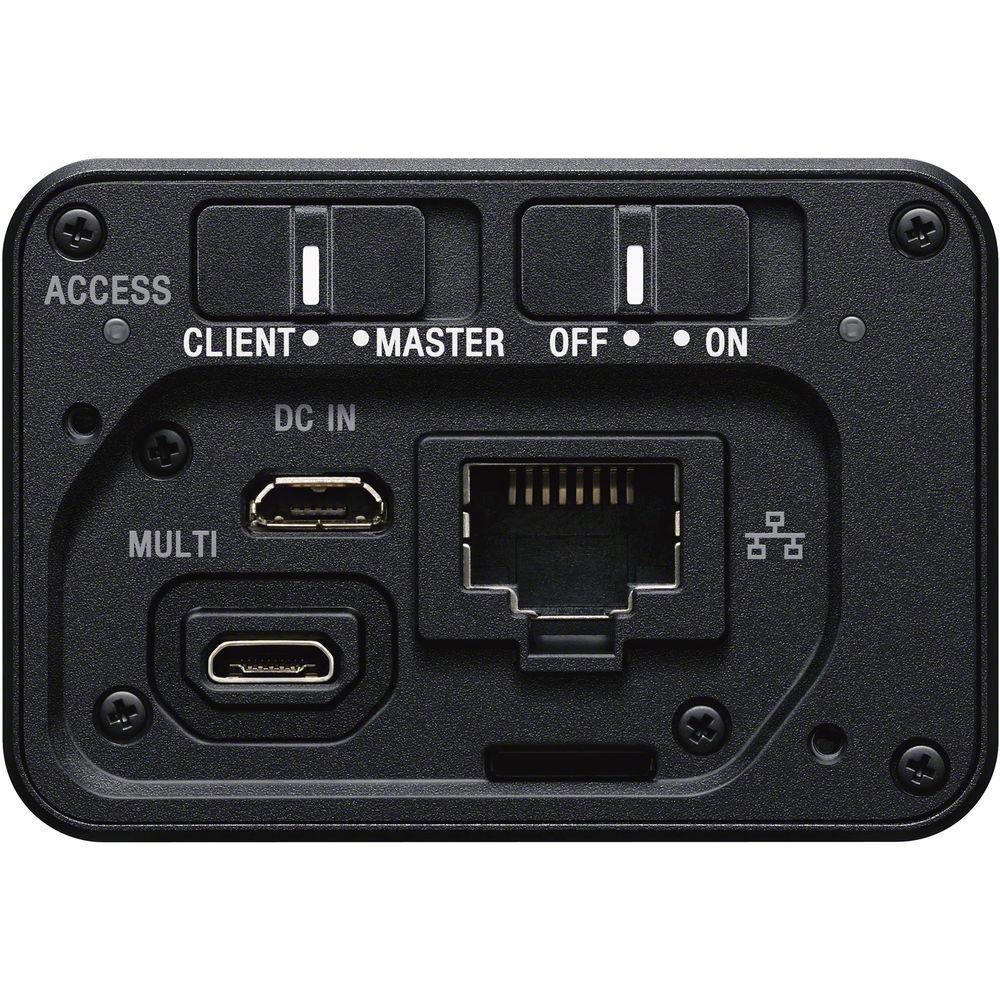

Technical parametersSony CCB-WD1 Specs | | | Input and Output Connectors | LAN
Multi/Micro USB
Micro USB | | | | Material of Construction | Aluminum | | Color | Black | | User Guide Languages | English, French, Korean, Spanish, Traditional Chinese | | | | Voltage | 100-240 VAC | | Frequency | 50/60 Hz | | Power Consumption | 0.2 A | | Output Voltage in Operating Mode | 5.0 VDC, 1500 mAh | | | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | | | Dimensions (WxHxD) | 2.3 x 1.6 x 1.2" (59 x 40.5 x 29.8 mm) | | Weight | 3.2 oz (90 g) | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 6.1 x 4.7 x 4.7" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 14 owners. Add your rating and experience with the product.
