Product description - Sony CLM-V55 Portable Monitor

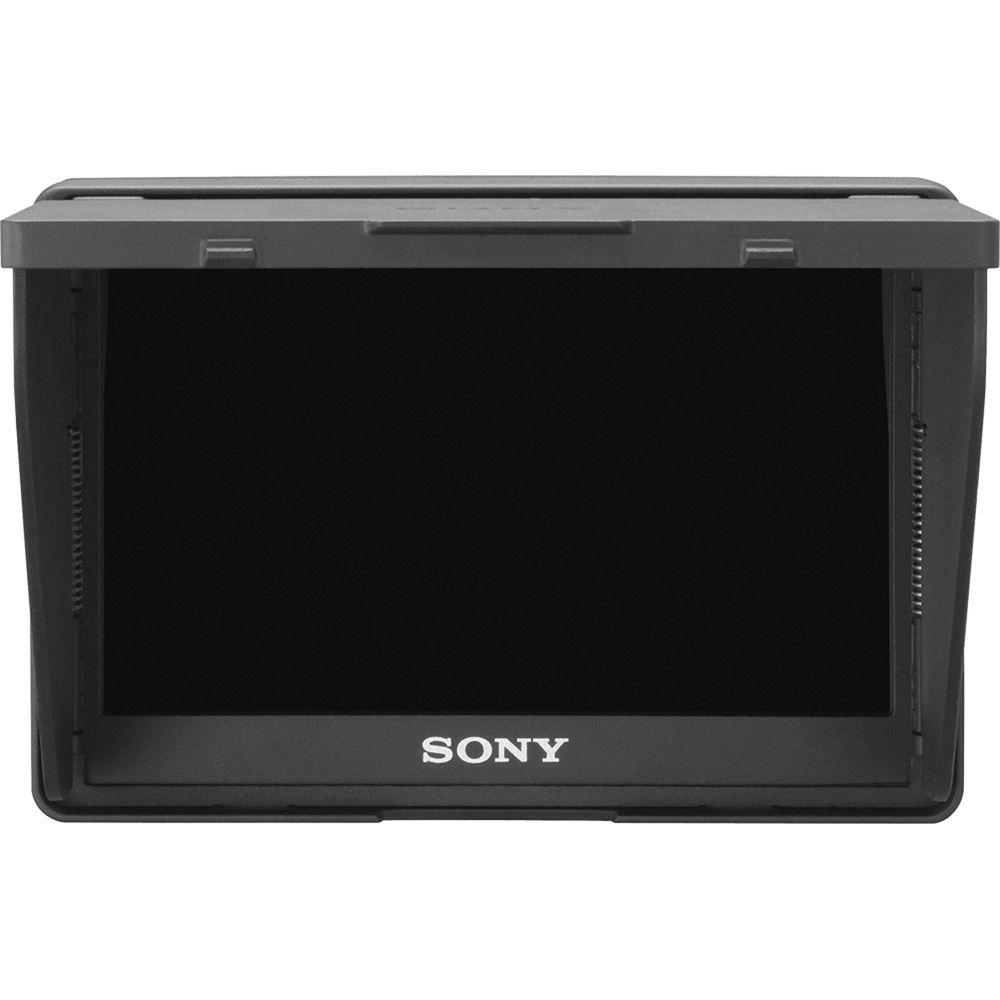

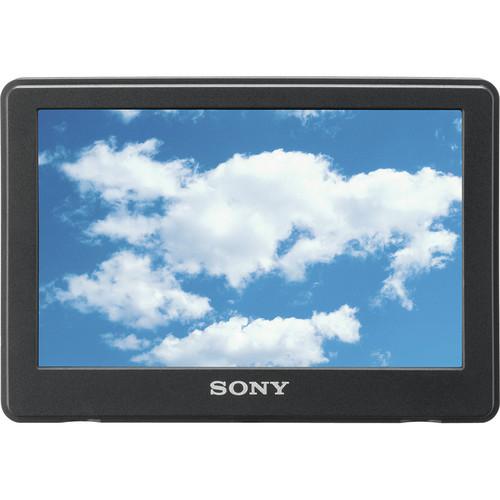

The Sony CLM-V55 5" HDMI On-Camera Monitor with Peaking is a lightweight monitor that supports input signals up to 1080p. It features a screen with 800 x 480 resolution with a 90° viewing angle. The monitor accepts power from either an optional NP-FM500H, NP=QM71D, NP-QM91D, or optional AC-PW10AM power supply. It features peaking, that helps you to determine critical focus, and the pixel-to-pixel function enables you to zoom in on the center of your image.

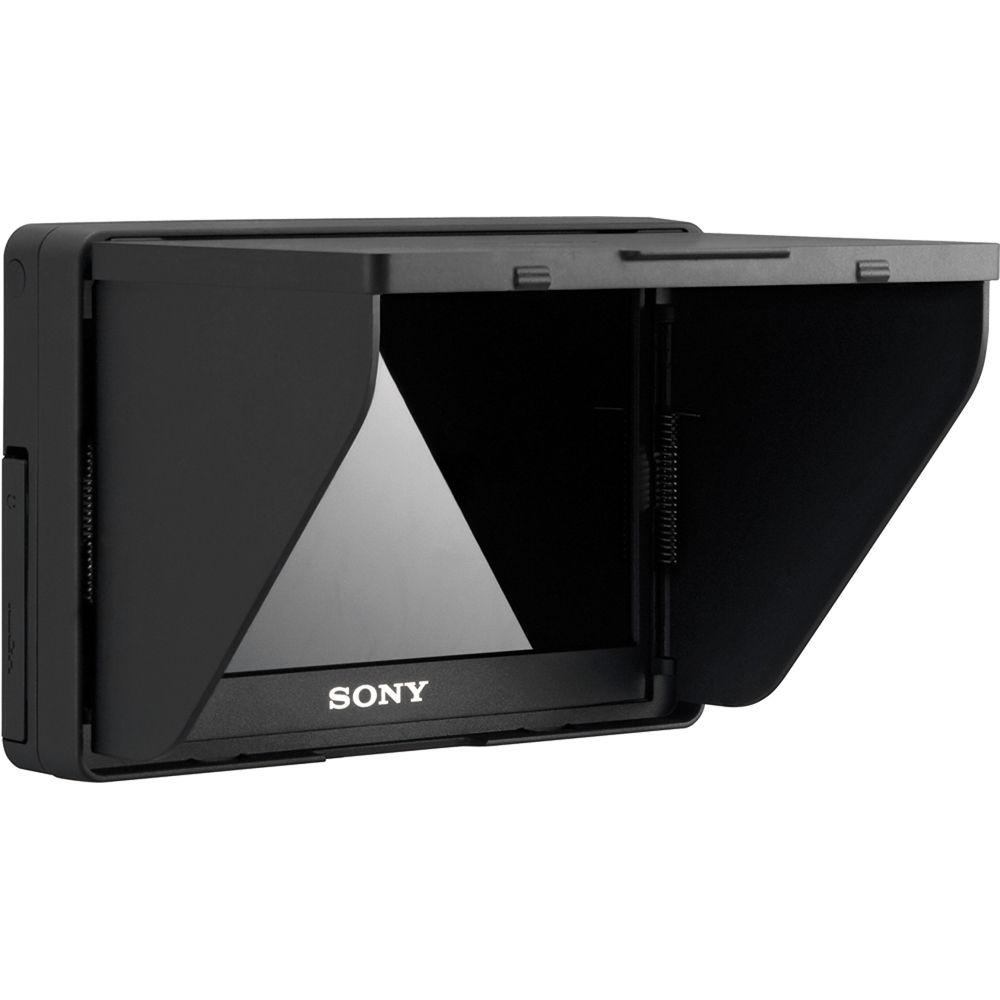

The included removable sunhood can be used for protection from glare, and collapsed to protect the LCD screen during transport and storage. To save battery paower, the monitor will automatically shut down if no signal is input for 60 seconds. The built-in speaker allows you to share the audio with those around the monitor, while the integrated headphone jack allows you to monitor audio privately. The 1/4"-20 threaded hole allows you to use stadard accessory for mounting the monitor, or you can use the included shoe adapter to secure the monitor to your camera. Note: The monitor does not have DSLR scaling to re-scale the video from certain cameras during playback. Black stripes may appear above and below or on each side of the monitor when the camera's aspect ratio is different from that of the monitor. - Peaking
- Peaking is a real-time, focus assist tool that superimposes pulsing red lines over the area if your image that is most contrasy, and therefore most in focus. This makes it easier to confirm that subjects are in-focus or not in-focus.
- Pixel-to-Pixel
- 1:1 pixel-to-pixel mapping allows you to look at the center of your image without any scaling, so you can see the actual detail and not be fooled by scaling artifacts.
- Aspect Ratio
- The monitor features a native 15:9 aspect ratio. When displaying footage normally, this may cause black bars to appear around your image. This allows the monitor to display your footage in its natural aspect ratio.
- TV Marker Display
- Displays a grid just inside the angle of view that acts as a guide to the area shown on a LCD screen.
- Color Temperature
- Selectable color temperature from 9300, 7200, 6500K. The monitor defaults to 6500K.
- Includes a headphone jack for monitoring audio levels while recording

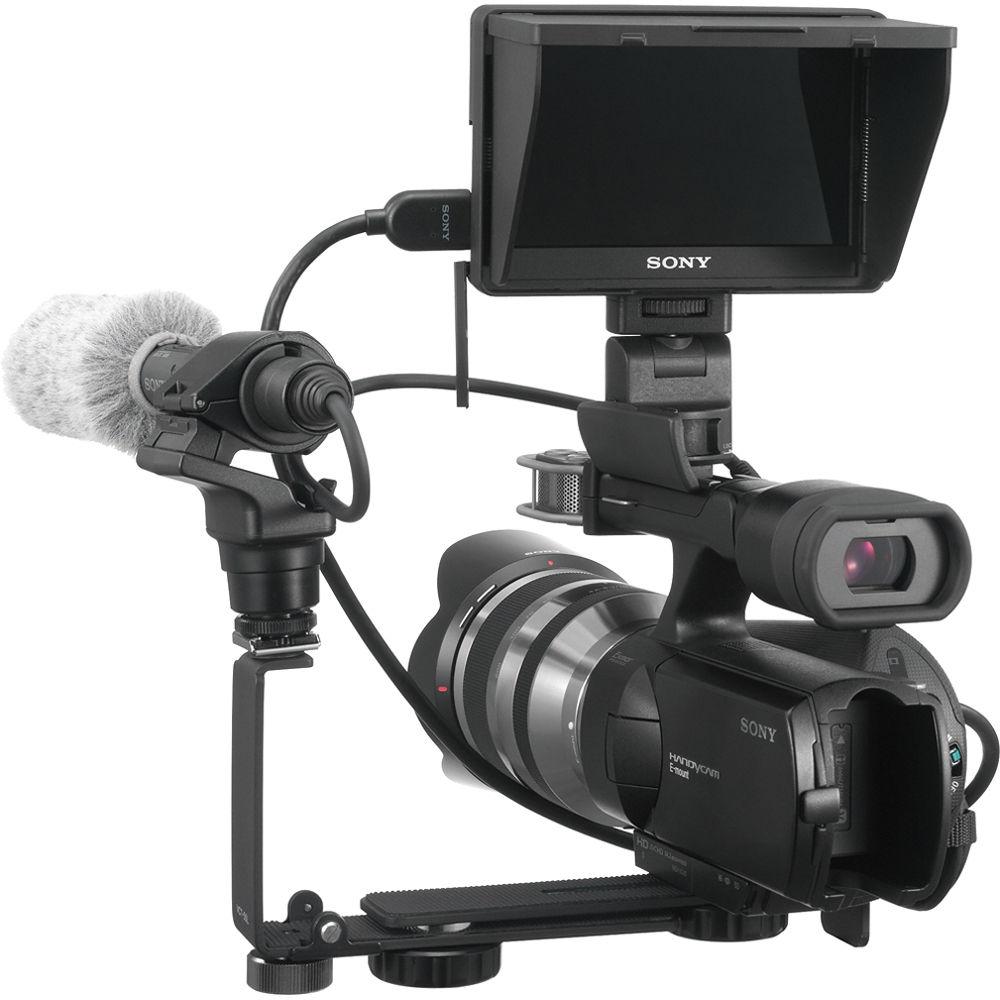

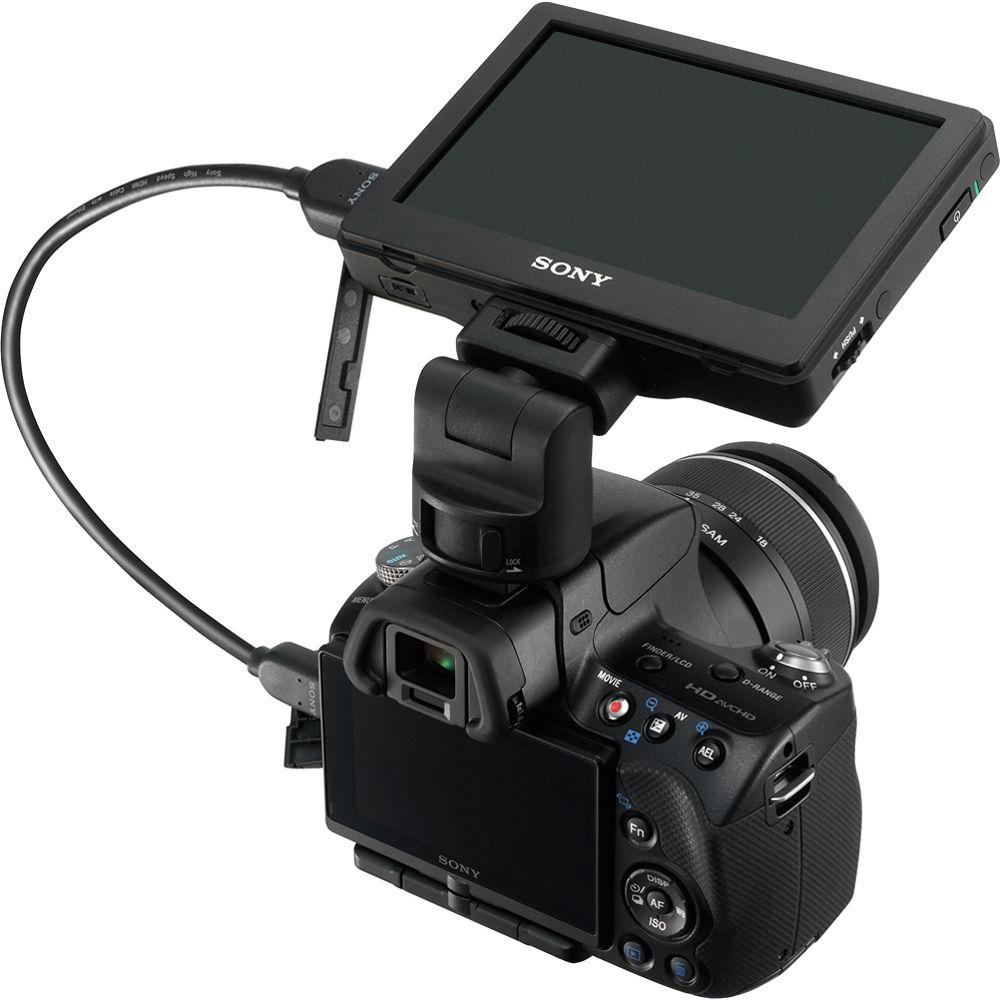

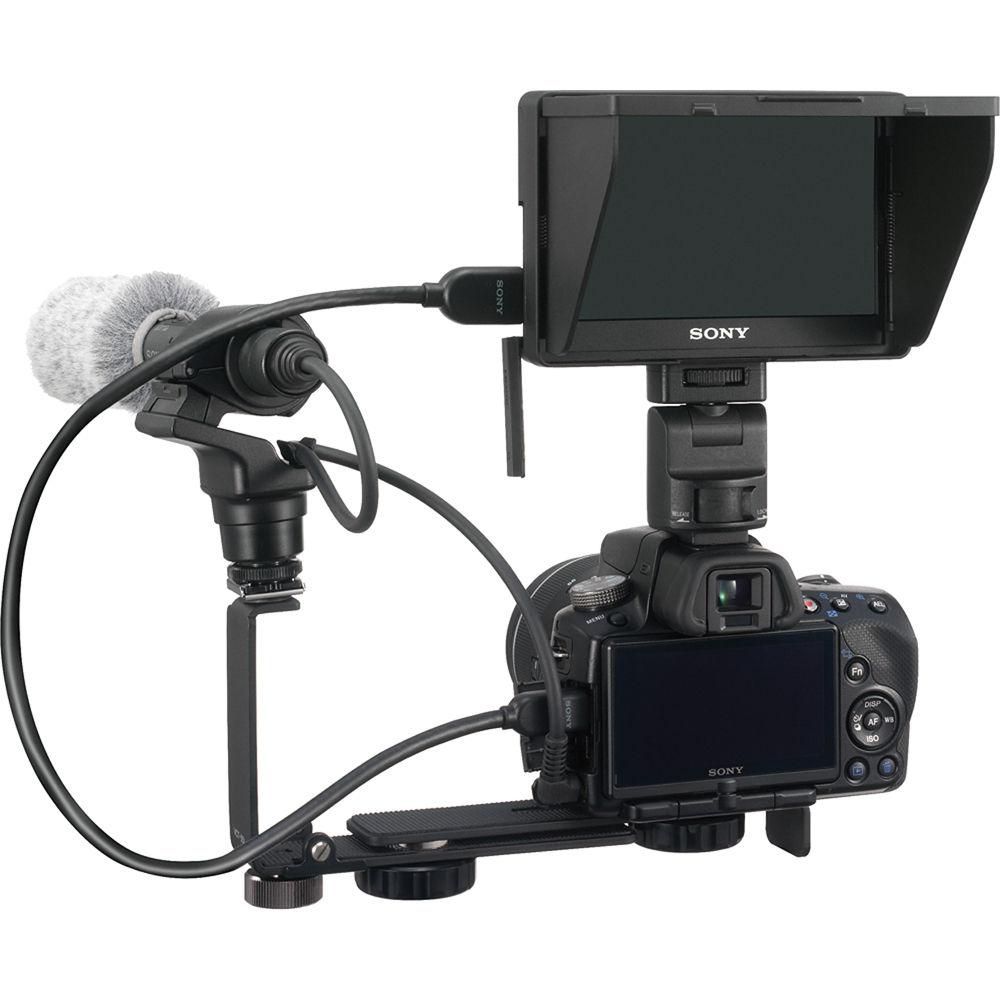

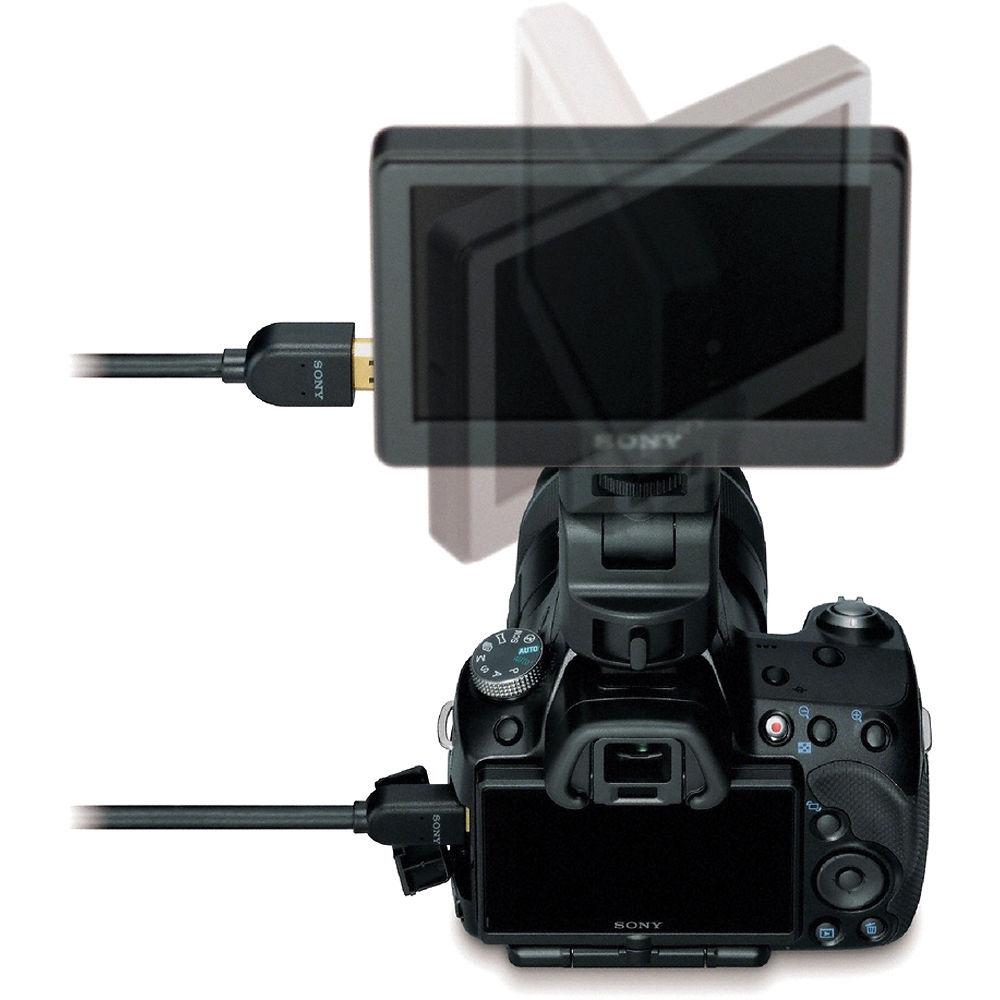

- Auto lock accessory shoe adapter is used with the Sony Alpha cameras
UPC: 027242823051 In the Box Sony CLM-V55 5" HDMI On-Camera Monitor with Peaking 2 x Shoe Adaptor (Auto-lock Accessory Shoe/Accessory Shoe) HDMI Cable (Mini to Full) LCD Hood Carrying Pouch 1-Year Parts and Labor Warranty User Manual PDF 5.3mb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony CLM-V55 5" HDMI On-Camera Monitor with Peaking in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony CLM-V55 Specs | | | Panel Type | TFT LCD | | Display Size | 5.0" / 12.7 cm | | Screen Resolution | 800 x 480 | | Aspect Ratio | 15:9 | | Viewing Angle | Horizontal: 90°
Vertical: 90° | | Image Controls | Focus Peaking | | | | Video | 1 x HDMI Type A Input | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | 1 x 0.5 W | | Card Slot | None | | | | Video Format | HDMI
1080p: 50/60
1080i: 25/30
720p: 50/60
480p: 480
576p: 50
NTSC
PAL | | | | DC Input Power | 7.2 to 7.6 VDC | | Battery Type | 1 x L-Series | | Power Consumption | 5 W | | | | Dimensions (W x H x D) | 5 x 0.75 x 3.5" / 129 x 20 x 88.5 mm | | Weight | 8.8 oz / 250 g | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 6.1 x 4.65 x 4.45" |
