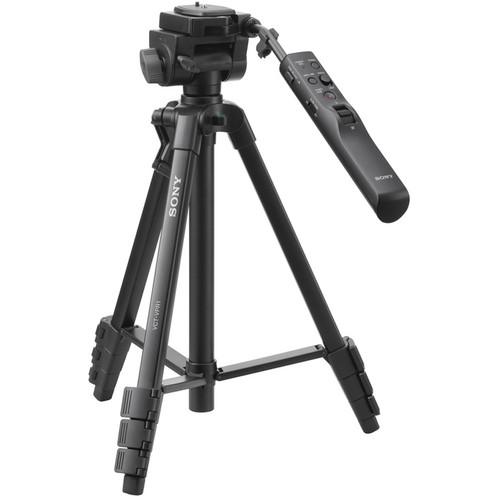

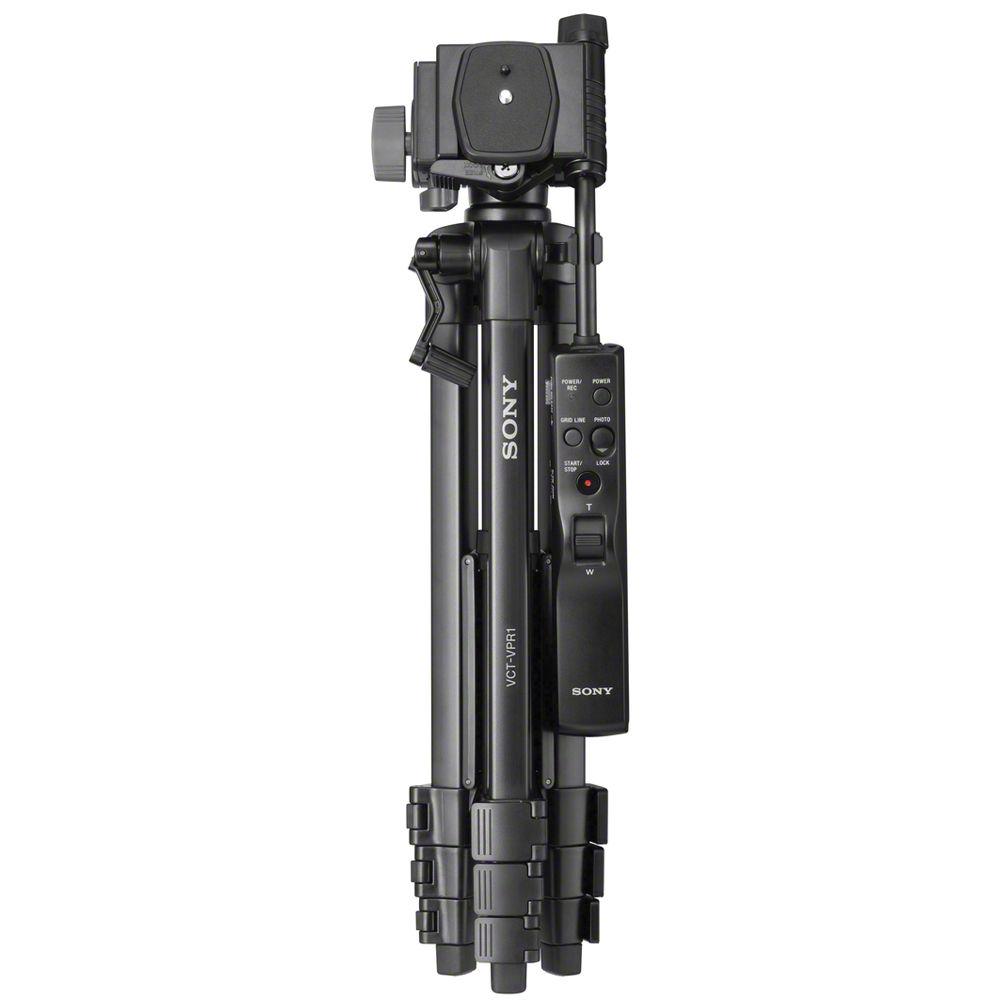

Product description The Sony Compact Remote Control Tripod connects to a wide range of cameras via an included multi-terminal cable to provide convenient remote control functionality. Any video/still camera with a multi-terminal port is compatible.

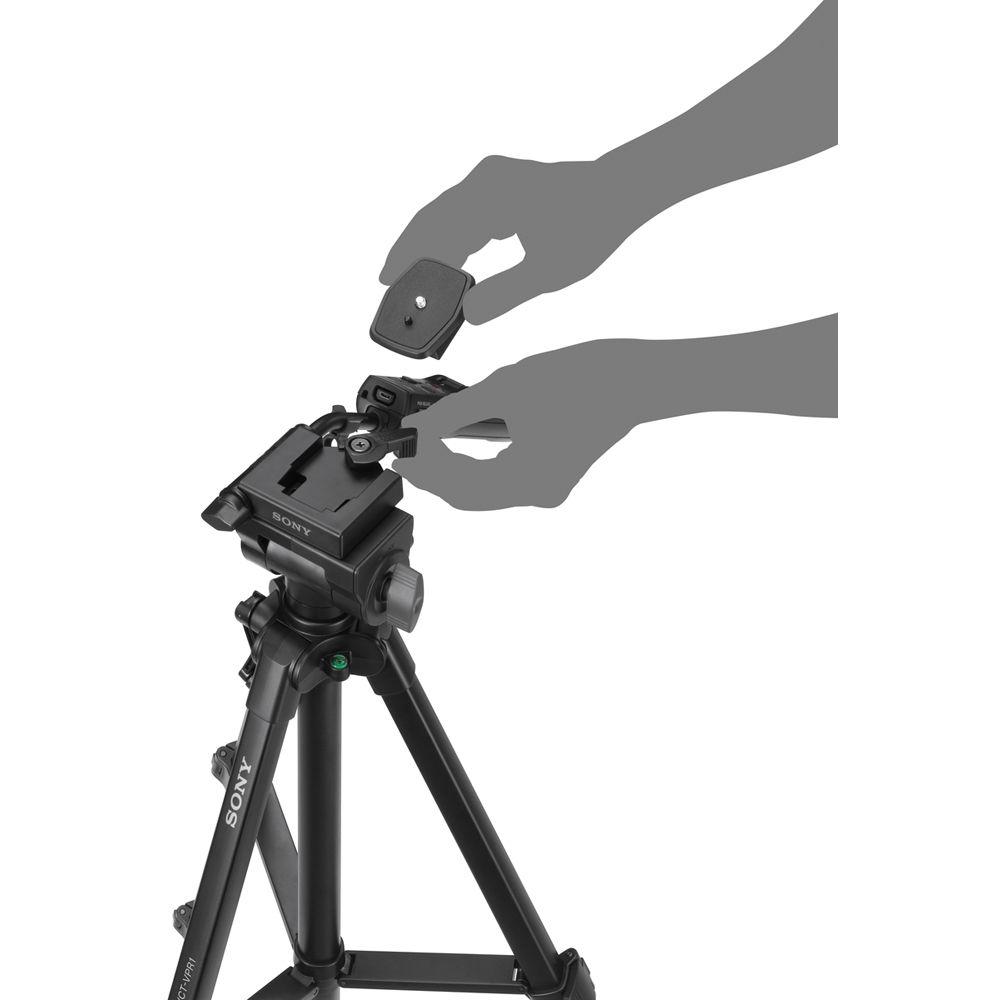

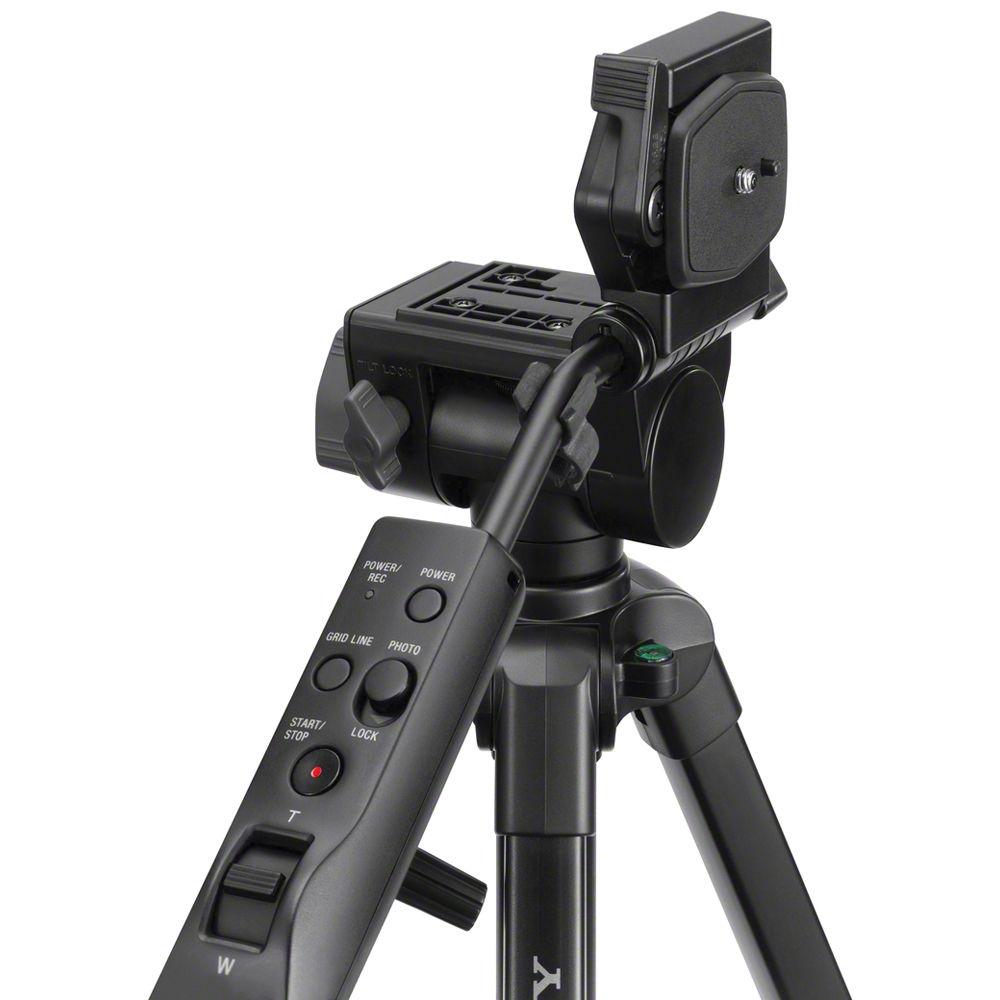

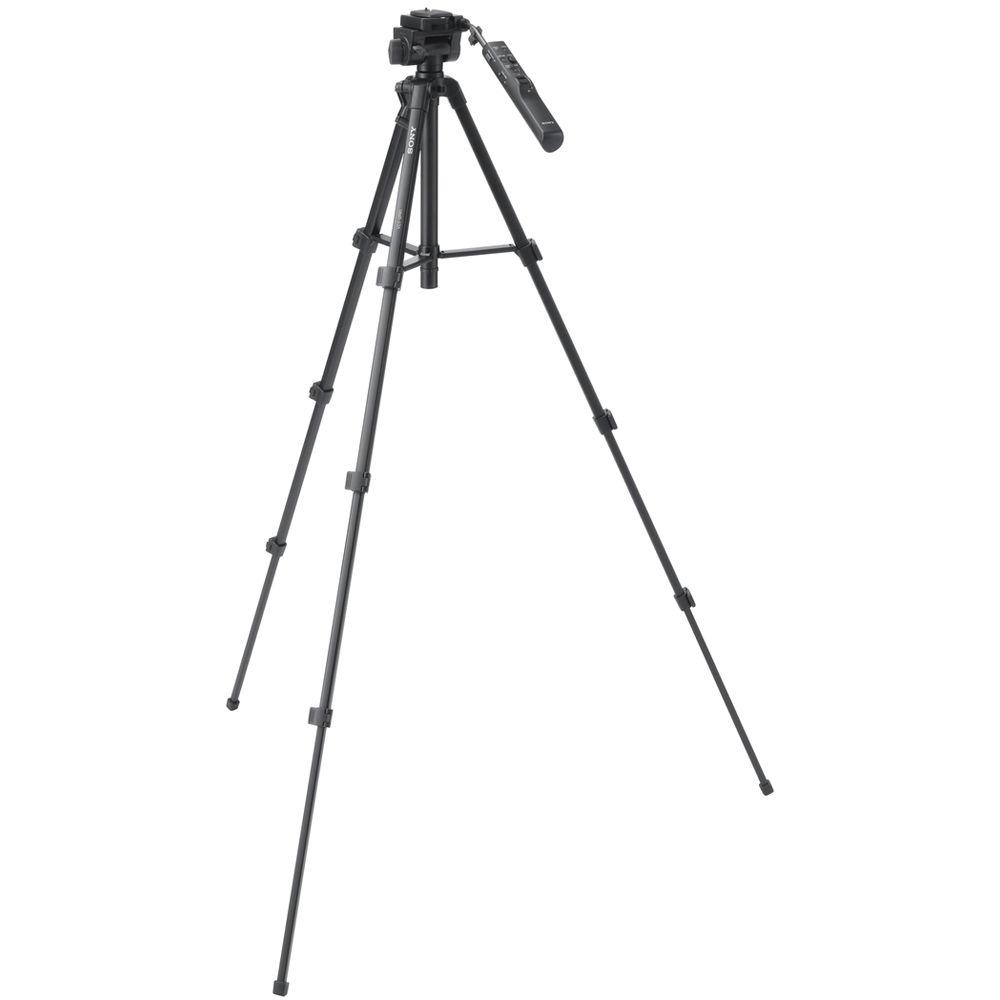

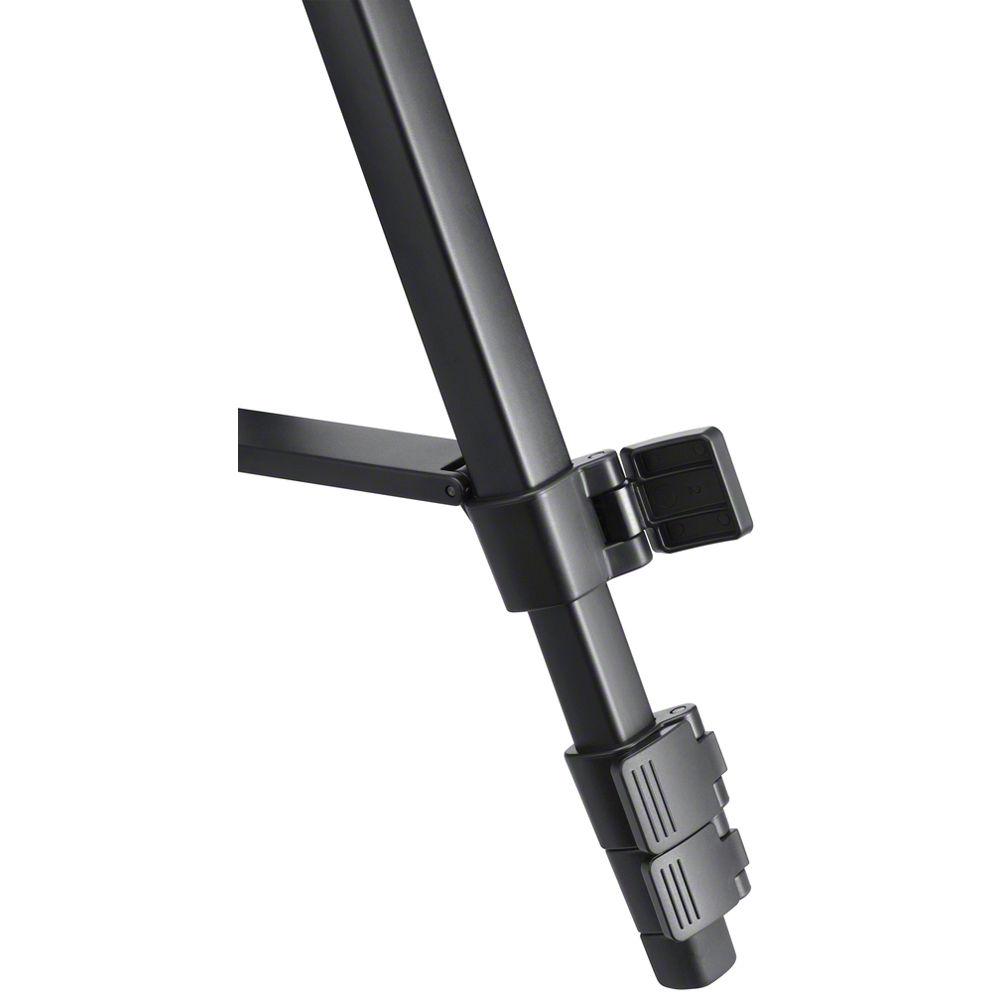

The tripod rises to a height of 4.8' and boasts a cranking center column and quick release but that's just the beginning. The ergonomic handle of its fluid head is actually a detachable wired remote with hard button control power, grid lines, zooming and shutter depending on the camera in use. The flip-lock leg sections make setup a snap as does the VCT-VPR1's built-in leveler. The VCT-VPR1 supports cameras up to 6.6 lb and weighs just under 3.0 lb.

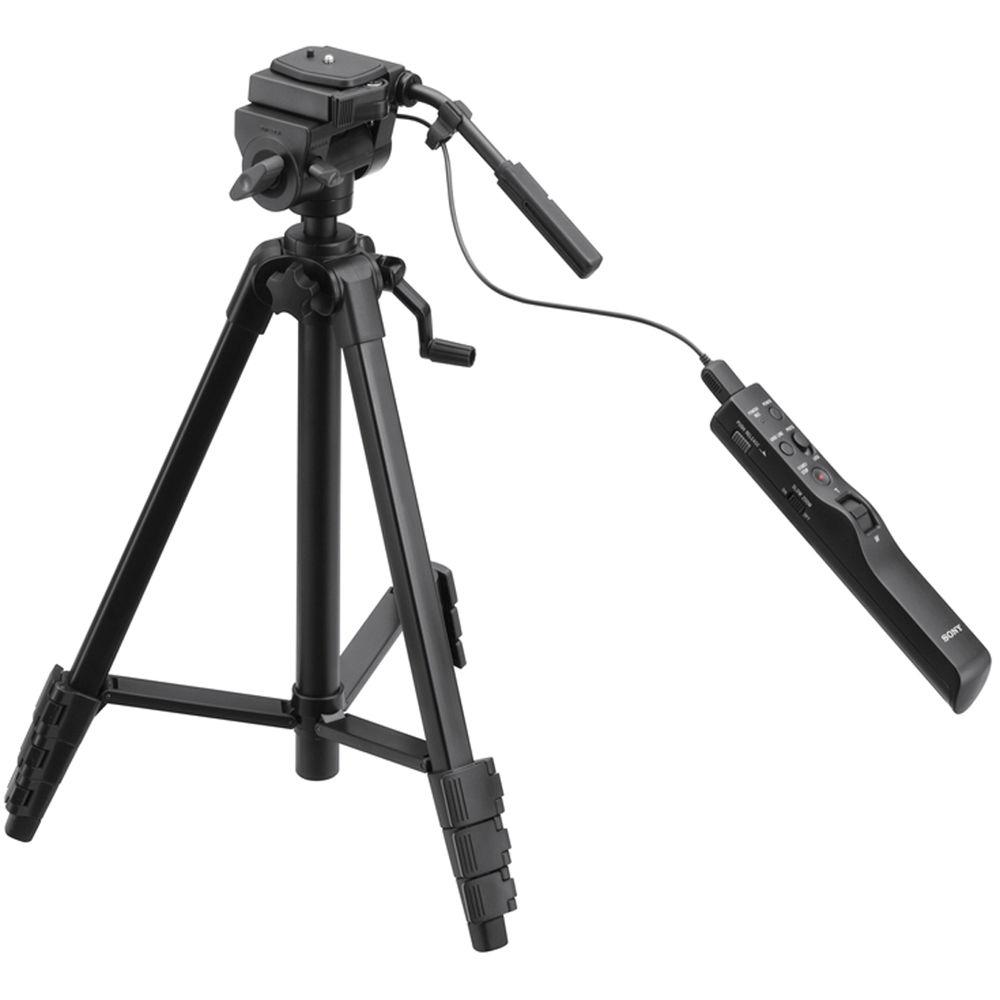

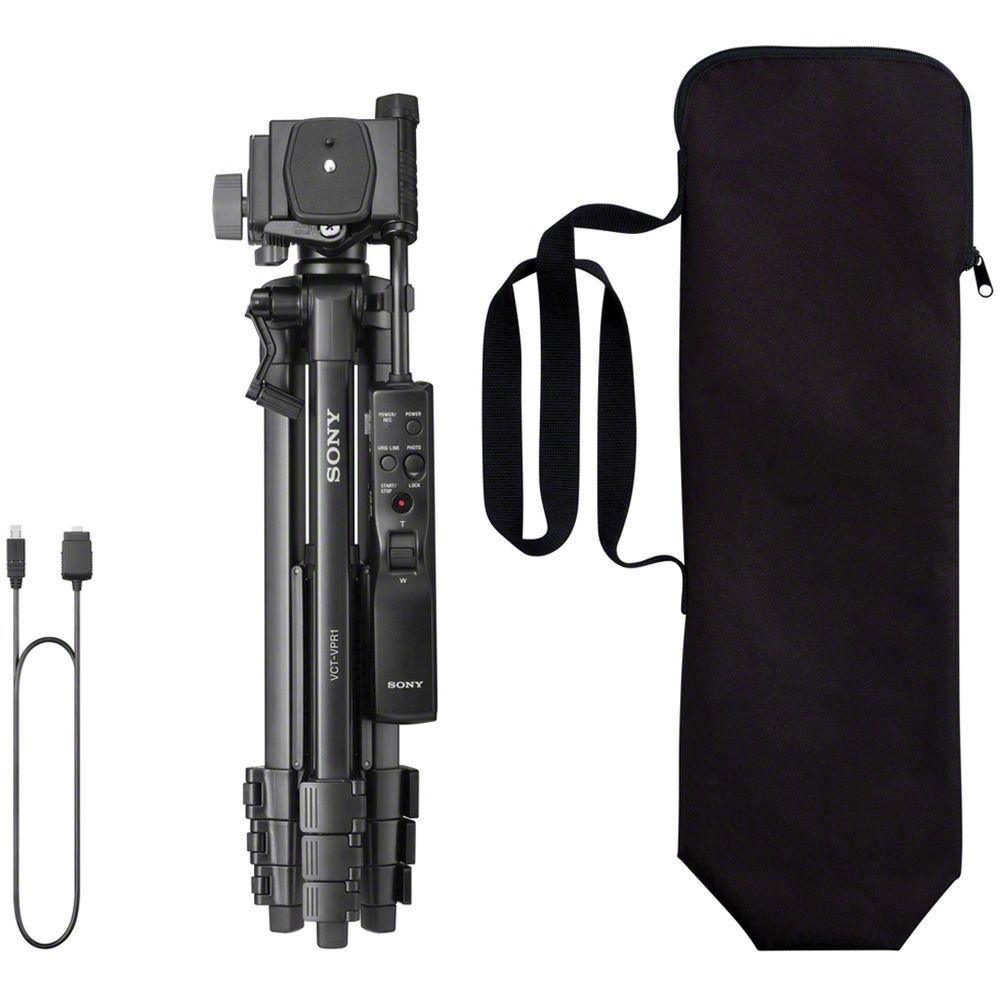

A multi-terminal cable and carry case are included. - Detachable Remote Control

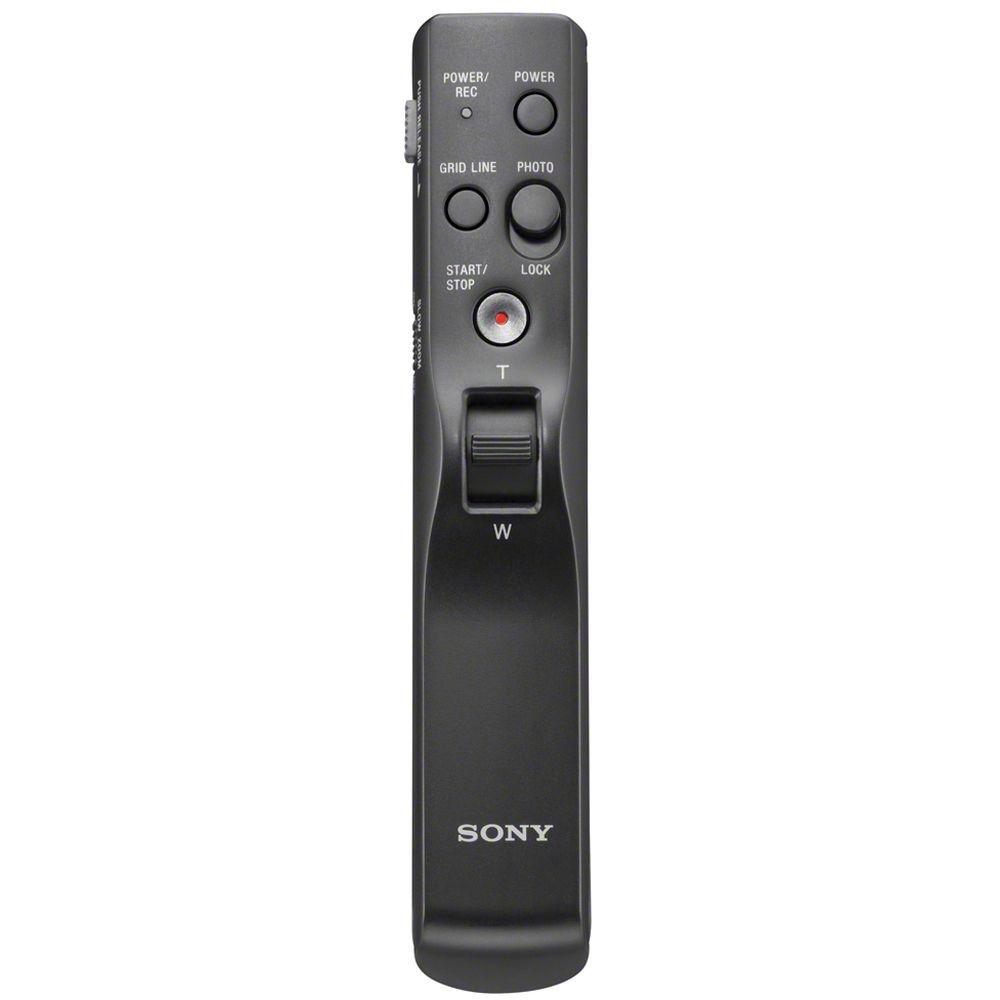

- Advanced remote control with shutter lock and release
- Hard Button Control
- Hard button control of power, grid lines, still photography and start/stop button for video
- Zoom Lever
- Built-in zoom lever for slow and controlled zooming effects
- Fine Control of Shooting Angle
- 3-Way fluid pan/tilt head provides smooth camera movement
- Easy Set Up
- Built-in leveler for quick, easy set up

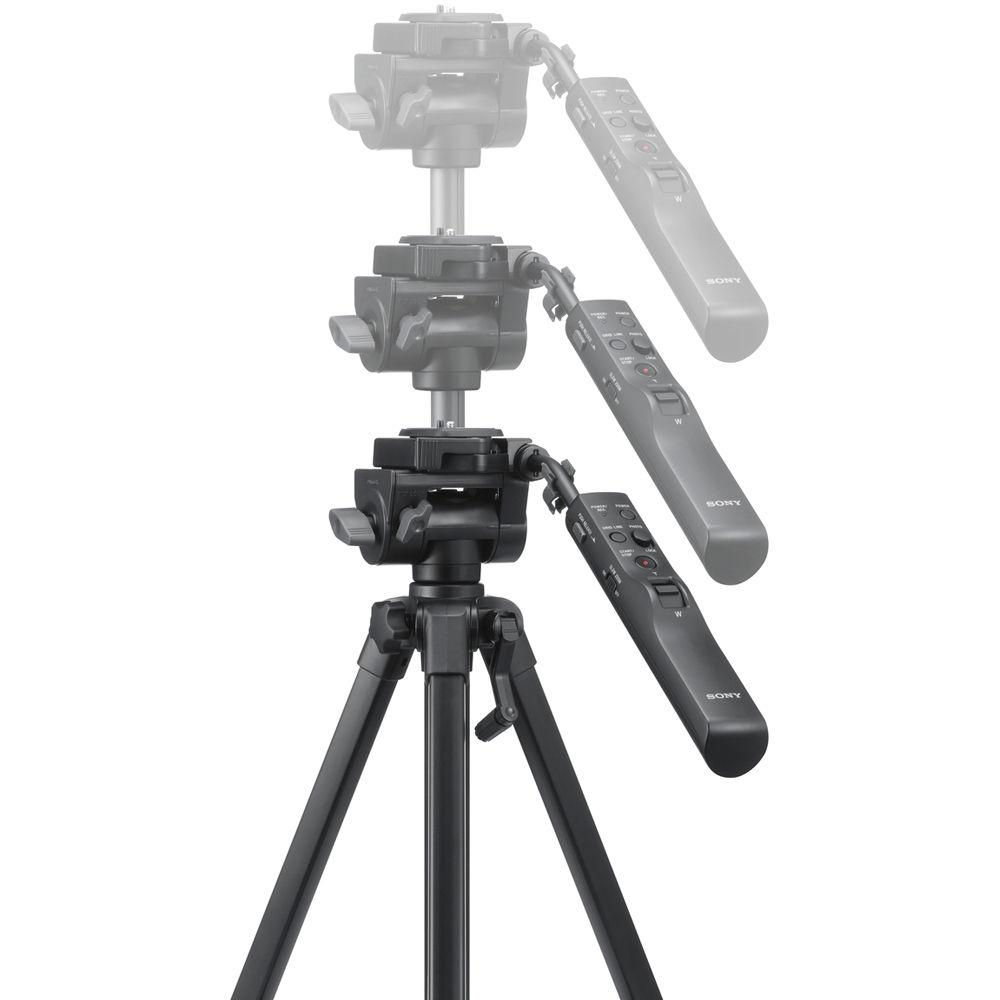

- Adjustable Height
- Height is adjustable via elevator function. The tripod can extend from 17.25 to 57.75"
- Lightweight and Sturdy
- The VCT-VPR1 weighs just under 3.0 lb and supports cameras up to 6.6 lb
- Some Compatible Models
- Any video/still camera with a multi-terminal port is compatible. Here are some:
Cyber-shot Digital Camera HX300
Cyber-shot Digital Camera HX50V
HDR-CX220/B Camcorder
HDR-CX230/B Flash Camcorder
HDR-CX290/B Flash Memory Camcorder
HDR-CX380/B Flash Memory Camcorder
HDR-PJ230/B Camcorder with Projector
HDR-PJ380/B Camcorder with Projector
HDR-PJ430V Camcorder with Projector
HDR-TD30V 3D Handycam Camcorder
Alpha NEX-3N with 16-50mm Lens
Sony α58 Camera and 18-55mm Lens UPC: 027242860490 In the Box Sony Compact Remote Control Tripod Multi-Terminal Cable Carry Case Limited 90-Day Warranty User Manual PDF 815.3kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony Compact Remote Control Tripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony VCT-VPR1 Specs | Connector Type of Included Cable | Multi-terminal | | Maximum Height | 57.75" (1.46 m) | | Minimum Height | 17.25" (0.43 m) | | Load Capacity | 6.62 lb (3.0 kg) | | Leg Stages/Sections | 4 | | Bubble Level | Yes | | Independent Leg Spread | No | | Quick Release/Wedge Plate | Yes | | Leg Lock Type | Flip-lock | | Center Column Type | Crank, not removable | | Center Brace | Yes | | Spiked/Retractable Feet | No | | Head | Fluid pan/tilt | | Pan Lock | Yes | | Remote Control | Yes, wired, detachable
Hard button control: power, grid lines, still photography, video start/stop, and video zoom | | Weight | 2.62 lb (1.2 kg) | | | | Package Weight | 4.065 lb | | Box Dimensions (LxWxH) | 19.8 x 5.45 x 5.1" |
