User manual

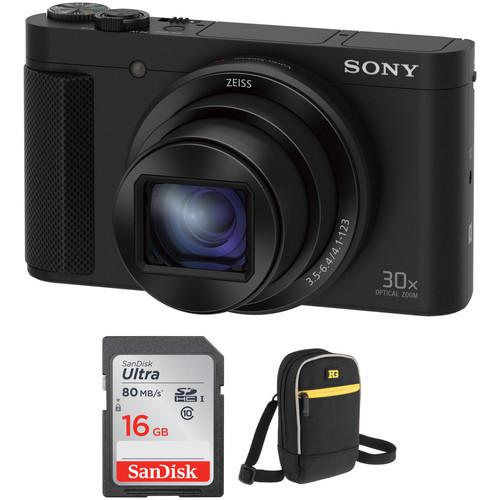

Sony Cyber-shot DSC-HX80 Digital Camera with

User Manual for Sony Cyber-shot DSC-HX80 Digital Camera with Accessory Kit

• Product category: Point & Shoot Cameras Sony
• Brand: Sony
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sony Point & Shoot Cameras

Product description

• Sony Cyber-shot DSC-HX80 Digital Camera Blending an advanced, low-light optimized image sensor with a long-reaching zoom, the Cyber-shot DSC-HX80 Digital Camera from Sony is also characterized by its svelte form factor and intuitive handling design. At the heart is an 18.2MP 1/2.3" Exmor R CMOS sensor, which features a back-illuminated design, along with a BIONZ X image processor to avail smooth image quality, reduced noise, and an expandable sensitivity range up to ISO 12800. The sensor and processor combination also avail fast performance throughout the camera system, including a 10 fps continuous shooting rate and the ability to record Full HD 1080p video at 60 fps in the XAVC S format. Balancing the imaging capabilities is an apt physical design, which incorporates both a pop-up OLED Tru-Finder electronic viewfinder and 180° tilting 3.0" 921k-dot LCD monitor into its design, along with built-in Wi-Fi with NFC for wireless image sharing and remote camera control via a linked smartphone or tablet. Contrasting the sleek size, the HX80 is also distinguished by its expansive 30x zoom Zeiss Vario-Sonnar T* lens, which provides a 24-720mm equivalent zoom range. Spanning wide-angle to super telephoto perspectives, this lens benefits from its 5-axis Optical SteadyShot image stabilization; minimizing the appearance of camera shake to produce sharper results. A true all-in-one pocketable camera, the HX80 blends both form and function, as well as imaging versatility to handle a wide array of everyday shooting needs.
  18.2MP Exmor R CMOS Sensor and BIONZ X Image Processor
  • Using an 18.2MP 1/2.3" Exmor R CMOS sensor and BIONZ X image processor, the HX80 is able to produce high-resolution stills and full HD video with notable clarity and smooth tonality. The sensor employs a back-illuminated design, too, allowing it to achieve reduced noise levels along with a native sensitivity range to ISO 3200, which can be extended to ISO 12800 for working in low-light conditions. The sensor and processor also provide a continuous shooting rate of 10 fps for up to 10 consecutive frames in a burst.

    Additionally, Full HD 1080 video recording is supported in 60p, 60i, or 24p frame rates, with the ability to use the high-quality 50 Mbps XAVC S format or familiar high-definition AVCHD format. When using either of these formats, a secondary Internet-friendly MP4 version can be simultaneously recorded for easy online sharing.
  Zeiss Vario-Sonnar T* 30x Optical Zoom Lens
  • Covering wide-angle to super telephoto perspectives, the built-in 30x Zeiss Vario-Sonnar T* lens spans a 24-720mm equivalent focal length range. Five aspherical elements are incorporated in the optical design, which reduce spherical aberrations throughout the zoom range, and a T* anti-reflective coating helps to control lens flare and ghosting for increased contrast and color neutrality.

    Complementing the optical design, the lens's performance also benefits from its 5-axis Optical SteadyShot image stabilization to minimize the appearance of camera shake. An Intelligent Active Mode is also available to reduce blur common to shooting video while moving. Also aiding in achieving sharp imagery, Fast Intelligent AF employs an optimized spatial object detection algorithm to quicken focusing speeds as well as refine accuracy for consistently sharp results.
  Body Design and Wi-Fi
  • • Helping to maintain a sleek form factor, the 638k-dot OLED Tru-Finder electronic viewfinder employs a unique pop-up design to retain a pocketable overall size when not in use.
    • A comfortable viewing alternative, the rear 3.0" 921k-dot LCD monitor employs a 180° tilting design to facilitate working from low angles or taking front-facing selfies.
    • The large right-hand grip offers increased comfort and support for longer shooting sessions.
    • A customizable function button can be programmed to adjust one of 12 oft-used camera settings, such as white balance, Picture Effects, and more; for faster, more intuitive access to settings switching.
    • A Digital Level Gauge helps to ensure consistently level horizons and plumb verticals during shooting.
    • Built-in Wi-Fi with NFC lets you wirelessly share imagery to a smartphone or tablet for instant sharing online. This connectivity also lets you remotely control the camera from a mobile device.
    • A series of PlayMemories Camera Apps can be added to the camera to increase the functionality and add new shooting modes.
    • The included NP-BX1 rechargeable lithium-ion battery provides approximately 390 shots per charge when working with the rear monitor, or 360 shots per charge when shooting with the electronic viewfinder.
  UPC: 027242899551
• SanDisk 16GB Ultra UHS-I SDHC Memory Card (Class 10) Record Full HD 1080p video with this Class 10 compliant 16GB Ultra UHS-I SDHC Memory Card from SanDisk. With enhanced data read speeds of up to 80 MB/s this Ultra SDHC memory card is designed to suit the needs of compact and mid-range point and shoot cameras. You can also save and store a variety of files such as music, movies, documents and more. The writable label found on the card allows you to write down what is saved to the card while the built-in write protect switch helps to prevent accidental data loss. This card, as with most SanDisk cards, comes shock, temperature, x-ray, magnet, and waterproof to take your files with you nearly anywhere you go.
  • Class 10 performance for Full HD Video (1080p)
  • Read speeds up to 80 MB/s
  • Writable label for easy identification and organization
  • Engineered with UHS-I bus architecture
  • This SD memory card comes shock, temperature, x-ray, magnet, and waterproof proof
  UPC: 619659136451
• Ruggard Lyra 30 Camera Pouch (Black) Store, transport and protect your digital small point & shoot camera from moisture, dirt and dust with the black Lyra 30 Camera Pouch from Ruggard. The pouch features an easy access, zippered, clamshell opening, and an interior SD memory card pocket. Soft, padded, interior nylon helps protect your camera from impact, scratches and abrasion. This protection is complemented by a weather-resistant nylon exterior. Carry the pouch with the handy belt loop with touch-fasten tabs, or with the removable shoulder strap. The bright yellow interior makes it easier to locate stored items in low light.
  • Durable, weather-resistant nylon exterior for protection from moisture, dirt, and dust
  • Thick foam padding to protect against bumps and impact
  • Soft nylon interior to prevent lens and screen scratches and abrasions
  • Interior SD card pocket for storing extra photos and video
  • Zippered front pocket for added cards, lens cloth, spare battery and other small items
  UPC: 847628571341

• Cyber-shot DSC-HX80 Digital Camera cduqwuvbbydqbqufrrcqwb
• NP-BX1/M8 Rechargeable Lithium-Ion Battery Pack (3.6V, 1240mAh)
• AC-UUD12 AC Adapter
• Micro USB Cable
• Wrist Strap
• Limited 1-Year Warranty

• SanDisk - 16GB Ultra UHS-I SDHC Memory Card (Class 10) cduqwuvbbydqbqufrrcqwb

• Ruggard - Lyra 30 Camera Pouch (Black)

Upload User Manual

Please enter here the link to the user manual of this product: User manual for Sony Cyber-shot DSC-HX80 Digital Camera with Accessory Kit can be downloaded below, so the upload option is not active. OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0% User manual for Sony Cyber-shot DSC-HX80 Digital Camera with Accessory Kit can be downloaded below, so the upload option is not active.

Download User Manual

Download PDF User Manual - Sony Cyber-shot DSC-HX80 Digital Camera with Accessory Kit (PDF file, 1.6 MB)

Technical parameters

• Sony Cyber-shot DSC-HX80 Digital Camera

  Pixels	Actual: 21.1 Megapixel Effective: 18.2 Megapixel
  Sensor	1/2.3" CMOS
  File Formats	Still Images: JPEG Movies: AVCHD 2.0, MP4, XAVC S Audio: AAC LC, AC3, Dolby Digital 2ch, Linear PCM (Stereo)
  Max Resolution	4896 x 3672
  Aspect Ratio	1:1, 3:2, 4:3, 16:9
  Image Stabilization	Optical, 5-Way
  Color Spaces	sRGB

  Lens	Carl Zeiss Vario-Sonnar, 11 Elements in 10 Groups 5 Aspherical Effective Focal Length: 4.1 to 123mm (35 mm Equivalent: 24 to 720mm) Aperture: f/3.5 (W) to f/6.4 (T)
  Zoom	Optical: 30x Clear Image Zoom: 2x Digital: 4x
  Focus Range	Wide: 1.97" to Infinity / 5 cm to Infinity Telephoto: 8.2' to Infinity / 2.5 m to Infinity

  ISO Sensitivity	Auto, 80 to 3200 (Extended Mode:80 to 12800)
  Shutter	4 to 1/2000 Second in Auto Mode 1 to 1/2000 Second in Program Mode 8 to 1/2000 Second in Aperture Priority Mode 30 to 1/2000 Second in Shutter Priority Mode 30 to 1/2000 Second in Manual Mode
  Exposure Metering	Center-Weighted, Multi, Spot
  Exposure Modes	Modes: Aperture Priority, Auto, Intelligent Auto, Manual, Program, Shutter Priority Compensation: -3 EV to +3 EV (in 1/3 EV Steps)
  Shooting Modes	Anti-Motion Blur Beach Fireworks Gourmet Handheld Twilight High Sensitivity Landscape Night Portrait Night Scene Pet Mode Portrait Snow Soft Skin Sports Sunset
  White Balance	Auto, Cloudy, Custom, Daylight, Flash, Fluorescent (Cool White), Fluorescent (Day White), Fluorescent (Daylight), Incandescent, One Push, One Push Set, Shade
  Continuous Shooting	Up to 10 fps at 18.2 MP for up to 10 Exposures (JPEG Format)
  Self-Timer	2, 5, 10 Sec

  Flash Modes	Auto Flash On Off Rear Sync Slow Sync
  Built-In Flash	Yes
  Effective Flash Range	Wide:1.0 to 17.7' / 0.3 to 5.4 m Telephoto:8.2 to 9.8' / 2.5 to 3 m

  Memory Card Type	SD SDHC SDXC Memory Stick Duo Memory Stick PRO Duo (High Speed) Memory Stick PRO HG-Duo

  Video Recording	Yes, NTSC
  Resolution	1920 x 1080p: 60 fps, 30 fps, 24 fps 1920 x 1080i: 60 fps 1280 x 720p: 30 fps

  Video Clip Length	Up to 29 Minutes
  Audio Recording	Built-In Mic: With Video (Stereo)

  Viewfinder Type	Electronic
  Diopter Adjustment	-4 to +3 m
  Viewfinder Coverage	100%
  Screen	3.0" LCD Rear Screen Tilt (921,600 Pixels)
  Screen Coverage	100%

  Connectivity	HDMI D (Micro), USB 2.0 Micro-B, USB 2.0
  Wi-Fi	Yes, Wi-Fi 4 (802.11n) Built In
  GPS	No

  Battery	1 x NP-BX1 Rechargeable Lithium-Ion Battery Pack, 3.6 VDC, 1240 mAh

  Dimensions (W x H x D)	4.0 x 2.3 x 1.4" / 102.0 x 58.1 x 35.5 mm
  Weight	8.64 oz / 245 g

  Box Dimensions (LxWxH)	6.0 x 4.7 x 3.0"

• SanDisk 16GB Ultra UHS-I SDHC Memory Card (Class 10)

  Card Type	SDHC
  Storage Capacity	16 GB
  Bus Type	UHS-I
  Speed Class	10
  Bus Interface Speed	UHS Class I
  Data Transfer	Read Speed: 80 MB/s Maximum (Burst) Write Speed: 10 MB/s Minimum
  Durability	Magnet-Proof, Shockproof, Temperature Extremes, Waterproof, X-Ray Proof
  Operating Temperature	-13 to 185°F/ -25 to 85°C
  Storage Temperature	-40 to 185°F/ -40 to 85°C
  Built-in Write-Protect Switch	Yes

  Box Dimensions (LxWxH)	4.3 x 4.0 x 0.1"

• Ruggard Lyra 30 Camera Pouch (Black)

  Carrying/Transport Options

  Belt Loop, Shoulder Strap

  Exterior Dimensions	3 x 1.75 x 5.25" / 7.6 x 4.4 x 13.3 cm
  Exterior Material	Nylon
  Type of Closure	Zipper

  Interior Dimensions	2.75 x 1.5 x 5" / 6.99 x 3.81 x 12.7 cm
  Interior Material	Nylon
  Weight	2.2 oz / 62 g

  Box Dimensions (LxWxH)	8.2 x 5.0 x 2.5"
