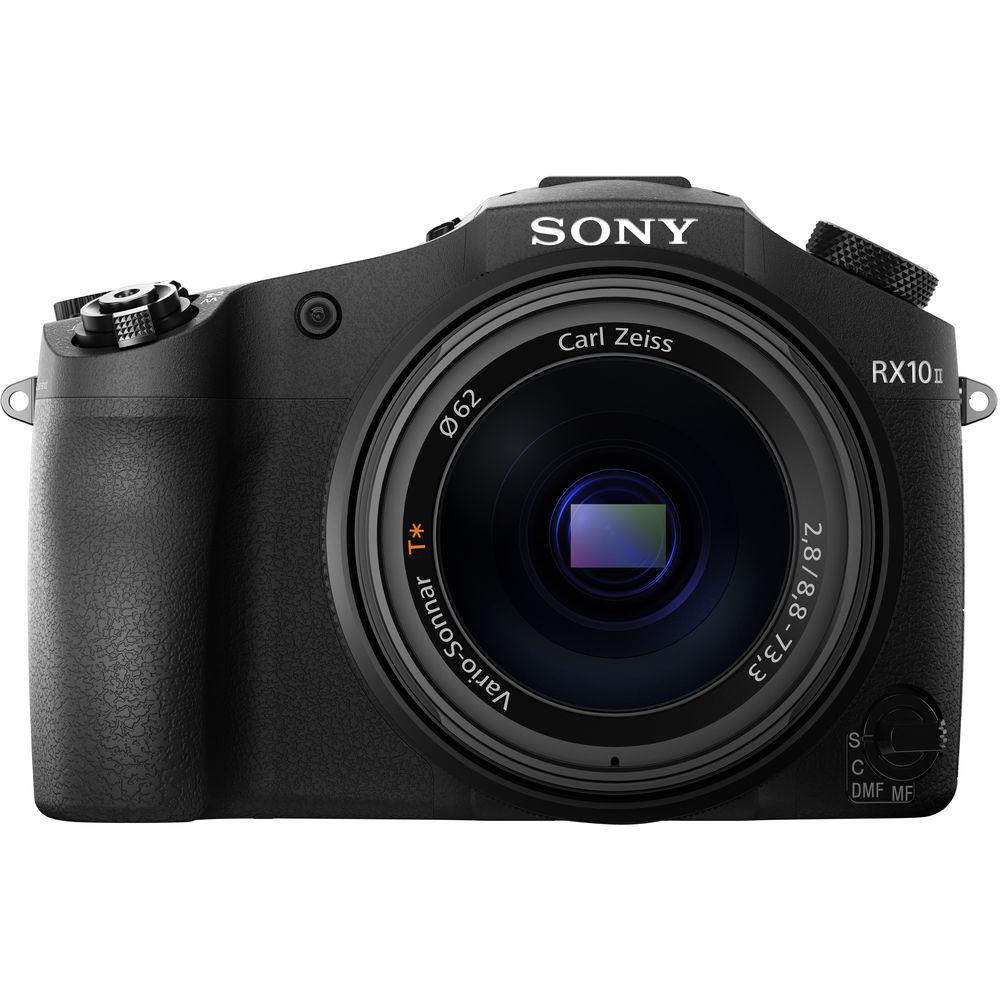

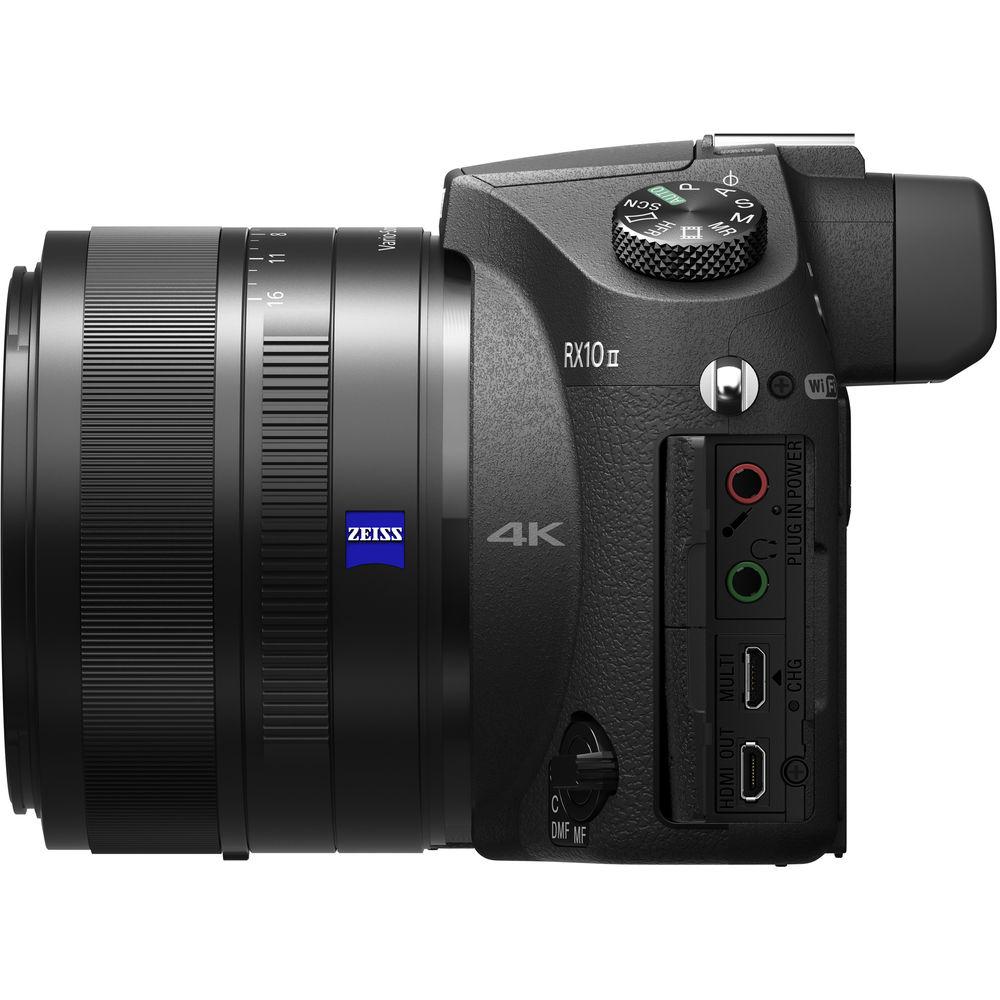

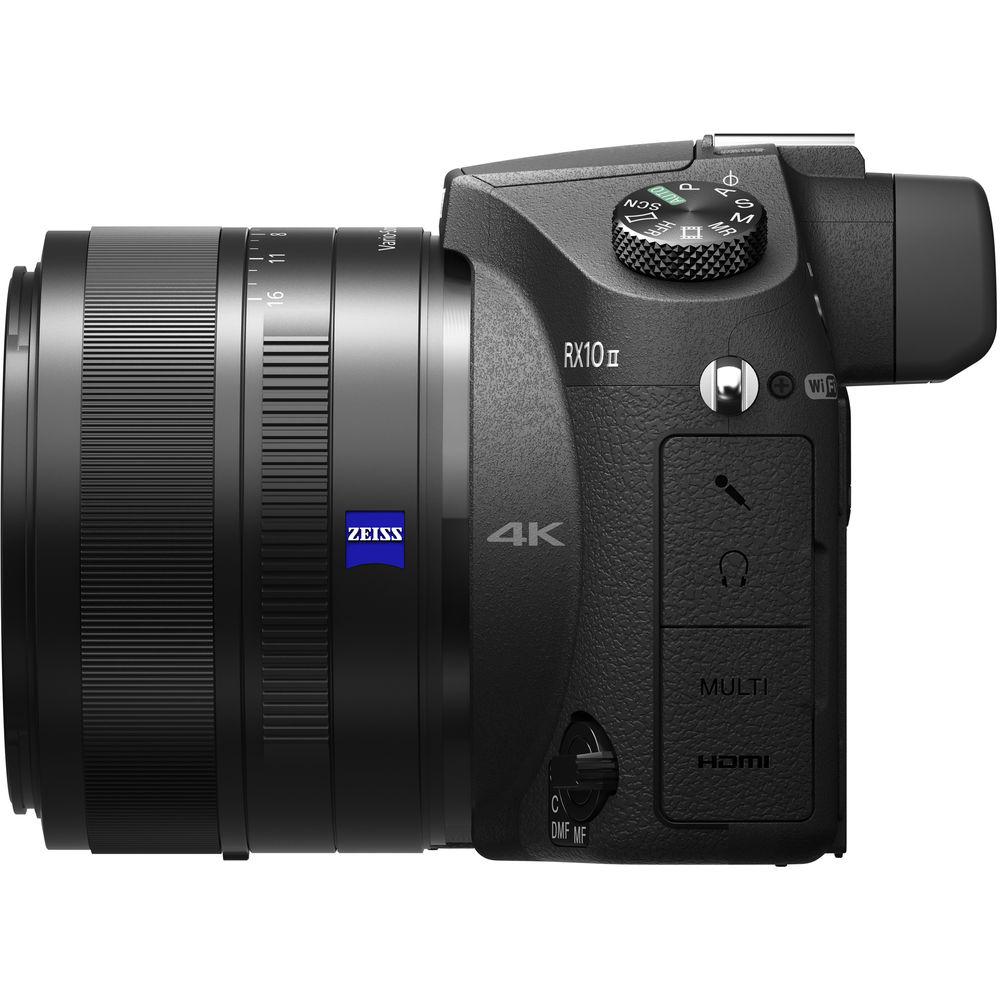

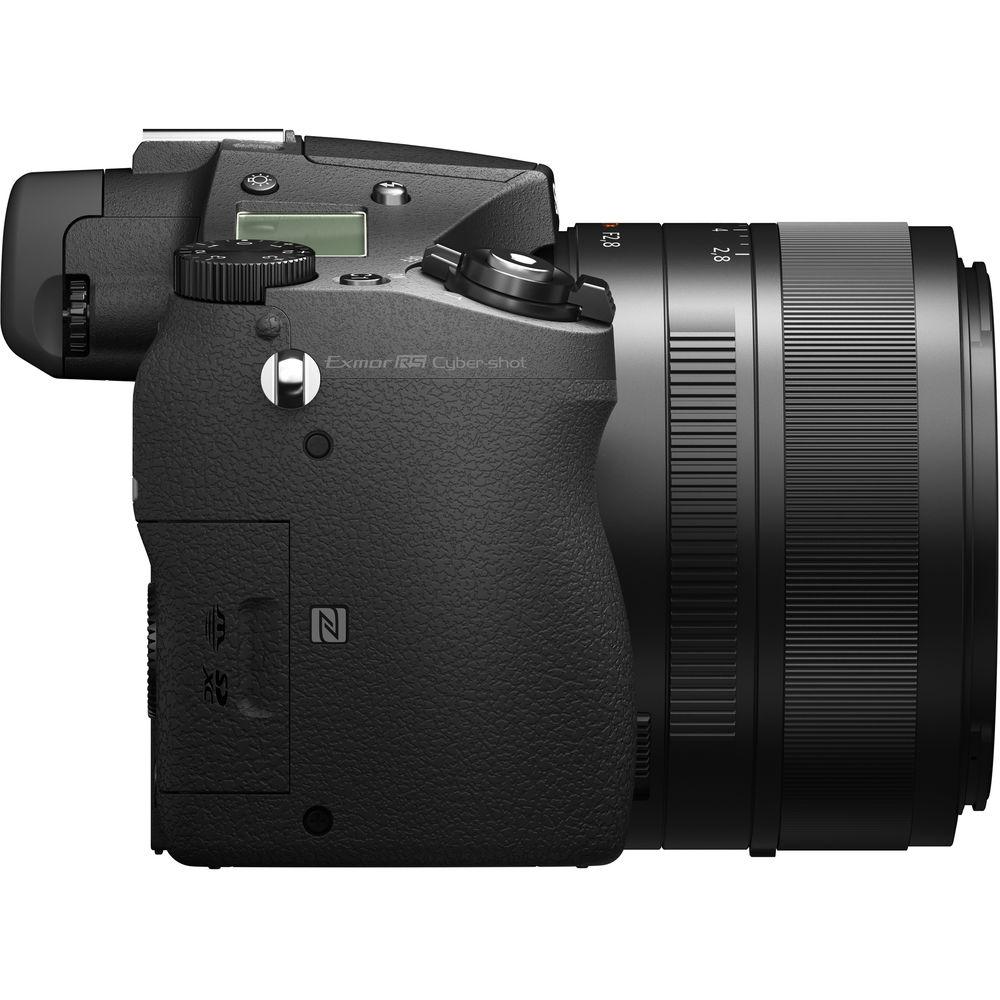

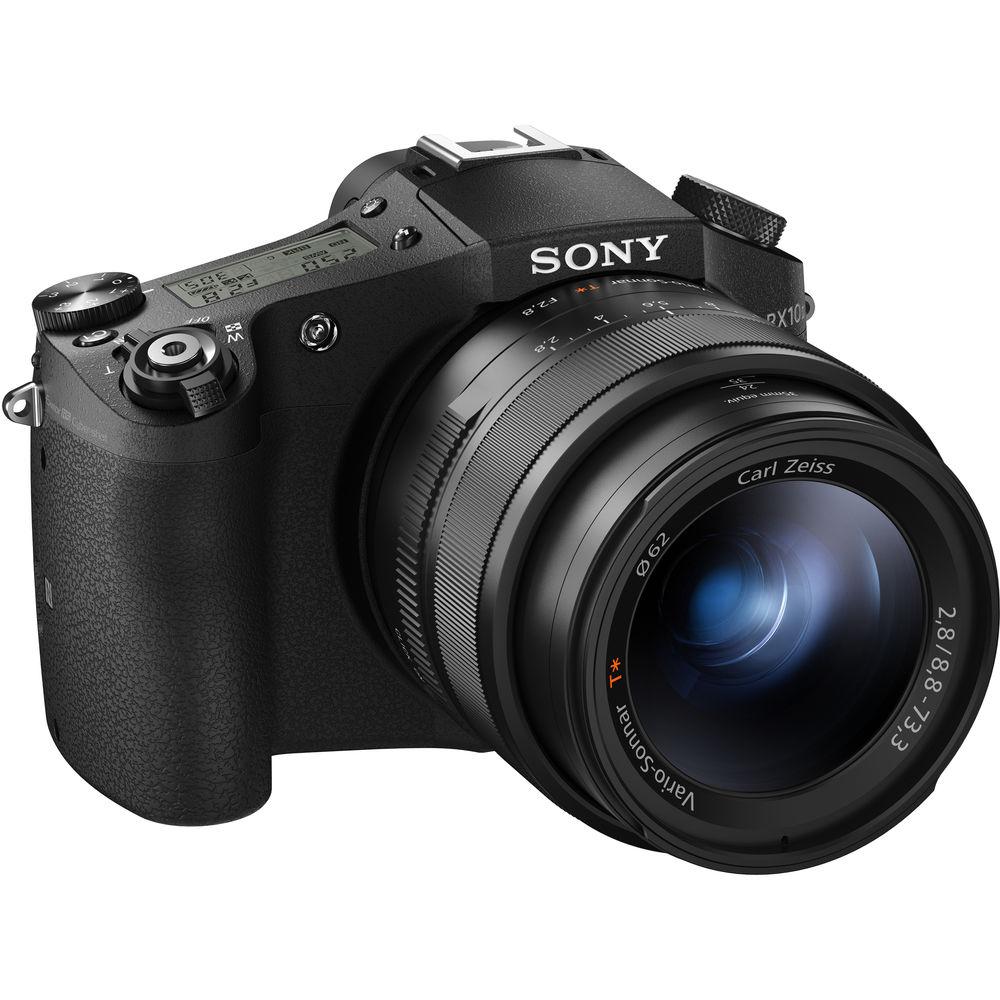

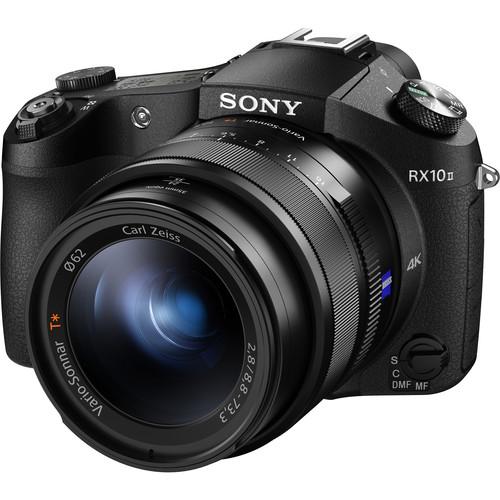

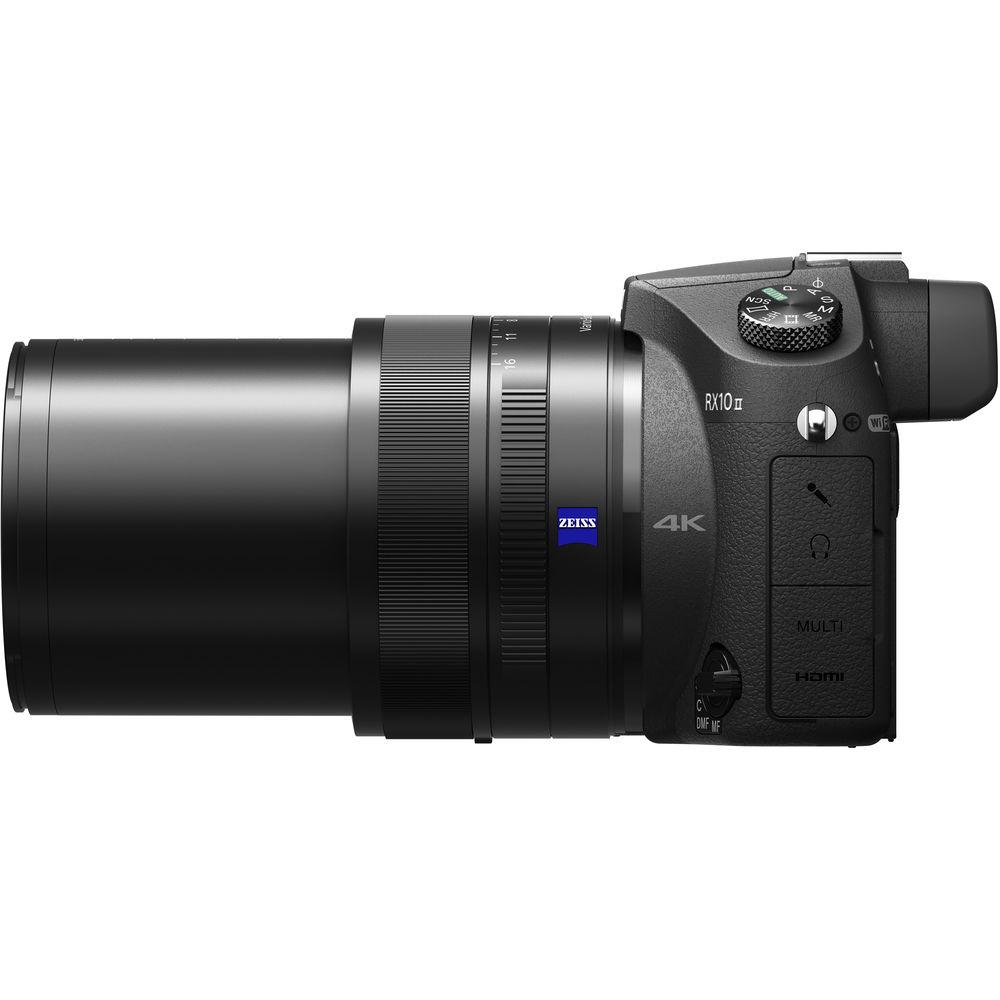

The Cyber-shot DSC-RX10 II Digital Camera from Sony is a compact, point-and-shoot camera that features a large 20.2MP, 1" Exmor RS BSI CMOS sensor producing high resolution still imagery and internal-recording UHD 4K video up to 30 fps, and super slow-motion video up to 960 fps. This sensor's design utilizes a stacked CMOS image sensor with a DRAM chip and backside-illuminated technology to improve clarity and image quality when working in dimly-lit conditions as well as low-noise imagery and a sensitivity range of ISO 100-12800. The DRAM chip is integrated into the sensor, and combined with the BIONZ X processor allows for fast readout speeds, burst shooting up to 14 fps, and a maximum physical shutter speed of 1/3200 sec and a maximum electronic shutter speed of 1/32000 sec. The built-in, Carl Zeiss Vario-Sonnar T*, 8.3x optical zoom lens provides a 35mm-equivalent focal length range of 24-200mm, covering a broad range of focal lengths to provide versatile, multi-functional shooting from one zoom lens. A constant maximum aperture of f/2.8 is effective in low light and provides shallow depth-of-field focus control. Optical SteadyShot image stabilization is also available to help minimize the effects of camera shake when working in dimly-lit conditions and with greater zoom magnifications. The lens also features 7 aspherical elements including an Advanced Aspherical lens to minimize aberrations and distortion and Carl Zeiss T* anti-reflective coating, which helps to reduce surface reflections, lens flare, and ghosting in order to produce imagery that is rich in contrast and clarity. A Direct Drive, Supersonic Wave Motor (SSM) provides fast and smooth autofocus action while Eye AF enables precise eye-detection focusing with confirmation that a subject's eye is in focus even if their head is partially turned. Flexible Spot areas allow precise focus placement, and Lock-on AF keeps focus locked on a moving subject, even if that subject leaves the frame momentarily. Seamless close-up shooting is also supported, which no longer requires the need to switch to a dedicated macro mode, for focusing on subjects as close as 1.2". For image composition and playback, the RX10 II features a large 3.0", 1228K-dot, Xtra Fine LCD monitor with a tilting design to better serve working from high and low angles. WhiteMagic technology is incorporated into the display to increase the effective brightness of the screen. Also, the XGA OLED Tru-Finder electronic viewfinder integrates four aspherical elements for sharp eye-level composition. An automatic eye-sensor recognizes when an eye is at the viewfinder and illuminates the EVF while turning off the LCD. UHD 4K video is supported up to 30 fps in XAVC S format thanks to a high-speed front-end LSI which processes the data with full pixel readout with no line skipping or pixel binning. The XAVC S format allows for high-bitrate shooting up to 100 Mbps. A built-in stereo microphone and an external mic jack are provided as is a headphone jack from audio monitoring. Professional features such as full manual exposure control and uncompressed off-camera recording are also supported. Built-in Wi-Fi and NFC (Near Field Connectivity) allow for easy wireless connections to smartphones and tablets in order to transfer images for sharing as well as to use your smartphone as a remote control via the free Sony PlayMemories app. The compact magnesium alloy body of the RX10 II is moisture and dust resistant. It offers a built-in pop-up flash as well as the Sony Multi-Interface shoe for connecting flashes, microphones, lights, monitors, and other accessories. A multi-compatibility card slot enables the use of SD series, micro-SD series, and Memory Stick memory cards. A selectable click or click-less manual control ring on the lens lets you adjust numerous camera settings without taking your eye from the image and customizable buttons provides fast access to the camera settings that you need most. - 20.2MP 1" Exmor RS BSI CMOS Sensor
- The 1" stacked CMOS image sensor with DRAM chip offers a fast electronic shutter speed of up to 1/32000. The Exmor RS sensor not only enhances efficiency and speed of A/D conversion through its stacked structure with more circuit sections; it also realizes over five times faster readout speed of the previous RX10 thanks to a DRAM chip integrated into the sensor structure. This processing speed allows for 20.2-megapixels at up to 14 fps continuous shooting, 4K movie and super slow-motion HFR (High Frame Rate) recording of up to 960 fps (40x) movie clips - not to mention better low-light low-noise capability.
- BIONZ X Image Processor
- Also benefitting the image quality, as well as overall camera performance, is the BIONZ X image processor. It faithfully reproduces details and rich tones with lower image noise than was previously possible. Performance speed is also impressive including full-resolution continuous shooting up to 14 fps, high-speed auto focusing and UHD 4K video recording. Still images can be recorded in JPEG or RAW file formats or both simultaneously.
- UHD 4K Video Recording
- High quality 4k is achieved by a high-speed front-end LSI, which processes mass volume image data from the 1" Exmor RS CMOS sensor - with full pixel readout and no line skipping or pixel binning - resulting in images that exhibit higher resolution and less moiré and jaggies than typical 4K movies. Moreover, the XAVC S format is incorporated to maximize high-bitrate shooting up to 100 Mbps for professional quality video. The RX10 II also includes functions such as; Picture Profile, S-Log2/S-Gamut, TC/UB, Rec Control, Dual Video Recording, and marker display function.

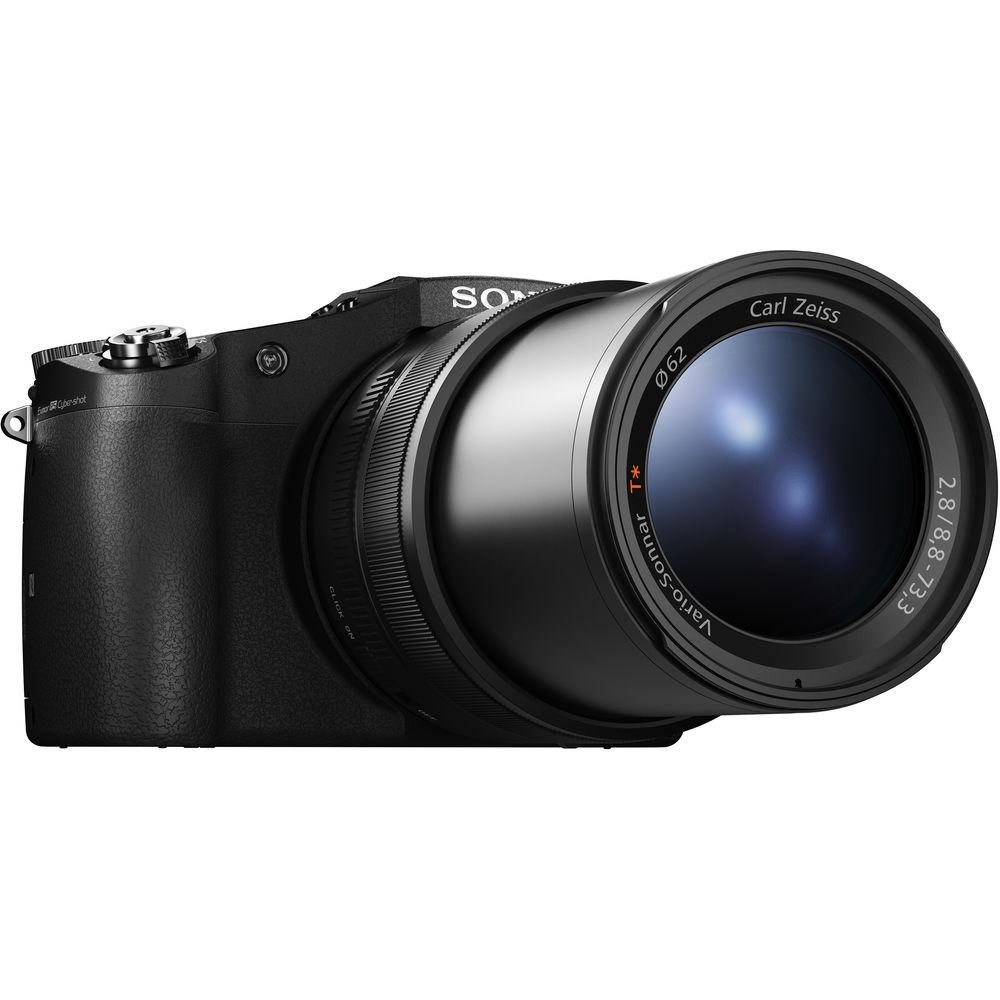

- Carl Zeiss Vario-Sonnar T* 8.3x Optical Zoom Lens
- The built-in Carl Zeiss Vario-Sonnar T* lens provides a 35mm-equivalent focal length range of 24-200mm, covering wide-angle to full telephoto perspectives to suit working in a wide variety of situations. The fast constant f/2.8 maximum aperture enables enhanced low-light capabilities as well as greater control over focus placement for selective focus imagery. The lens also features 7 aspheric elements including one Advanced Aspheric element for reduced aberrations and a Carl Zeiss T* anti-reflective coating to help minimize lens flare and ghosting in order to produce imagery with rich contrast and clarity.
- Super-Speed Anti-Distortion Electronic Shutter
- In addition to the physical shutter's max speed of 1/3200 sec. even faster shutter speeds of up to 1/32000 sec. are possible thanks to a dramatically accelerated sensor readout. The accelerated electronic shutter readout minimizes distortion caused by rolling shutter phenomenon. This new fast Anti-Distortion Shutter system can capture shots of swiftly moving subjects without altering their shape as conventional CMOS sensors tend to do. Additionally, the super high-speed shutter gives you freedom to shoot photos with de-focused backgrounds by using large aperture settings under very bright lighting conditions. This is achieved by a combination of 1/32000 super high speed shutter and built-in ND filter that allows photos to be shot in extremely bright light at a maximum of EV19 with a fully open aperture.
- Built-In Wireless and NFC Connectivity
- Built-in wireless connectivity enables the RX10 II to instantly transfer imagery to mobile devices for direct sharing with social networking sites, via email, and to cloud storage sites. NFC (Near Field Communication) is also supported, which allows for one-touch connection between the camera and compatible Android mobile devices; no complex set-up is required. This technology when used with the free Sony PlayMemories Mobile app also provides the ability to use Smart Remote Control, which provides for remote shutter release that is controlled by a smart device.
- High-Resolution LCD Monitor
- For live view monitoring, image playback and review, and menu navigation, a 3.0" 1228K-dot LCD monitor is integrated into the camera body and features a tilting design to promote easier use from high and low angles. The screen can tilt approximately 84° up and 45° down, giving a wide range of viewing angles. The LCD also employs WhiteMagic technology, which enhances the brightness of the display for easier use in bright conditions. Real-time image adjustment can be seen on the monitor and Grid Display and Peaking can be customized for better image control.
- XGA OLED Viewfinder
- See spectacular clarity, contrast, and detail in every scene, regardless of conditions, on the built-in, bright, high-resolution OLED Tru-Finder electronic viewfinder. Four dual-sided aspherical lenses provide a big, 33º view angle and maintain excellent edge-to-edge visibility of the electronic viewfinder. An eye-sensor on the viewfinder senses when your eye is at the finder and illuminates it while simultaneously turning off the LCD monitor.
- Smooth High Speed Autofocus
- Aided by the rapid throughput of the BIONZ X image processor, auto focusing on the RX10 II is fast and accurate. The Direct Drive SSM (Super Sonic Wave AF Motor) provides fast and smooth autofocus action, and Flexible Spot frames enable versatility and precision when choosing your focus spots.
- Precise Autofocus Tracking and Eye AF Function
- Lock-on Autofocus precisely focuses on moving subjects by continuously adjusting target frame size based on its recognition of subject characteristics. Even when a subject goes out of frame temporarily, tracking resumes at the moment that it is recaptured after re-entering the frame. Advanced Eye Detection technology creates Eye AF Function which detects and focuses on the subject's eye even if the head is turned slightly.
- Close-up Focusing
- Close-up shooting is seamless and no switching to macro mode is needed. The minimum focus distance for the RX10 II is 1.2".
- Optical SteadyShot Image Stabilization
- Optical SteadyShot image stabilization works to minimize the appearance of camera shake when working in low-light conditions or with greater zoom magnifications. The system can counter the effects of both vertical and horizontal movements, and, furthermore, Active 3-Way stabilization adds digital rolling control that balances both clockwise and counter-clockwise movements while recording videos.

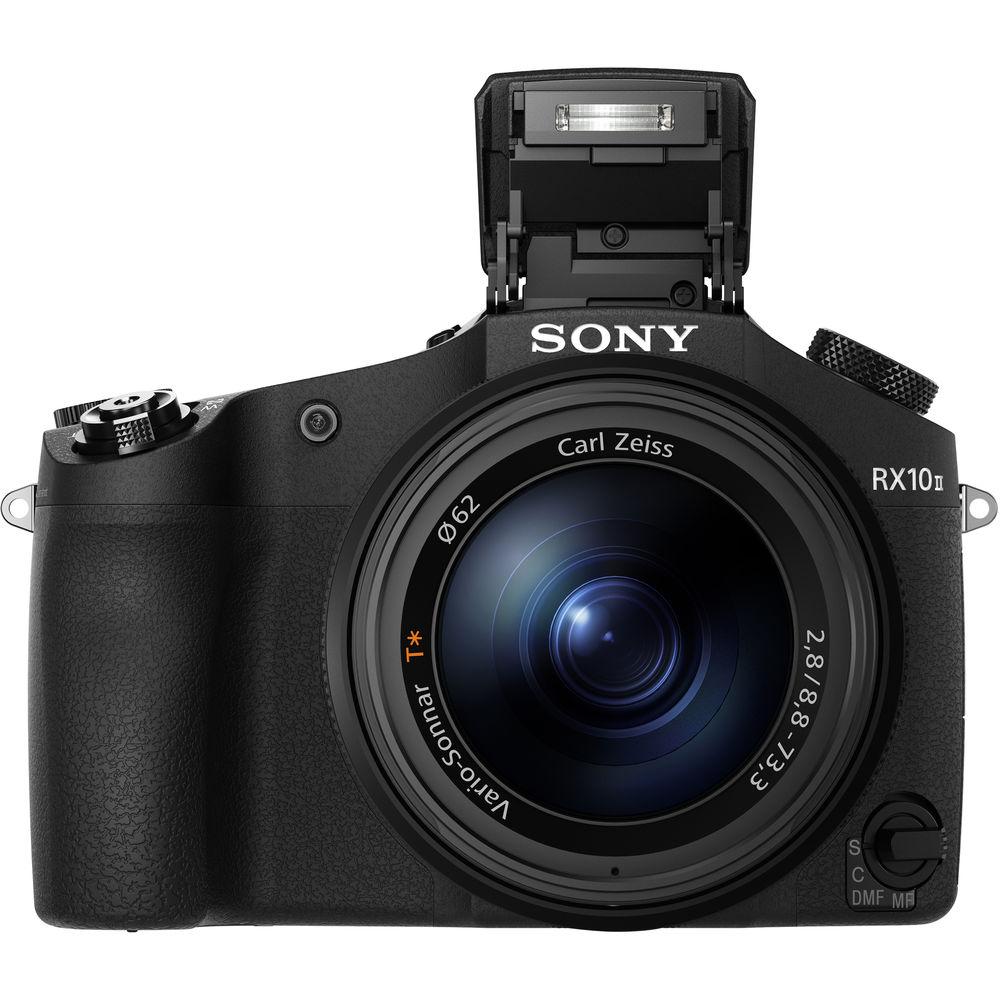

- Built-In Flash and Multi-Interface Shoe
- A convenient pop-up flash with several flash modes is provided but the RX10 II features the advanced Multi-Interface Shoe that dramatically expands compatibility with Sony digital imaging accessories such as flash units and microphones, thus increasing the potential of your photo and movie shooting.
- Selectable Click/Click-Less Manual Control Ring
- The manual ring gives you direct control of certain settings, zooming, and focusing, according to the focus mode in use. In addition, before turning the aperture ring to set f-stop, you can turn Aperture Click Switch on for clicked aperture adjustment or off for a quiet, smooth feel when setting the aperture. A display panel on top lets you see key settings without moving the camera as you look through the viewfinder.
- Multi-Compatibility Memory Slot
- The one memory card slot on the RX10 II is compatible with Memory Stick PRO Duo, Memory Stick PRO-HG Duo, Memory Stick XC-HG Duo, Memory Stick Micro, Memory Stick Micro Mark 2, SD, SDHC, SDXC, microSD, microSDHC, and microSDXC memory cards.
UPC: 027242893399 In the Box Sony Cyber-shot DSC-RX10 II Digital Camera NP-FW50 Lithium-Ion Rechargeable Battery (1020mAh) AC Adapter AC-UB10C Micro USB Cable Shoulder Strap Lens Cap Shoe Cap Lens Hood Eyepiece Cup Limited 1-Year Warranty Video: Hands-On Review of the Sony Cyber-shot DSC-RX10 II BH Online Videos 12/09/2015 Guides & Manuals More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony Cyber-shot DSC-RX10 II Digital Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Sony Cyber-shot DSC-RX10 II Digital Camera can be downloaded in PDF format at the link stated below.
Technical parametersSony DSC-RX10 II Specs | | | Pixels | Actual: 21 Megapixel
Effective: 20.2 Megapixel | | Sensor | 1.0" (13.2 x 8.8 mm) CMOS | | File Formats | Still Images: JPEG, RAW
Movies: MP4, AVCHD, XAVC S
Audio: AAC LC, AC3, Dolby Digital 2ch, Linear PCM | | Max Resolution | 20 MP: 5472 x 3648 | | Aspect Ratio | 1:1, 3:2, 4:3, 16:9 | | Image Stabilization | Optical | | Color Spaces | sRGB, Adobe RGB | | | | Lens | Carl Zeiss Vario-Sonnar, 14 Elements in 11 Groups
7 Aspherical
Effective Focal Length: 8.8 to 73.3mm (35 mm Equivalent: 24 to 200mm)
Aperture: f/2.8 | | Filter Thread | 62mm | | Zoom | Optical: 8.3x
Clear Image Zoom: 16x
Digital: 33x | | Focus Range | Wide: 1.18" to Infinity / 3 cm to Infinity
Telephoto: 9.84" to Infinity / 25 cm to Infinity | | | | ISO Sensitivity | Auto, 100 to 12800 (Extended Mode:64 to 25600) | | Shutter | Type: Mechanical
Speed: 4 to 1/3200 Seconds in Auto Mode
Type: Mechanical
Speed: 30 to 1/3200 Seconds in Program Mode
Type: Mechanical
Speed: 30 to 1/3200 Seconds in Bulb Mode
Type: Mechanical
Speed: 30 to 1/3200 Seconds in Aperture Priority Mode
Type: Mechanical
Speed: 30 to 1/3200 Seconds in Shutter Priority Mode
Type: Electronic
Speed: 4 to 1/32000 Seconds in Auto Mode
Type: Electronic
Speed: 30 to 1/32000 Seconds in Program Mode
Type: Electronic
Speed: 30 to 1/32000 Seconds in Aperture Priority Mode
Type: Electronic
Speed: 30 to 1/32000 Seconds in Shutter Priority Mode | | Exposure Metering | Center-Weighted, Multi, Spot | | Exposure Modes | Modes: Aperture Priority, Bulb, Intelligent Auto, Manual, Movie, Program Shift, Programmed Auto, Scene Selection, Shutter Priority, Superior Auto, Sweep Panorama
Compensation: -3 EV to +3 EV (in 1/3 EV Steps) | | Shooting Modes | Anti-Motion Blur
Black and White Copy
HDR Painting
Handheld Twilight
High Contrast B&W
Illustration
Landscape
Macro
Miniature Effect
Night Portrait
Night Scene
Partial Color
Pop Color
Portrait
Posterization
Retro
Rich-Tone Monochrome
Sepia
Soft Focus
Soft High-Key
Sports
Sunset
Toy Camera Effect
Vivid Color
Watercolor | | White Balance | Auto, Cloudy, Color Temperature Filter, Custom, Daylight, Flash, Fluorescent (Cool White), Fluorescent (Day White), Fluorescent (Daylight), Fluorescent (Warm White), Incandescent, Shade | | Continuous Shooting | Up to 14 fps at 20.2 MP for up to Exposures | | Self-Timer | 2, 5, 10 Sec | | | | Flash Modes | Auto
Fill-In
Flash On
Off
Rear Sync
Slow Sync
Wireless | | Built-In Flash | Yes | | Effective Flash Range | 3.28 to 33.46' / 1 to 10.2 m
Up to66.93' / 20.4 m | | External Flash Connection | Hot Shoe | | | | Memory Card Type | Memory Stick Duo
Memory Stick Pro Duo
Memory Stick PRO HG-Duo
Memory Stick PRO Duo (High Speed)
Memory Stick XC-HG Duo
Memory Stick Micro
Memory Stick Micro (M2)
SD
SDHC
SDXC
microSD
microSDHC
microSDXC | | | | Video Recording | Yes, NTSC | | Resolution | 3840 x 2160p: 30 fps
1920 x 1080p: 120 fps, 60 fps, 30 fps, 24 fps
1280 x 720p: 30 fps
1920 x 1080p: 960 fps, 480 fps, 240 fps
1824 x 1026p: 240 fps
1676 x 566p: 480 fps, 240 fps
1136 x 384p: 960 fps, 480 fps
800 x 270p: 960 fps | | | | Video Clip Length | Up to 29 Minutes | | Audio Recording | Built-In Mic: With Video (Stereo)
Optional External Mic: With Video (Stereo) | | | | Viewfinder Type | Electronic | | Screen | 3.0" LCD Rear Screen Tilt (1,229,000 Pixels) | | Screen Coverage | 100% | | | | Connectivity | DC Input
HDMI D (Micro), USB 2.0
USB 2.0 | | Wi-Fi | Yes | | | | Battery | 1 x NP-FW50 Rechargeable Lithium-Ion Battery Pack, 7.7 VDC, 1080 mAh | | AC Power Adapter | AC-UB10C (Included) | | | | Dimensions (W x H x D) | 5.1 x 3.5 x 4.0" / 129.0 x 88.1 x 102.2 mm excluding protrusions | | Weight | 1.79 lb / 813 g with battery and memory card | | | | Package Weight | 2.9 lb | | Box Dimensions (LxWxH) | 7.3 x 6.4 x 5.2" |
