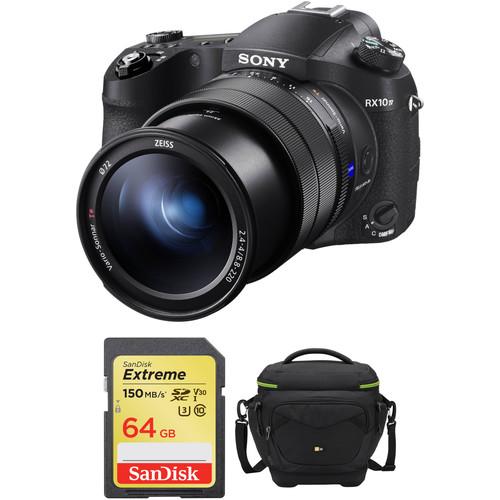

Sony Cyber-shot DSC-RX10 IV Digital Camera

User Manual for Sony Cyber-shot DSC-RX10 IV Digital Camera with Free Accessory Kit

• Product category: Point & Shoot Cameras Sony
• Brand: Sony
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sony Point & Shoot Cameras

Product description

• Sony Cyber-shot DSC-RX10 IV Digital Camera
  • First Look: SONY RX10 Mark IV
  • RX10IV 4KBeauty 60Mbps
  • RX10IV 4KBeauty 100Mbps
  • RX10IV Birdsin4KFINAL
  • RX10IV HFR 50Mbps
  • RX10IV Product Feature Video XAVCS 60
  • RX10IV Product Feature Video XAVCS 100
  • RX10IV Unveil Final XAVCS 60Mbps 30p
  • RX10IV Unveil Final XAVCS 100
  Providing speed, reach, and versatile recording features, the Cyber-shot DSC-RX10 IV from Sony is a compact solution for the multimedia image-makers. Featuring an updated 20.1MP 1" Exmor RS BSI CMOS sensor and BIONZ X image processor, the RX10 IV is capable of up to 24 fps shooting at ISO 12800, as well as recording UHD 4K/30p or Full HD 1080/120p video. The sensor's back-illuminated and stacked technologies afford a high degree of image quality with notable clarity and reduced noise to suit working in challenging lighting conditions. Complementing the shooting speed of the sensor and processor combination, this camera also offers a quickened 315-point focal plane phase-detection autofocus system for focus speeds as fast as 0.03 seconds.

  Balancing the imaging capabilities, the RX10 IV is also characterized by its 25x Zeiss Vario-Sonnar T* zoom lens, which spans an impressive 24-600mm equivalent focal length range and uses Optical SteadyShot image stabilization to minimize the effects of camera shake by up to 4.5 stops. Its optical design incorporates eight extra-low dispersion elements and six aspherical elements to control a variety of aberrations throughout the zoom range, and its f/2.4-4 maximum aperture range benefits working in low-light conditions.

  Rounding out the RX10 IV is its characteristic robust form factor, which includes both a 2.36m-dot OLED electronic viewfinder along with a tilting 3.0" 1.44m-dot touchscreen LCD. The intuitive design also features three dedicated control rings on the lens-a zoom ring, a manual focus ring, and an aperture ring-and the aperture ring can be de-clicked for smooth, silent aperture adjustments. The magnesium-alloy body is also weather-sealed to permit working in trying environments. Additionally, for sharing and control flexibility, built-in Wi-Fi and Bluetooth are also available for wireless image sharing and remote camera control from a linked smartphone or tablet.
  20.1MP 1" Exmor RS CMOS Sensor & BIONZ X Image Processor
  • Utilizing an advanced stacked structure with an integrated DRAM chip, the 20.1MP 1" Exmor RS CMOS sensor of the RX10 IV is able to deliver outstanding image quality at up to ISO 12800 with incredibly fast performance. This sensor stacks the pixel area, a high-speed signal processing circuit, and memory in order to increase data throughput by over five times and deliver features such as 40x super slow motion, an Anti-Distortion shutter, UHD 4K video, and has focal-plane phase-detection AF points for faster, more precise focusing.

    This sensor is paired with the BIONZ X image processor and a newly developed front-end LSI that dramatically improves the speed and throughput of the entire imaging system, enabling continuous shooting with AF/AE at up to 24 fps. An expanded buffer makes continuous shooting possible for longer bursts, up to 249 JPEGs, and for convenience, bursts can be seen in groups during playback, rather than single images, for faster review. The front-end LSI is also able to improve overall quality of the images, especially at higher sensitivities. Additionally, another advantage of this setup is raw output, which provides outstanding color fidelity and image quality.
  Fast Hybrid AF System with 315 Phase-Detection Points
  • The RX10 IV is equipped with an on-sensor phase-detection AF system that will dramatically improve autofocus speed for both stills and video. The camera uses a hybrid system with 315 phase-detection points that provide about 65% frame coverage along with a 25-area contrast-detection system to provide fast, accurate focusing in a range of situations. The RX10 IV is able to lock onto subjects quickly, in just 0.03 seconds, and it can use AF tracking when shooting at 24 fps.

    In order to make operation seamless, the RX10 IV benefits from reduced blackout for easier tracking when using the EVF or LCD. Furthermore, an AF-A mode is now available, which will allow the camera to automatically switch from AF-S and AF-C mode as the situation needs. Users can also display the phase-detection area to help users focus on their subject.
  Zeiss Vario-Sonnar T* 25x Zoom Lens
  • Pairing with the imaging assets, the RX10 IV is distinctly characterized by its expansive 25x zoom lens. This Zeiss Vario-Sonnar T* lens spans a 24-600mm equivalent focal length range, and has a variable maximum aperture of f/2.4-4 for adept performance from wide-angle to super telephoto. The optical design incorporates eight extra-low dispersion elements to control a color fringing and chromatic aberrations throughout the zoom range for increased clarity and color accuracy. Five aspherical elements and an advanced aspherical (AA) element are also featured to reduce spherical aberrations for improved sharpness and resolution. Additionally, the esteemed Zeiss T* anti-reflective coating has been applied to individual elements to reduce flare and ghosting for increased contrast when working in strong lighting conditions.

    Complementing the lens' reach, Optical SteadyShot image stabilization also helps to minimize the appearance of camera shake by up to 4.5 stops for sharper handheld shooting. The lens also sports a rounded nine-blade diaphragm to produce smooth bokeh, and, despite its long reach, can also focus as closely as 1.2" with a 0.42x maximum magnification for working with close-up subjects.
  UHD 4K Video Recording
  • Able to record UHD 4K video at 30/24 fps, the RX10 IV, is capable of producing movies with exceptional clarity. By using a full pixel readout without binning, the camera collects about 1.7x the information needed for 4K output. This oversampling helps to increase clarity while reducing the impact of moir

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Sony Cyber-shot DSC-RX10 IV Digital Camera

  Pixels	Actual: 21.0 Megapixel Effective: 20.1 Megapixel
  Sensor	1" (13.2 x 8.8 mm) CMOS
  File Formats	Still Images: JPEG, RAW Movies: AVCHD 2.0, MP4, XAVC S Audio: AAC LC, AC3, Dolby Digital 2ch, Linear PCM (Stereo)
  Max Resolution	20 MP: 5472 x 3648
  Aspect Ratio	1:1, 3:2, 4:3, 16:9
  Image Stabilization	Optical
  Color Spaces	sRGB, Adobe RGB

  Lens	Carl Zeiss Vario-Sonnar, 18 Elements in 13 Groups 6 Aspherical, 8 ED Effective Focal Length: 8.8 to 220mm (35 mm Equivalent: 24 to 600mm) Aperture: f/2.4 (W) to f/4 (T) to f/16
  Filter Thread	72mm
  Zoom	Optical: 25x Clear Image Zoom: 50x Digital: 100x
  Focus Range	Wide: 1.97" to Infinity / 3 cm to Infinity Telephoto: 11.81" to Infinity / 72 cm to Infinity

  ISO Sensitivity	Auto, 100 to 12800 (Extended Mode:64 to 12800)
  Shutter	Type: Mechanical Speed: 4 to 1/2000 Second in Auto Mode Type: Mechanical Speed: 30 to 1/2000 Second in Program Mode Type: Mechanical Speed: 30 to 1/2000 Second in Manual Mode Type: Mechanical Speed: 30 to 1/2000 Second in Aperture Priority Mode Type: Mechanical Speed: 30 to 1/2000 Second in Shutter Priority Mode Type: Electronic Speed: 4 to 1/32000 Second in Auto Mode Type: Electronic Speed: 30 to 1/32000 Second in Program Mode Type: Electronic Speed: 30 to 1/32000 Second in Manual Mode Type: Electronic Speed: 30 to 1/32000 Second in Aperture Priority Mode Type: Electronic Speed: 30 to 1/32000 Second in Shutter Priority Mode
  Exposure Metering	Center-Weighted, Multi, Spot
  Exposure Modes	Modes: Aperture Priority, Intelligent Auto, Manual, Memory Recall, Movie, Panorama Shot, Programmed Auto, Scene Selection, Shutter Priority, Superior Auto Compensation: -3 EV to +3 EV (in 1/3 EV Steps)
  Shooting Modes	Anti-Motion Blur Fireworks Gourmet Handheld Twilight High Sensitivity Landscape Macro Night Portrait Night Scene Pet Mode Portrait Sports Sunset
  White Balance	Auto, Cloudy, Color Temperature Filter, Custom, Daylight, Flash, Fluorescent (Cool White), Fluorescent (Day White), Fluorescent (Daylight), Fluorescent (Warm White), Incandescent, Shade
  Continuous Shooting	Up to 24 fps at 20.1 MP for up to 249 Exposures (JPEG Format)
  Self-Timer	2, 5, 10 Sec
  Remote Control	RM-VPR1 (Optional)

  Flash Modes	Auto Flash On Off Rear Sync Red-Eye Reduction Slow Sync
  Built-In Flash	Yes
  Effective Flash Range	Wide:3.3 to 35.4' / 1 to 10.8 m Telephoto:3.3 to 21.3' / 1 to 6.5 m
  External Flash Connection	Hot Shoe

  Memory Card Type	Memory Stick Duo Memory Stick Pro Duo Memory Stick PRO Duo (High Speed) Memory Stick PRO HG-Duo SD SDHC SDXC

  Video Recording	Yes, NTSC/PAL
  Resolution	3840 x 2160p: 30 fps, 25 fps, 24 fps 1920 x 1080p: 60 fps, 50 fps, 30 fps, 25 fps, 24 fps 1920 x 1080i: 60 fps, 50 fps 1280 x 720p: 30 fps, 25 fps 1920 x 1080p: 240 fps, 480 fps, 960 fps 1824 x 1026p: 240 fps, 480 fps, 960 fps 1676 x 566p: 240 fps, 480 fps, 960 fps 1920 x 1080p: 250 fps, 500 fps, 1000 fps 1824 x 1026p: 250 fps, 500 fps, 1000 fps 1676 x 566p: 250 fps, 500 fps, 1000 fps

  Video Clip Length	Up to 29 Minutes
  Audio Recording	Built-In Mic: With Video (Stereo)

  Viewfinder Type	Electronic
  Diopter Adjustment	-4 to +3 m
  Viewfinder Coverage	100%
  Screen	3.0" LCD Rear Touchscreen Tilt (1,440,000 Pixels)
  Screen Coverage	100%

  Connectivity	HDMI D (Micro), USB 2.0 Micro-B, USB 2.0
  Wi-Fi	Yes, Wi-Fi 4 (802.11n) Built In

  Battery	1 x NP-FW50 Rechargeable Lithium-Ion Battery Pack, 7.4 VDC, 1020 mAh

  Dimensions (W x H x D)	5.2 x 3.7 x 5.7" / 132.5 x 94.0 x 145.0 mm
  Weight	2.41 lb / 1095 g with battery and memory card

  Box Dimensions (LxWxH)	8.5 x 6.5 x 6.25"

• SanDisk 64GB Extreme UHS-I SDXC Memory Card

  Card Type	SDXC
  Storage Capacity	64 GB
  Bus Type	UHS-I
  Speed Class	10
  UHS Speed Class	U3
  Video Speed Class	V30
  Data Transfer	Read Speed: 150 MB/s Maximum (Burst) Write Speed: 60 MB/s Maximum (Burst) Write Speed: 30 MB/s Minimum
  Built-in Write-Protect Switch	Yes
  Wireless Capability	None

  Box Dimensions (LxWxH)	9.0 x 6.8 x 4.5"

• Case Logic Kontrast DSLR Shoulder Bag (Black)

  Material	Polyester and foam padding
  Type of Closure	Zipper
  Carrying/Transport Options	Padded top handle Adjustable shoulder strap with sliding pad
  Fits Devices	8.7 x 5.5 x 7.9" / 22.1 x 14.0 x 20.1 cm
  Exterior Dimensions	10.6 x 7.9 x 10.2" / 26.9 x 20.1 x 25.9 cm
  Weight	1.56 lb / 0.71 kg

  Box Dimensions (LxWxH)	12.2 x 10.4 x 7.7"
