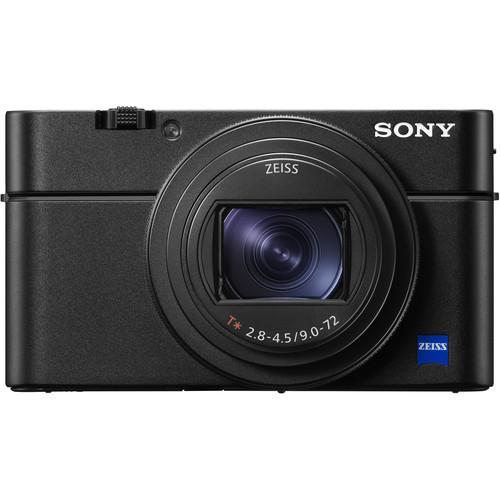

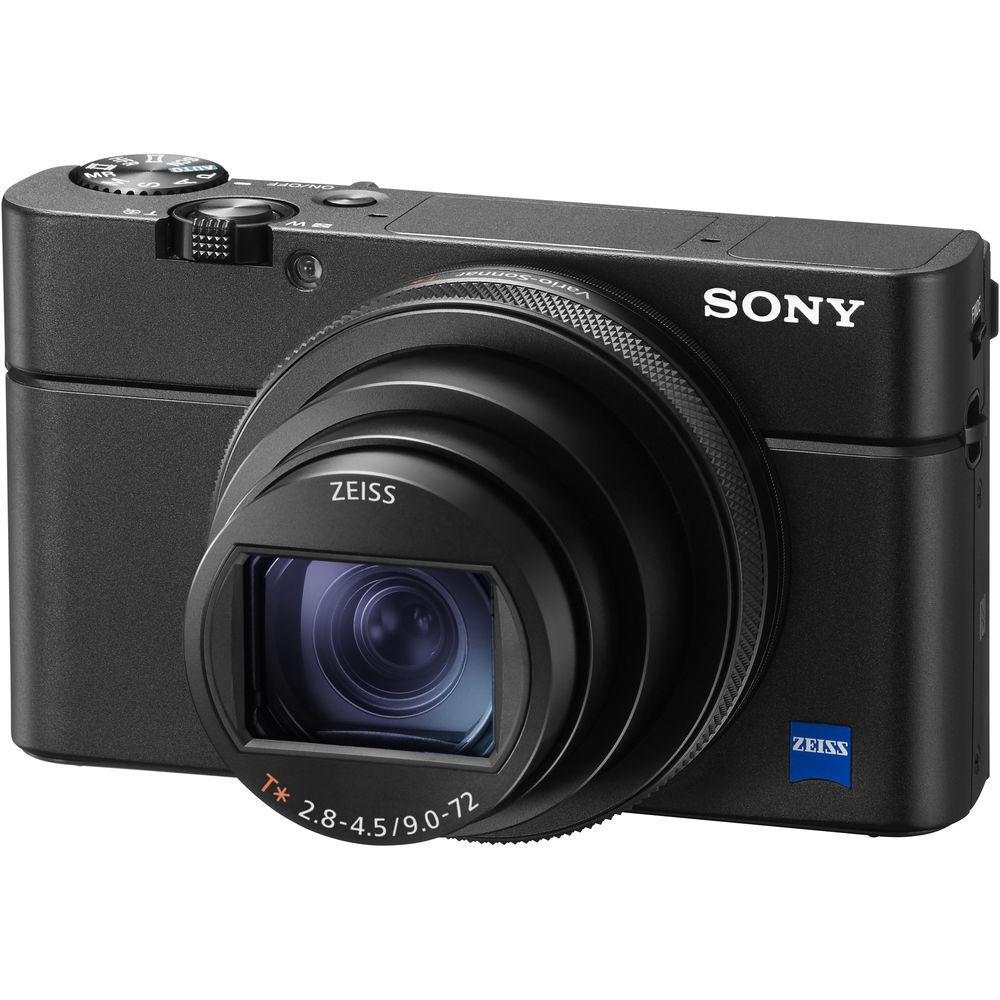

User Manual for Sony Cyber-shot DSC-RX100 VI Digital Camera Click to enlarge the picture
Contents of the user manual for the Sony Cyber-shot DSC-RX100 VI Digital Camera
- Product category: Point & Shoot Cameras Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Point & Shoot Cameras
 |
User manual for the Sony Cyber-shot DSC-RX100 VI Digital Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description Picking a Pocket Camera: Sony RX100 Edition Read More - First Look: Sony RX100 VI
- Sony | Cyber-shot | RX100 VI - Product Feature

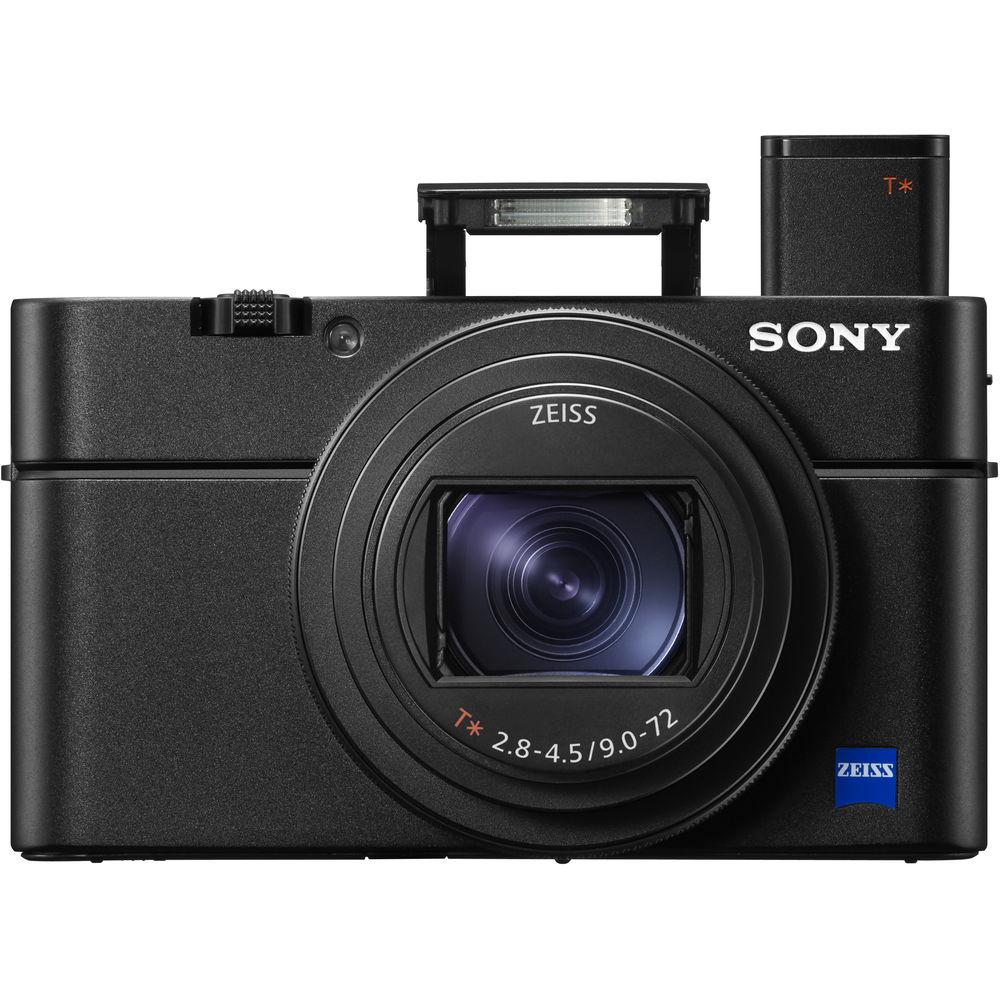

Offering longer reach and improved performance, the Cyber-shot DSC-RX100 VI from Sony is a pocket-sized powerhouse characterized by an impressive lineup of stills and video capabilities. Distinguished in the series by its extended zoom, the RX100 VI sports a 24-200mm-equivalent ZEISS Vario-Sonnar T* lens covering wide-angle to telephoto focal lengths for greater shooting flexibility. Leveraging the most from the updated lens design is the 20.1MP 1" Exmor RS CMOS sensor, along with an improved BIONZ X image processor, for fast shooting performance to 24 fps, high sensitivity to ISO 12800, and UHD 4K video recording. The sensor's design also provides a 315-point hybrid AF system for quick and accurate focus performance and subject tracking in both stills and video modes. A stacked design and front-end LSI also contribute to quickened operation and enhanced image quality. Video performance has been upgraded through the incorporation of S-Log3 and HLG gamma settings, and High Frame Rate shooting allows you to record at up to 960 fps for slow-motion playback.

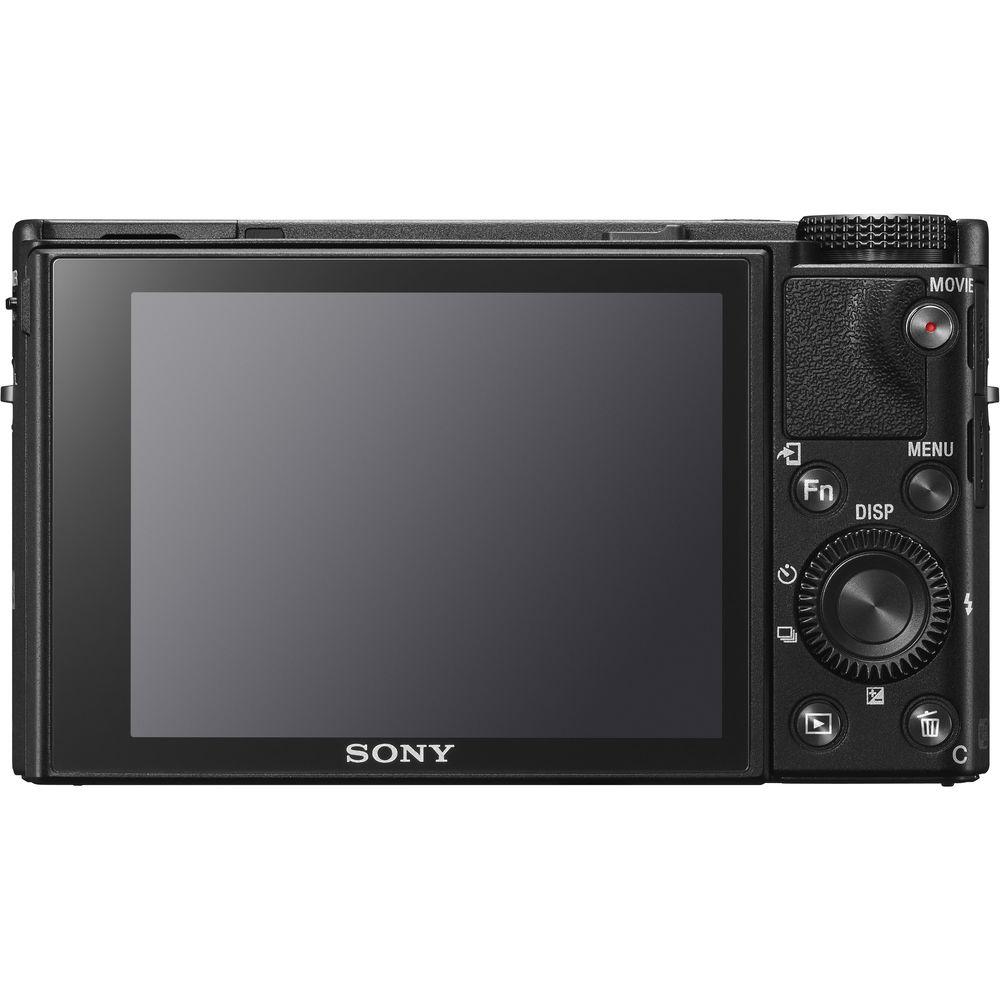

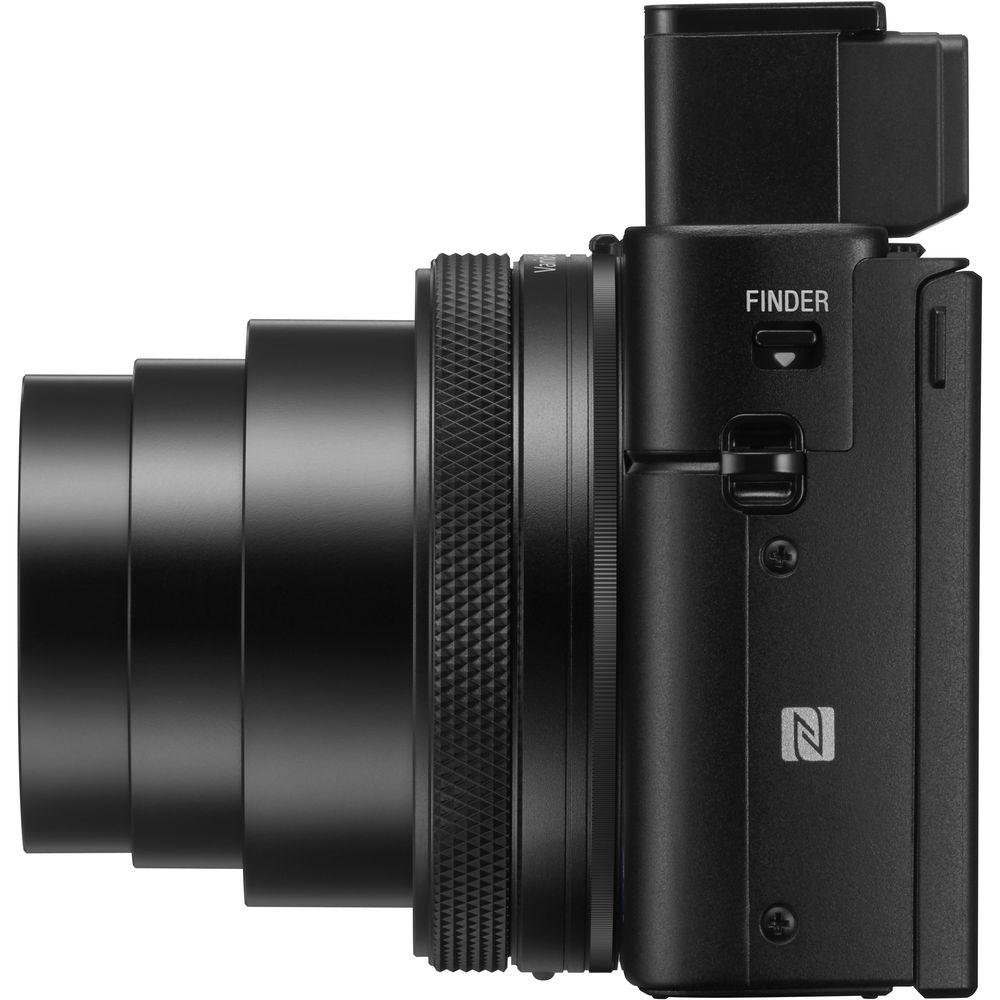

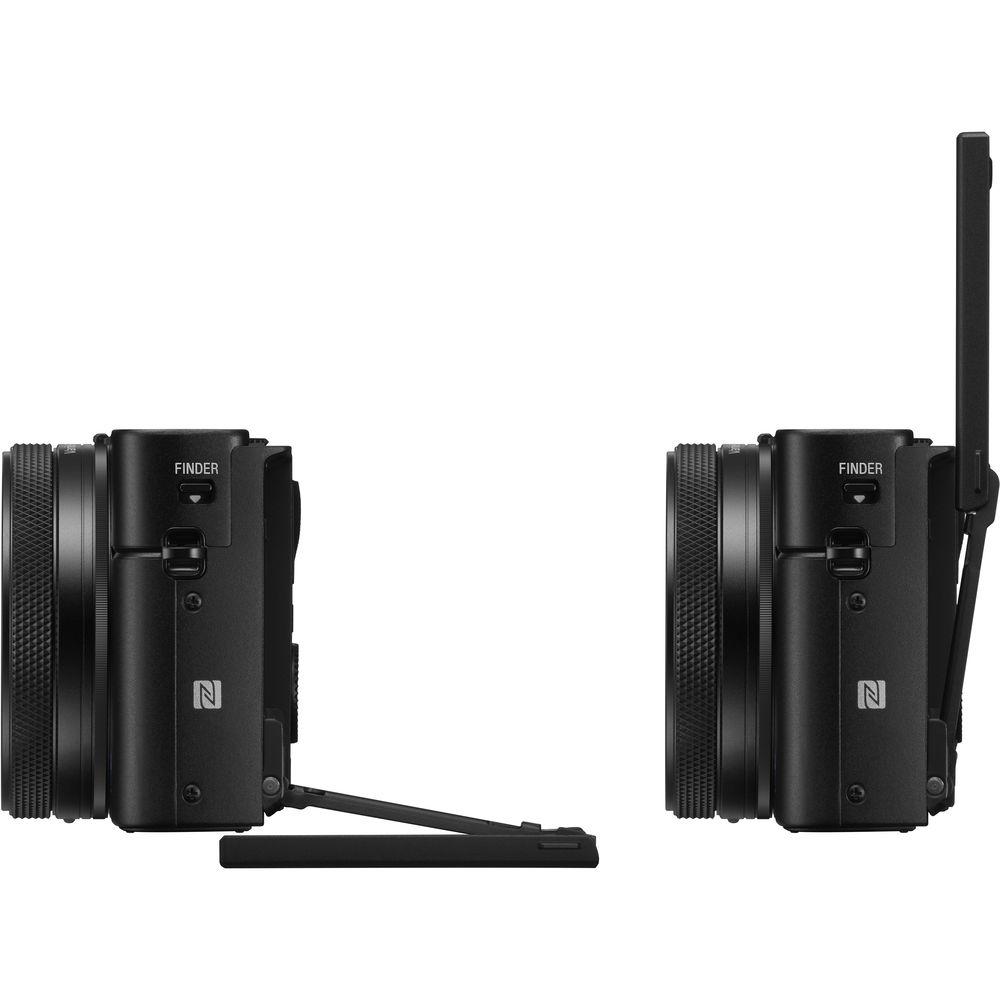

Even with the integrated 24-200mm, the form factor of the RX100 VI remains nearly as compact as ever, but still without sacrificing on functionality. A pop-up 2.36m-dot OLED electronic viewfinder is a sleek means for eye-level viewing or, alternatively, a 3.0" 921.6k-dot LCD touchscreen can be used. The LCD features a tilting design to support working from high and low angles and its touch capability permits the use of Touch Focus and Touch Shutter functions. The camera also sports wireless connectivity for sharing imagery to a linked mobile device or for embedding location information from your smartphone. - 20.1MP 1" Exmor RS CMOS Sensor & BIONZ X Image Processor
- Utilizing an advanced stacked structure with an integrated DRAM chip, the 20.1MP 1" Exmor RS CMOS sensor of the RX100 VI is able to deliver outstanding image quality at up to ISO 12800 with incredibly fast performance. This sensor stacks the pixel area, a high-speed signal processing circuit, and memory in order to increase data throughput by over five times and deliver features such as 40x super slow motion, an Anti-Distortion shutter, UHD 4K video, and more. This 1" sensor also has focal-plane phase-detection AF points for faster, more precise focusing.
This sensor is paired with an updated BIONZ X image processor and front-end LSI, which dramatically improve the speed and throughput of the entire imaging system, enabling continuous shooting with AF/AE at up to 24 fps. An expanded buffer makes continuous shooting possible for longer bursts, up to 233 JPEGs. The front-end LSI and enhanced sensor performance also improve overall image quality, especially at higher sensitivities, by reducing noise and offering higher perceived resolution and color definition. - ZEISS Vario-Sonnar T* 24-200mm Lens

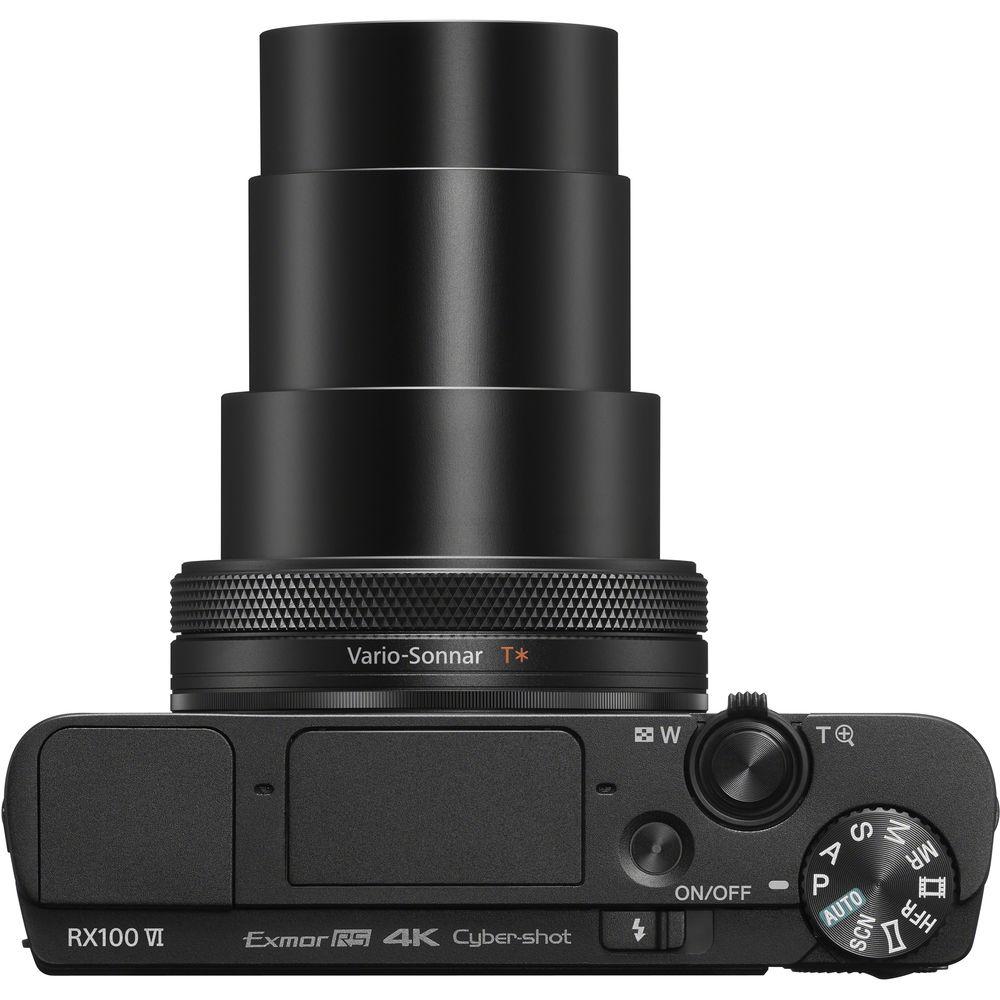

- Spanning an impressive 24-200mm equivalent range, the integrated ZEISS Vario-Sonnar T* lens suits photographing in a wide range of situations. Now covering wide-angle to mid-telephoto, the updated zoom range affords greater shooting versatility while still retaining a compact form factor due to the f/2.8-4.5 maximum aperture range. The optical design incorporates eight aspherical elements, including four advanced aspherical (AA) elements, to greatly reduce aberrations and distortions in order to achieve high sharpness and accurate rendering. A ZEISS T* anti-reflective coating has also been applied to suppress reflections and glare for improved contrast and color fidelity.
The flexible reach is complemented by four stop-effective Optical SteadyShot image stabilization, which minimizes the appearance of camera shake to suit handheld shooting in low-light conditions. Additionally, Clear Image Zoom can also be used to further extend the effective reach of the zoom with nearly no image degradation. - Fast Hybrid AF System with 315 Phase-Detection Points
- The RX100 VI is equipped with an on-sensor phase-detection AF system that dramatically improves autofocus speed for both stills and video. The camera uses a hybrid system with 315 phase-detection points that cover approximately 65% of the frame along with a contrast-detection system to provide fast, accurate focusing in a range of situations. The RX100 VI is able to lock onto subjects quickly, in just 0.03 seconds, and it can use AF tracking when shooting at 24 fps.
In order to make operation seamless, an accelerated display system offers reduced blackout for easier tracking when using either the EVF or LCD. Furthermore, an AF-A mode is available, which will allow the camera to automatically switch from AF-S and AF-C mode as the situation needs. Users can also display the phase-detection area to help users focus on their subject. - UHD 4K Video Recording
- Able to record UHD 4K video at 30/24 fps, the RX100 VI, is capable of producing movies with exceptional clarity. By using a full pixel readout without binning, the camera collects about 1.7x the information needed for 4K output. This oversampling helps to increase clarity while reducing the impact of moir
|
Upload User Manual
Have you got an user manual for the Sony Cyber-shot DSC-RX100 VI Digital Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony DSC-RX100 VI Specs | | | Pixels | Actual: 21.0 Megapixel
Effective: 20.1 Megapixel | | Sensor | 1" (13.2 x 8.8 mm) CMOS | | File Formats | Still Images: JPEG, RAW
Movies: AVCHD 2.0, MP4, XAVC S
Audio: AAC LC, AC3, Dolby Digital 2ch, Linear PCM (Stereo) | | Max Resolution | 20 MP: 5472 x 3648 | | Aspect Ratio | 1:1, 3:2, 4:3, 16:9 | | Image Stabilization | Optical | | Color Spaces | sRGB, Adobe RGB | | | | Lens | Carl Zeiss Vario-Sonnar, 15 Elements in 12 Groups
8 Aspherical
Effective Focal Length: 9 to 72mm (35 mm Equivalent: 24 to 200mm)
Aperture: f/2.8 (W) to f/4.5 (T) | | Zoom | Optical: 8.33x
Clear Image Zoom: 16x
Digital: 32x | | Focus Range | Wide: 3.15" to Infinity / 8 cm to Infinity
Telephoto: 3.28' to Infinity / 1 m to Infinity | | | | ISO Sensitivity | Auto, 125 to 12800 (Extended Mode:80 to 12800) | | Shutter | Type: Mechanical
Speed: 4 to 1/2000 Second in Auto Mode
Type: Mechanical
Speed: 30 to 1/2000 Second in Program Mode
Type: Mechanical
Speed: 30 to 1/2000 Second in Manual Mode
Type: Mechanical
Speed: 30 to 1/2000 Second in Aperture Priority Mode
Type: Mechanical
Speed: 30 to 1/2000 Second in Shutter Priority Mode
Type: Electronic
Speed: 4 to 1/32000 Second in Auto Mode
Type: Electronic
Speed: 30 to 1/32000 Second in Bulb Mode
Type: Electronic
Speed: 30 to 1/32000 Second in Program Mode
Type: Electronic
Speed: 30 to 1/32000 Second in Aperture Priority Mode
Type: Electronic
Speed: 30 to 1/32000 Second in Shutter Priority Mode | | Exposure Metering | Average, Center-Weighted, Multi, Spot | | Exposure Modes | Modes: Aperture Priority, Intelligent Auto, Manual, Memory Recall, Movie, Panorama Shot, Programmed Auto, Scene Selection, Shutter Priority, Superior Auto | | Shooting Modes | Anti-Motion Blur
Fireworks
Gourmet
Handheld Twilight
High Sensitivity
Landscape
Macro
Night Portrait
Night Scene
Pet Mode
Portrait
Sports
Sunset | | White Balance | Auto, Cloudy, Color Temperature Filter, Custom, Daylight, Flash, Fluorescent (Cool White), Fluorescent (Day White), Fluorescent (Daylight), Fluorescent (Warm White), Incandescent, Shade | | Continuous Shooting | Up to 24 fps at 20.1 MP for up to 233 Exposures (JPEG Format)
Up to 10 fps at 20.1 MP
Up to 3 fps at 20.1 MP | | Self-Timer | 2, 5, 10 Sec | | Remote Control | RM-VPR1 (Optional) | | | | Flash Modes | Auto
Flash On
Off
Rear Sync
Red-Eye Reduction
Slow Sync | | Built-In Flash | Yes | | Effective Flash Range | Wide:1.3 to 19.4' / 0.4 to 5.9 m
Telephoto:3.3 to 10.2' / 1 to 3.1 m | | External Flash Connection | None | | | | Memory Card Type | Memory Stick Duo
Memory Stick Pro Duo
Memory Stick PRO Duo (High Speed)
Memory Stick PRO HG-Duo
SD
SDHC
SDXC | | | | Video Recording | Yes, NTSC/PAL | | Resolution | 3840 x 2160p: 30 fps, 25 fps, 24 fps
1920 x 1080p: 60 fps, 50 fps, 30 fps, 25 fps, 24 fps
1920 x 1080i: 60 fps, 50 fps
1280 x 720p: 30 fps, 25 fps
1920 x 1080p: 240 fps, 480 fps, 960 fps
1824 x 1026p: 240 fps, 480 fps, 960 fps
1676 x 566p: 240 fps, 480 fps, 960 fps
1920 x 1080p: 250 fps, 500 fps, 1000 fps
1824 x 1026p: 250 fps, 500 fps, 1000 fps

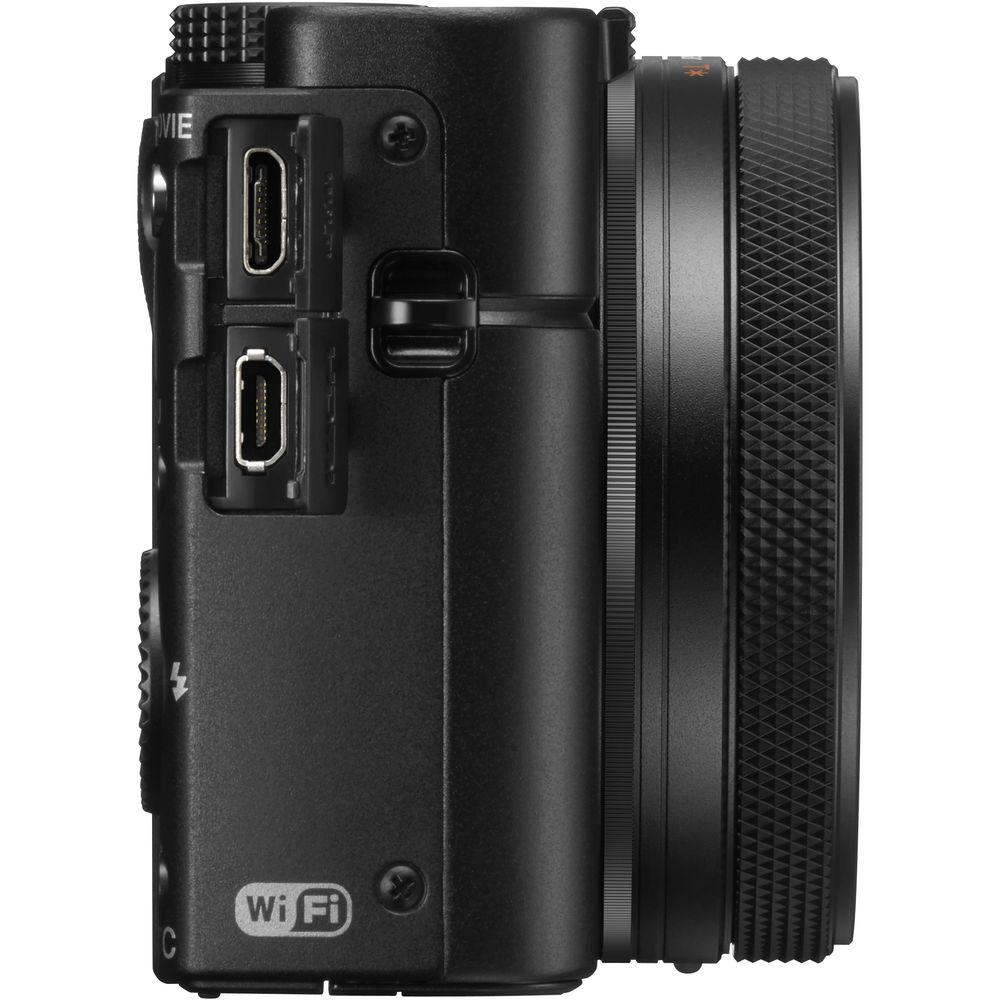

1676 x 566p: 250 fps, 500 fps, 1000 fps | | | | Video Clip Length | Up to 29 Minutes | | Audio Recording | Built-In Mic: With Video (Stereo) | | | | Viewfinder Type | Electronic | | Diopter Adjustment | -4 to +3 m | | Viewfinder Coverage | 100% | | Screen | 3.0" LCD Rear Touchscreen Tilt (921,600 Pixels) | | Screen Coverage | 100% | | | | Connectivity | HDMI D (Micro), USB 2.0 Micro-B | | Wi-Fi | Yes, Wi-Fi 4 (802.11n) Built In | | | | Battery | 1 x NP-BX1 Rechargeable Lithium-Ion Battery Pack, 3.6 VDC, 1240 mAh | | AC Power Adapter | AC-UB10C (Included) | | | | Dimensions (W x H x D) | 4.0 x 2.3 x 1.7" / 101.6 x 58.1 x 42.8 mm | | Weight | 10.62 oz / 301 g with battery and memory card | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 6.0 x 4.7 x 3.0" |
