User manual
Sony Cyber-Shot RX100 VA Digital Camera

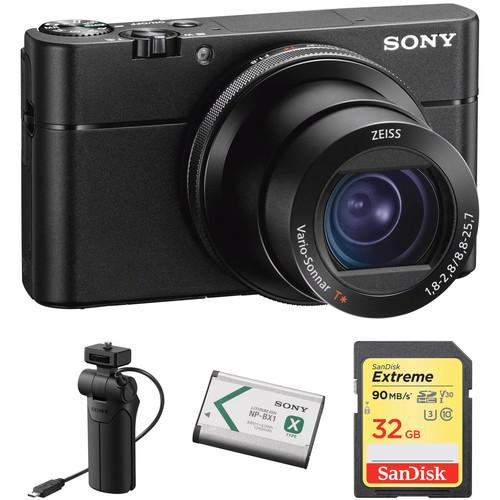

User Manual for Sony Cyber-Shot RX100 VA Digital Camera with Grip Kit

• Product category: Point & Shoot Cameras Sony
• Brand: Sony
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sony Point & Shoot Cameras

Product description

• Sony Cyber-shot DSC-RX100 VA Digital Camera Tweaking an already stellar pocket-sized camera, the Cyber-shot DSC-RX100 VA Digital Camera from Sony improves the existing RX100 V by increasing the buffer size to 233 images, reducing display lag time in the electronic viewfinder, and adding several small features over other aspects of the camera. With the 20.1MP 1" Exmor RS BSI CMOS sensor, the RX100 VA can output detailed images at sensitivities up to ISO 12800. The Fast Hybrid AF system has 315 focal-plane phase-detection points that cover 65% of the image area of the sensor and can achieve focus in as little as 0.05 seconds. That autofocus system is also capable of tracking subjects across the frame, even while shooting at high speeds. Sony's BIONZ X processor enables continuous shooting up to 24 fps with the aforementioned buffer size of 233 JPEG images and improved High Frame Rate recording times.

  Like the RX100 V, the RX100 VA can shoot HD video at 960 fps in High Frame Rate Mode and UHD 4K video at 30/24 fps. But a new feature of the RX100 VA is dual video recording, where the camera simultaneously records two video files at once. Also carried over from the RX100 V is Gamma Display Assist, which provides a more contrasty image while using a flat S-Log2 gamma, and the Photo Capture mode for pulling 8.29MP stills from your movies.

  The RX100 VA keeps the same physical design as the RX100 V to keep compatibility with all accessories. A Zeiss Vario-Sonnar T* lens still graces the front of the camera with an equivalent zoom range of 24-70mm and a fast f/1.8-2.8 maximum aperture that provides incredible flexibility in a wide range of shooting scenarios. A pop-up 0.39" 2.36m-dot OLED Tru-Finder EVF and 3.0" 1.23m-dot tilting LCD give you crystal clear previews of what you're shooting. The RX100 VA also keeps the same lens control ring, built-in ND filter, and customizable buttons as its predecessor. It also has Wi-Fi and NFC capabilities for connecting to a smartphone.
  20.1MP 1" Exmor RS CMOS Sensor & BIONZ X Image Processor
  • The 20.1MP 1" Exmor RS CMOS sensor of the RX100 VA can deliver outstanding image quality at up to ISO 12800 with incredibly fast performance. This sensor stacks the pixel area, a high-speed signal processing circuit, and memory to increase data throughput by over five times and deliver features such as 40x super slow motion, an Anti-Distortion shutter, UHD 4K video, and more. The sensor also has focal-plane phase-detection AF points for faster, more precise focusing in as little as 0.05 seconds.

    This sensor is paired with the BIONZ X image processor and front-end LSI that improves the speed and throughput of the entire imaging system, enabling continuous shooting with AF/AE at up to 24 fps. An expanded buffer makes continuous shooting possible for longer bursts, up to 233 JPEGs. The front-end LSI is also able to improve overall quality of the images, especially at higher sensitivities.
  Zeiss Vario-Sonnar T* Lens
  • With a 24-70mm equivalent zoom range, the integrated Zeiss Vario-Sonnar T* lens lends itself to a wide variety of shooting situations. The wide angle to short telephoto range is a favorite among photographers and it is further befitted by the bright aperture range of f/1.8-2.8. This enables solid low-light performance and excellent control over depth of field.Two aspherical lens elements are incorporated into the lens design, minimizing chromatic aberrations and ensuring clear images. Zeiss' premium multi-layered T* coating also reduces ghosts and flare caused by light reflecting.
  Fast Hybrid AF System with 315 Phase-Detection Points
  • The RX100 VA is equipped with an on-sensor phase-detection AF system that provides increased autofocus speed for both stills and video. The camera uses a hybrid system with 315 phase-detection points that covers 65% of the frame along with a contrast-detection system to provide fast, accurate focusing in a range of situations. The RX100 VA also benefits from reduced blackout for easier tracking when using the EVF or LCD.
  UHD 4K Video Recording
  • The RX100 VA is a video powerhouse, delivering up to 5-minute UHD 4K movies with exceptional clarity. By using a full pixel readout without binning, the camera collects about 1.7x the information needed for 4K output. Oversampling helps to increase clarity while reducing the effect of moire and jaggies. Fast Hybrid AF is available during movie shooting for ensuring accurate, fast tracking using phase-detection AF points. The camera also offers Sony's advanced XAVC S format for recording a high bit rates up to 100 Mbps.

    Picture profiles and image controls are also available, including the S-Log2 gamma that can help expand the dynamic range by recording a flat image. Gamma Display Assist helps users view a more natural image when shooting with S-Log2. Other options such as timecode, zebras, peaking, and more are present for making shooting and editing easier. When recording internally, users will record video with a 4:2:0 sampling at 8-bit, but the RX100 VA can output via HDMI to an external recorder. This allows users to capture 4:2:2 uncompressed video and save in an edit-ready format.The camera also has a Photo Capture function, which allows shooters to quickly save an 8.29MP still from their UHD 4K movies. Additionally, the camera is NTSC/PAL switchable, making it usable around the world.
  High Frame Rate and Slow Motion Shooting
  • Speed is a huge advantage of the RX100 VA, and in video users will benefit from advanced High Frame Rate shooting and super slow motion. In Full HD, shooters will have access to a standard 120 fps setting that will enable outstanding slow motion when placed in an editing software. In addition to this, the camera also offers a dedicated HFR mode which will boost the cameras frame rate to up to 960 fps. Videographers will have the option of recording in Quality Priority and Shoot Time Priority modes, depending on preference. The camera will output a Full HD file from slightly lower resolutions to produce high quality images at all frame rates. Additionally, an end trigger mode enables users to record 4 or 6 seconds before the record button is pressed so the perfect moment isn't missed.
  Body Design and Wi-Fi Connectivity
  • • Pop-up 0.39" XGA OLED electronic viewfinder offers a resolution of 2.36m dots for crisp, clear imagery. The EVF also uses a Zeiss T* coating to ensure clarity from corner to corner.
    • The rear 3.0" Xtra Fine LCD screen can tilt upwards 180° and downwards 45° for shooting at different angles or for composing the perfect selfie. The screen sports a resolution of about 1.23m dots and WhiteMagic technology has been applied to the LCD's design to increase effective brightness for easier viewing in bright lighting.
    • A manual control ring surrounds the lens and features a smooth, click-less design for quick and quiet changing of settings. The ring can be assigned to control a variety of features, at different values, such as zoom, aperture, and Picture Effects.
    • Custom button and other programmable buttons can be set to one of over 40 functions for quick access to commonly used settings.
    • A built-in 3-stop neutral density (ND) filter is available to enable working in bright light with wider aperture settings.
    • Pop-up flash will help illuminate subjects in dimly-lit scenes.
    • A redesigned menu makes flipping through settings easier.
    • Built-in Wi-Fi connectivity enables instant transferring of imagery to mobile devices for direct sharing online to social networking, via email, and to cloud storage sites. NFC (Near Field Communication) is also supported, which allows for one-touch connection between the camera and compatible mobile devices, with no complex set-up required. Once connected, the linked mobile device can also display a live view image on its screen and, using Smart Remote Control, remotely control the camera's shutter release. Additionally, the RX100 VA can now connect to a smartphone using a QR code for faster access.
  Other Camera Features
  • • Anti-Distortion electronic shutter can enable completely silent shooting as well as the ability to work at shutter speeds as fast as 1/32000 second. This shutter also keeps rolling shutter effects to an absolute minimum and enables photographers to work in bright light with wider apertures.
    • Step Zoom lets you quickly change between five common focal lengths (24, 28, 35, 50, or 70mm) by rotating the control ring.
    • Clear Image Zoom allows users to enlarge the center of the still or movie frame being shot by up to 5.8x equivalent when using optical zoom as well.
    • Eye AF in AF-C mode will lock on and tack a subject's eye, even as the face moves.
    • Users can set a minimum shutter speed when using ISO AUTO to help minimize shutter blur.
    • Creative Style settings: Standard, Vivid, Neutral, Clear, Deep, Light, Portrait, Landscape, Sunset, Night Scene, Autumn Leaves, Black & White, and Sepia (all with +/- 3 step contrast, saturation, and sharpness adjustment).
    • Picture Effect modes: Posterization (Color, B&W), Pop Color, Retro Photo, Partial Color (R/G/B/Y), High Contrast Monochrome, Toy Camera, Soft High-Key, Soft Focus, HDR Painting, Rich-Tone Monochrome, Miniature, Watercolor, and Illustration.
    • Adjustable Picture Profile parameters: Black level, Gamma (Movie, Still, Cine1-2, ITU709, ITU709 [800%], S-Log2), Black Gamma, Knee, Color Mode (Movie, Still, Cinema, Pro, ITU709 Matrix, White & Black, S-Gamut), Saturation, Color Phase, Color Depth, Detail, Copy, and Reset.
  UPC: 027242913776
• Sony VCT-SGR1 Shooting Grip A unique tool to help improve stability, the VCT-SGR1 Shooting Grip from Sony is a flexible accessory that serves as both a larger grip for handheld shooting as well as a sleek tabletop tripod. Designed for select cameras from Sony's RX100, RX0, HX, and WX-series, this grip attaches to cameras via the 1/4"-20 tripod mount and then connects to the camera using the Multi terminal for on-grip control. Integrated shutter release and video record buttons are featured, as well as a zoom rocker switch, and the grip's head can tilt upward 70° and downward 100° for easier positioning.
  Camera Compatibility
  • Cyber-shot DSC-RX100 VI, RX100 VA, RX100 V, RX100 IV, RX100 III, RX100 II, RX0, HX90V, HX80, HX60V, HX50V, and WX500.
    This grip is not compatible with the RX100.
  UPC: 027242914469
• Sony NP-BX1/M8 Rechargeable Lithium-Ion Battery Pack (3.6V, 1240mAh) The NP-BX1/M8 Rechargeable Lithium-Ion Battery Pack from Sony is designed to replace the original NP-BX1 battery. It is rated at 3.6V and features a capacity of 1240mAh.
  Camera Compatibility
  • Cyber-shot:
    DSC-RX100
    DSC-RX100 II
    DSC-RX100 III
    DSC-RX100 IV
    DSC-RX1
    DSC-RX1R
    DSC-HX300
    DSC-HX50V
    DSC-WX300
    DSC-HX400V

    Action Cam:
    FDR-X1000V
    HDR-AS200V
    HDR-AS100
    HDR-AS30V
    HDR-AS20
    HDR-AS10
    HDR-AS15
  UPC: 027242862692
• SanDisk 32GB Extreme UHS-I SDHC Memory Card Built to meet the demands of photographers and passionate shutterbugs who are using advanced cameras and HD camcorders, the 32GB Extreme UHS-I SDHC Memory Card from SanDisk allows users to take advantage of functions such as fast action shots, continuous burst mode, and multiple frames per second. It features a capacity of 32GB, is compatible with the UHS-I bus, and delivers maximum read speeds of up to 90 MB/s and maximum write speeds of up to 40 MB/s. This Extreme UHS-I SDHC card supports the V30 speed class, which guarantees minimum write speeds of 30 MB/s. If your device does not support the V30 speed class, this card also supports the U3 speed class, which likewise guarantees minimum write speeds of 30 MB/s. If your device only supports the Class 10 standard, minimum write speeds are guaranteed not to drop below 10 MB/s.

  Built for extreme conditions, SanDisk's 32GB Extreme UHS-I SDHC Memory Card is water, shock, and x-ray proof, while also being able to withstand temperatures from -13 to 185°F, allowing for use in environments such as snow and deserts. A built-in write protect switch further helps to safeguard your content, while advanced Error Correction Code engine offers improved data integrity and card reliability during read and write operations. Downloadable RescuePRO data recovery software helps you restore accidentally deleted images. The card also has a writable label on its surface and the included jewel case makes for easy storage and organization. This card is backed by a limited lifetime warranty.

  General Features

  Faster Performance and Downloads
  • With write speeds up to 40 MB/s, this card unleashes the full shooting potential of your advanced camera or DSLR. Take advantage of advanced functions such as fast action shots, continuous burst mode, and multiple frames per second. Photos are written to your card almost instantly so you'll get your best shot, and you'll save time moving it all from your camera to your computer.
  Capacity for High-Resolution Photos and Videos
  • With a capacity of 32GB to capture it all, this SanDisk Extreme UHS-I Card offers enough room for thousands of high-resolution photos. The card can accommodate high-volume image formats, such as RAW and JPEG, and also provides plenty of room for Full HD videos.
  4K and Full HD Video Recording
  • With Class 10, UHS Speed Class 3 (U3), and V30 video ratings, you'll be ready to capture 4K Ultra HD, cinema quality 3D, and Full HD video (1080p), which require more performance than ordinary cards can handle. This memory card's accelerated minimum sustained write speeds help ensure that video data isn't lost during recording, by reducing dropouts and stuttering.
  Error Correction for Enhanced Relability
  • Thanks to its Advanced Error Correction Code engine, this SanDisk Extreme UHS-I SDHC card helps reduce the chance for errors during data storage and retrieval. It prevents potential data corruption, providing high data integrity.
  Fast Transfer Speeds Reduce Upload Times
  • SanDisk Extreme UHS-I SDHC cards boast a read speed of up to 90 MB/s, so you can transfer photos and videos to your computer quickly. You'll spend less time uploading photos and more time editing, storing, and sharing.
  Durable Design
  • Designed and tested to withstand the tough conditions, this card has a capacity of 32GB and is waterproof, shockproof, and X-ray proof. It can operate in temperatures ranging from -13 to 185°F, so you can work in almost any climate.
  RescuePRO Software
  • SanDisk RescuePRO and RescuePRO Deluxe software are file and data recovery products for recovering deleted files from all types of digital media.
  UPC: 619659147037

• Cyber-shot DSC-RX100 VA Digital Camera brqrucbvaadfzxcbusyfdqywtdszdedsbeww
• NP-BX1/M8 Rechargeable Lithium-Ion Battery Pack (3.6V, 1240mAh)
• AC-UUD12 AC Adapter
• Micro-USB Cable
• Wrist Strap
• Strap Adapter
• Limited 1-Year Warranty

• VCT-SGR1 Shooting Grip

• NP-BX1/M8 Rechargeable Lithium-Ion Battery Pack (3.6V, 1240mAh)

• SanDisk - 32GB Extreme UHS-I SDHC Memory Card

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Sony Cyber-shot DSC-RX100 VA Digital Camera

  Pixels	Actual: 21.0 Megapixel Effective: 20.1 Megapixel
  Sensor	1" (13.2 x 8.8 mm) CMOS
  File Formats	Still Images: JPEG, RAW Movies: AVCHD 2.0, XAVC S Audio: Dolby Digital 2ch, Linear PCM (Stereo)
  Max Resolution	20 MP: 5472 x 3648
  Aspect Ratio	1:1, 3:2, 4:3, 16:9
  Image Stabilization	Optical
  Color Spaces	sRGB, Adobe RGB

  Lens	Carl Zeiss Vario-Sonnar, 10 Elements in 9 Groups 9 Aspherical Effective Focal Length: 8.8 to 25.7mm (35 mm Equivalent: 24 to 70mm) Aperture: f/1.8 (W) to f/2.8 (T)
  Zoom	Optical: 2.9x Clear Image Zoom: 5.8x Digital: 11x
  Focus Range	Wide: 1.97" to Infinity / 5 cm to Infinity Telephoto: 11.81" to Infinity / 30 cm to Infinity

  ISO Sensitivity	Auto, 125 to 12800 (Extended Mode:80 to 12800)
  Shutter	Type: Mechanical Speed: 4 to 1/2000 Second in Auto Mode Type: Mechanical Speed: 30 to 1/2000 Second in Program Mode Type: Mechanical Speed: 30 to 1/2000 Second in Manual Mode 30 to 1/2000 Second in Aperture Priority Mode Type: Mechanical Speed: 30 to 1/2000 Second in Shutter Priority Mode Type: Electronic Speed: 4 to 1/32000 Second in Auto Mode Type: Electronic Speed: 30 to 1/32000 Second in Bulb Mode Type: Electronic Speed: 30 to 1/32000 Second in Program Mode Type: Electronic Speed: 30 to 1/32000 Second in Aperture Priority Mode Type: Electronic Speed: 30 to 1/32000 Second in Shutter Priority Mode
  Exposure Metering	Average, Center-Weighted, Highlight, Multi, Spot
  Exposure Modes	Modes: Aperture Priority, Intelligent Auto, Manual, Memory Recall, Movie, Panorama Shot, Programmed Auto, Scene Selection, Shutter Priority, Superior Auto
  Shooting Modes	Anti-Motion Blur Fireworks Gourmet Handheld Twilight High Sensitivity Landscape Macro Night Portrait Night Scene Pet Mode Portrait Sports Sunset
  White Balance	Auto, Cloudy, Color Temperature Filter, Custom, Daylight, Flash, Fluorescent (Cool White), Fluorescent (Day White), Fluorescent (Daylight), Fluorescent (Warm White), Incandescent, Shade
  Continuous Shooting	Up to 24 fps at 20.1 MP for up to 233 Exposures (JPEG Format)
  Self-Timer	2, 5, 10 Sec
  Remote Control	RM-VPR1 (Optional)

  Flash Modes	Auto Flash On Off Rear Sync Red-Eye Reduction Slow Sync
  Built-In Flash	Yes
  Effective Flash Range	Wide:1.31 to 33.46' / 0.4 to 10.2 m Telephoto:1.31 to 21.33' / 0.4 to 6.5 m
  External Flash Connection	None

  Memory Card Type	Memory Stick Duo Memory Stick Pro Duo Memory Stick PRO Duo (High Speed) Memory Stick PRO HG-Duo SD SDHC SDXC

  Video Recording	Yes, NTSC/PAL
  Resolution	3840 x 2160p: 30 fps, 25 fps, 24 fps 1920 x 1080p: 60 fps, 50 fps, 30 fps, 25 fps, 24 fps 1920 x 1080i: 60 fps, 50 fps 1280 x 720p: 30 fps, 25 fps 1920 x 1080p: 240 fps, 480 fps, 960 fps 1824 x 1026p: 240 fps, 480 fps, 960 fps 1676 x 566p: 240 fps, 480 fps, 960 fps 1920 x 1080p: 250 fps, 500 fps, 1000 fps 1824 x 1026p: 250 fps, 500 fps, 1000 fps 1676 x 566p: 250 fps, 500 fps, 1000 fps

  Video Clip Length	Up to 29 Minutes
  Audio Recording	Built-In Mic: With Video (Stereo)

  Viewfinder Type	Electronic
  Diopter Adjustment	-4 to +3 m
  Viewfinder Coverage	100%
  Screen	3.0" LCD Rear Screen Tilt (1,228,800 Pixels)

  Connectivity	HDMI D (Micro), USB 2.0 Micro-B, USB 2.0
  Wi-Fi	Yes, Wi-Fi 4 (802.11n) Built In

  Battery	1 x NP-BX1 Rechargeable Lithium-Ion Battery Pack, 3.6 VDC, 1240 mAh
  AC Power Adapter	AC-UB10C (Included)

  Dimensions (W x H x D)	4.0 x 2.3 x 1.6" / 101.6 x 58.1 x 41.0 mm
  Weight	10.55 oz / 299 g with battery and memory card

  Box Dimensions (LxWxH)	6.5 x 4.5 x 3.0"

• Sony VCT-SGR1 Shooting Grip

  Load Capacity	2.2 lb / 1 kg
  Tilting Angle Adjustment	+70°, -100°
  Dimensions	As Grip: 1.4 x 4.3 x 1.2" / 36.1 x 108.3 x 30.0 mm As Tripod: 4.2 x 3.2 x 3.6" / 105.7 x 82.5 x 92.2 mm
  Weight	3.3 oz / 93 g

  Box Dimensions (LxWxH)	6.2 x 4.0 x 3.0"

• Sony NP-BX1/M8 Rechargeable Lithium-Ion Battery Pack (3.6V, 1240mAh)

  Amp-Hours	1240 mAh
  Chemistry	Lithium-Ion
  Output Voltage	3.6 VDC
  Dimensions (W x H x D)	1.2 x 0.4 x 1.7" / 2.9 x 0.9 x 4.2 cm
  Weight	0.9 oz / 25 g

  Box Dimensions (LxWxH)	5.6 x 3.3 x 1.0"

• SanDisk 32GB Extreme UHS-I SDHC Memory Card

  Card Type	SDHC
  Storage Capacity	32 GB
  Bus Type	UHS-I
  Speed Class	10
  UHS Speed Class	U3
  Video Speed Class	V30
  Bus Interface Speed	UHS Class I
  Data Transfer	Read Speed: 90 MB/s Maximum (Burst) Write Speed: 40 MB/s Maximum (Burst) Write Speed: 30 MB/s Minimum
  Durability	Shockproof, Temperature Extremes, Waterproof, X-Ray Proof
  Operating Temperature	-13 to 185°F/ -25 to 85°C
  Storage Temperature	-40 to 185°F/ -40 to 85°C
  Error Correction	Yes
  Built-in Write-Protect Switch	Yes

  Box Dimensions (LxWxH)	4.5 x 4.0 x 0.1"
