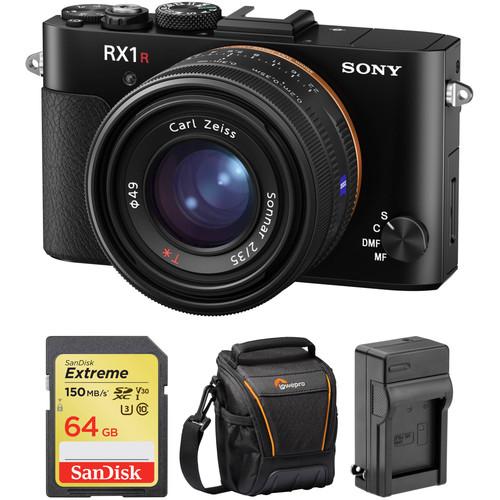

User Manual for Sony Cyber-shot RX1R II Digital Camera with Free Accessory Kit

• Product category: Point & Shoot Cameras Sony
• Brand: Sony
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sony Point & Shoot Cameras

Product description

• Sony Cyber-shot DSC-RX1R II Digital Camera On the cutting edge of imaging technology, the Cyber-shot DSC-RX1R II Digital Camera from Sony packs in a full-frame 42.4-megapixel Exmor R back-illuminated CMOS sensor and BIONZ X processor behind a fixed Zeiss Sonnar T* 35mm f/2 lens that grants users the ability to capture finely detailed images in an extraordinarily compact body. In addition to this, the RX1R II has a world's first variable optical low-pass filter system that can adjust voltage on a liquid crystal layer to adjust the light-splitting properties of the array. This feature allows users to prioritize detail, eliminate moire and aliasing, or strike a balance between the two.

  Located on the sensor are 399 phase-detect AF points in a Fast Hybrid AF system that can lock onto and track subjects quickly. This setting can also be used in the continuous shooting mode at up to the maximum of 5 fps for capturing fast moving action. In addition to this, the improved processing and speed from the RX1R II's sensor and processor combo enables capturing images at expanded sensitivities ranging from ISO 50-102400. And, Sony has added an uncompressed 14-bit RAW format for uncompromising images.

  In addition to these major advancements in imaging, the body design has been refined and the RX1R II is now equipped with a pop-up 0.39" 2.36M-dot XGA OLED Tru-Finder EVF. This viewfinder has an impressive magnification of 0.74x for comfortable, clear eye-level viewing and has a 4-lens optical system with two glass molded aspherical elements to ensure crisp, vibrant imagery. Along with this, the 3.0" 1,228.8k-dot LCD monitor can now tilt upwards 109° and down 41° for working in a variety of positions and angles.

  On the front of the camera is the impressive Zeiss 35mm lens which provides shooters with a classic wide angle focal length well-suited to street photography and documentary work, an excellent pairing for a compact and unobtrusive camera. The lens also offers a fast f/2 maximum aperture for creating images with a shallow depth-of-field and for working more easily in low light. Along with this, the lens utilizes three aspherical elements, including one advanced aspherical that will minimize aberrations and distortion.

  Video has also seen some notable improvement thanks to the implementation of the high bit rate XAVC S format. This format will record Full HD 1080p video at 50 Mbps at frame rates up to 60 fps. Also, the camera will be able to capture HD 720p video at up to 120 fps for slow motion and it has a 3.5mm jack for using external microphones and audio devices.

  Numerous other features, such as Bright Monitoring, Eye AF, support for 4:3 and 1:1 aspect ratios, and ISO auto minimum shutter speed have made their way into this model. Also, the camera has built-in Wi-Fi connectivity with NFC (Near Field Communication) for pairing the device with a smartphone or tablet for remote control and transfer of images. In addition to this, the RX1R II supports Sony's PlayMemories Camera apps for adding advanced functionality to the camera later on.
  42.4MP Exmor R BSI CMOS Sensor and BIONZ X Image Processor
  • The full-frame 42.4-megapixel Exmor R CMOS sensor present in the DSC-RX1R II works with the BIONZ X image processor to offer high-resolution stills and video while minimizing noise and improving speed. This sensor structure works with gapless on-chip lens design and an anti-reflection coating, as well as eliminating the optical low-pass filter, to improve light collection and enhance detail. Also, the copper wiring layer dramatically improves data transmission speed for creating high-resolution 42.4-megapixel stills at sensitivities up to ISO 102,400.
  Variable Optical Low-Pass Filter
  • The world's first variable optical low-pass filter allows users to control the amount of filtration they need for each specific image as they work, in order to maximize detail from the 42.4-megapixel sensor. The system uses a liquid crystal layer which it applies voltage to in order to control the light-splitting function. Users will have access to three settings: Off, Standard, and Hi. This unique ability allows the RX1R II to work in a variety of circumstances that normally would require separate cameras. Additionally, a low-pass filter bracketing function is available for users to quickly compare the differences between the different modes.
  Zeiss Sonnar T* 35mm f/2 Lens
  • Equipped with a fixed Zeiss Sonnar T* 35mm f/2 lens, the RX1R II can deliver sharp imagery with exceptional control over depth-of-field. The maximum aperture of f/2 can enable shallow depth-of-field as well as benefit image quality in low-light conditions. Ensuring maximum image quality the 8 element 7 group optical construction utilizes three aspherical elements, including 1 advanced aspherical, that minimize aberrations and distortion. The nine-blade diaphragm furthers the overall quality by providing smooth out-of-focus areas in your imagery. This lens also offers a dedicated macro mode that shortens the minimum focus distance from 11.8" to just 7.9".
  Fast Hybrid AF with 399 Phase-Detect Points
  • Lock onto your subjects quickly and without hesitation thanks to the revamped Fast Hybrid AF packed into the RX1R II. It uses 399 on-sensor phase-detect AF points with 45% coverage along with 25 contrast-detect AF points in order to improve the speed, accuracy and tracking performance of the system. Faster readout thanks to the back-illuminated sensor structure also allows for tracking while shooting at the top continuous shooting rate of 5 fps. This can be captured with a continuous AF Display that allows users to view the active AF points.

    Another feature available with this AF system is a Lock-on AF tracking that will analyze more information from the scene to provide dramatically improved accuracy and stability. Eye AF is also available which will prioritize a subject's pupil for excellent portraits even with a shallow depth of field.
  Full HD 1080p Video Recording in XAVC S Format
  • In addition to impressive stills, the RX1R II offers some excellent video recording capabilities thanks to the implementation of the XAVC S format in this model. This enables detailed high-bit rate footage to be captured in Full HD 1080p at 50 Mbps at up to 60 fps. This also works with HD 720p recording at 120 fps for slow motion video. In addition this the camera does feature a 3.5mm mic input jack that allows users to connect their standard microphones for improved audio quality.
  3.0" 1,228.8k-Dot Tilting LCD Monitor
  • With a high 1,228.8k-dot resolution, the LCD screen will provide shooters with an excellent screen for composing images, adjusting settings, and reviewing video and photos. It also tilts upward 109° and downward 41° for working with multiple shooting angles. Also, it has been designed to handle bright sunlight that would wash out most screens.
  Retractable 0.39" 2.36M-Dot XGA OLED Tru-Finder Electronic Viewfinder
  • With its 4-lens optical system using two glass molded aspherical elements, the high resolution 0.39" 2.36M-dot XGA OLED viewfinder faithfully displays what will appear in your recording, including the effects of your camera settings. Also, you will be able to easily pop it up out of the camera body when you want to use it and put it away for storage. The viewfinder will allow users to enjoy rich tonal gradations and improved contrast with high-end features like 100% frame coverage and a 0.74x magnification that enable comfortable and stable eye-level composition.
  Uncompressed 14-Bit RAW Format
  • After listening to feedback from photographers, Sony has introduced an uncompressed 14-bit RAW format option for users who demand the best image quality the camera can deliver. This format ensures finer tonal gradations that will not show any artifacts normally found in compressed formats.
  Physical Controls & Magnesium Alloy Construction
  • Still sporting a magnesium alloy construction, the overall design and layout of the camera has been refined rather than completely changed. In addition to the pop-up viewfinder and tilting EVF, the cameras multiple dials and buttons have gotten a facelift for more comfortable handling and control. The lens also features the same physical focusing ring and aperture dial as its predecessor, granting users advanced tactile control over their settings if desired.
  Built-In Wi-Fi Connectivity with NFC
  • Built-in Wi-Fi connectivity enables the RX1R II to instantly share imagery to mobile devices for direct sharing online to social networking, via email, and to cloud storage sites. NFC (Near Field Communication) is also supported, which allows for one-touch connection between the camera and compatible mobile devices; no complex set-up is required. Once connected, the linked mobile device can also display a live view image on its screen and remotely control the camera's shutter.

    Additionally, PlayMemories Camera Apps are also supported via the built-in Wi-Fi connection, and allow you to personalize the camera's features depending on specific shooting styles. Apps are available to suit creating portraits, detailed close-ups, sports, time lapse, motion shot, and other specific types of imagery.
  Other Camera Features
  • • Multiple aspect ratio support enables the use of 4:3 and 1:1 in addition to the standard 3:2 and 16:9 options. Also, thanks to the high-resolution sensor, images in the 16:9, 4:3, and 1:1 ratio still manage to offer 36, 38, and 28 megapixels, respectively.
    • A Multi-Interface Shoe located on the top of the camera enables support for a variety of accessories, including remotes, flashes, microphones, and more.
    • Capture One Express (for Sony) is a free downloadable RAW conversion software that will help users get the utmost quality from their image files.
    • Precise white balance adjustments for tuning the exact color using amber-blue and green-magenta axes.
    • Bright Monitoring boosts image brightness by changing shutter speed for better preview of a night sky or dark scene.
    • ISO Auto Minimum Shutter Speed allows users to prevent image blur by setting a minimum shutter speed that when reached will then start changing the ISO sensitivity.
    • Thirteen Creative Styles, including Vivid and Portrait, are available for capturing images with pre-defined looks that can flatter specific subject matter.
    • A 1200-zone evaluative metering system ensures balanced exposures and can be set between Multi Pattern, Center Weighted, and Spot metering.
    • Face Detection is available to base exposure and focus on up to eight recognized faces. Furthermore, Eye AF can be used for even greater precision by maintaining critical focus on a subject's eye.
    • 2x Clear Image Zoom can be used to effectively double the magnification afforded by any lens in use with minimal image degradation. For even greater magnification, 1.4x and 2x Smart zoom is available, as well as 4x, 6.2 and 8x digital zoom.
    UPC: 027242895409
  • SanDisk 64GB Extreme UHS-I SDXC Memory Card Designed for SD devices that can capture Full HD, 3D, and 4K video, as well as raw and burst photography, the 64GB Extreme UHS-I SDXC Memory Card from SanDisk has a capacity of 64GB, is compatible with the UHS-I bus, and features a speed class rating of V30, which guarantees minimum write speeds of 30 MB/s. If your device does not support the V30 standard, this card also supports the U3 standard, which likewise guarantees minimum write speeds of 30 MB/s. Read speeds are supported up to 150 MB/s and write speeds max out at 60 MB/s. A built-in write-protect switch helps to safeguard against the accidental erasure of card data.

    While this card has been designed for cameras that are UHS-I / V30 / U3 compatible, it may be used in devices that do not support UHS-I / V30 / U3. However, bear in mind that this card will then default to your device's speed class and bus rating, such as UHS-I and U1, which supports minimum write speeds of 10 MB/s, or Class 10, which also supports minimum write speeds of 10 MB/s. UPC: 619659170684
  • Lowepro Adventura SH 100 II Shoulder Bag (Black) With a padded compartment for your camera, the black Adventura SH 100 II Shoulder Bag from Lowepro is designed to hold and protect your point and shoot camera with attached lens from dust, dirt, and the elements. The SH 100 II features a single top-loading camera compartment with a removable divider for organizing your gear. Store your memory cards in the touch-fastening, slip-in dedicated memory card pocket. Pleated pockets, one on either side of the bag are suitable for storing items such as a small flashlight, cellphone, pens, or energy bar.

    Your SH 100 II is easily carried with the padded top handle or removable and adjustable shoulder strap. For greater carrying versatility, the bag may be attached to your belt with the built-in rear belt loop. When set down, the bottom of the bag features a custom-molded base for protection against dirt and moisture.
    Holds
    • • Point-and-shoot camera with extended zoom lens
      • Small accessories such as charger, cables, memory card, and spare battery
    Construction
    • • Custom-molded base to help safeguard against dirt and moisture
    Handle
    • • Padded top handle for comfort
    Divider
    • • Removable and adjustable divider for organizing gear
    Exterior Pockets
    • • 2 pleated, elastic side pockets for small items such as lens caps, flashlights, and pens
    Interior Pockets
    • • Fabric-fastening, slip-in memory card pocket under lid
    Shoulder Strap
    • • Adjustable and removable shoulder strap with snap hooks
    Built-in Belt Loop
    • • Built-in rear belt loop for use with user-supplied belt
    UPC: 056035368660
  • Pawa Compact AC/DC Charger for Sony NP-BX1 Battery Charge any Sony NP-BX1 type lithium-ion battery with this dedicated Compact AC/DC Charger from Pawa. It runs on 100-240 VAC power, allowing for worldwide use, and features a folding, 2-prong North American plug. Additionally, the charger includes a European plug adapter and a 12 VDC vehicle adapter that plugs into a cigarette lighter port--making it ideal for use both at home and on the road.
    Compatibility
    • Works with any Sony NP-BX1 type battery.
    Compact Design
    • Fold-out prongs allow for easy storage and traveling.
    Versatility
    • Runs on 100-240 VAC power to enable use all over the world. Features a two-prong North American plug, and includes both a 12 VDC vehicle adapter and a two-prong European plug adapter.
    UPC: 847628001398
  In the Box
  • Cyber-shot DSC-RX1R II Digital Camera
  • NP-BX1 Rechargeable Lithium-Ion Battery Pack (3.6V, 1240mAh)
  • BC-DCX Battery Charger
  • Micro USB Cable
  • AC-UUD11 USB Power Adapter
  • Shoulder Strap
  • ALC-F49S 49mm Front Lens Cap
  • Multi Interface Shoe Cap
  • Eyepiece Cup
  • Cleaning Cloth
  • Limited 1-Year Warranty
  • SanDisk - 64GB Extreme UHS-I SDXC Memory Card dwqereeq
  • Lowepro - Adventura SH 100 II Shoulder Bag (Black)
  • Pawa - Compact AC/DC Charger for Sony NP-BX1 Battery
  More from Manufacturer Table of Contents

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Sony Cyber-shot DSC-RX1R II Digital Camera

  Pixels	Actual: 43.6 Megapixel Effective: 42.4 Megapixel
  Sensor	Full Frame (35.9 x 24.0 mm) CMOS
  Bit Depth	14-Bit
  File Formats	Still Images: JPEG, RAW Movies: AVCHD 2.0, MP4, XAVC S Audio: AAC LC, Dolby Digital 2ch, Linear PCM (Stereo)
  Max Resolution	42 MP: 7952 x 5304
  Aspect Ratio	1:1, 3:2, 4:3, 16:9
  Image Stabilization	Digital
  Color Spaces	sRGB, Adobe RGB

  Lens	Carl Zeiss Sonnar, 8 Elements in 7 Groups 3 Aspherical Effective Focal Length: 35mm Aperture: f/2 (W) to f/22
  Filter Thread	49mm
  Zoom	Clear Image Zoom: 2x Digital: 4x Digital: 6.2x Digital: 8x
  Focus Range	Normal: 11.81" to Infinity / 30 cm to Infinity Macro: 7.87" to 13.78" / 20 cm to 35 cm

  ISO Sensitivity	Auto, 100 to 25600 (Extended Mode:50 to 102400)
  Shutter	Type: Mechanical Speed: 1/4000 to 30 Seconds
  Exposure Metering	Center-Weighted, Multi, Spot
  Exposure Modes	Modes: Aperture Priority, Auto, Manual, Memory Recall, Panorama Shot, Program, Scene Selection, Shutter Priority Compensation: -5 EV to +5 EV (in 1/3 EV Steps)
  White Balance	Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (Cool White), Fluorescent (Day White), Fluorescent (Daylight), Fluorescent (Warm White), Incandescent, Shade
  Continuous Shooting	Up to 5 fps for up to Exposures
  Self-Timer	2, 5, 10 Sec
  Remote Control	Optional

  Flash Modes	Auto Fill-In Off Rear Sync Slow Sync Wireless
  Built-In Flash	No
  External Flash Connection	Hot Shoe

  Built-In Memory	None
  Memory Card Type	SDXC SDHC SD Memory Stick Duo Memory Stick Pro Duo Memory Stick PRO Duo (High Speed) Memory Stick PRO HG-Duo

  Video Recording	Yes, NTSC/PAL
  Resolution	1920 x 1080p: 60 fps, 50 fps, 30 fps, 25 fps, 24 fps 1280 x 720p: 120 fps 1920 x 1080i: 60 fps, 50 fps

  Video Clip Length	Up to 29 Minutes
  Audio Recording	Built-In Mic: With Video (Stereo) Optional External Mic: With Video (Stereo + Mono)

  Viewfinder Type	Electronic
  Diopter Adjustment	-4 to +3 m
  Viewfinder Coverage	100%
  Screen	3.0" LCD Rear Screen Tilt (1,288,800 Pixels)
  Screen Coverage	100%

  Connectivity	1/8" Microphone, HDMI D (Micro), USB 2.0 Micro-B
  Wi-Fi	Yes, Wi-Fi 4 (802.11n) Built In
  GPS	No

  Operating Temperature	32 to 104°F / 0 to 40°C
  Waterproofing	None

  Battery	1 x NP-BX1 Rechargeable Lithium-Ion Battery Pack, 3.6 VDC, 1240 mAh

  Dimensions (W x H x D)	4.5 x 2.6 x 2.8" / 113.3 x 65.4 x 72.0 mm
  Weight	1.11 lb / 507 g with battery and card

  Box Dimensions (LxWxH)	8.9 x 6.2 x 5.7"

• SanDisk 64GB Extreme UHS-I SDXC Memory Card

  Card Type	SDXC
  Storage Capacity	64 GB
  Bus Type	UHS-I
  Speed Class	10
  UHS Speed Class	U3
  Video Speed Class	V30
  Data Transfer	Read Speed: 150 MB/s Maximum (Burst) Write Speed: 60 MB/s Maximum (Burst) Write Speed: 30 MB/s Minimum
  Built-in Write-Protect Switch	Yes
  Wireless Capability	None

  Box Dimensions (LxWxH)	9.0 x 6.8 x 4.5"

• Lowepro Adventura SH 100 II Shoulder Bag (Black)

  Carrying/Transport Options

  Belt Loop, Handle, Shoulder Strap

  Exterior Material	Polyester
  Exterior Dimensions	4.7 x 3.9 x 5.9" / 12 x 10 x 15 cm
  Type of Closure	Zipper

  Interior Dimensions	4.5 x 3.5 x 5.1" / 11.4 x 9 x 13 cm
  Weight	0.4 lb / 0.2 kg

  Box Dimensions (LxWxH)	6.8 x 4.8 x 4.1"

• Pawa Compact AC/DC Charger for Sony NP-BX1 Battery

  Power Input	Wall Plug: 100-240 VAC, 50 / 60 Hz, 150 mA Vehicle Adapter: 12-24 VDC
  Power Output	4.2 V, 600 mA
  Dimensions	3.3 x 1.8 x 1.5" / 8.3 x 4.5 x 3.7 cm
  Weight	2.5 oz / 70.9 g

  Box Dimensions (LxWxH)	4.567 x 3.543 x 2.047"
