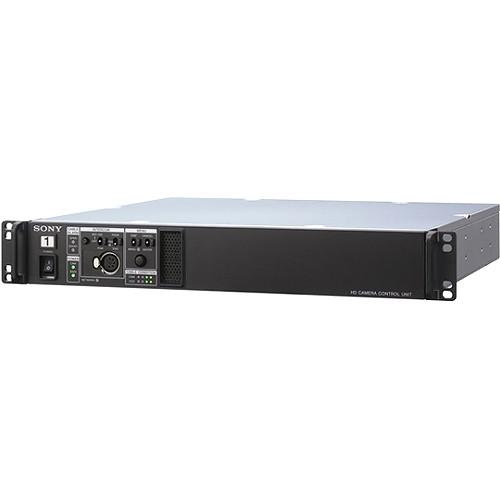

User Manual for Sony Digital Triax Camera Control Unit for HXC-D70 and PMW-320 350 400 500 Click to enlarge the picture
Contents of the user manual for the Sony Digital Triax Camera Control Unit
- Product category: CCUs & Base Stations Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony CCUs & Base Stations
|
User manual for the Sony Digital Triax Camera Control Unit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description Sony's Digital Triax Camera Control Unit for HXC-D70 and PMW-320/350/400/500 connects via the CA-TX70 digital triax camera adaptor. The CCU allows you to control the HXC-D70 and PMW-320/350/400/500* up to a maximum distance of 1200 meters, including the power and signals of Tally, Intercom, Video Return and also Prompter.
Note:
CBK-HD02 is required when the CA-FB70 or CA-TX70 is configured with PMW-500.
CBK-CE01 is required when the CA-FB70 or CA-TX70 is configured with PMW-400/350/320. - Digital Triax Connection
- Helps ensure best picture quality and easy integration of the HXC-D70 and PMW-320/350/400/500 using conventional triax infrastructure up to a maximum distance of 1200' with 14.5mm cable and 600m with 8.5mm cable
- Connection for all signals
- Provides flexible integration and the possibility to extend the operation with all signals (Tally, Intercom, Video Return and Prompter) in full HD
- Selectable Outputs
- Features four selectable SD/HD-SDI outputs plus analogue VBS and component, HDMI and S-Video outputs
- Compatible with RCP-1xxx Series remote control panels and RCP software
- Allows you to use RCP-1xxx Series remote control panels
- Operates with CA-TX70 and HKCU-FP2
- Works seamlessly with the CA-TX70 digital triax adaptor and the HKCU-FP2 optional front control panel can be attached onto the HXCU-TX70
In the Box Sony Digital Triax Camera Control Unit for HXC-D70 and PMW-320/350/400/500 Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony Digital Triax Camera Control Unit for HXC-D70 and PMW-320 350 400 500 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony HXCU-TX70 Specs | | | Camera | 1 x Triax | | Intercom | Tally/PGM: 1 x D-sub 25-pin, female
Intercom (PROG/ENG), 4 W/RTS/CC, 0 dBu
Tally (R, G)
PGM 2 systems, -20/0/+4 dBu | | Remote | 1 x 8-pin multi-connector | | Trunk | WF Mode/Microphone Remote/WF Remote: 1 x D-sub 25-pin, female
Trunk: RS-422 A 1 system | | LAN | 1 x RJ-45, 10BASE-T, 10BASE-TX | | | | AC Input | AC 100 V to 240 V | | Serial Input | Return: 2 x BNC
HD-SDI: SMPTE 292M, 0.8 Vp-p, 75 ohm, 1.485/1.4835 Gbps
SD-SDI: SMPTE 259M, 270 Mbps
HD-SDI/SD-SDI selectable | | Return | VBS Input: 2 x BNC
VBS: 1.0 Vp-p, 75 ohm | | Reference Input | 1 x BNC with loop-though output BNC
HD: SMPTE 274M, tri-level sync, 0.6 Vp-p, 75 ohm
SD: black burst
(NTSC: 0.286 Vp-p, 75 ohm; PAL 0.3 Vp-p, 75 ohm | | Input | Prompter: 2 x BNC, VBS signal, 1.0 Vp-p, 75 ohm, 2 channel | | | | Microphone Output | 2 x XLR 3-pin male, 0/-20 dBu | | Output | HD-SDI/SD-SDI Monitor:
2 x BNC
HD-SDI: SMPTE 292M, 0.8 Vp-p, 75 ohm, 1.485/1.4835 Gbps
SD-SDI: SMPTE 259M, 0.8 Vp-p, 75 ohm, 270 Mbps
HD-SDI/SD-SDI selectable | | Monitor Output | 2 x BNC
HD-SDI: SMPTE 292M, 0.8 Vp-p, 75 ohm, 1.485/1.4835 Gbps
SD-SDI: SMPTE 259M, 0.8 Vp-p, 75 ohm, 270 Mbps
HD-SDI/SD-SDI selectable | | Component Video | Pr/R/R-Y, Y/G/Y, Pb/B/B-Y:
HD component video: Y (100% white): 0.7 Vp-p
Pr/Pb (75% color bar): 0.7 Vp-p, 75 ohm
HD RGB video R/G/B (100% white): 0.7 Vp-p, 75 ohm
SD component video: Y (100% white): 0.714 Vp-p
Pr/Pb (75% color bar): 0.756 Vp-p, 75 ohm
SD RGB video R/G/B (100% white): 0.7 Vp-p, 75 ohm | | Output | VBS: 2 x BNC, VBS 1.0 Vp-p, 75 ohm
PIX: 1 x BNC, VBS/R/G/B (VBS a1.0 Vp-p, 75 ohm)
Sync/WF: 1 x BNC
Sync: HD: BTA-S001 A, tri-level, 0.6 Vp-p, 75 ohm
SD: composite sync, 0.3 Vp-p, 75 ohm
HD sync/SD sync selectable
WF: VBS/SEQ/R/G/B (VBS 1.0 Vp-p, 75 ohm) | | | | Power Supply | AC 100 V to 240 V, 50/60 Hz | | Operating Temperature | 41-104°F (5-50°C) | | Storage Temperature | -4-140°F (-20-60°C) | | Weight | 17.41 lb (7.9 kg) | | | | Package Weight | 22.85 lb | | Box Dimensions (LxWxH) | 22.3 x 22.1 x 8.5" |
