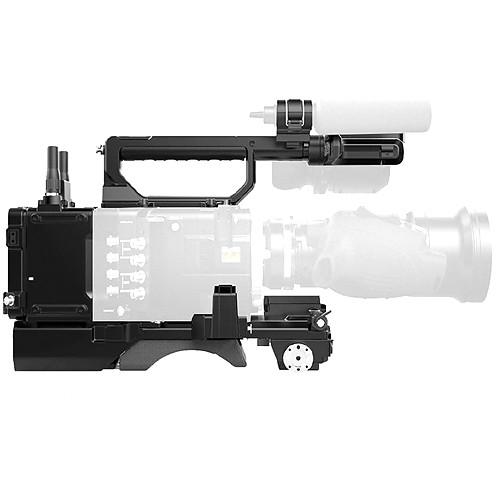

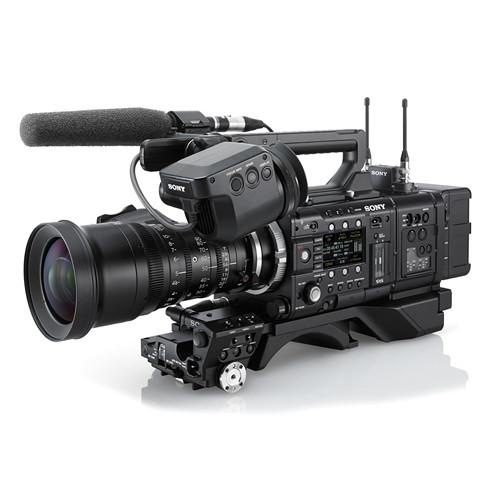

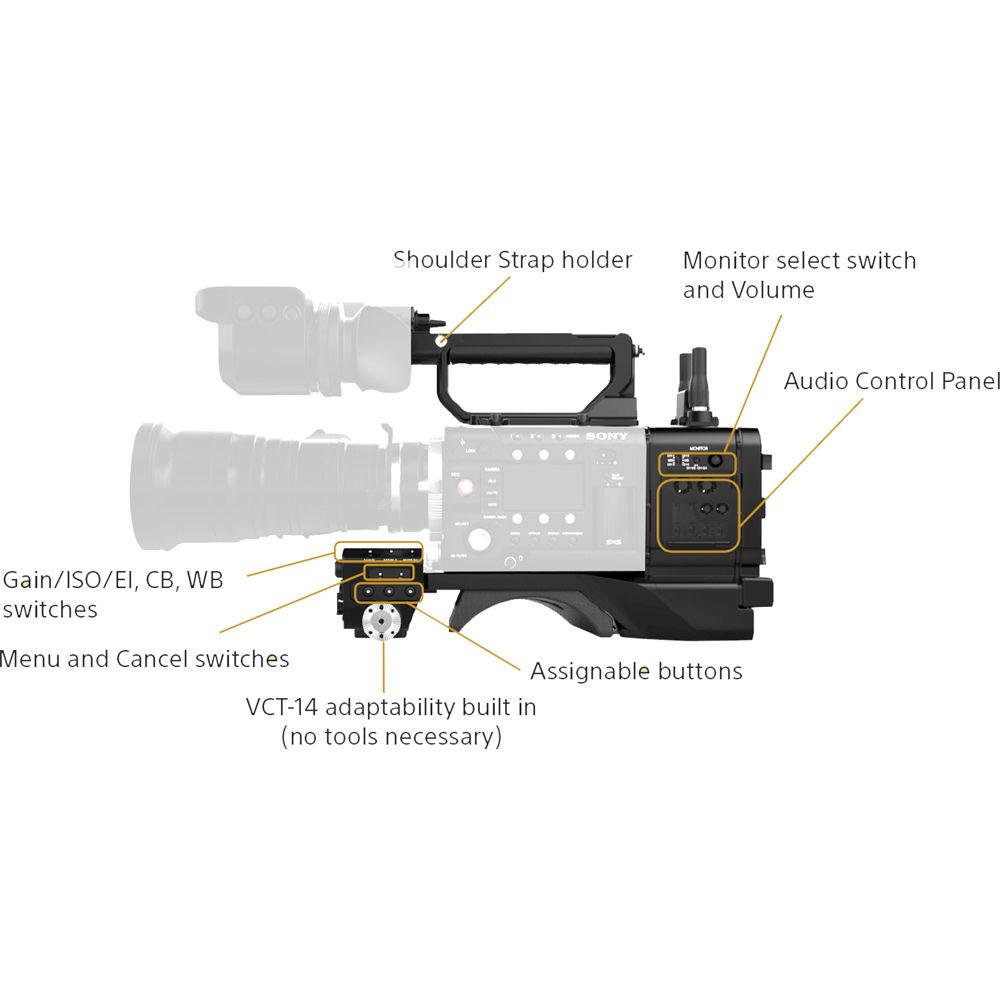

Product description The Documentary Dock from Sony is an EFP/ENG-style build-up kit which enables you to expand your PMW-F5 or PMW-F55 camcorder into an EFP/ENG camcorder. This system is designed for a single operator and provides conventional EFP/ENG operation similar to that of Sony XDCAM series camcorders. The documentary dock has an ergonomic design and features an adjustable shoulder pad and front block control. - Two Adjustable Blocks for Good Weight Balance

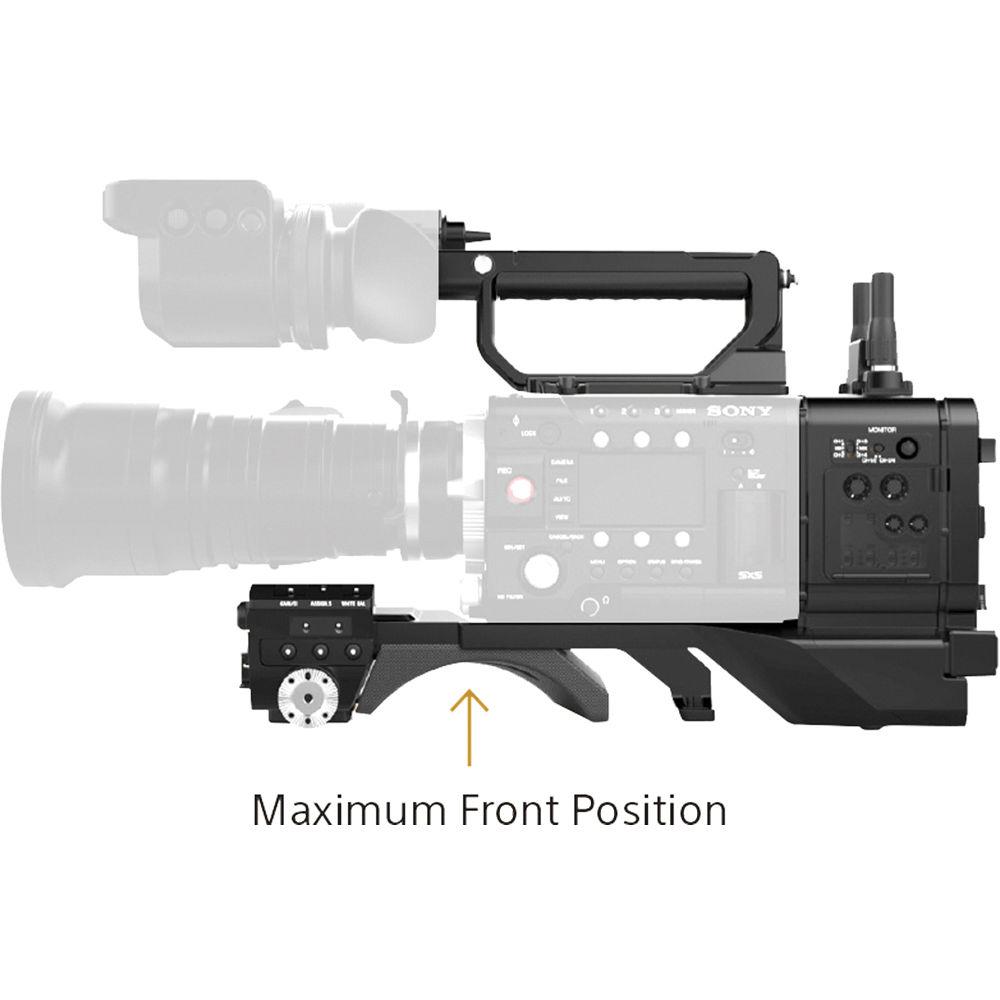

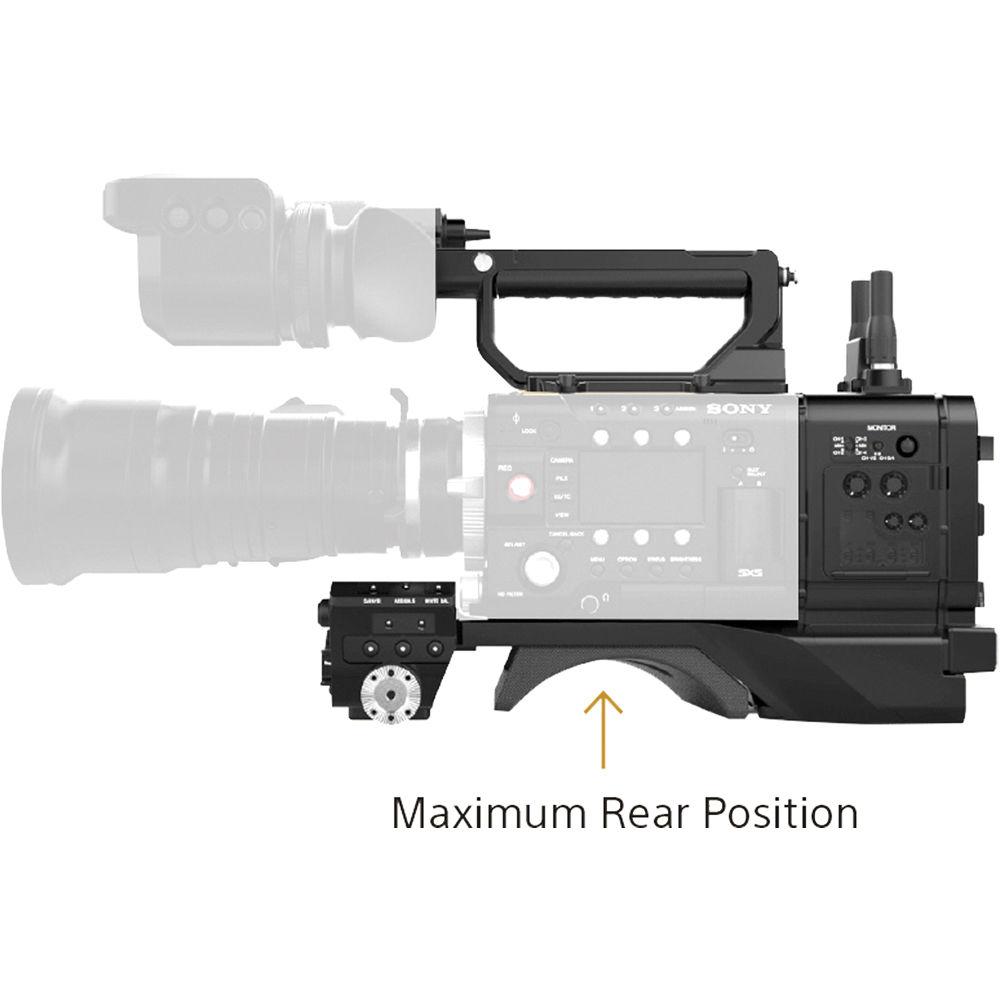

- Shoulder pad has 33mm adjustable range. Front block with all control buttons has 37mm adjustable range.
- RAW Recording Functionality
- The build-up kit also supports the AXS-R5 for 2K/4K 16bit RAW recording up to 240fps in 2K.
- Battery Adaptor
- Battery adaptor includes DC input, Hirose 1.8A DC output, and D-TAap 4.17A (50W) DC output. 1
Please Note: D-tap DC output not available when using AXS-R5 close - Easy to Attach/Detach Mechanism
- The build-up kit features an easy to attach/detach mechanism that allows you to use the PMW-F55/F5 as a full shoulder camera or in the original style, giving you more flexibility in your style of shooting.
- Support of Wireless Audio Receiver
- The build-up kit includes an audio section and input/output section at the rear side, offering support for wireless audio, with a familiar design common to main broadcast camcorders.
- Lens Support
- Using standard PL lenses or common B4 2/3-inch broadcast lenses with the LA-FZB1 or LA-FZB2 will suit a wide variety of applications. 2
Please Note: When using the LA-FZB2, the original handle supplied with the camera needs to be used. close - Supplied Top Handle

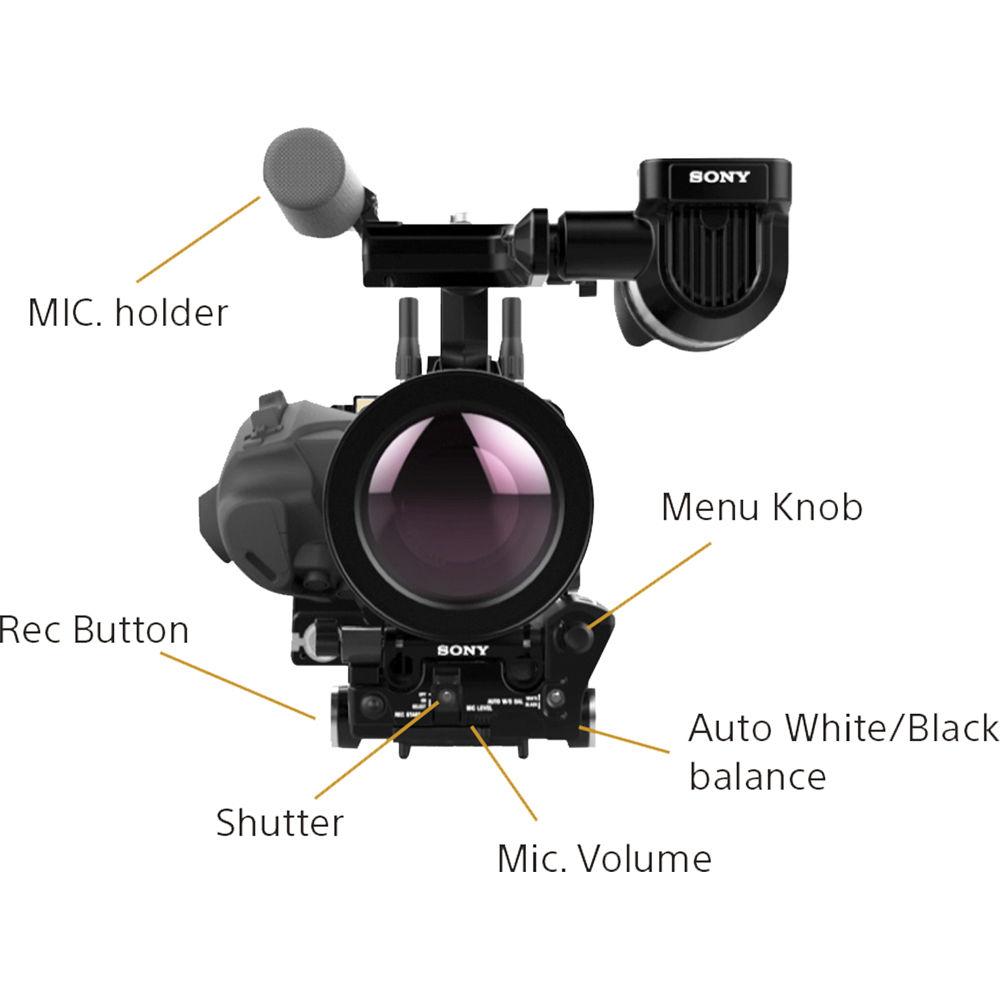

- The top handle comes with a microphone holder and viewfinder cable protection. It also provides cover for the fan input on the top of the body to protect against rain or dust. The handle is also able to attach the CBK-WA100 Wireless Adaptor (not included) without needing a USB connection.
In the Box Sony Documentary Dock for PMW-F5 / PMW-F55 Camcorder Battery Adaptor 2 x 15mm Rods (9.8" Long) Angled Headphone Plug Adaptor Handle with Microphone Holder Slide Plate VF Connector Protector Shoulder Strap Hexagon Socket Bolt Limited 90-Day Warranty On Parts Limited 1-Year Warranty On Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony Documentary Dock for PMW-F5 PMW-F55 Camcorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony CBK-55BK Specs | Compatibility | CineAlta Camera Models:
PMW-F5
PMW-F55 | | Audio Input Level | Analog: +4, 0, -3 dBu (-40 dBu with optional wireless receiver)

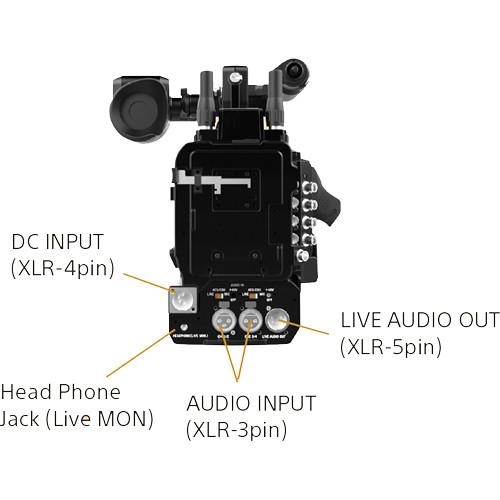

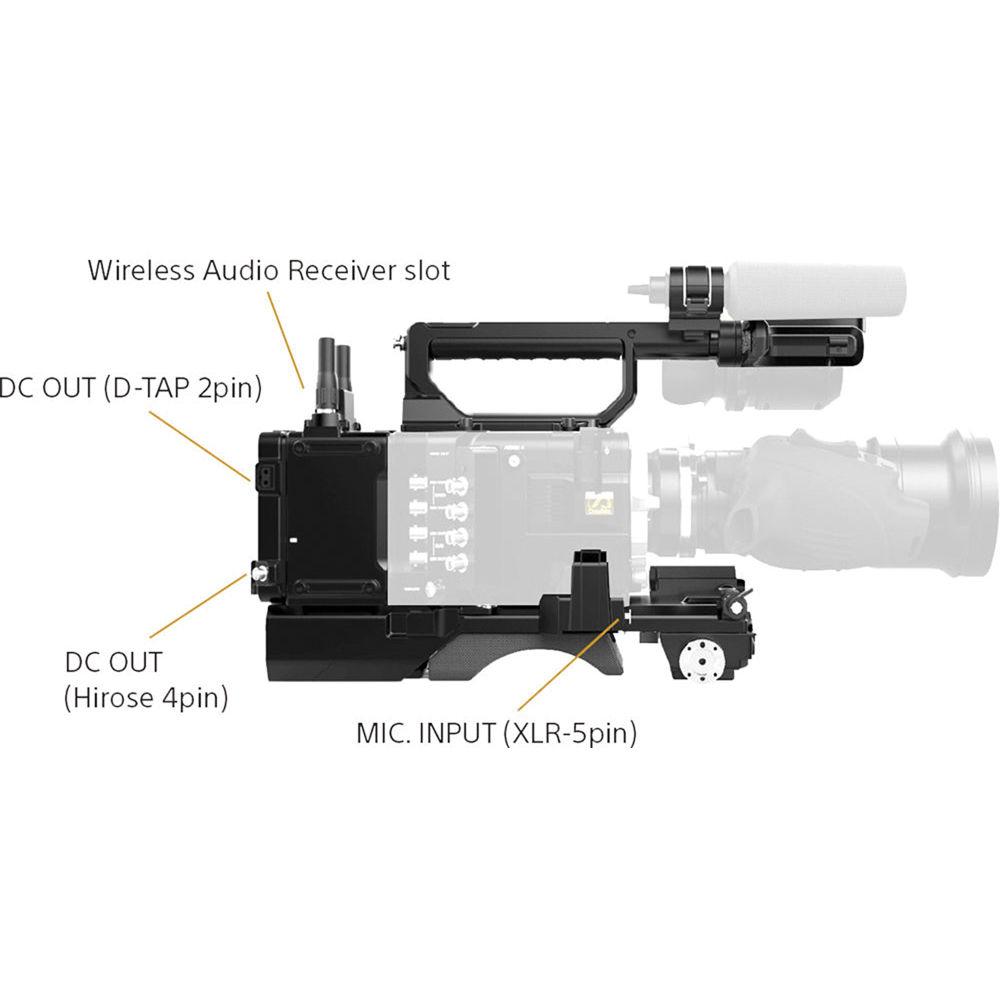

Digital: AES3 standard (-40 dBFS with optional wireless receiver) | | Microphone Input Level | -70 to -30 dBu | | Connectors | 1 x 144-pin Sony, expansion interface
1 x Mini jack, Stereo headphone
1 x 4-pin XLR, DC input
1 x 4-pin Hirose, DC output
1 x 2-pin D-Tap, DC output
1 x 15-pin Sub-D, wireless audio receiver
1 x 5-pin XLR, microphone input
1 x 5-pin XLR, balanced audio output
2 x 3-pin XLR, audio input | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Operating Humidity | 20 to 90% | | Power Requirement | 12 VDC (11 to 17 VDC)
Maximum Current Capacity: 1.8 A, with included battery adapter attached | | Power Consumption | Approx. 3 W (while XAVC recording, color LCD on) | | Dimensions | Approx. 6.75 x 7.25 x 13.88" (170 x 182 x 351 mm) | | Weight | Approx. 4.9 lb (2.2 kg) | | | | Package Weight | 10.45 lb | | Box Dimensions (LxWxH) | 16.9 x 10.6 x 9.6" |
