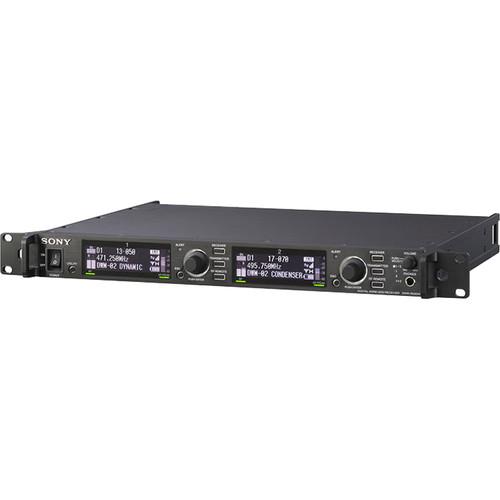

User Manual for Sony Dual-Channel Digital Wireless Receiver Click to enlarge the picture
Contents of the user manual for the Sony Dual-Channel Digital Wireless Receiver
- Product category: Wireless Receivers Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Wireless Receivers
 |
User manual for the Sony Dual-Channel Digital Wireless Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|

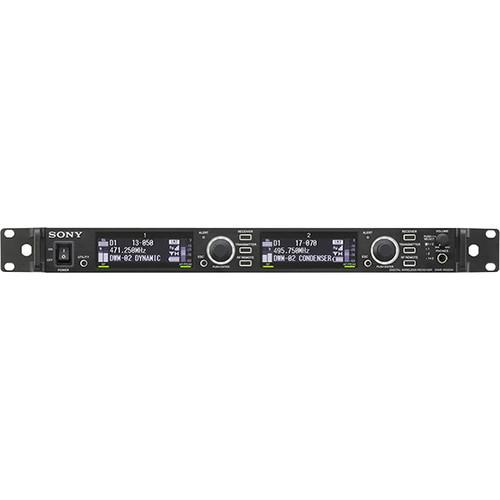

Product description Provided by third party: The DWR-R02DN is a two-channel 19-inch rack-mountable (1U-size) receiver. It forms part of the DWX series digital wireless microphone system that offers high-quality, full-digital operation, shorter audio latency and more reliable RF transmission mode - ideal for a variety of high-quality applications, including broadcast studio, theater, and live sound.
- Key Features
-
- High quality 48 kHz / 24 bit digital audio
- Digital modulation offers reliable/secure transmission and it's less subject to interference
- Includes up to 50% increase in the number of wireless audio channels
- Innovative wireless remote control of the transmitter from the receiver (using 2.4 GHz IEEE802.15.4 communication technology)
- Includes clear channel and active channel scanning
- Supports AES3 digital and analog audio outputs
- UHF-TV channels 14 to 51 (470 to 542 MHz),(566 MHz to 607 MHz),(615 MHz to 638 MHz), and (638 to 698 MHz) - (excludes ch.26-29, and ch.37).
- (Codec Mode 1) - Maintains system compatibility with existing non 'N' Series DWX models.
- (Codec Mode 2) - Provides for highest quality sound and shorter audio latency (Analog out - 1.5msec - Digital out - 2.5msec).
- (Codec Mode 3) - Alternately provides for additional error correction scheme that expands the RF Transmission distance (operational range).
- Three codec modes for more reliable RF transmissions and higher quality sound
- The Sony codec has been improved to provide three codec modes optimized for a wider variety of applications.
- Superb quality wireless transmission and reception
- The digital wireless microphone system transmits and receives high-quality 24-bit digital audio in a specific frequency bandwidth.
- Stable and secure transmission and reception
- Incorporating the improved digital modulator, the digital wireless microphone system allows highly stable wireless transmission that is extremely tolerant to unwanted interference. In addition; the system transmits and receives digitally modulated and encrypted data to minimize the risk of interception, providing highly secure transmission and reception.
- Simultaneous multi-channel operation
- The digital wireless microphone system allows for large-scale multi-channel operations. Thanks to the digital modulator, the system realizes an intermodulation-free, equally spaced channel allocation. The digital wireless transmission technology used in this system enables a significant increase in the number of simultaneous operations.
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony Dual-Channel Digital Wireless Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

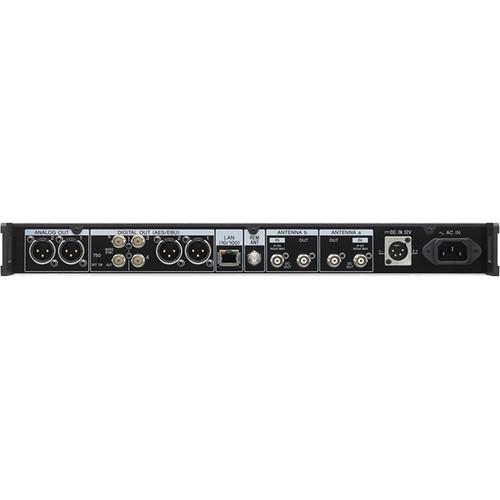

Technical parametersSony DWR-R02DN Specs | | | Product Type | Wireless audio receiver | | Intended For | Wireless microphone | | Display | OLED display | | Frequency Range | 470 - 710 MHz | | Package Content | Power cable, wireless audio receiver, 2 whip antennas | | Width | 19 in | | Depth | 13.2 in | | Height | 1.7 in | | Weight | 7.94 lbs | | | | Connections | LAN - RJ-45
2 x antenna input - BNC
2 x antenna output - BNC
Audio output - XLR
Headphone output - phone stereo 6.3 mm |
