User Manual for Sony DWM-02N Digital Wireless Microphone with CU-C31 Condenser Capsule Click to enlarge the picture
Contents of the user manual for the Sony DWM-02N Digital Wireless Microphone with
- Product category: Wireless Transmitters Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Wireless Transmitters
|
User manual for the Sony DWM-02N Digital Wireless Microphone with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|

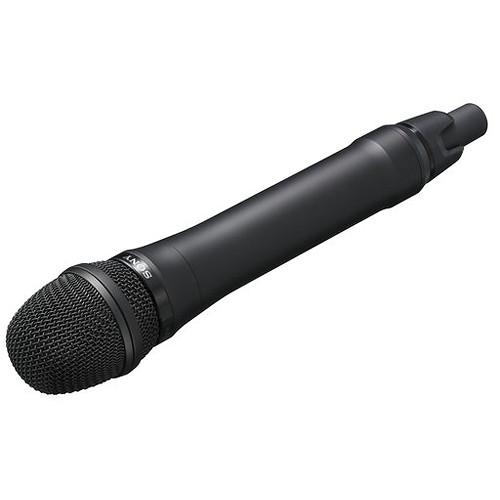

Product description The Sony DWM-02N Digital Wireless Microphone with CU-C31 Condenser Capsule is a digital transmitter for use with compatible Sony digital wireless microphone receivers. The DWM-02N handheld transmitter features a compander-free system for stable, noise-free operation. Its CU-C31 condenser capsule features a cardioid polar pattern for effectively minimizing off-axis noise and feedback. The transmitter also features adjustable output power, RF frequency selection, input attenuator, and more. - CU-C31 cardioid condenser mic capsule for vocal use
- Audio and metadata transmission operates on UHF-TV channels 14-25 (470 to 542 MHz)
- Transmitter settings can be remotely controlled from the digital wireless receiver (using 2.4 GHz IEEE802.15.4 communication technology)
- 5-hour battery life using two AA alkaline batteries @ 10mW power setting
In the Box Sony DWM-02N Digital Wireless Microphone with CU-C31 Condenser Capsule (14 UC: 470 to 541 MHz) ID Ring Mic Holder & Stand Adapter USB Adapter Cable USB Cable Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony DWM-02N Digital Wireless Microphone with CU-C31 Condenser Capsule in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony DWM-02N/14 + CUC31 Specs | Type of Transmitter | Crystal-Controlled UHF PLL-Synthesized Handheld Transmitter | | Frequency Band | 14 UC: 470 to 541 MHz | | Emission Standard | G1E or G1D | | Type of Microphone | Condenser Capsule | | Polar Pattern | Cardioid | | Frequency Response | 60 Hz to 20 kHz | | Battery Type/Approx. Life | 3 VDC (Two AA-Size Alkaline Batteries)
5 Hours | | Mute Switch | On/Off/Mute | | RF Output Power | 1 / 10 / 50 mW | | Display | LCD | | Dimensions | 1.9 x 9.9" / 47.6 x 251.0 mm | | Weight | 10 oz / 283.49 g (Including Batteries) |
