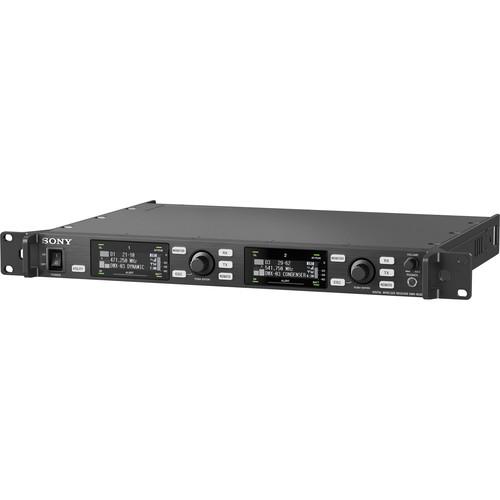

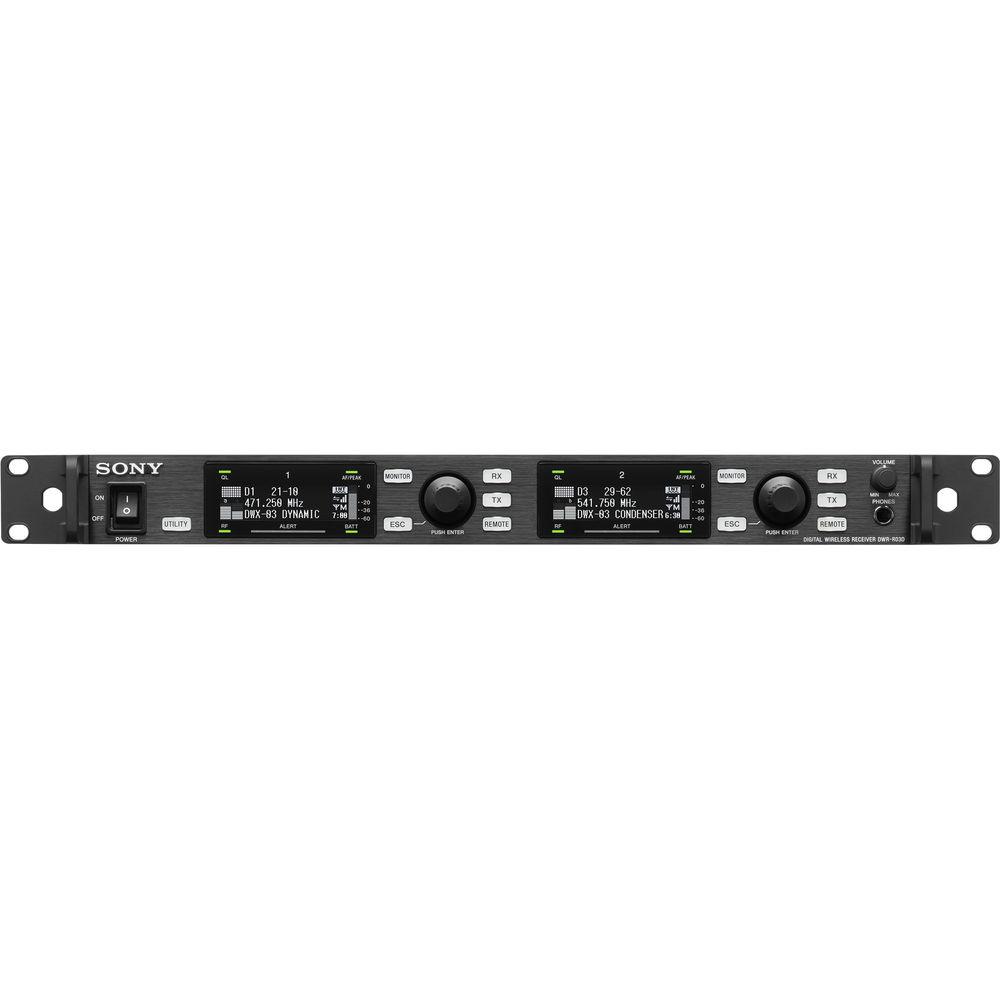

Product description The DWR-R03D DWX Series Dual-Channel Digital Wireless Receiver from Sony is the updated, third generation 1 RU rack-mountable wireless receiver featuring Sony's digital audio processing, encryption, and RF transmission technologies. It can be used to capture audio for live stage, theater, and studio based TV applications when paired with a transmitter and microphone (sold separately). The dual-channel receiver offers secure, stable transmission and reception of high-quality audio with low latency. It is suitable for large-scale multi-channel productions supporting up to 21 simultaneous channels per 8 MHz TV band or up to 16 simultaneous channels per 6 MHz TV band. In addition, support for Dante audio-over-IP standard enables networked multi-channel operation. The DWR-R03D is compatible with Sony Wireless Studio control software for Windows (Ver 5.0 or later). This allows flexible remote operation and remote control of up to 82 transmitters using the Cross Remote function combined with the RMU-01 remote control unit (available separately). - Ultra-wideband dual-channel receiver
- Dante interface for audio-over-IP networking with support of redundant networks with two Dante ports
- Ultra-short audio latency of 1.2 ms
- Reliable transmission with X-Dimension Diversity reception system and high dynamic range RF circuit
- 4-antenna diversity reception capability for wide-area operation coverage or extremely stable RF
- Headphone monitoring among receivers which are in Dante network (Solo/Mix) mode
- Remote control of transmitter settings with 'Cross Remote' function, with range coverage increase using optional RMU-01 transmission antennas
- AC power output for cascade connection using supplied cable
- Switchable analog and AES/EBU digital audio sub outputs
- Transmitter/Receiver identifying function
- Label function for naming each channel on receiver
- 1 dB step adjustable output level
- Easy-to-read dual OLED displays
- Operation status monitoring and remote control of devices via Wireless Studio software
- Automatic frequency change for transmitter and receiver with Cross Remote and frequency scanning
- Automatic frequency coordination without PC
- Graphical spectrum analyzer
- Automatic channel swap function switches audio outputs in case of dropout
- The receiver includes V5.0 Wireless Studio PC software for networked remote control

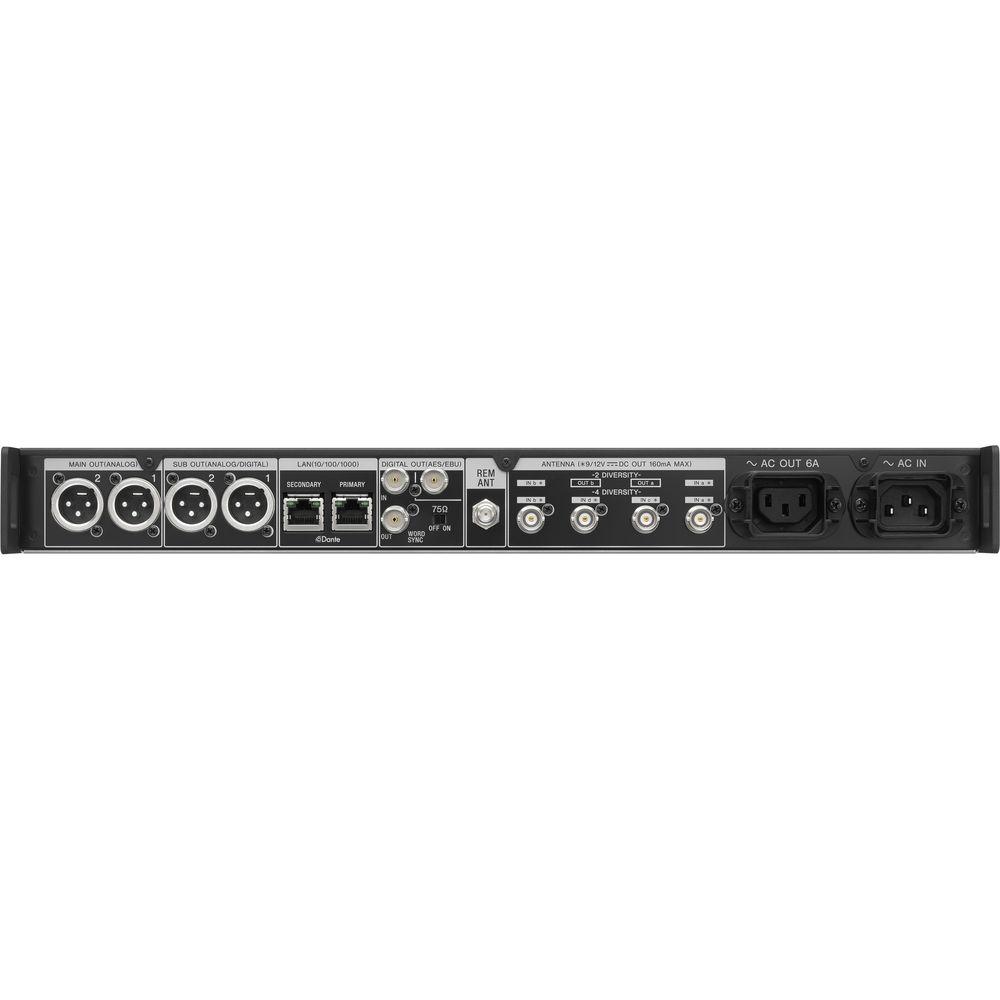

In the Box Sony DWR-R03D DWX Series Dual-Channel Digital Wireless Receiver (Ch: 14 to 36 and 38) 2 x Whip Antennas AC Power Cord AC Cascade Cord CD-ROM Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony DWR-R03D DWX Series Dual-Channel Digital Wireless Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony DWR-R03D Specs | Wireless Interface | WiDIF-HP | | Oscillator Type | Crystal-controlled PLL Synthesizer | | Reception Type | True Diversity | | Circuit Design | Double Superheterodyne | | Antenna Type | Detachable | | Antenna Connector | 2 Diversity Mode: 2 x Inputs BNC-R, 50 Ohms; 2 x Cascaded Outputs BNC-R, 50 Ohms
4 Diversity Mode: 2 x Inputs BNC-R, 50 Ohms | | Audio Carrier Frequencies | UC7: 470.125 to 607.875 MHz and 614.125 to 615.875 MHz, 25 kHz steps | | Frequency Response | 20 Hz to 22 kHz (typical) | | Dynamic Range | 106 dB or more typical (A-weighted, T.H.D. = 1%) | | Total Harmonic Distortion (THD) | Mode 1, Mode 2: 0.03% or less, Mode 3: 0.3% or less | | Audio Delay | Mode 1: 1.9 ms (Total: 3.1*/3.4**ms) (analog output), 1.9 ms (Total: 3.1*/3.4**ms) (digital output)
Mode 2: 0.5 ms (Total: 1.2*/1.5**ms) (analog output), 1.5 ms (Total: 2.2*/2.5**ms) (digital output)
Mode 3: 1.9 ms (Total: 3.7*/4.0**ms) (analog output), 2.8 ms (Total: 4.6*/4.9**ms) (digital output)
*with DWT-B03R ** with other transmitters | | Audio Output | Balanced: 3-pin male XLR (Main 2, Sub 2)
Output level (0 dBu = 0.775 Vrms)
Main Balanced: +24 dBu maximum/-58 dBu to -12 dBu (1 dB step adjustable) reference
Sub Balanced: +24 dBu maximum/-12 dBu reference | | Digital Output | 2 x 3-pin XLR male, 110 Ohms
1 x BNC-R, 75 Ohms, reference output level: -36 dBFs | | Headphone Output | 1/4" / 6.3 mm stereo jack | | Word Sync I/O | Input Connector: BNC-R with a 75-Ohm termination switch
Output Connector: BNC-R
External Word Sync: 32 kHz to 96 kHz | | Wireless Remote | Cross remote (2.4 GHz IEEE802 15.4 compliant) | | Display | 2 x OLED | | Power Requirements | 100 to 240 VAC | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Dimensions (W x H x D) | 18.98 x 1.73 x 13.19" / 48.20 x 4.40 x 33.50 cm | | Weight | 8.6 lb / 3.9 kg |
