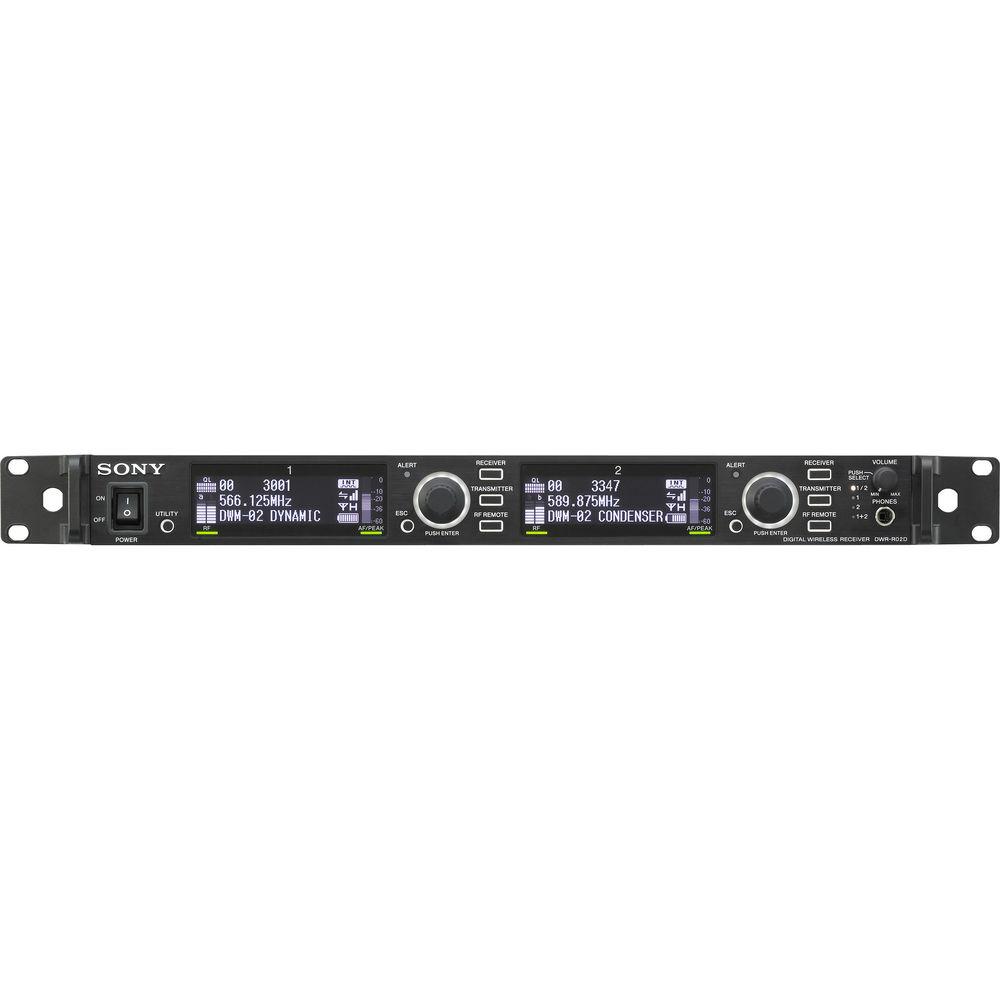

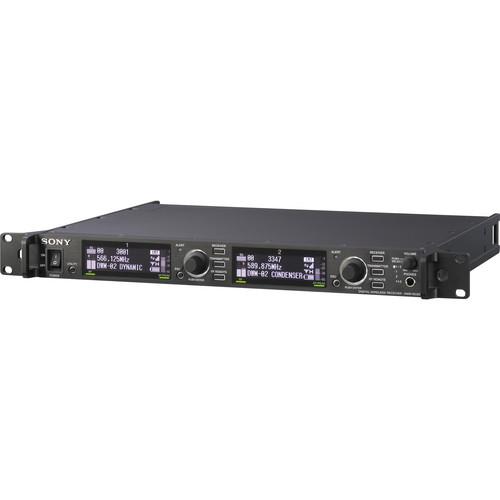

Product description The DWRR02D/42 Dual Channel Rackmountable Digital Wireless Receiver from Sony is designed to work with DWX wireless systems. It is capable of receiving 48kHz/24-bit audio via true diversity and features XLR and 1/4" analog outputs as well as an AES/EBU digital output via XLR. Each channel features its own OLED display and is capable of controlling the connected transmitter. The clear and active channel scan is designed for easy setup by scanning available frequencies and automatically tuning the receiver to them. The DWRR02D/30 can be controlled remotely via available remote control software for PC.
Note: Due to the FCC's recent auction of wireless frequency bands, as of July 13, 2020, any wireless microphone system operating in the 617-652 MHz band or the 663-698 MHz band must be retired from service. As this product operates within those bands, it cannot be used after that date. strongly encourages you to consider the future-proof bandwidths available for this system. Please contact our live chat team or call us at 800.606.6996 for more details. UPC: 027242849365 In the Box Sony DWRR02D/42 Dual Channel Rackmountable Digital Wireless Receiver 2 x Whip Antenna AC Power Cord 4 x Feet Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony DWRR02D 42 Dual Channel Rackmountable Digital Wireless Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

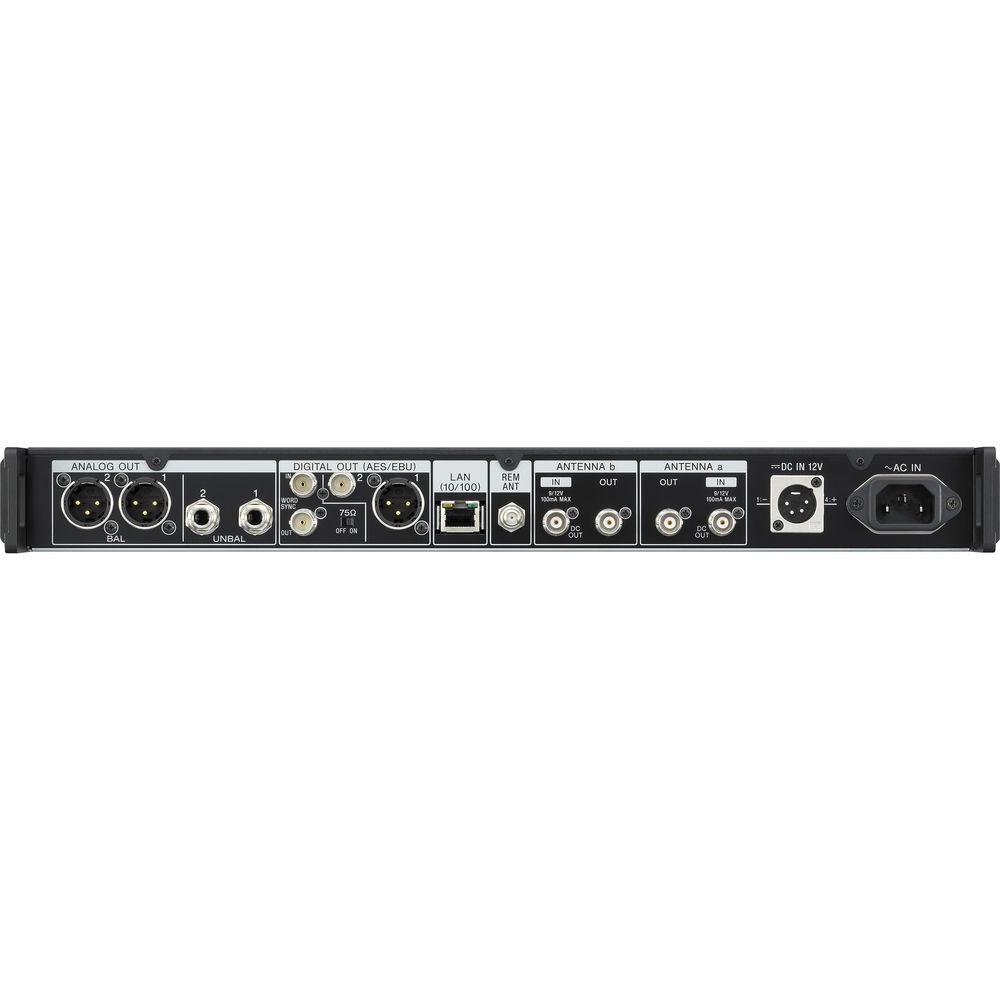

Technical parametersSony DWR-R02D Specs | Receiving Channels | 638.125 to 643.875 MHz | | Audio Output Connector | 2x analog XLR
2x analog 1/4" (6.3 mm) phone
1x AES/EBU digital XLR
1x BNC | | Power Requirements | 100 V to 240 V AC
12 V DC (4-Pin XLR) | | Compatibility | For use with DWX Series digital wireless products operating within the same frequency block | | Dimensions (W x H x D) | 19 x 1.75 x 13.25" (482 x 44 x 336 mm) | | Weight | 7.94 lb (3.6 kg) | | | | Package Weight | 12.8 lb | | Box Dimensions (LxWxH) | 18.0 x 12.0 x 8.0" |
