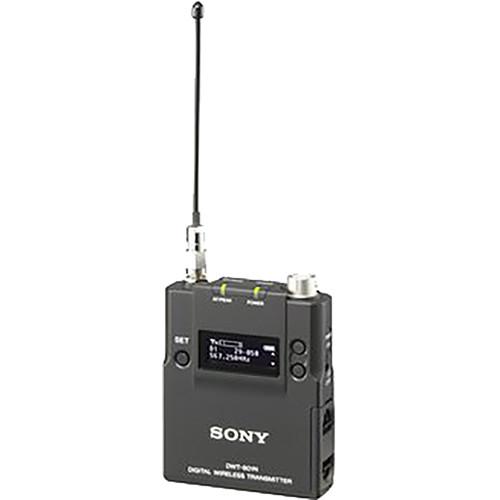

User Manual for Sony DWT-B01N 14 Digital Wireless Bodypack Transmitter Click to enlarge the picture
Contents of the user manual for the Sony DWT-B01N 14 Digital Wireless Bodypack
- Product category: Wireless Transmitters Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Wireless Transmitters
|
User manual for the Sony DWT-B01N 14 Digital Wireless Bodypack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The Sony DWT-B01N/14 Digital Wireless Bodypack Transmitter is intended for use with Sony lavalier microphones such as the ECM-77BC/9X or ECM-FT5BC and features digital audio processing for lower noise and a longer, efficient range. Up to three selectable output power settings are provided for maximum results and improved battery efficiency. Two AA alkaline batteries power the DWT-B01N/14 for up to 5 hours at the 10mW power setting. Additional features include an input attenuator, RF frequency selection, RF power output, Audio LCF frequency, and a power sleep mode (in the transmitter) that can be remotely controlled from the DWR-S01D digital wireless receiver (available separately). - Microphone or Line Audio Input
- The input is capable of microphone or line-level operation.
- Power Efficient
- The transmitter operates for approximately five hours using two AA size alkaline batteries at 10mW output power.
- Selectable Output Power
- The DWT-B01N/14 provides a choice of 1, 10, or 50 mW RF output.
- Flexible Feature Set
- Additional features include an input attenuator, RF frequency selection, RF power output, Audio LCF frequency and a power sleep mode (in the transmitter) that can be remotely controlled from the DWR-S01D digital wireless receiver.
UPC: 027242893993 In the Box Sony DWT-B01N/14 Digital Wireless Bodypack Transmitter (14 UC: 470 to 541 MHz) Spare Battery Case Soft Case Mic Cable (4-Pin to XLR) USB Adapter Cable Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony DWT-B01N 14 Digital Wireless Bodypack Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony DWT-B01N Specs | Type of Transmitter | UHF Digital Bodypack | | Frequency Range | 14 UC: 470 to 541 MHz | | Channel Assignment | 14 to 25 | | Type of Input Connector | Sony 4-Pin | | Interchangeable Mic Heads | Compatible with Sony Lavalier and Headworn Microphones with a Sony 4-Pin Connector | | Frequency Response | 20 Hz to 20 kHz | | Battery Type/Approx. Life | Approximately 5 Hours at 10 mW Output Using Alkaline Batteries | | Mute Switch | Not Specified by Manufacturer | | Level Control | Yes | | Antenna Type | 1/4 Wave | | Display | LED Display | | Dimensions (WxHxD) | 24.8 x 28.7 x 6.7" / 63 x 73 x 17 mm | | Weight | 4.4 oz / 125 g (Including Batteries) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 15.0 x 6.5 x 3.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 96 owners. Add your rating and experience with the product.
