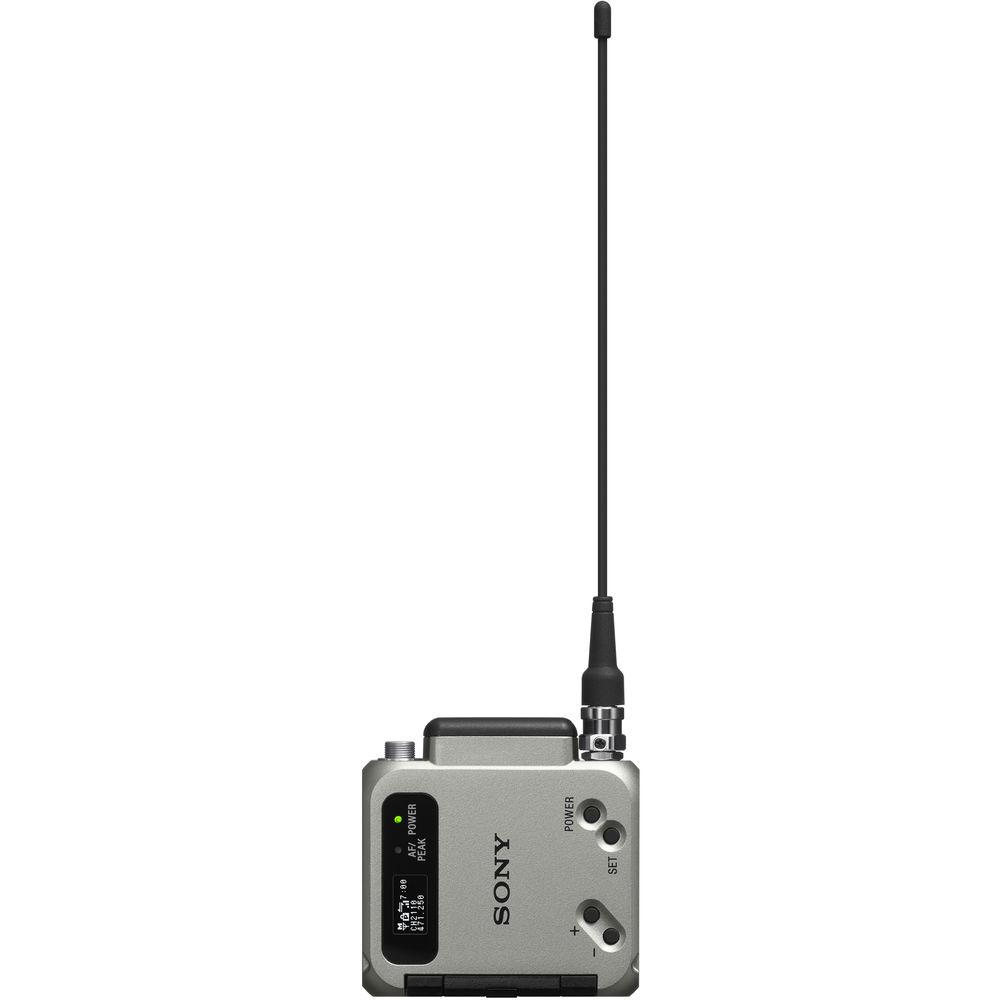

User Manual for Sony DWT-B03R DWX Series Digital Wireless Microphone Bodypack Transmitter Click to enlarge the picture
Contents of the user manual for the Sony DWT-B03R DWX Series Digital Wireless
- Product category: Wireless Transmitters Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Wireless Transmitters
 |
User manual for the Sony DWT-B03R DWX Series Digital Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|

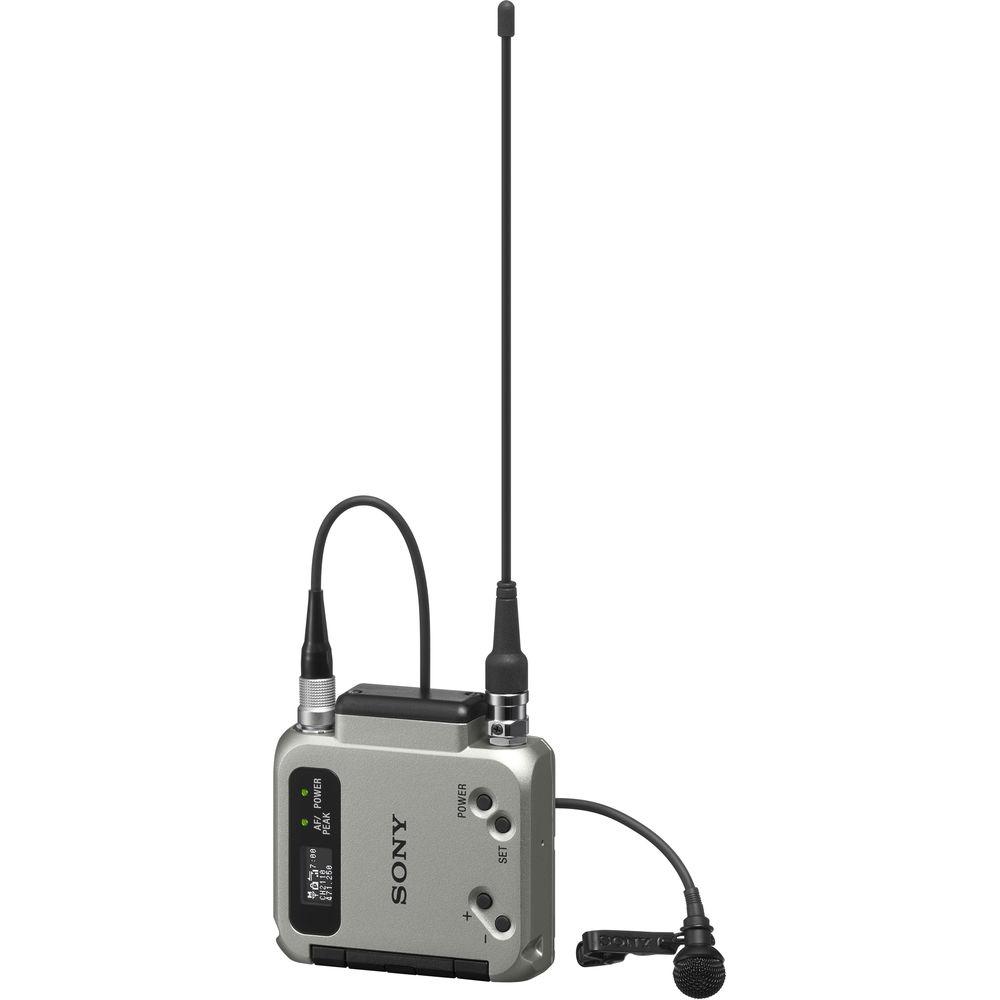

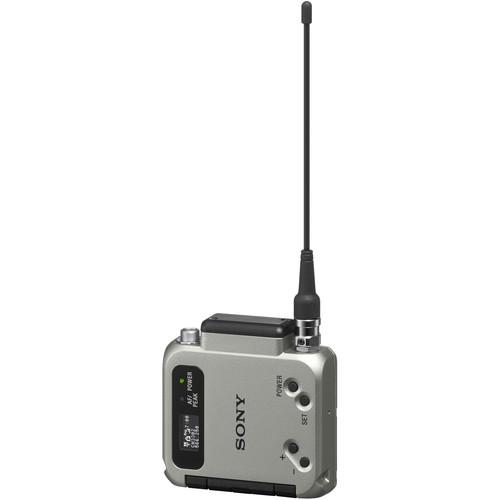

Product description The Sony DWT-B03R DWX Series Digital Wireless Microphone Bodypack Transmitter from Sony is the updated, third generation wireless bodypack transmitter featuring Sony's digital audio processing, encryption, and RF transmission technologies. The transmitter can be used to capture audio for live stage, theater, and studio based TV applications when paired with a receiver and microphone (sold separately). The ultra-compact, lightweight, bodypack transmitter is built with a robust die-cast magnesium body. It features selectable audio input for mic or line level and a choice of 2, 10 or 25 mW RF output. A single Sony NP-BX1 lithium-ion battery powers the unit for approximately 7 hours at 10 mW transmitter settings. Other features include: input attenuator, RF frequency selection, RF power output, audio LCF frequency, and low-power sleep mode (at the transmitter). Furthermore, all of this can be remotely controlled from the DWR-R03D, DWR-R02DN, and DWRS02DN digital wireless receivers (sold separately), or Wireless Studio software. A high channel density 375 kHz operation mode is available with no loss in signal quality, allowing for up to 16 simultaneous multi-channel operation per 6 MHz TV channel. Finally, the DWT-B03R includes a wire style detachable belt clip, carrying case, and a NP-BX1 lithium-ion battery. - Ultra-compact, lightweight and built with a robust die-cast magnesium body
- Audio input is selectable for mic or line level
- Choice of 2, 10, or 25 mW RF output

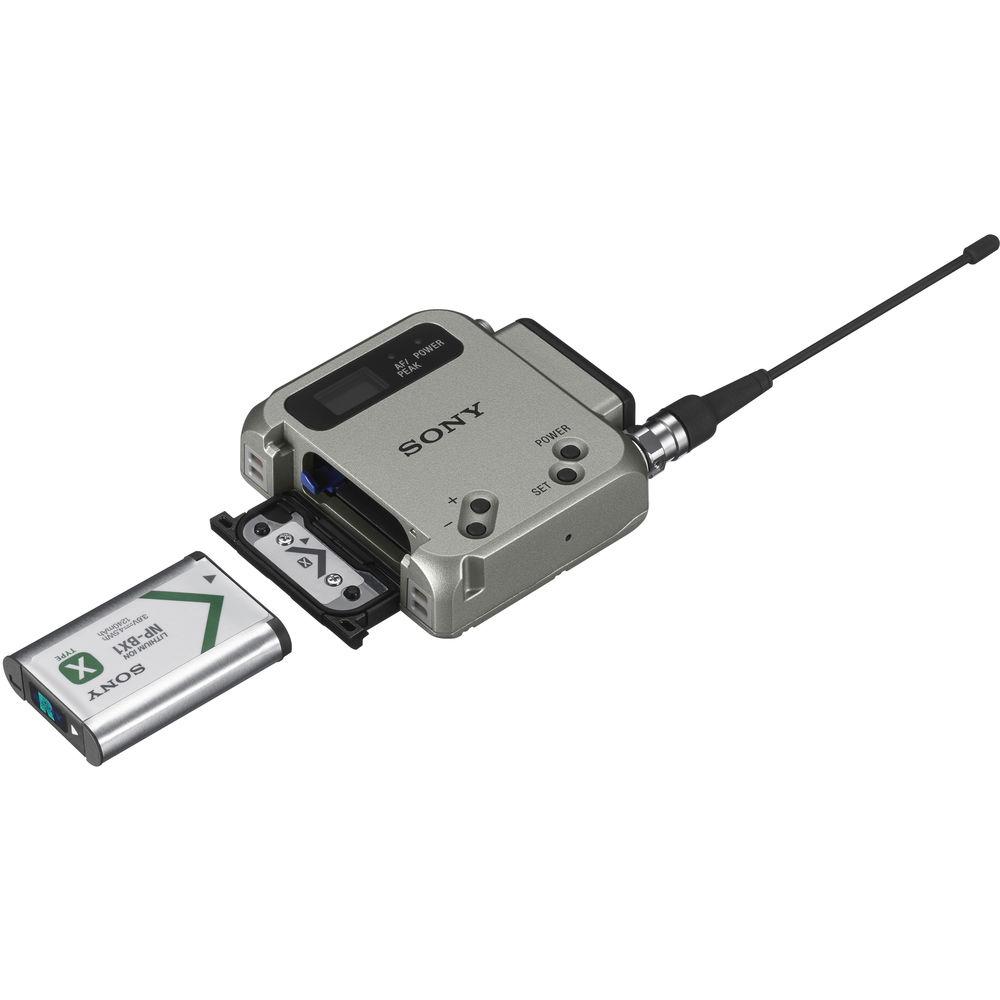

- Long battery life use with Sony's NP-BX1 lithium-ion batteries (approximately 7 hours at 10mW tx setting)
- Transmitter functions, including input attenuator, RF frequency selection, RF power output, audio LCF frequency and low power sleep mode (at the transmitter), can all be remotely controlled from the DWR-R03D, DWR-R02DN, and DWRS02DN digital wireless receivers (sold separately), or Wireless Studio Windows software
- High channel density 375 kHz operation mode available with no loss in signal quality, allowing for up to 16 simultaneous multi-channel operation per 6 MHz TV channel
- Four codec operational modes are selectable via the unit's OLED display menu
- Splash-resistant and ready for rain, perspiration, or spray (equivalent of IPX4/IPX5), ideal for TV/film production and theater applications
- Standard features include transmitter/receiver ID, setting lock, user setting memory, and phase reverse mode
- High-resolution OLED display provides local display of all menu selections
- DWT-B03R is supplied with a wire-style, detachable belt clip
In the Box Sony DWT-B03R DWX Series Digital Wireless Microphone Bodypack Transmitter Belt Clip Carrying Case NP-BX1 Lithium-Ion Battery Scribble Sheet CD-ROM Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony DWT-B03R DWX Series Digital Wireless Microphone Bodypack Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony DWT-B03R Specs | Wireless Interface | WiDIF-HP | | Oscillator Type | Crystal-controlled PLL Synthesizer | | Antenna Type | λ/4 flexible wire | | Emission | G1E or G1D | | Audio Carrier Frequencies | UC7: 470.125 to 607.875 MHz and 614.125 to 615.875 MHz, 25 kHz steps | | RF Power | 2/10/25 mW (e.r.p) selectable | | Input Connector | Small 3-pin connector with lock | | Reference Input Level | Mic: -60 dBV (-58 dBu), 1 kHz (at 0 dB attenuator level)
Line: +4 dBu, 1 kHz | | Maximum Input Level | Mic: -22 dBu (with 0 dB attenuator)
Line: +24 dBu | | Attenuator | Attenuator Adjustment Range: 0 to 48 dB (3 dB steps, Mic input mode only) | | Frequency Response | 20 Hz to 22 kHz (typical) | | Dynamic Range | 106 dB or more typical (A-weighted, T.H.D. = 1%) | | Total Harmonic Distortion (THD) | Mode 1, Mode 2: 0.03% or less
Mode 3: 0.3% or less | | Audio Delay | Mode 1: 0.8 ms (total: 2.7 ms)
Mode 2: 0.7 ms (total: 1.2 ms)
Mode 3: 1.8 ms (total 3.7 ms)
*Analog output | | Wireless Remote | Cross Remote (2.4-GHz IEEE802.15.4 compliant) | | Display | OLED | | Power Requirements | 3.6 VDC (with rechargeable battery pack NP-BX1) | | Battery Operating Time | Approximately 7 hours with Sony's NP-BX1 at 77°F / 25°C at 10 mW output (with the wireless remote control function off and dimmer mode set to auto off) | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Dimensions (W x H x D) | 2.09 x 2.36 x 0.67" / 5.30 x 6.00 x 1.70 cm
2.36 x 2.36 x 0.67" / 6.00 x 6.00 x 1.70 cm with the projection parts) (excluding the antennas) | | Weight | 3.5 oz / 99.0 g |
