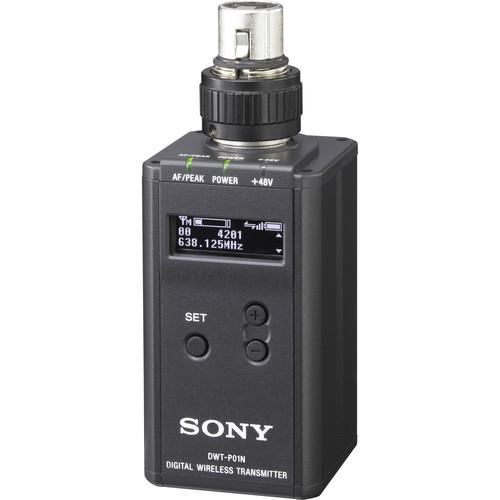

User Manual for Sony DWT-P01N 30A Digital Wireless Microphone Plug-On Transmitter Click to enlarge the picture
Contents of the user manual for the Sony DWT-P01N 30A Digital Wireless Microphone
- Product category: Wireless Transmitters Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Wireless Transmitters
 |
User manual for the Sony DWT-P01N 30A Digital Wireless Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|

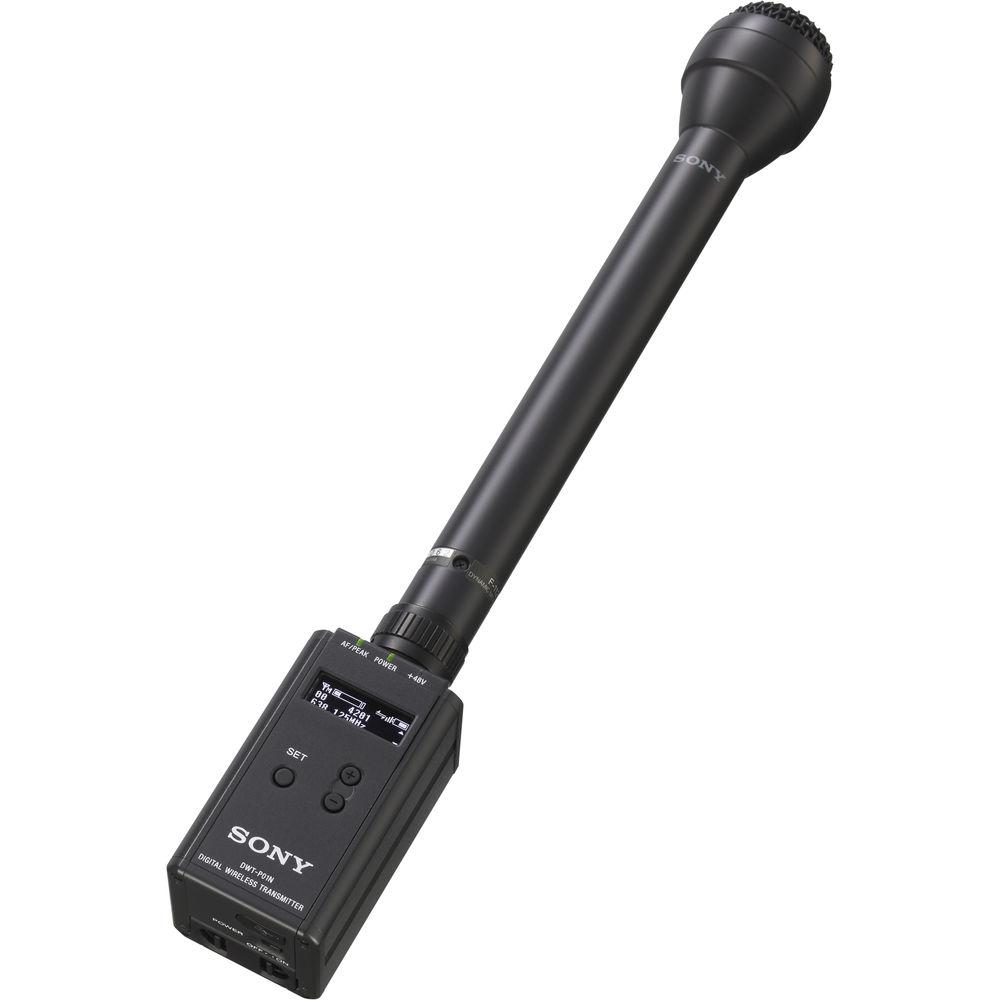

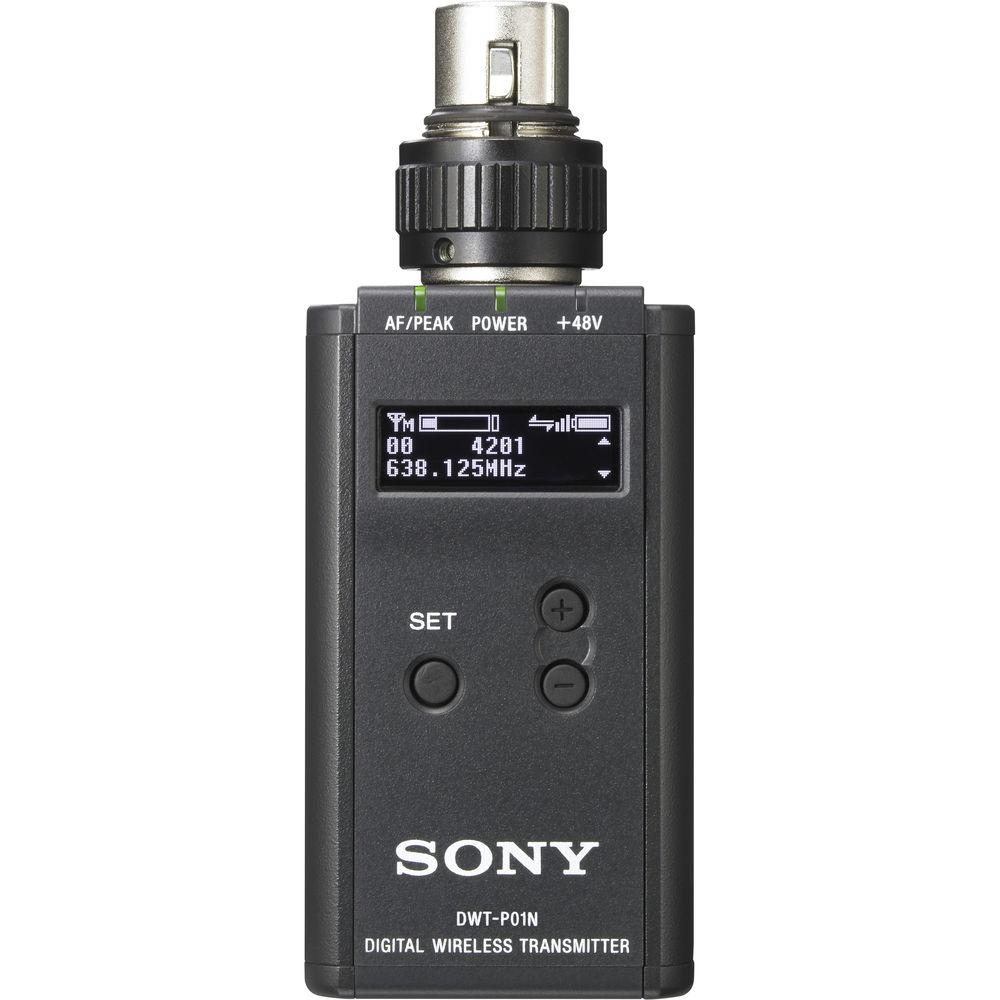

Product description The DWT-P01N/30A Digital Wireless Microphone Plug-On Transmitter from Sony adapts to XLR terminated microphones, and enables them to be used with Sony UHF wireless microphone receivers (sold separately). The transmitter features 48V phantom power for condenser microphones, and digital audio processing for lower noise and longer, efficient range.Up to three selectable output power settings are provided for maximum results and improved battery efficiency. Two AA alkaline, lithium, or NiMH batteries power the DWT-P01N for up to 5 hours at the 10mW power setting. Additional features include: an input attenuator, RF frequency selection, RF power output, Audio LCF frequency, and a remote mode (in the transmitter) that can be controlled from the DWR-S01D digital wireless receiver. - Low-noise head amplifier achieves -128 dBu noise floor.
- The DWT-P01N can accept a variety of AA type batteries, such as Alkaline, Lithium, and NiMH.
- A variety of information is obtained at a glance from the new OLED panel, such as the reception channel, audio and RF signal status, user name, user group, and lock status.
- DWT-P01N can operate over a 72 MHz frequency band.
- Selectable power output to provide the user with options for stable multi-channel or long-distance operation. (1/10/50 mW)
- A duplex wireless remote control system is supported. The DWT-P01N can be controlled via the DWR-S02DN receiver. Settings that are changed on the receiver are automatically sent and changed on the paired DWT-P01N transmitter.
UPC: 027242914605 In the Box Sony DWT-P01N/30A Digital Wireless Microphone Plug-On Transmitter (30A UC: 566.125 to 607.875 MHz) Soft Case Spare Battery Case USB Adapter Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony DWT-P01N 30A Digital Wireless Microphone Plug-On Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony DWT-P01N/30A Specs | Oscillator | Crystal Controlled PLL Synthesizer | | Audio Carrier Frequencies | 30A UC: 566.125 to 607.875 MHz | | Channel Step | 25 kHz | | RF Power Output | 1 / 10 / 50 mW (e.r.p.) Selectable | | Occupied Bandwidth | 192 kHz or Less | | Audio Delay | Approx Mode1: 1.5 ms (Total: 3.4 ms)
Mode2: 1.0 ms (Total: 1.5 ms)
Mode3: 2.1 ms (Total 4.0 ms) | | | | Maximum Input Level | Mic: -22 dBu (with) dB Attenuator
Line: +24 dBu | | Attenuator | Adjustment Range: 0 to 48 dB (3-dB Steps, Mic Input Mode Only) | | Input Connector | 3-Pin XLR Female | | Input Impedance | 4.7 kOhms or More | | | | Operating Voltage | 3.0 V, (Two LR6 AA-Size Alkaline Batteries) | | Battery Life (approx.) | 5 Hours (at 77°F / 25°C), 10 mW Output Using Sony LR6 (AA)-Size Alkaline Batteries with Codec Mode Set to Mode 1, Wireless Remote Control Function Off, Dimmer Mode Set to Auto Off, and +48 V Set to Off | | Dimensions (W x H x D) | 1.7 x 3.1 x 1.7" / 4.4 x 7.8 x 4.4 cm | | Weight | 9.0 oz / 255.1 g | | | | Package Weight | 1.14 lb | | Box Dimensions (LxWxH) | 8.8 x 6.6 x 3.9" |
