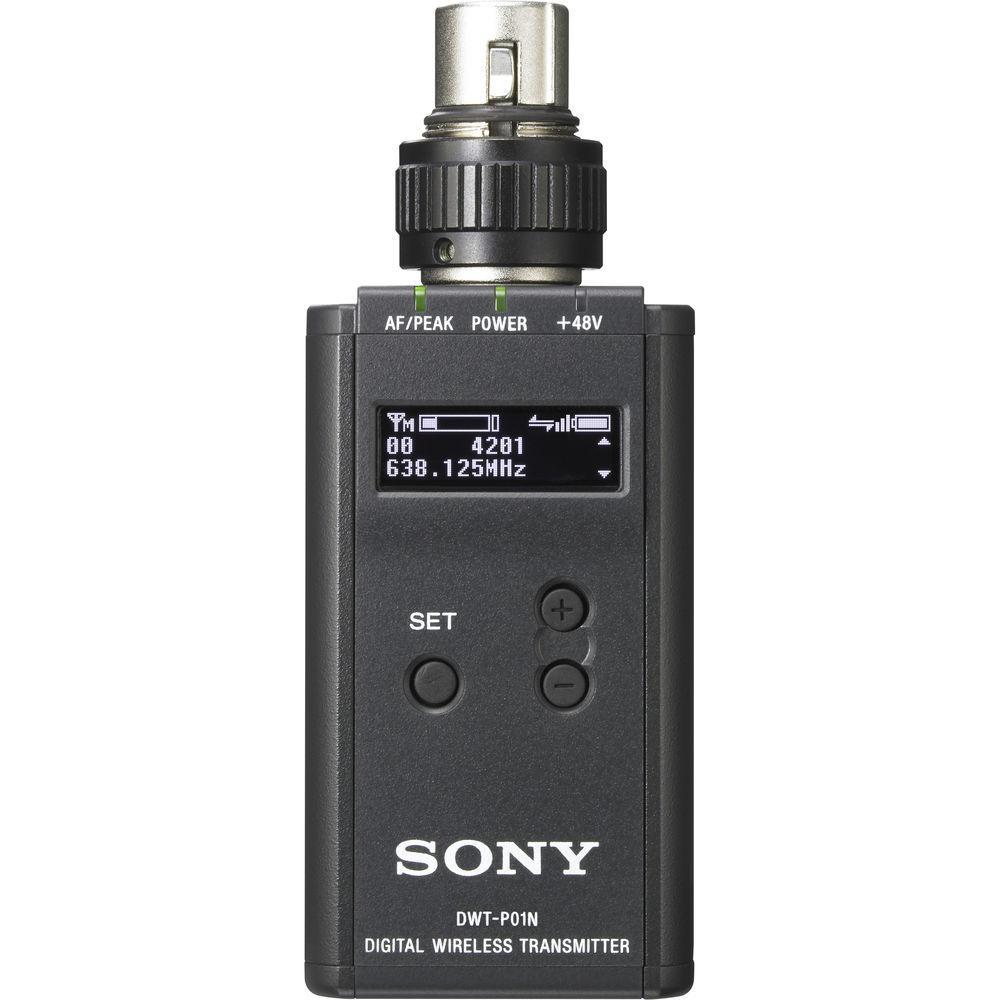

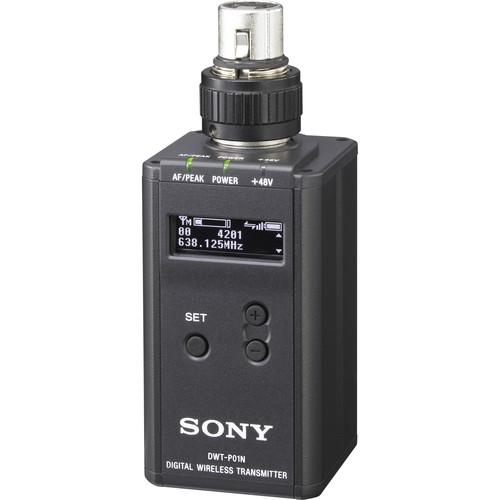

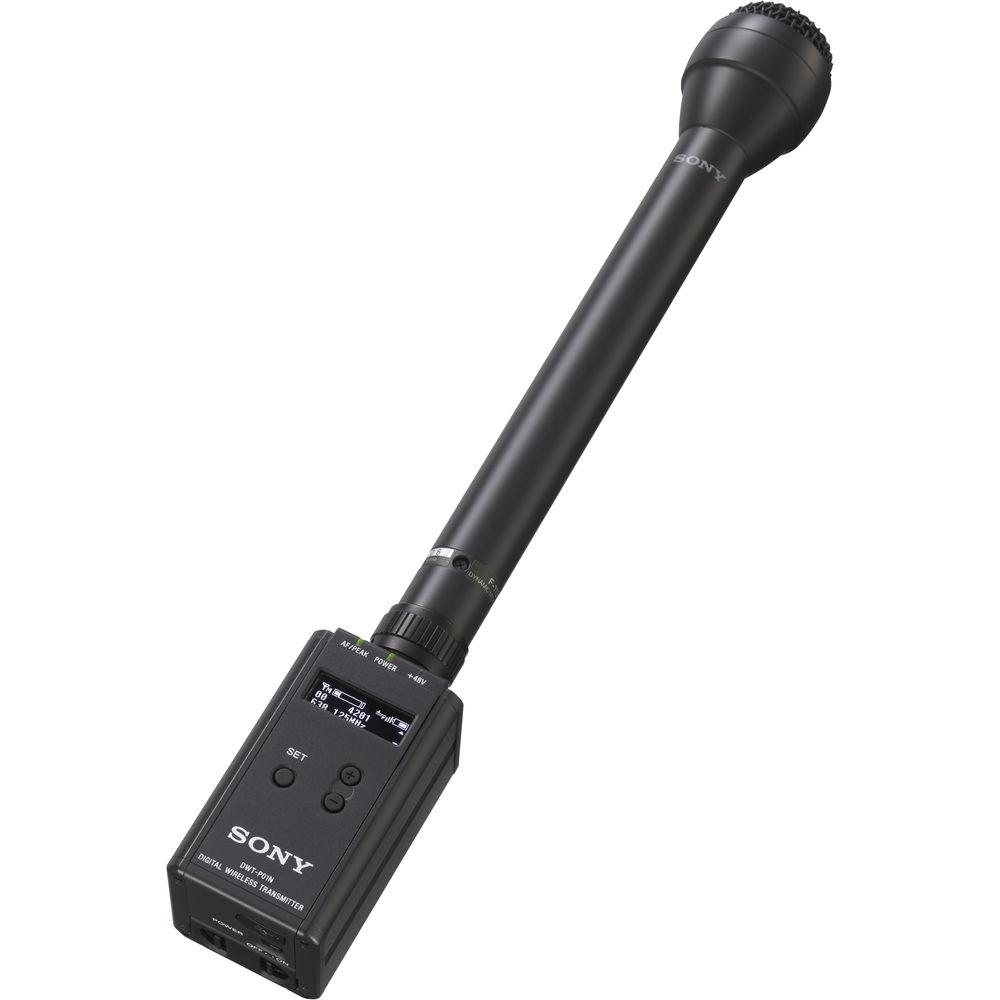

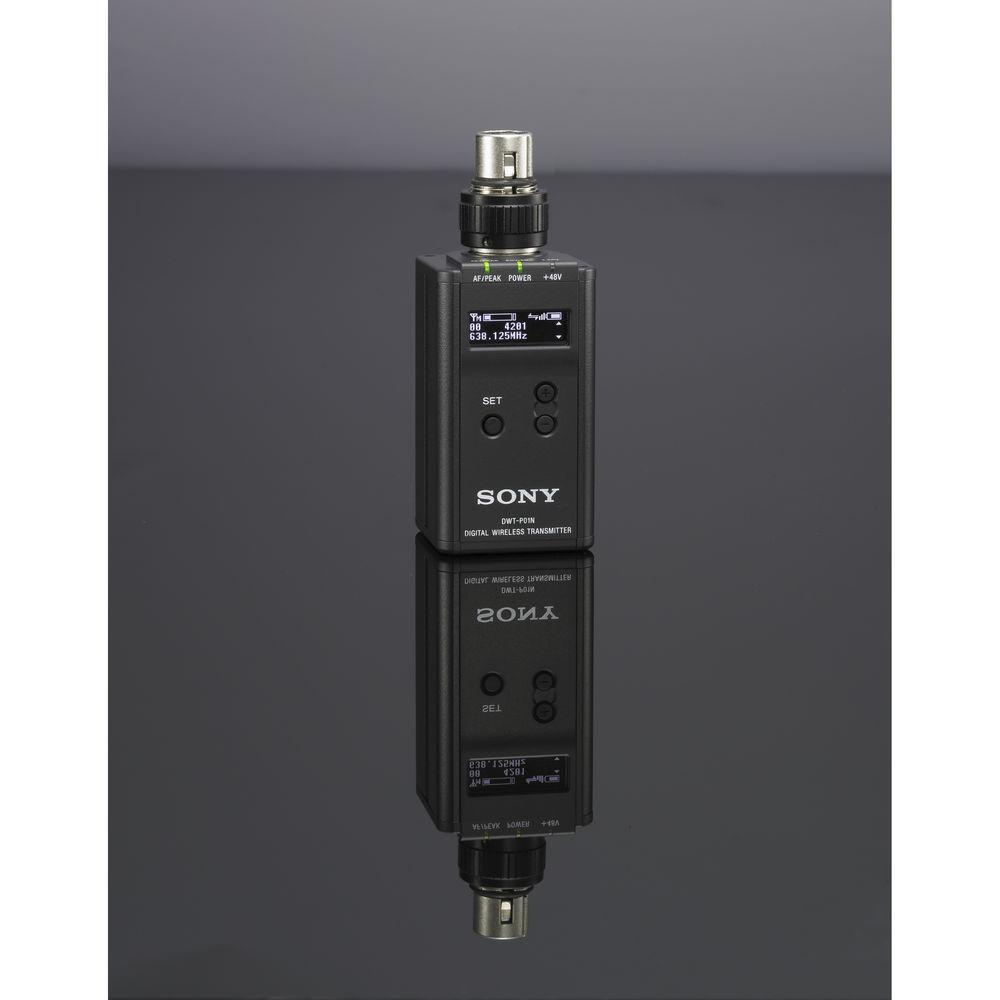

Product description The DWTP01N/14 Digital Wireless Microphone Plug-On Transmitter from Sony adapts to XLR terminated microphones, and enables them to be used with Sony UHF wireless microphone receivers (sold separately). The transmitter features 48V phantom power for condenser microphones, and digital audio processing for lower noise and longer, efficient range.Up to three selectable output power settings are provided for maximum results and improved battery efficiency. Two AA alkaline, lithium, or NiMH batteries power the DWT-P01N for up to 5 hours at the 10mW power setting. Additional features include: an input attenuator, RF frequency selection, RF power output, Audio LCF frequency, and a remote mode (in the transmitter) that can be controlled from the DWR-S01D digital wireless receiver. - Low-noise head amplifier achieves -128 dBu noise floor.
- The DWT-P01N can accept a variety of AA type batteries, such as Alkaline, Lithium, and NiMH.
- A variety of information is obtained at a glance from the new OLED panel, such as the reception channel, audio and RF signal status, user name, user group, and lock status.
- DWT-P01N can operate over a 72 MHz frequency band.
- Selectable power output to provide the user with options for stable multi-channel or long-distance operation. (1/10/50 mW)
- A duplex wireless remote control system is supported. The DWT-P01N can be controlled via the DWR-S02DN receiver. Settings that are changed on the receiver are automatically sent and changed on the paired DWT-P01N transmitter.
UPC: 027242900202 In the Box Sony DWTP01N/14 Digital Wireless Microphone Plug-On Transmitter (14 UC: 470.125 to 541.875 MHz) Soft Case Spare Battery Case USB Adapter Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony DWTP01N 14 Digital Wireless Microphone Plug-On Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony DWTP01N/14 Specs | Oscillator | Crystal Controlled PLL Synthesizer | | Audio Carrier Frequencies | 14 UC: 470.125 to 541.875 MHz | | Channel Step | 25 kHz | | RF Power Output | 1 / 10 / 50 mW (e.r.p.) Selectable | | Occupied Bandwidth | 192 kHz or Less | | Audio Delay | Approx Mode1: 1.5 ms (Total: 3.4 ms)
Mode2: 1.0 ms (Total: 1.5 ms)
Mode3: 2.1 ms (Total 4.0 ms) | | | | Maximum Input Level | Mic: -22 dBu (with) dB Attenuator
Line: +24 dBu | | Attenuator | Adjustment Range: 0 to 48 dB (3-dB Steps, Mic Input Mode Only) | | Input Connector | 3-Pin XLR Female | | Input Impedance | 4.7 kOhms or More | | | | Operating Voltage | 3.0 V, (Two LR6 AA-Size Alkaline Batteries) | | Battery Life (approx.) | 5 Hours (at 77°F / 25°C), 10 mW Output Using Sony LR6 (AA)-Size Alkaline Batteries with Codec Mode Set to Mode 1, Wireless Remote Control Function Off, Dimmer Mode Set to Auto Off, and +48 V Set to Off | | Dimensions (W x H x D) | 1.7 x 3.1 x 1.7" / 4.4 x 7.8 x 4.4 cm | | Weight | 9.0 oz / 255.1 g | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 8.9 x 6.6 x 4.0" |
