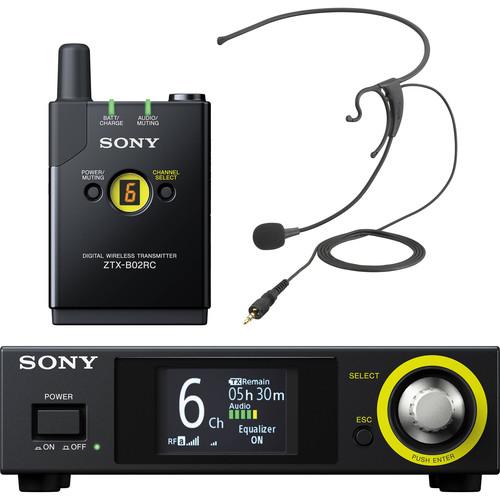

User Manual for Sony DWZ Digital Wireless Headset Microphone System and Kit Click to enlarge the picture
Contents of the user manual for the Sony DWZ Digital Wireless Headset Microphone
- Product category: Wireless Systems Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Wireless Systems
|
User manual for the Sony DWZ Digital Wireless Headset Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The Sony DWZ Digital Wireless Headset Microphone System and Kit from includes a Sony ECM-HZ1UBMP electret condenser uni-directional headset microphone, a headband, a cord clip, a windscreen, a Sony ZRX-HR50 digital wireless half-rack receiver, and a Sony ZTX-B02RC digital wireless bodypack transmitter for used in capturing audio for vocal or speech applications. The uni-directional headset microphone is designed for use with Sony's DWZ series wireless systems. It features a frequency response of 60 Hz to 18 kHz and has a dynamic range of 92 dB or more. It delivers a clear and natural sound and is suitable for lectures, conferences, meetings, or anywhere a presenter needs a hands-free microphone close to their mouth. Furthermore, the Sony wireless bodypack transmitter is capable of transmitting 24-bit linear PCM digital data with 128-bit encryption. Featuring wide-band hopping and narrow-band hopping, the transmitter allows you to choose the mode that will deliver the least amount of interference in any environment. Finally, the Sony half-rack receiver features a balanced XLR output that you can assign to mic or line level. Sony's clear channel scan and best-channel selection will scan available frequencies and tune itself to the clearest channel for quick setup. It has a front-panel color LCD that provides a readout of your selected channels, audio levels, and transmitter battery life. - Sony ECM-HZ1UBMP Electret Condenser Uni-Directional Headset Microphone The Sony ECM-HZ1UBMP Electret Condenser Uni-Directional Headset Microphone is designed for use with DWZ series wireless systems. This headset microphone comes supplied with the DWZ-B70HL Headset and Lavalier Set.
- Suitable for use with DWZ series wireless microphone systems
UPC: 027242860452 - Sony ZRX-HR50 Digital Wireless Half-Rack Receiver The ZRX-HR50 Digital Wireless Half-Rack Receiver from Sony is designed to be used in DWZ digital wireless systems. It features Sony's Clear Channel Scan and Best Channel Selection that scan available frequencies and tunes itself to clearest channel for quick setup. It has two RF modes to select from, wide band hopping and narrow band hopping, allowing you to choose the mode that will provide the least amount of interference based upon the RF environment you are in. The ZRX-HR50 has a front-panel color LCD that provides a readout of your selected channel, audio level, and transmitter battery life. The rotary encoder allows you to make adjustments to the system, including the 5-band equalizer.
The unit has a balanced XLR output that you can assign to mic or line level in additional to an unbalanced 1/4" out. A second 1/4" tuner output allows you to integrate the ZRX-HR50 into a wireless instrument system. UPC: 027242866348 - Sony ZTX-B02RC Digital Wireless Bodypack Transmitter The ZTX-B02RC Digital Wireless Bodypack Transmitter from Sony is a bodypack transmitter designed to work with the DWZ wireless systems. It is capable of transmitting 24-bit linear PCM digital data with 128-bit encryption for secure use. It has two RF transmission modes to select from, wide band hopping and narrow band hopping, allowing you to choose the mode that will provide the least amount of interference based upon the RF environment you are in.
In the Box - ECM-HZ1UBMP Electret Condenser Uni-Directional Headset Microphone sssbyzxbwqubuabqdazytfvaxqwbuat
- Headband
- Cord Clip
- Windscreen
- Limited 90-Day Warranty on Labor
- Limited 1-Year Warranty on Parts
- ZRX-HR50 Digital Wireless Half-Rack Receiver
- ZTX-B02RC Digital Wireless Bodypack Transmitter
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony DWZ Digital Wireless Headset Microphone System and Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Sony ECM-HZ1UBMP Electret Condenser Uni-Directional Headset Microphone
| Type | Capsule: Electret condenser | | Frequency Response | 60 Hz to 18 kHz | | Directivity | Uni-directional | | Sensitivity | -36 dB +/-3.0 dB (1 kHz/Pa) | | Dynamic Range | 92 dB or more | | S/N Ratio | 66 dB or more | | Inherent Noise (0dB=20µPa) | 28 dB SPL or less | | Maximum SPL | 0 dB=20 µP
120 dB SPL | | Connector | BMP type (Supplied with a 3.5 mm diameter, 3-pole mini plug) | | Cable Length | 3.90' (1.18 m) | | Power Requirements | 5 VDC | | Dimensions (Diam. x L) | 0.59 x 6.75" (14.98 x 171.45 mm) | | Weight | 0.35 oz (9.92 g), without connector | | | | Box Dimensions (LxWxH) | 7.3 x 4.7 x 1.3" | - Sony ZRX-HR50 Digital Wireless Half-Rack Receiver
| Type | Single channel, 1/2 rackmount receiver | | Reception Type | Space diversity | | Antenna Type | External whip antenna | | Receiving Frequency | 2402.0 to 2478.5 MHz | | RF Sensitivity | 24 dBiV or less | | Analog Output | 1x Balanced XLR-3
2x 1/4" (6.3 mm) Unbalanced phone jack | | Display | Color LCD | | USB Port | 1x USB, for firmware updates | | Power Requirements | 12 V DC | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140° (-20 to 60°C) | | Dimensions (W x H x D) | 6.6 x 1.7 x 3.7" (168 x 44 x 96 mm) | | Weight | 1.12 lb (510 g) | | | | Box Dimensions (LxWxH) | 11.6 x 5.7 x 3.8" | - Sony ZTX-B02RC Digital Wireless Bodypack Transmitter
| Transmitter Type | Bodypack | | Carrier Frequency Range | 2402.0 to 2478.5 MHz | | RF Power Output | 10 mW (e.i.r.p) | | Frequency Response | Transmission: 10 kHz to 22 kHz | | Dynamic Range | Mic input: 102 dB A-weighted
Instrument/Line input: 98 dB A-weighted | | Audio Delay | Narrow Band: 3 ms, approximate
Wide Band: 6 ms, approximate | | Distortion (THD) | 0.03% or less (-38 dBu, 1 kHz input) | | Encryption | AES 128-bit | | USB | 1x USB for firmware update | | Power Requirements | 3 V DC (2x AA alkaline dry cell batteries) | | Battery Operating Time | 10 hours continuous use, approximate @ 77°F (25°C) ambient temperature | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Dimensions (W x H x D) | 2.4 x 3.4 x 0.7" (63 x 87 x 20 mm) | | Weight | 5.7 oz (162 g) | | | | Box Dimensions (LxWxH) | 9.8 x 5.8 x 3.6" |
