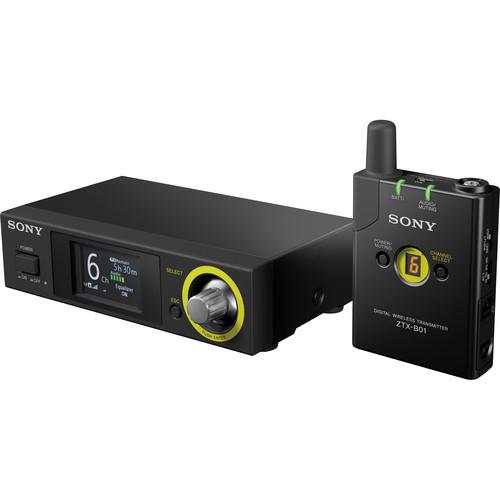

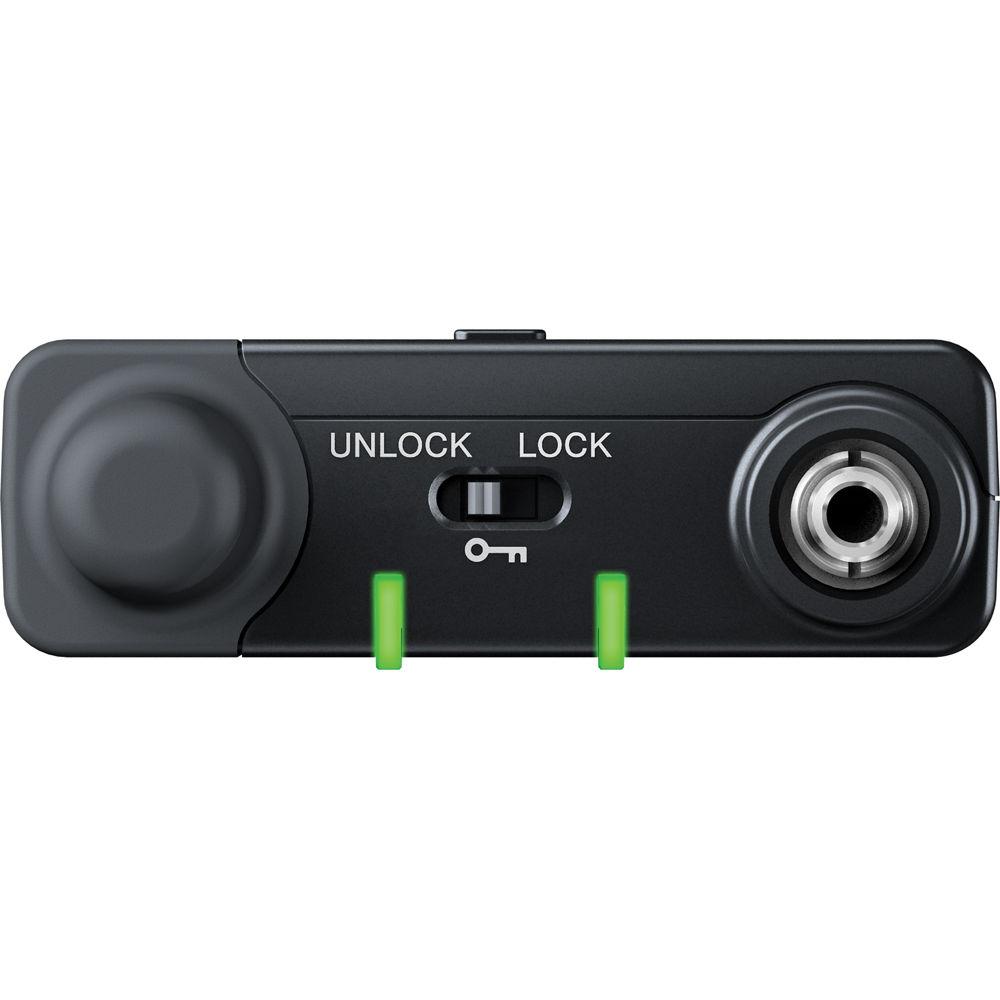

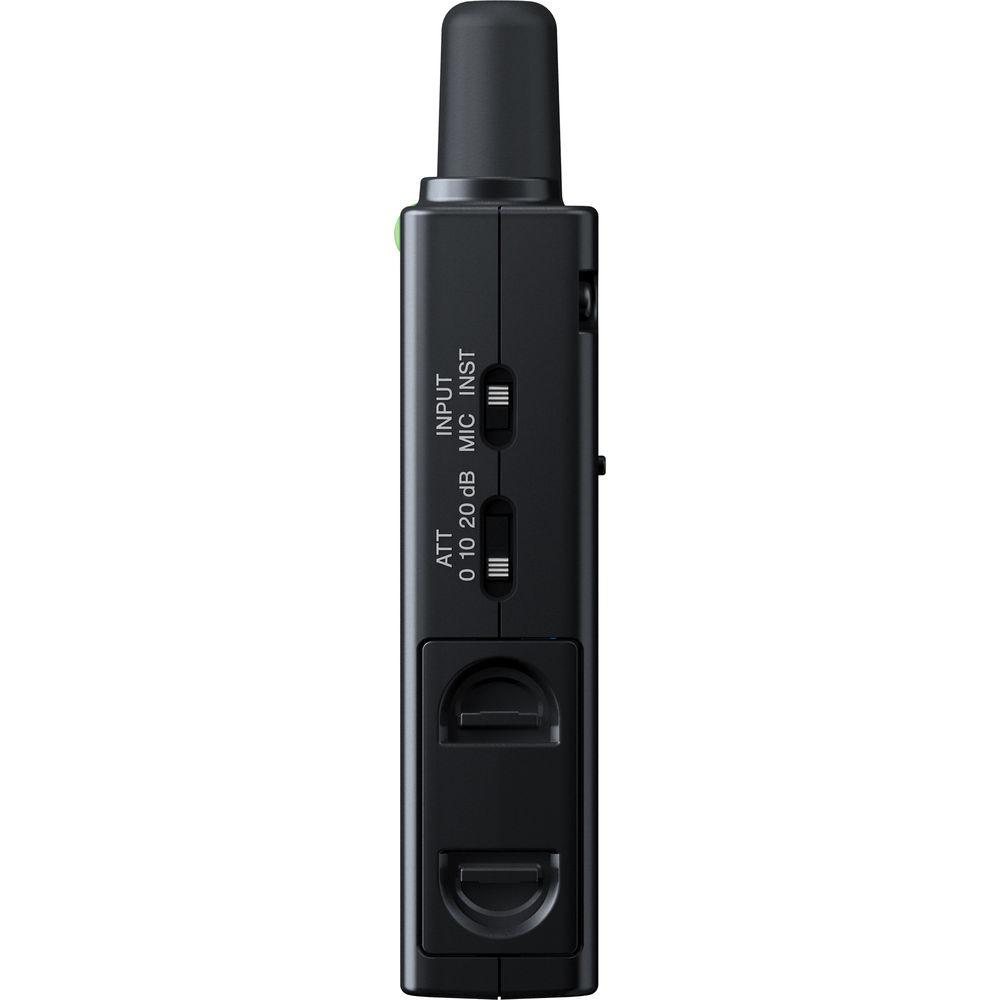

Product description The DWZ Series Digital Wireless Guitar System from Sony is designed to provide wireless functionality for guitar or bass. It includes a ZTX-B01 bodypack transmitter, a ZRX-HR50 half-rack receiver, and a guitar adapter cable to connect your instrument to the transmitter. The ZRX-HR50 features guitar cable tone emulation, to provide the subtle sound your cable has on your guitar tone. - ZTX-B01 Digital Wireless Bodypack Transmitter The ZTX-B01 Digital Wireless Bodypack Transmitter from Sony is designed for use with DWZ series digital wireless systems and accepts either a microphone or instrument input. It transmits in 24-bit linear PCM and has selectable wide band and narrow band hopping modes, allowing you to avoid specific wireless interference that is prevalent in your location.
The ZTX-B01 has a metal body that is designed for rugged use. Its antenna is built-in, providing additional protection from the rigors of on-stage use. - ZRX-HR50 Digital Wireless Half-Rack Receiver The ZRX-HR50 Digital Wireless Half-Rack Receiver from Sony is designed to be used in DWZ digital wireless systems. It features Sony's Clear Channel Scan and Best Channel Selection that scan available frequencies and tunes itself to clearest channel for quick setup. It has two RF modes to select from, wide band hopping and narrow band hopping, allowing you to choose the mode that will provide the least amount of interference based upon the RF environment you are in. The ZRX-HR50 has a front-panel color LCD that provides a readout of your selected channel, audio level, and transmitter battery life. The rotary encoder allows you to make adjustments to the system, including the 5-band equalizer.

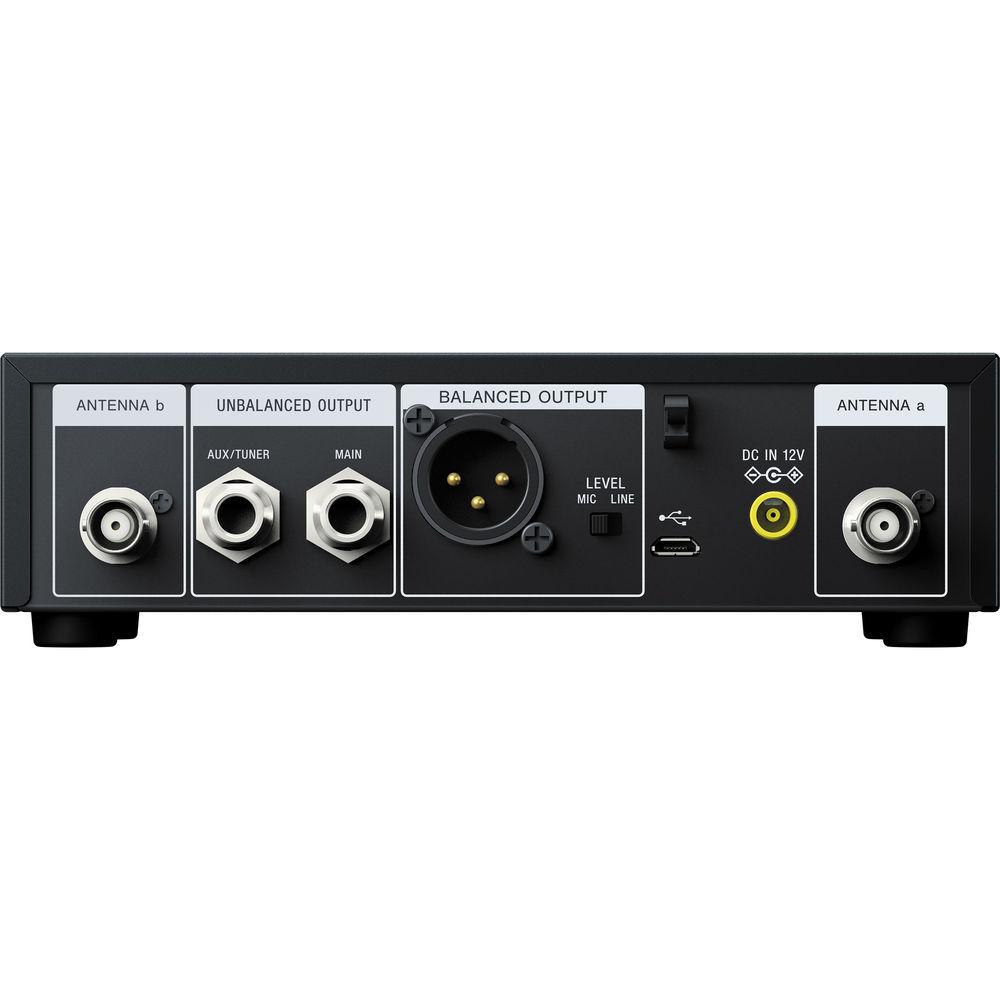

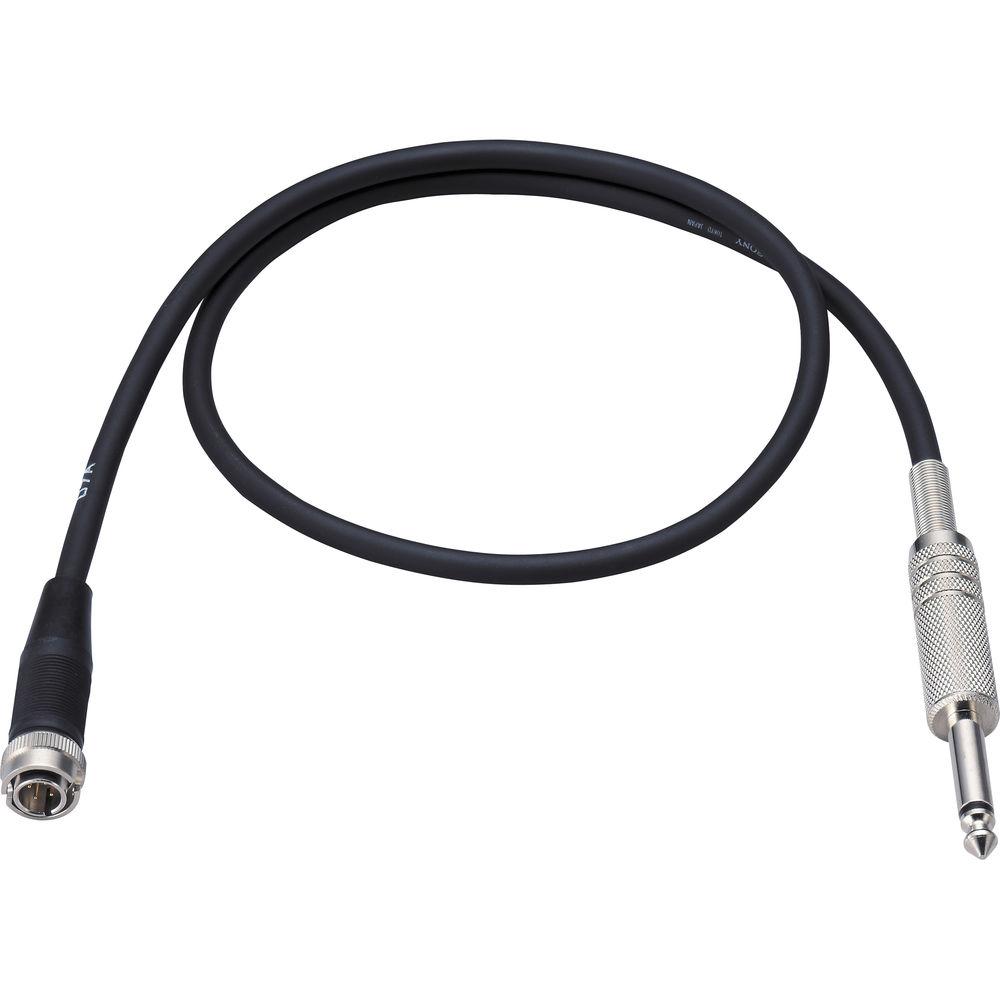

The unit has a balanced XLR output that you can assign to mic or line level in additional to an unbalanced 1/4" out. A second 1/4" tuner output allows you to integrate the ZRX-HR50 into a wireless instrument system. UPC: 027242866348 - GC-07BMP Guitar Cable for DWZ Series Wireless Systems The GC-07BMP Guitar Cable for DWZ Series Wireless Systems from Sony features a 1/4" male TS connector and a 1/8" male locking mini connector for connecting your guitar or bass to a DWZ Series ZTX-B01 wireless bodypack transmitter. It has a length of 28 inches. UPC: 027242860469
In the Box Bundle Items ZTX-B01 Digital Wireless Bodypack Transmitter tvrcbcfqyeedzs ZRX-HR50 Digital Wireless Half-Rack Receiver GC-07BMP Guitar Cable for DWZ Series Wireless Systems tvrcbcfqyeedzs
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony DWZ Series Digital Wireless Guitar System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - ZTX-B01 Digital Wireless Bodypack Transmitter
| Type | Bodypack | | Carrier Frequency Range | 2402.0 to 2478.5 MHz | | RF Power Output | 10 mW (e.i.r.p) | | Maximum Input Level | Mic: -22 dBu
Instrument: 8 dBu (when attenuator level is 0 dB) | | Attenuation | 0, 10, 20 dB (selectable) | | Frequency Response | 10 Hz to 22 kHz | | Dynamic Range | Mic: 102 dB, A-weighted
Instrument: 98 dB, A-weighted | | Audio Delay | Narrow Band: 3 ms, approximate
Wide Band: 6 ms, approximate | | Distortion (THD) | 0.03 % or less (-38 dBu, 1 kHz input) | | USB Port | 1x USB, for firmware updates | | Power Requirements | 1x 9 V square 6LR61 battery | | Battery Operating Time | 10 hours continuous use, approximate @ 77°F (25°C) ambient temperature | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Dimensions (W x H x D) | 2.5 x 3.1 x 0.7" (63 x 80 x 20 mm), excluding the antenna | | Weight | 5.5 oz (165 g), approximate, including batteries | | | | Box Dimensions (LxWxH) | 9.6 x 5.8 x 3.7" | - ZRX-HR50 Digital Wireless Half-Rack Receiver
| Type | Single channel, 1/2 rackmount receiver | | Reception Type | Space diversity | | Antenna Type | External whip antenna | | Receiving Frequency | 2402.0 to 2478.5 MHz | | RF Sensitivity | 24 dBiV or less | | Analog Output | 1x Balanced XLR-3
2x 1/4" (6.3 mm) Unbalanced phone jack | | Display | Color LCD | | USB Port | 1x USB, for firmware updates | | Power Requirements | 12 V DC | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140° (-20 to 60°C) | | Dimensions (W x H x D) | 6.6 x 1.7 x 3.7" (168 x 44 x 96 mm) | | Weight | 1.12 lb (510 g) | | | | Box Dimensions (LxWxH) | 11.6 x 5.7 x 3.8" | - GC-07BMP Guitar Cable for DWZ Series Wireless Systems
| Connector 1 | 1/4" (6.3 mm) Male TS | | Connector 2 | 1/8" (3.5 mm) Male Locking Mini | | Cable Length | 28" (711 mm) | | | | Box Dimensions (LxWxH) | 6.6 x 6.6 x 1.5" |
