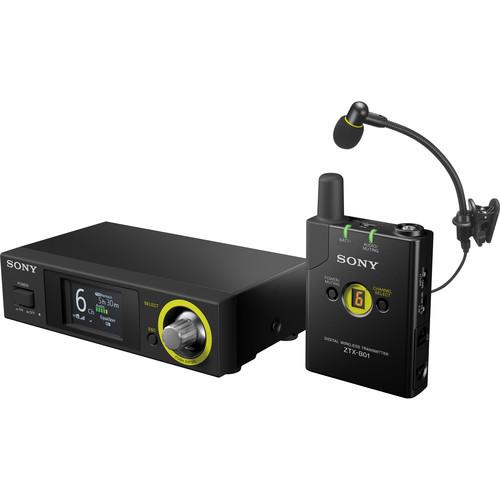

Product description The DWZ Series Digital Wireless Instrument System from Sony is designed to provide a wireless miking option for saxophone, trumpet, and other wind instruments. It includes a ZTX-B01 bodypack transmitter, a ZRX-HR50 half-rack size receiver, and an ECM-GZ1UBMP unidirectional electret condenser instrument microphone. - ZTX-B01 Digital Wireless Bodypack Transmitter The ZTX-B01 Digital Wireless Bodypack Transmitter from Sony is designed for use with DWZ series digital wireless systems and accepts either a microphone or instrument input. It transmits in 24-bit linear PCM and has selectable wide band and narrow band hopping modes, allowing you to avoid specific wireless interference that is prevalent in your location.
The ZTX-B01 has a metal body that is designed for rugged use. Its antenna is built-in, providing additional protection from the rigors of on-stage use. - ZRX-HR50 Digital Wireless Half-Rack Receiver The ZRX-HR50 Digital Wireless Half-Rack Receiver from Sony is designed to be used in DWZ digital wireless systems. It features Sony's Clear Channel Scan and Best Channel Selection that scan available frequencies and tunes itself to clearest channel for quick setup. It has two RF modes to select from, wide band hopping and narrow band hopping, allowing you to choose the mode that will provide the least amount of interference based upon the RF environment you are in. The ZRX-HR50 has a front-panel color LCD that provides a readout of your selected channel, audio level, and transmitter battery life. The rotary encoder allows you to make adjustments to the system, including the 5-band equalizer.

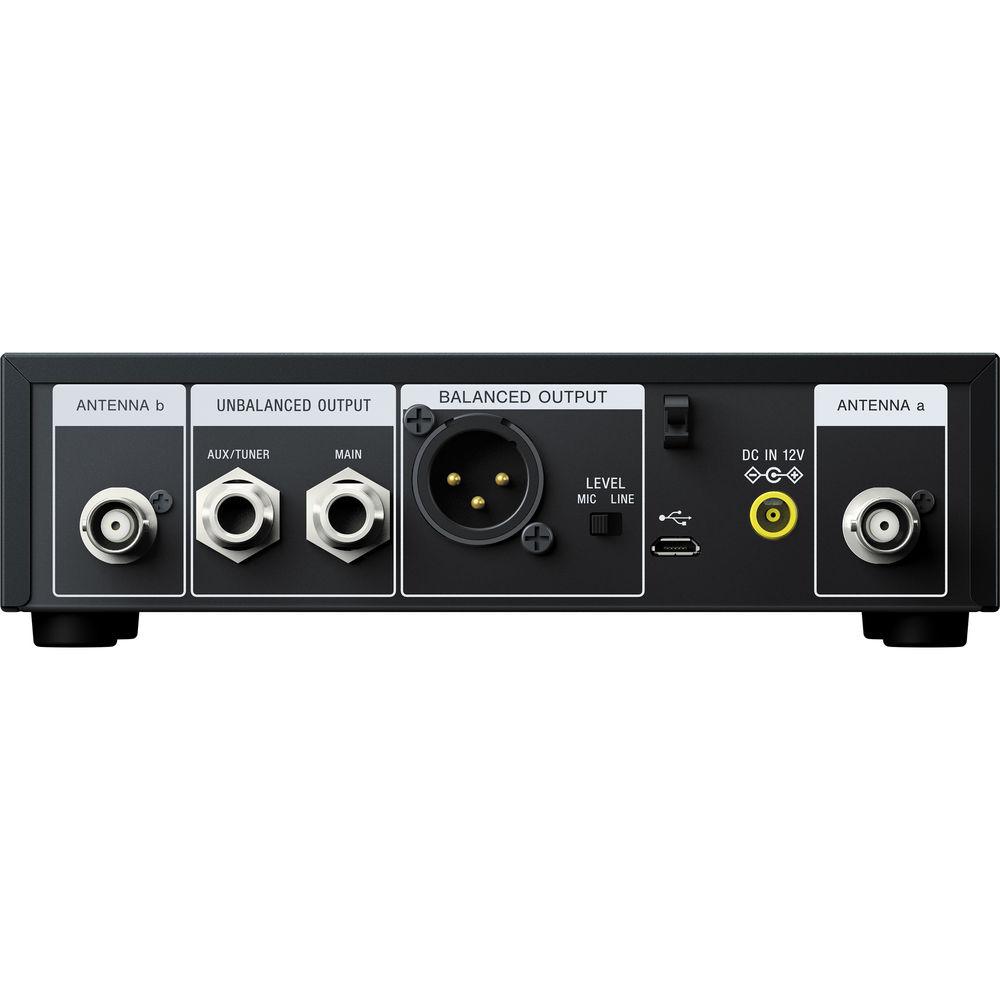

The unit has a balanced XLR output that you can assign to mic or line level in additional to an unbalanced 1/4" out. A second 1/4" tuner output allows you to integrate the ZRX-HR50 into a wireless instrument system. UPC: 027242866348 - ECMGZ1UBMP Electret Condenser Instrument Microphone for DWZ Wireless Systems The ECMGZ1UBMP Electret Condenser Instrument Microphone for DWZ Wireless Systems from Sony is designed to be used with Sony's DMZ wireless systems. It can be used on trumpets, saxophones, and most wind instruments. The microphone is mounted on a gooseneck and features a 2-way clip, allowing for versatility in placement.
The ECMGZ1UBMP has a 5.9-foot cable that terminates in a BMP type 3.5mm 3-pole mini plug. A windscreen and carrying pouch are included. In the Box Bundle Items ZTX-B01 Digital Wireless Bodypack Transmitter ZRX-HR50 Digital Wireless Half-Rack Receiver ECMGZ1UBMP Electret Condenser Instrument Microphone for DWZ Wireless Systems
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony DWZ Series Digital Wireless Instrument System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - ZTX-B01 Digital Wireless Bodypack Transmitter
| Type | Bodypack | | Carrier Frequency Range | 2402.0 to 2478.5 MHz | | RF Power Output | 10 mW (e.i.r.p) | | Maximum Input Level | Mic: -22 dBu
Instrument: 8 dBu (when attenuator level is 0 dB) | | Attenuation | 0, 10, 20 dB (selectable) | | Frequency Response | 10 Hz to 22 kHz | | Dynamic Range | Mic: 102 dB, A-weighted
Instrument: 98 dB, A-weighted | | Audio Delay | Narrow Band: 3 ms, approximate
Wide Band: 6 ms, approximate | | Distortion (THD) | 0.03 % or less (-38 dBu, 1 kHz input) | | USB Port | 1x USB, for firmware updates | | Power Requirements | 1x 9 V square 6LR61 battery | | Battery Operating Time | 10 hours continuous use, approximate @ 77°F (25°C) ambient temperature | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Dimensions (W x H x D) | 2.5 x 3.1 x 0.7" (63 x 80 x 20 mm), excluding the antenna | | Weight | 5.5 oz (165 g), approximate, including batteries | | | | Box Dimensions (LxWxH) | 9.6 x 5.8 x 3.7" | - ZRX-HR50 Digital Wireless Half-Rack Receiver
| Type | Single channel, 1/2 rackmount receiver | | Reception Type | Space diversity | | Antenna Type | External whip antenna | | Receiving Frequency | 2402.0 to 2478.5 MHz | | RF Sensitivity | 24 dBiV or less | | Analog Output | 1x Balanced XLR-3
2x 1/4" (6.3 mm) Unbalanced phone jack | | Display | Color LCD | | USB Port | 1x USB, for firmware updates | | Power Requirements | 12 V DC | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140° (-20 to 60°C) | | Dimensions (W x H x D) | 6.6 x 1.7 x 3.7" (168 x 44 x 96 mm) | | Weight | 1.12 lb (510 g) | | | | Box Dimensions (LxWxH) | 11.6 x 5.7 x 3.8" | - ECMGZ1UBMP Electret Condenser Instrument Microphone for DWZ Wireless Systems
| | | Transducer | Electret Condenser | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 22 kHz | | Signal to Noise Ratio | 64 dB | | Equivalent Noise Level | 30 dB | | Maximum SPL | 150 dB SPL | | Sensitivity | -55 dB at 1 kHz
-58 dB at 1 kHz
-52 dB at 1 kHz | | Dynamic Range | 120 dB | | | | Output Connectors | 1 x 1/8" (3.5 mm) Locking TRS | | Operating Voltage | 3 to 10 V | | Length | 1.19" / 30.23 mm | | Diameter | 0.53" / 13.46 mm | | Weight | 0.9 oz / 26 g | | | | Box Dimensions (LxWxH) | 7.5 x 4.8 x 1.4" |
