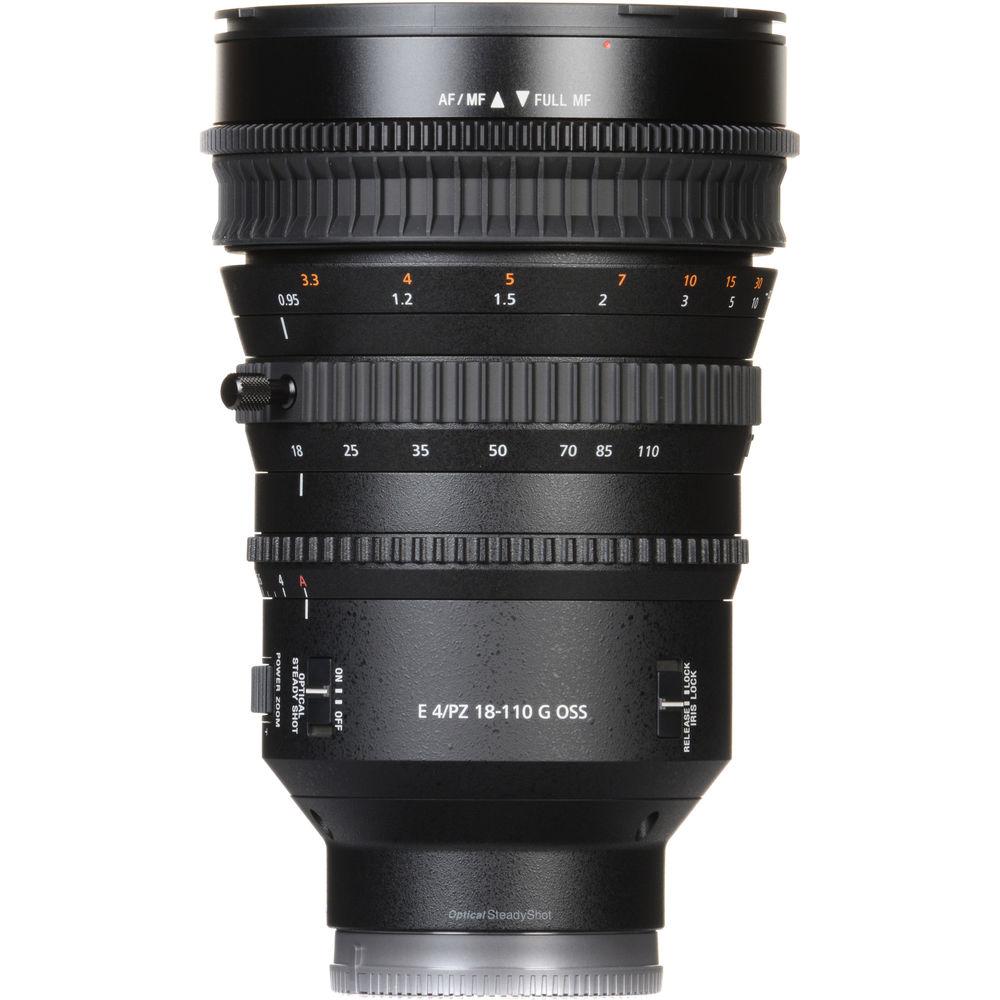

User Manual for Sony E PZ 18-110mm f 4 G OSS Lens Click to enlarge the picture
Contents of the user manual for the Sony E PZ 18-110mm f 4
- Product category: Digital Cine Lenses Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Digital Cine Lenses
 |
User manual for the Sony E PZ 18-110mm f 4 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|

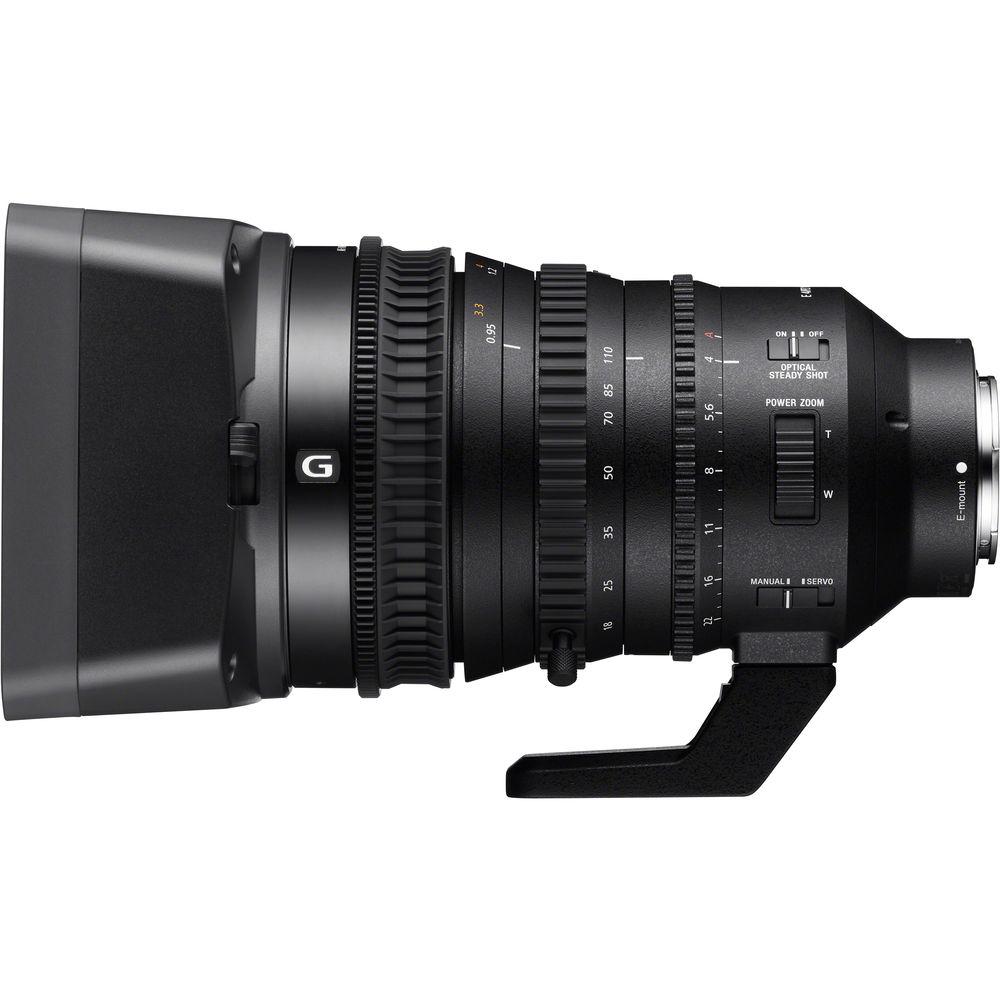

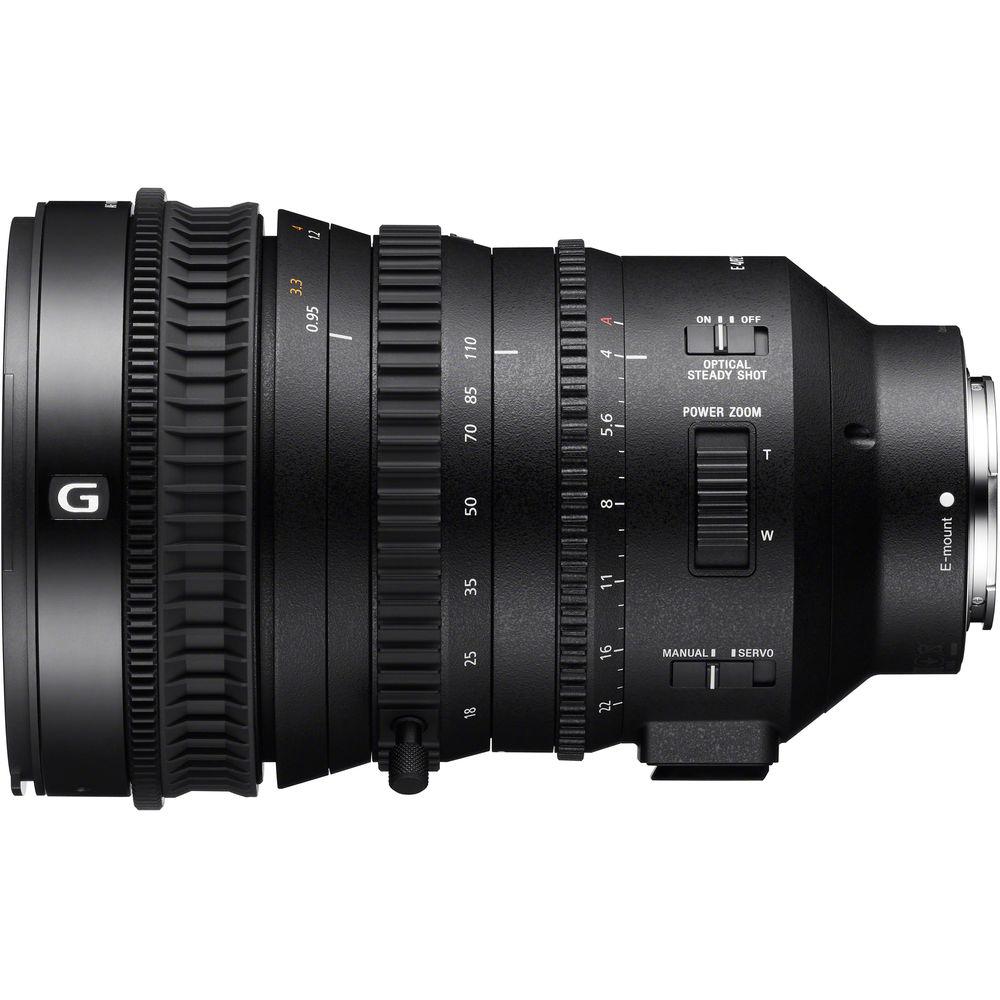

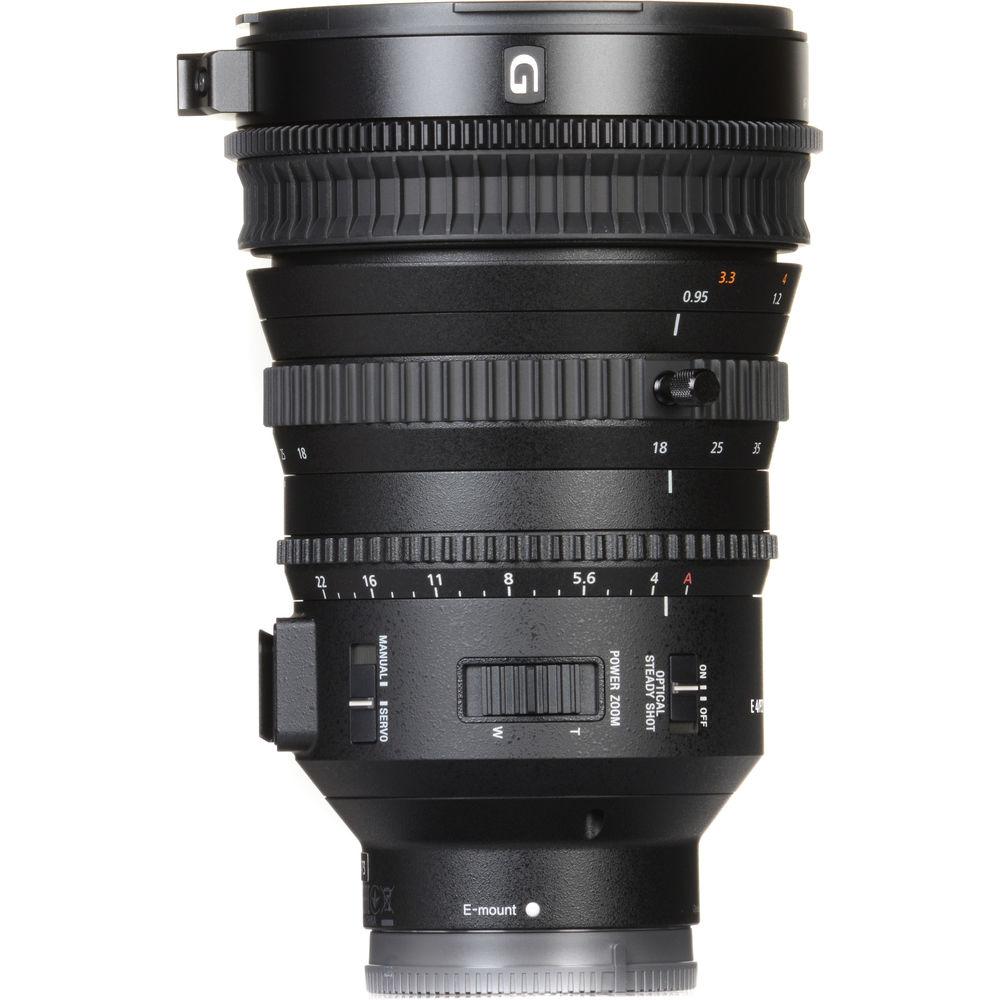

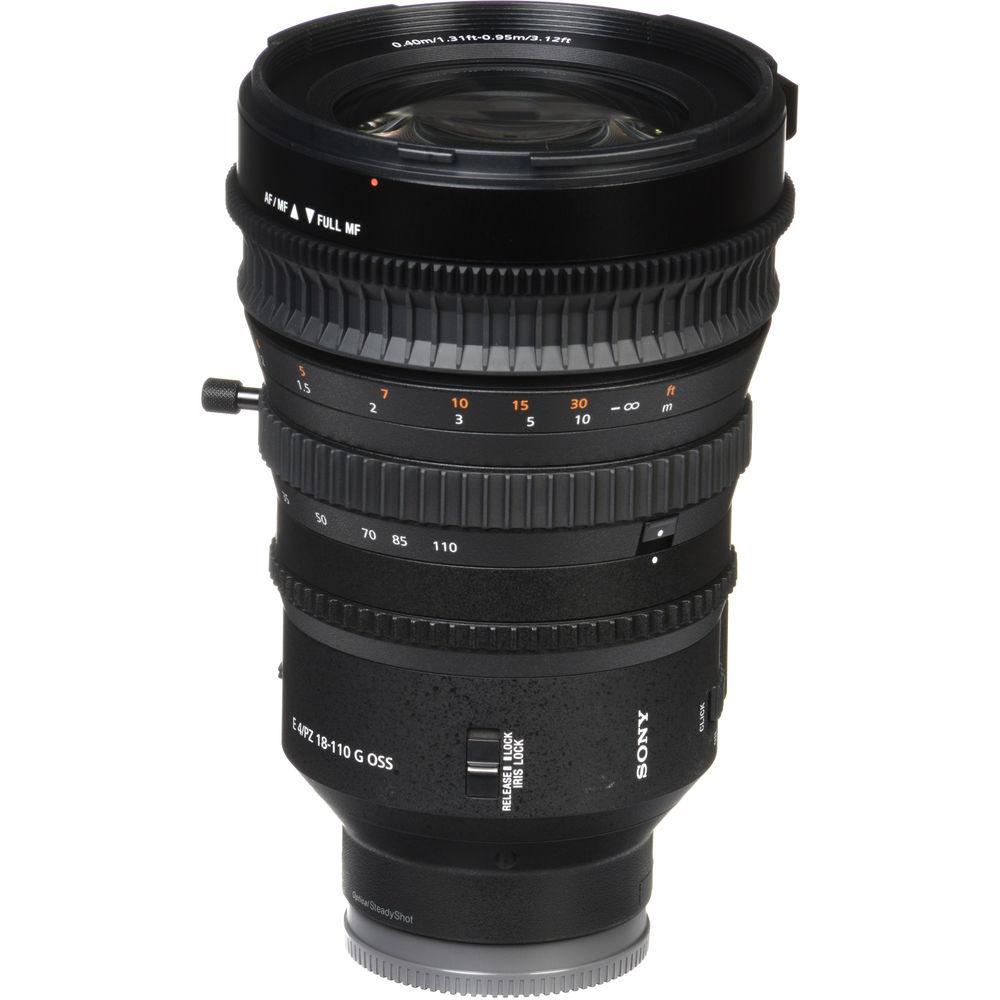

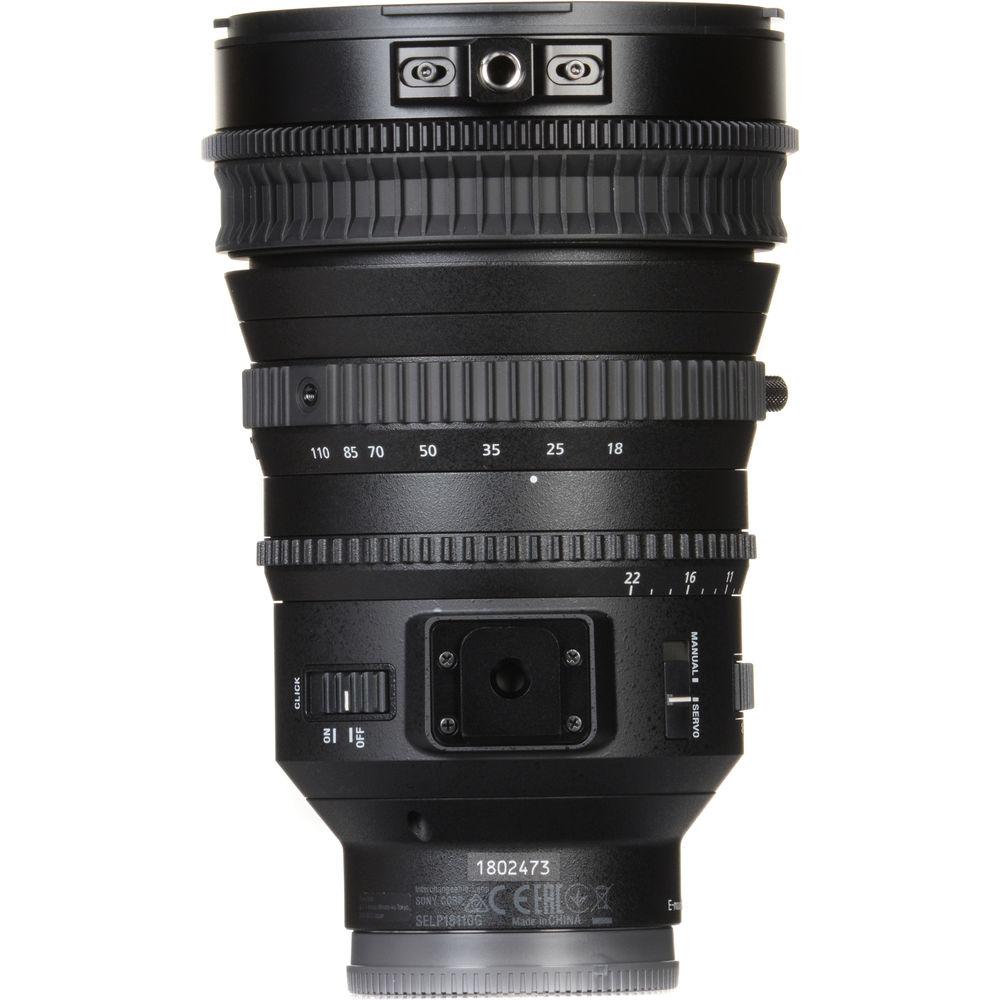

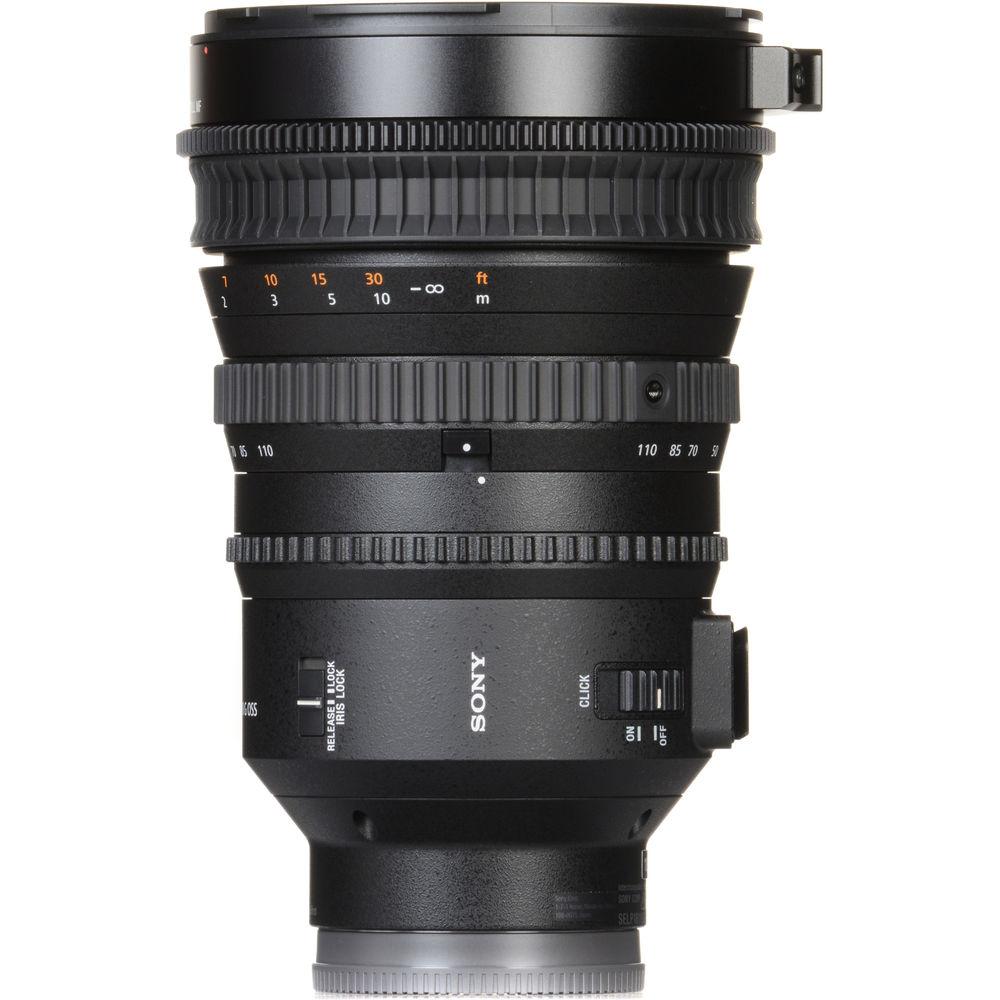

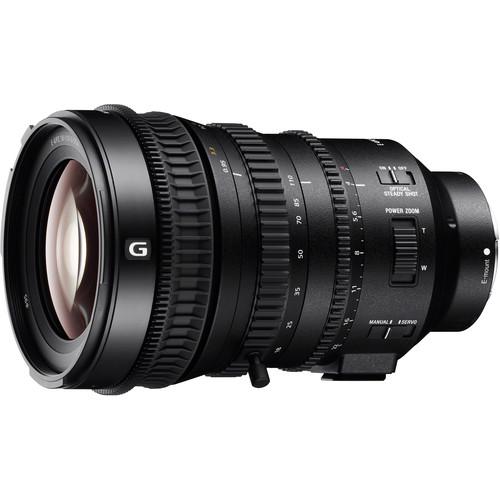

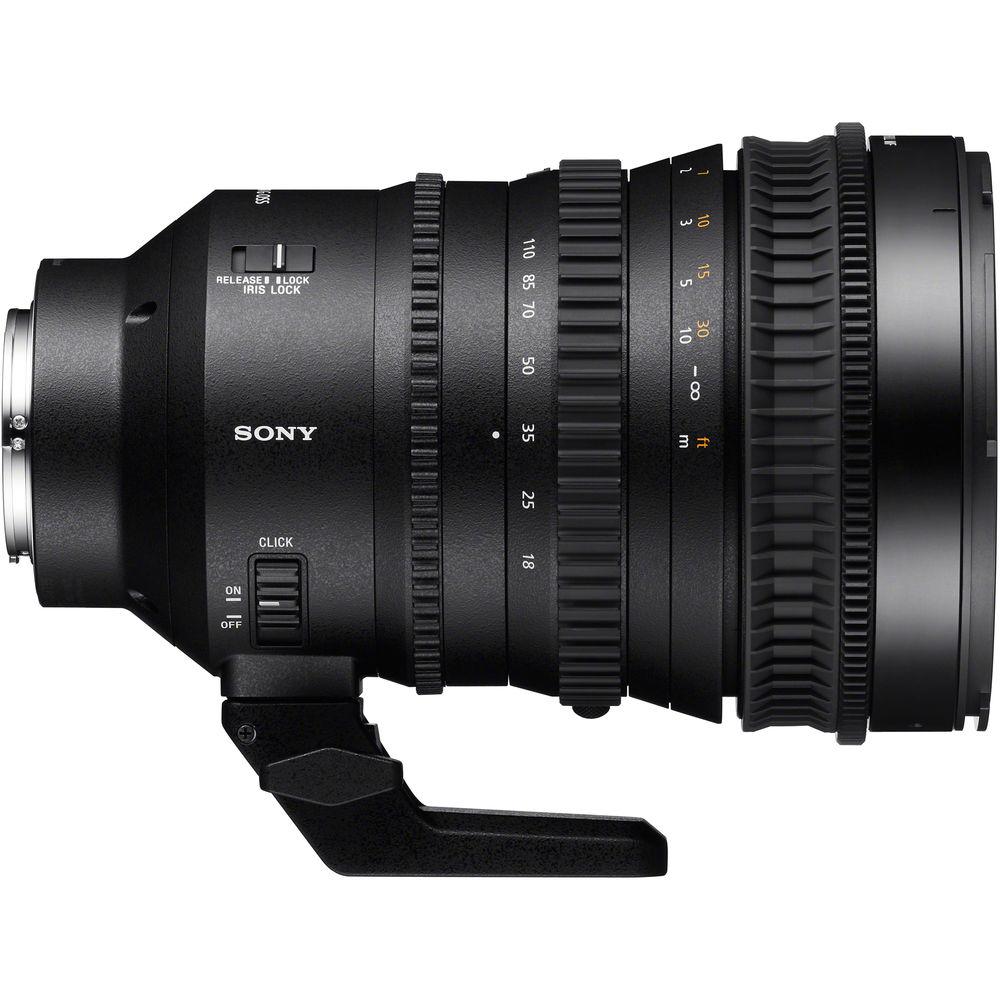

Product description Cinema Lens Care and Maintenance Read More With a wide focal-length range and a constant f/4 aperture in a compact form factor, the Sony E PZ 18-110mm f/4 G OSS Lens offers videographers and cinematographers a versatile lens choice for lightweight operations. While the lens may seem small, it has professional features to back it up. The 18-110m focal-length range covers moderately wide to narrow angles-of-view. Sony's built-in Smooth Motion Optics leverage the internal mechanics of the lens to minimize focus breathing, focus shifting, and other anomalies that would otherwise be noticeable when adjusting the lens during recording.The body of the lens sports separate focus, zoom, and iris rings for complete manual control. Just pull the focus ring back and full-time manual focus is engaged. The focus ring itself has built-in cinema-standard gearing for follow-focus compatibility. Zoom functionality can be operated both manually and electronically. The zoom ring is connected to the lens mechanically, so crash-zooms can be achieved without lag. Iris operation can be done automatically, or by rotating the iris ring. By disengaging the iris click switch, manual iris adjustments can be made smoothly.For smaller, less robust cameras, a quick-release tripod foot is included. The foot secures towards the rear of the lens for tripod use. Alternatively, a conventional lens support can be attached near front of the lens for compatibility with rod-based lens supports. The filter thread will accept 95mm-diameter round filters and the included lens cap. A lens hood is also included for minimizing flare. The hood's shuttered design can be closed when the camera is not in use. - Smooth Motion Optics
- Sony's SMO (Smooth Motion Optics) design and construction minimizes optical shifts that can have a negative impact on image quality. Focus breathing is minimized by an internal focus mechanism, focus shift while zooming is eliminated by precise focus tracking adjustment, and axial shift is minimized by a constant-length design.
- Versatile Zoom Control
- In addition to a smooth servo zoom, mechanical manual zoom ensures precise control with an immediate response. The desired angle of view can be accurately reached by preventing over or undershoot due to lag. Zoom ring direction can be easily switched as required, smooth, slow powered zoom is supported, and an inner zoom mechanism means that the length of the lens remains constant, regardless of focal length.
- Professional Focusing Features
- The focus ring slides back to quickly engage manual focusing. Cinema-standard MOD 0.8 gear teeth are built into the focus ring, enabling use of standard follow focuses without requiring cumbersome focus gear accessories.
- Compact Design
- The lightweight form-factor of this lens contributes to the kind of mobility that active movie shooting demands. Small size and low weight can be advantageous when using gimbals and other types of support as well.
- Optical SteadyShot
- Built-in Optical SteadyShot (OSS) image stabilization helps to keep recorded images stable and free of excess blur in a wide range of handheld or locked-down shooting conditions involving camera movement.
- Weather Resistance
- A dust and moisture-resistant design provides extra protection and ensures reliable operation in challenging environments and inclement weather. Shoot with confidence in light rain or windy conditions.

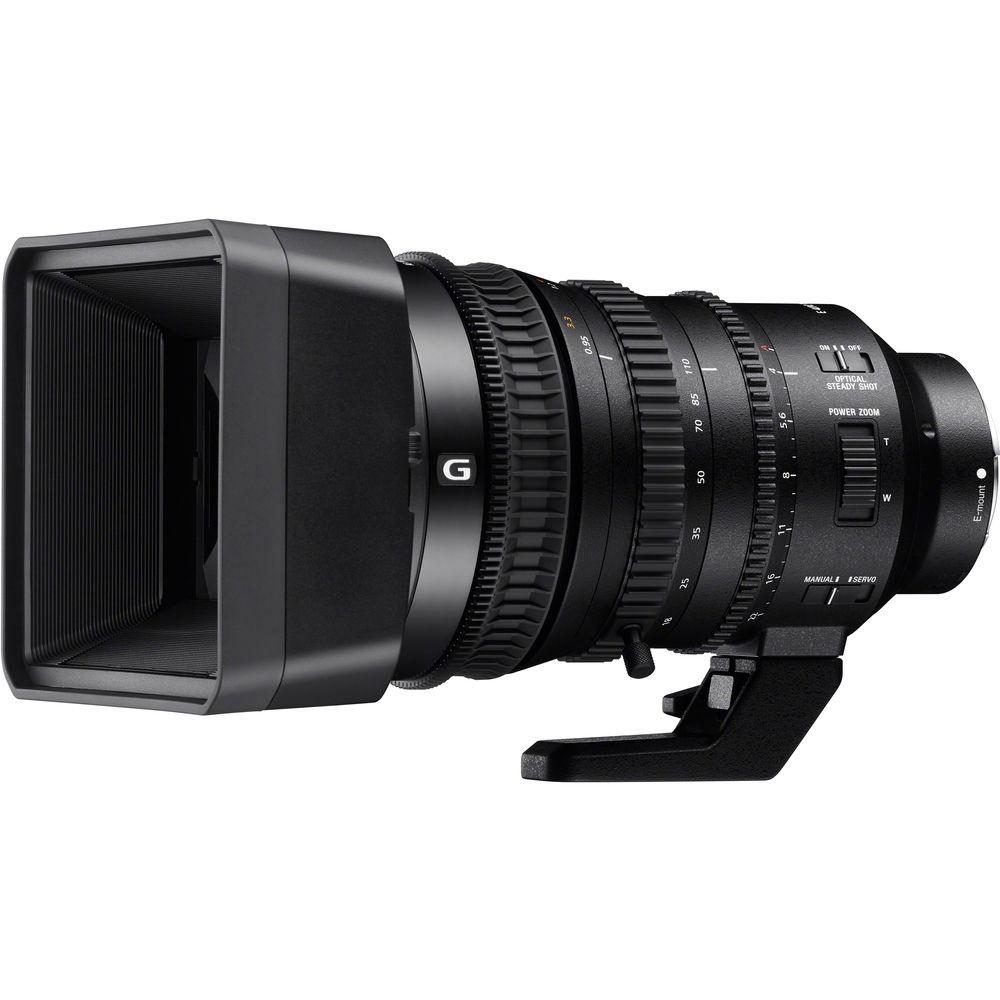

UPC: 027242903067 In the Box Sony E PZ 18-110mm f/4 G OSS Lens ALC-SH148 Lens Hood Front Lens Cap ALC-R1EM Rear Lens Cap Lens Case Tripod Foot Limited 1-Year Warranty User Manual PDF 520.5kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony E PZ 18-110mm f 4 G OSS Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony E PZ 18-110mm f/4.0 Specs | Focal Length | 18 to 110mm | | Lens Mount | Sony E | | Format | Super35/APS-C | | Maximum F-Stop | f/4 | | Minimum F-Stop | f/22 | | Diagonal Angle of View | Super35: 76 to 14° | | Minimum Focus Distance from Image Plane | 15.75" / 40 cm | | Optical Design | 18 Elements in 15 Groups | | Iris Blades | 7 | | Filter Thread | 95 mm | | Zoom Ratio | 6x | | Maximum Magnification Ratio | 1:8.19 | | Dimensions (W x H) | 4.3 x 4.3" / 109.2 x 109.2 mm | | Length | 6.6" / 168 mm | | Weight | 2.4 lb / 1.1 kg | | | | Package Weight | 4.75 lb | | Box Dimensions (LxWxH) | 12.1 x 7.2 x 7.1" |
