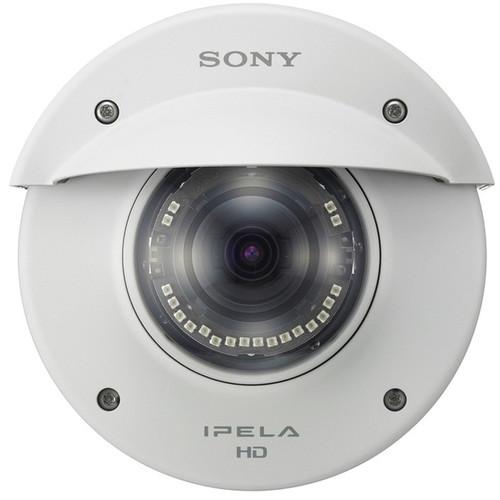

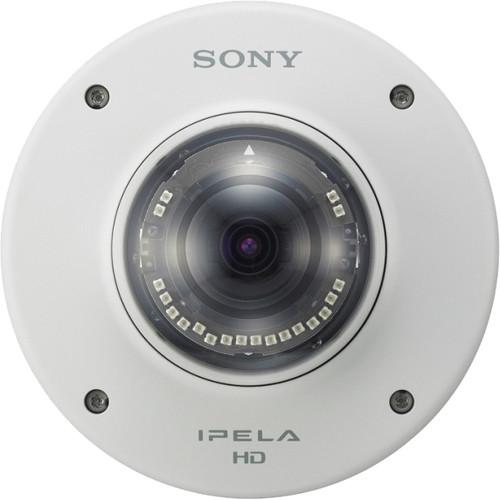

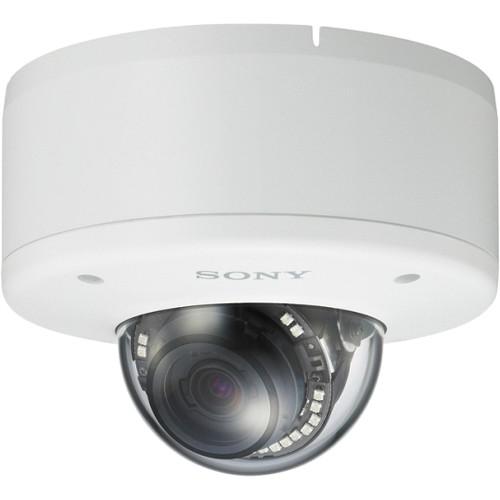

Product description The white E Series 2.1MP Outdoor Network Mini Dome Camera from Sony features a 1/2.9" progressive scan Exmor CMOS sensor and 3-9mm varifocal lens for capturing images at a maximum resolution of 1920 x 1080. This day/night camera provides 24-hour surveillance thanks to built-in IR illuminators with a range of up to 98'. Enclosed in an IP66- and IK10-rated housing, the camera can be used for both indoor and outdoor applications, even in areas at risk of vandalism.
The IPELA ENGINE EX signal processing system is based on Sony's signal processing and video analytics technologies to provide features such as View-DR, XDNR, and DEPA Advanced technologies. View-DR wide dynamic range technology enables the camera to capture objects clearly and adaptively even under low backlit and highlight conditions. - Visibility Enhancer (VE) to optimize the brightness and color reproduction of an image dynamically on a pixel-by-pixel basis while continuously adapting to the scene within the given dynamic range
- XDNR (eXcellent Dynamic Noise Reduction) technology for clear images without introducing motion blur under low lighting conditions
- DEPA Advanced Intelligent Video Analytics to trigger an alarm based on user-defined rules
- Easy Zoom and easy focus for ease of installation
- Includes SNC Easy IP Setup Guide application for quick network setup
- Powered by IEEE 802.3af/IEEE 802.3at-compliant PoE/PoE+ system
- IR technology to provide high-quality IR images without overexposure, delivering clear B&W images of close and distant objects
- Image stabilizer function to help minimize the effect of camera shakes or vibrations to achieve less blurry images
- IP66-rated weather-resistant and IK10-rated vandal-resistant housing
- True D/N (Day/Night) function to switch to day or night mode depending on light levels
- Picture mode allows users to easily adjust camera settings based on a scene requirement
- VBR (variable bit rate) capable of maximum bit rate setting or CBR (constant bit rate) compression mode selectable to correspond with various network conditions
- Smartphone viewer to display an image of the camera on a smartphone's screen and control the camera's pan, tilt, and zoom functions by simple touch-panel operation
- ONVIF (Open Network Video Interface Forum) Profile S conformance ensures interoperability and increased flexibility in building multi-vendor systems
- Day/Night linked with Easy Focus
- e-Flip and multicast streaming support
- Intelligent motion detection, face detection, and tamper alarm
In the Box Sony E Series 2.1MP Outdoor Network Mini Dome Camera with Night Vision Software CD-ROM Bracket Template Wire Rope Wrench 4 x Camera Unit Mounting Screws 2 x Screws (M4
|
Upload User Manual
Have you got an user manual for the Sony E Series 2.1MP Outdoor Network Mini Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony SNC-EM632RC Specs | | | Image Sensor | 1/2.9" progressive scan Exmor CMOS sensor | | Number of Effective Pixels | Approximately 2.14 MP | | Signal System | NTSC/PAL (switchable) | | Sync System | Internal synchronization | | Minimum Illumination | At 50 IRE
Color: 0.1 lux (f/1.2, View-DR OFF, VE OFF, AGC ON, 1/30 sec, 30 fps)
B&W: 0 lux (IR LED ON)
At 30 IRE
Color: 0.06 lux (f/1.2, View-DR OFF, VE OFF, AGC ON, 1/30 sec, 30 fps)
B&W: 0 lux (IR LED ON) | | Dynamic Range | Equivalent to 90 dB with View-DR technology | | S/N Ratio | More than 50 dB (Gain 0 dB) | | Gain | Auto | | Shutter Speed | 1/10,000 to 1 sec | | Exposure Control | Exposure compensation, AGC, Shutter speed | | White Balance | ATW, ATW-PRO, fluorescent lamp, mercury lamp, sodium vapor lamp, metal halide lamp, white LED, one push WB, manual, indoor, outdoor | | Lens | Built-in varifocal lens | | Zoom Ratio | Optical: 3x
Digital: 4x
Total: 12x | | Horizontal Viewing Angle | 105.3 to 35.6° | | Vertical Viewing Angle | 56.9 to 20.1° | | Tilt Angle | 127.6° | | Focal Length | 3-9mm | | F Number | f/1.2-2.1 (wide-tele) | | Minimum Object Distance | 11.8" (300 mm) | | Manual Controls | Pan: ±192°
Tilt: -7 to 75°
Rotation: -99 to 99° | | IR Illuminator | Wave Length: 850 nm (typical)
IR LEDs: 20 | | IR Working Distance | 98.4' (30 m) (50 IRE) | | | | Day/Night | True D/N | | Wide-D | View-DR | | Correction Method | Tone: Visibility Enhancer (VE) | | Noise Reduction | XDNR | | Privacy Masking | Number: 20
Shape: Quadrangle formed by any four corner points
Opaque: 14 colors (black, white, red, green, blue, cyan, yellow, magenta, gray (6 scales)), mosaic | | Vandal Resistance | IK10 | | Ingress protection | IP66 | | Superimpose Number | Superimpose Number: 3 independent positions for character (Codec, Date & time, Event, Text (maximum 64 characters)), 1 independent position for logo mark
Superimpose Language: English | | Menu Language | English, Japanese, Chinese (simplified), Chinese (traditional), French, Spanish, German, Italian, Korean, Portuguese, Russian, Arabic, Hindi, Vietnamese, Thai, Turkish, Polish | | | | Resolution | 1920 x 1080, 1280 x 720, 1024 x 576, 720 x 576, 720 x 480, 704 x 576, 640 x 480, 640 x 360, 352 x 288, 320 x 184 (H.264, JPEG) | | Compression Format | H.264 (high/main/baseline profile), JPEG | | Maximum Frame Rate | 30 fps at 1920 x 1080 | | Bit Rate | Compression Mode: CBR/VBR (selectable)
Range of Bit Rate Setting: 64 kb/s to 32 Mb/s | | Control | Adaptive Rate Control: H.264 | | Bandwidth Control | JPEG | | Multi-Streaming | Triple streaming | | Number of Clients | 20 | | | | Analytics | Analytics Architecture: DEPA Advanced | | Scene Analytics | Passing, intrusion, left object detection, removed object detection | | | | Operating System | Windows XP (32-bit) Professional Edition, Vista (32-bit) Ultimate, Business Edition, 7 (32/64-bit) Ultimate, Professional Edition, 8 Pro (32/64-bit), 8.1 Pro (32/64-bit) | | Processor | Intel Core i7 2.8 GHz or higher | | Memory | 2 GB or more | | Web Browser | Microsoft Internet Explorer Version 7.0, 8.0, 9.0, 10, 11
Firefox Version 19.02 (plugin-free viewer only)
Safari Version 5.1 (plugin-free viewer only), Google Chrome Version 25 (plugin-free viewer only) | | | | Protocols | IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, DNS, NTP, RTP/RTCP, RTSP over TCP, RTSP over HTTP, SMTP, IPv6, HTTPS, SNMP (v1, v2c, v3), FTP (client only), SSL | | QoS | DSCP | | ONVIF Conformance | Profile S | | Authentication | IEEE 802.1X | | Interface | 1 x analog monitor output for setup phono jack
Network Port 10Base-T/100Base-TX (RJ45) | | | | Power Requirement | IEEE 802.3at compliant (PoE/PoE+ system) | | Power Consumption | Maximum 17 W (IEEE 802.3at-compliant (PoE+ system)
Maximum 12.95 W (IEEE 802.3af/at-compliant (PoE/PoE+ system) | | Operating Temperature | PoE+: -40 to 122°F / -40 to 50°C
PoE: -22 to 122°F / -30 to 50°C | | Cold Start | PoE+: -22°F / -30°C
PoE: -4°F / -20°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 20 to 90% | | Storage Humidity | 20 to 95% | | Heater | Built-in | | Construction | External Material
Upper Case: ADC12
Lower Case: ADC12
Dome Cover: Polycarbonate
Cap: Polycarbonate | | Fire Protection | UL2044 | | Dimensions (Ø x H) | 6.5 x 5" / 166 x 128 mm | | Weight | Approximately 55.7 oz / 1580 g | | | | Package Weight | 5.55 lb | | Box Dimensions (LxWxH) | 10.25 x 10.0 x 8.0" |
