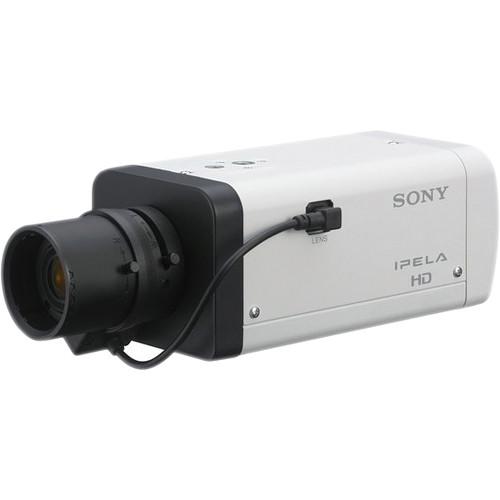

User Manual for Sony E Series SNC-EB630B Day Night Fixed Full HD PoE Network Camera Click to enlarge the picture
Contents of the user manual for the Sony E Series SNC-EB630B Day Night
- Product category: Wired IP Cameras Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Wired IP Cameras
|
User manual for the Sony E Series SNC-EB630B Day Night contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The E Series SNC-EB630B Day/Night Fixed Full HD PoE Network Camera from Sony, with 1/2.9-type progressive scan Exmor CMOS, delivers high-quality images at a resolution of up to 1920 x 1080 pixels. An electronic D/N (Day/Night) function allows you to switch the camera to day or night mode depending on the light level.This camera has a built-in IPELA ENGINE EX signal processing system that offers features such as View-DR, XDNR, and DEPA Advanced technologies. The Power over Ethernet functionality enables you to power the camera via the same Ethernet cable, eliminating the need for an additional power cable. - Box-type 1080p/30fps camera powered by IPELA ENGINE EX technology
- Maximum resolution of 1920 x 1080 pixels with Exmor CMOS sensor
- Picture mode optimizes picture quality in various applications
- DEPA Advanced Intelligent Video Analytics enhanced by unique features such as face detection
- H.264 (High/Main/Baseline Profile)/JPEG video codecs
- Minimum illumination of 0.1 lux in color and 0.07 lux in B&W (50 IRE at 1/30 sec)
- Image stabilizer helps minimize the effect of camera shake or vibration to capture less blurry images
- IPELA ENGINE EX signal processing system is developed based on Sony's unique signal processing and video analytics technologies to provide features such as View-DR, XDNR, and DEPA Advanced technologies
- View-DR Sony's innovative wide dynamic range technology captures objects clearly and adaptively even under very harsh, severe backlight or highlight conditions
- VE (Visibility Enhancer) optimizes the brightness and color reproduction of an image dynamically on a pixel-by-pixel basis while continuously adapting to the scene within the given dynamic range
- DEPA Advanced Intelligent Video Analytics triggers an alarm based on user-defined rules
- XDNR (eXcellent Dynamic Noise Reduction) technology for clear images with virtually no motion blur under low illumination
- Picture mode selectable from a range of camera scenes in the setting menu optimizes picture quality in various applications
- Electronic D/N (Day/Night) function switches to day or night mode depending on the light level
- Built-in HTML viewer compatible with most smartphones
- PoE (IEEE 802.3af-compliant) for easy installation
- ONVIF (Open Network Video Interface Forum) Profile S conformance software ensures interoperability and flexibility in building multiple-vendor systems
- VBR (Variable Bitrate) or CBR (Constant Bitrate) compression mode selectable to correspond with various network conditions
- Easy initial network settings with supplied SNC Easy IP Setup Guide application
- Image stabilizer to help minimize the effect of camera shake or vibration to achieve less blurry images
In the Box Sony E Series SNC-EB630B Day/Night Fixed Full HD PoE Network Camera CD-ROM (Supplied Programs) Wire Rope Screw M4 Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony E Series SNC-EB630B Day Night Fixed Full HD PoE Network Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony SNC-EB630B Specs | | | Image Sensor | 1/2.9-type progressive scan Exmor CMOS | | Number of Effective Pixels | Approximately 2.14 Mp | | Signal System | NTSC | | Sync System | Internal synchronization | | Minimum Illumination | 50 IRE:
Color: 0.1 lux (F1.2, View-DR Off, VE Off, AGC On, 1/30 sec, 30 fps)
B&W: 0.07 lux (F1.2, View-DR Off, VE Off, AGC On, 1/30 sec, 30 fps)
30 IRE:
Color: 0.06 lux (F1.2, View-DR Off, VE Off, AGC On, 1/30 sec, 30 fps)
B&W: 0.05 lux (F1.2, View-DR Off, VE Off, AGC On, 1/30 sec, 30 fps) | | Dynamic Range | Equivalent to 90 dB with View-DR technology | | S/N Ratio | More than 50 dB (Gain 0 dB) | | Gain | Auto | | Shutter Speed | 1/1 to 1/10,000 sec | | Exposure Control | Exposure compensation, AGC, shutter speed, iris | | White Balance | ATW, ATW-PRO, fluorescent lamp, mercury lamp, sodium vapor lamp, metal halide lamp, white LED, single push WB, manual | | Lens | CS-mount varifocal lens | | Zoom Ratio | Optical zoom 2.9x
Digital zoom 4x
Total zoom 11.6x | | Horizontal Viewing Angle | 40 to 114.2° | | Vertical Viewing Angle | 22.5 to 60° | | Focal Length | f = 2.8 to 8.0 mm | | F-Number (f) | F1.2 (Wide) to F1.95 (Tele) | | Minimum Object Distance | 300 mm | | | | Day/Night | True D/N | | Wide-D | View-DR | | Tone | Correction: VE (Visibility Enhancer) | | Noise Reduction | XDNR | | Privacy Masking | Number: 20
Shape: Quadrangle formed by any 4 corner points
Color/Effect: Opaque 14 colors (Black, White, Red, Green, Blue, Cyan, Yellow, Magenta, Gray (6 scales)), Mosaic | | Positions | 3 independent positions for character (codec, date and time, event, text (maximum 64 characters)), 1 independent position for logo marks | | Language | Superimpose: English
Menu: English, Japanese, Chinese (simplified), Chinese (traditional), French, Spanish, German, Italian, Korean, Portuguese, Russian, Arabic, Hindi, Vietnamese, and Thai | | Viewer | Smartphone viewer | | | | Resolution | 1920 x 1080, 1280 x 720, 1024 x 576, 720 x 576, 720 x 480, 704 x 576, 640 x 480, 640 x 360, 352 x 288, 320 x 184 (H.264, JPEG) | | Compression Format | H.264 (High/Main/Baseline Profile), JPEG | | Maximum Frame Rate | H.264: 30 fps (1920 x 1080)
JPEG: 30 fps (1920 x 1080) | | Bitrate | Compression Mode: CBR/VBR (selectable)
Range of Bitrate Setting: 64 kb/s to 32 Mb/s | | PTZ | Solid PTZ | | Rate Control | Adaptive: H.264 | | Bandwidth Control | JPEG | | Multi-Streaming | Triple streaming | | Number of Clients | 20 | | | | Architecture | DEPA Advanced | | Functions Supported | Intelligent motion detection, face detection, and tamper alarm | | Scene Analytics | Passing, Intrusion, Left Object Detection, Removed Object Detection | | | | Protocols | IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, DNS, NTP, RTP/RTCP, RTSP over TCP, RTSP over HTTP, SMTP, IPv6, HTTPS, SNMP (v1, v2c, v3), SSL (SSM (Source Specific Multimedia) is supported) | | Streaming | Multicast streaming support | | ONVIF Conformance | Profile S | | Authentication | IEEE 802.1X | | | | Output | Analog Monitor Output for Setup: 1 x mini jack | | Network | Port: 10BASE-T/100BASE-TX (RJ-45) | | | | Operating System | Windows XP (32-bit) Professional Edition
Windows Vista (32-bit) Ultimate, Business Edition
Windows 7 (32/64-bit) Ultimate, Professional Edition
Windows 8 Pro (32/64-bit)
Microsoft DirectX 9.0c or higher | | Processor | Intel Core i7 2.8 GHz or higher | | Memory | 2 GB or more | | Web Browser | Microsoft Internet Explorer Version 7.0, 8.0, 9.0, and 10.0
Firefox Version 19.02 (plug-in free viewer only)
Safari Version 5.1 (plug-in free viewer only)
Google Chrome Version 25.0 (plug-in free viewer only) | | | | Power Requirements | PoE system (IEEE 802.3af compliant) Class 2 | | Power Consumption | 5.0 W maximum | | Operating Temperature | 14 to 122°F (-10 to +50°C) | | Cold Start | Temperature: 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to +140°F (-20 to +60°C) | | Operating Humidity | 20 to 80% | | Storage Humidity | 20 to 95% | | Material | External
Top Cover: SECC-CF
Bottom Cover: SECC-CF
Front Panel: ADC12
Rear Panel: PC + ABS | | Color | External
Top Cover: Munsell 3.6GY 8.4/0.3
Bottom Cover: Munsell 3.6GY 8.4/0.3
Front Panel: Munsell 3.5PB 2.2/0.4
Rear Panel: Munsell 4.4BG 8.4/0.2 | | Fire Rating | UL2044 | | Safety Regulations | JATE Technical Standard (LAN)
UL2044, IEC60950-1 (CB)
VCCI (Class A), FCC (Class A), IC (Class A)
Emission: EN55022 (Class A) + EN50130-4
Immunity: EN55022 (Class A) + EN55024
Emission: AS/NZS CISPR22 (Class A)
KCC
EMC-TR | | Dimensions (W x H x D) | 2.88 x 2.50 x 5.75" (7.31 x 6.35 x 14.60 cm) (without lens)
2.88 x 2.50 x 7.88" (7.31 x 6.35 x 20.01 cm) (with lens) | | Weight | Approximately 1.10 lb (0.51 kg) (with lens) |
