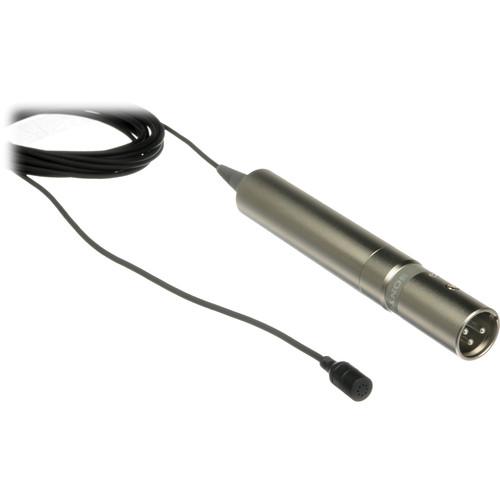

User Manual for Sony ECM-44B Omnidirectional Lavalier Microphone Click to enlarge the picture
Contents of the user manual for the Sony ECM-44B Omnidirectional Lavalier Microphone
- Product category: Lavalier Microphones Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Lavalier Microphones
|
User manual for the Sony ECM-44B Omnidirectional Lavalier Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description Essential Guide on How to Mic Talent for Video Read More - Lavalier Microphones Demo
The Sony ECM-44B Lavalier Microphone makes the exceptional quality of Sony's electret condenser microphones available for budget-conscious productions, and a variety of sound-reinforcement requirements, such as lectures and demonstrations. Measuring only 8.5 x 14.5mm, the ECM-44B reduces the visual distraction for the audience. The ECM-44B can be depended upon for clean, bright, yet natural reproduction. To maintain its low cost, this microphone operates on a single AA (does not accept phantom power) battery for over 5000 hours of service. - Excellent cost/performance ratio
- AA battery power supply and XLR connector
UPC: 027242632424 In the Box Sony ECM-44B Omnidirectional Lavalier Microphone Holder Clip Windscreen Protective Carrying Case 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony ECM-44B Omnidirectional Lavalier Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony ECM-44B Specs | Transducer | Electret Condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 40 Hz to 15 kHz | | Sensitivity | -53.0 dB ±3 dB | | Dynamic Range | 90 dB or more | | Signal-to-Noise Ratio | 62 dB or more | | Noise | Inherent Noise (0 dB=20µPa): 32 dB SPL or less
Induction Noise (from External Magnetic Field): 5 dB SPL or less
Wind Noise: 40 dB SPL or less (with windscreen, at 2 m/s) | | Maximum SPL | (0 dB = 20 µP) 122 dB | | Power Requirements | 'AA' Battery (1.5 VDC) battery power only, does not accept phantom power | | Output Impedance | 250 Ohms, (+/-20% (1 kHz) balanced) | | Pad | None | | Low Frequency Roll-Off | None | | Cable Length | 9.8' / 2.9 m | | Connector | B type. Supplied with XLR connector in power supply unit (single AA size battery) | | Dimensions | Microphone L x D: 0.6 x 0.34" / 14.5 x 8.5 mm
Power Supply L x W: 5 x 0.82" / 126.5 x 20 mm
Cable L x W: 10' x 0.1" / 3 m x 2.3 mm | | Weight | Microphone: 0.07 oz / 2.0 g
Power supply: 4.2 oz / 119 g | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 9.45 x 4.3 x 1.75" |
