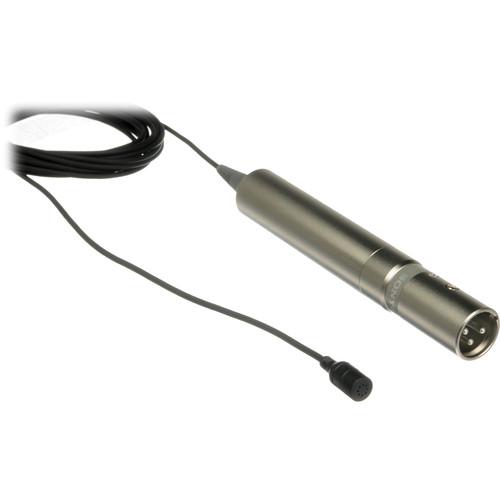

Product description The Sony ECM-44B Lavalier Microphone makes the exceptional quality of Sony's electret condenser microphones available for budget-conscious productions, and a variety of sound-reinforcement requirements, such as lectures and demonstrations. Measuring only 8.5 x 14.5mm, the ECM-44B reduces the visual distraction for the audience. The ECM-44B can be depended upon for clean, bright, yet natural reproduction. To maintain its low cost, this microphone operates on a single AA (does not accept phantom power) battery for over 5000 hours of service. - Excellent cost/performance ratio
- AA battery power supply and XLR connector
In the Box Sony ECM-44B Omnidirectional Lavalier Microphone Holder Clip Windscreen Protective Carrying Case 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony ECM-44B Omnidirectional Lavalier Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters | Transducer | Electret Condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 40 Hz to 15 kHz | | Sensitivity | -53.0 dB ±3 dB | | Dynamic Range | 90 dB or more | | Signal-to-Noise Ratio | 62 dB or more | | Noise | Inherent Noise (0 dB=20µPa): 32 dB SPL or less
Induction Noise (from External Magnetic Field): 5 dB SPL or less
Wind Noise: 40 dB SPL or less (with windscreen, at 2 m/s) | | Maximum SPL | (0 dB = 20 µP) 122 dB | | Power Requirements | 'AA' Battery (1.5 VDC) battery power only, does not accept phantom power | | Output Impedance | 250 Ohms, (+/-20% (1 kHz) balanced) | | Pad | None | | Low Frequency Roll-Off | None | | Cable Length | 9.8' / 2.9 m | | Connector | B type. Supplied with XLR connector in power supply unit (single AA size battery) | | Dimensions | Microphone L x D: 0.6 x 0.34" / 14.5 x 8.5 mm
Power Supply L x W: 5 x 0.82" / 126.5 x 20 mm
Cable L x W: 10' x 0.1" / 3 m x 2.3 mm | | Weight | Microphone: 0.07 oz / 2.0 g
Power supply: 4.2 oz / 119 g |
