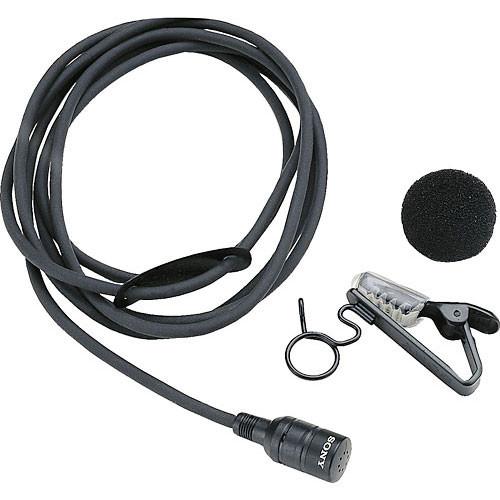

User Manual for Sony ECM-44BMP Omnidirectional Lavalier Microphone with 3.5mm Locking Mini Jack for Sony Transmitters Click to enlarge the picture
Contents of the user manual for the Sony ECM-44BMP Omnidirectional Lavalier Microphone with
- Product category: Uncategorized Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Uncategorized
|
User manual for the Sony ECM-44BMP Omnidirectional Lavalier Microphone with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The Sony ECM-44BMP is an omnidirectional lavalier microphone designed for broadcast, sound reinforcement, and recording applications. The condenser element features a compact profile allowing it to be easily concealed in performance and broadcast situations. The omnidirectional polar pattern provides even frequency and sensitivity response at the direct and off-axis sections of the microphone capsule.The ECM-44BMP provides a wide frequency response of 40 Hz to 15 kHz for accurate reproduction of audio signal from a variety of sources. The attached 3.9' cable features a 3.5mm locking mini jack for use with WRT-805 bodypack transmitters and UWP Series beltpack transmitters such as the UTX-B1 and UTX-B03. Phantom power is supplied via the connected bodypack transmitters. The ECM-44BMP includes a windscreen, tie clip, and microphone case. - Omnidirectional Pattern
- The omnidirectional pattern provides even sensitivity and frequency response at the direct and off-axis sections of the microphone capsule.
- Compact Capsule
- The compact capsule size enables the microphone to be easily concealed in broadcast and performance situations.
- 3.5mm Mini Wireless Transmitter Connection
- The ECM series is available in a variety of connections; this version features a 3.5mm (1/8") locking mini jack for use with WRT-805 bodypack transmitters and UWP Series wireless transmitters equipped with 3.5mm locking jacks. Phantom power is supplied via the connected transmitters.
In the Box Sony ECM-44BMP Omnidirectional Lavalier Microphone with 3.5mm Locking Mini Jack for Sony Transmitters Tie Clip Windscreen Microphone Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony ECM-44BMP Omnidirectional Lavalier Microphone with 3.5mm Locking Mini Jack for Sony Transmitters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters | Sound Field | Mono | Operating Principle | Pressure Operated | Transducer | Electret Condenser | Polar Pattern | Omnidirectional | Frequency Range | 40 Hz to 15 kHz | Signal to Noise Ratio | 62 dB A-Weighted | Equivalent Noise Level | 32 dB | Maximum SPL | 122 dB SPL | Impedance | 2.5 kOhms ± 30% @ 1 kHz | Sensitivity | -40 dB at 1 kHz | Dynamic Range | 90 dB | | Output Connector | 1/8" (3.5 mm) Locking | Cable Length | 3.9' / 1.19 m | Operating Voltage | 1.1 to 10 V | Operating Current Consumption | 0.4 mA | Length | 0.57" / 14.5 mm | Diameter | 0.33" / 8.5 mm | Weight | 0.63 oz / 18 g |
