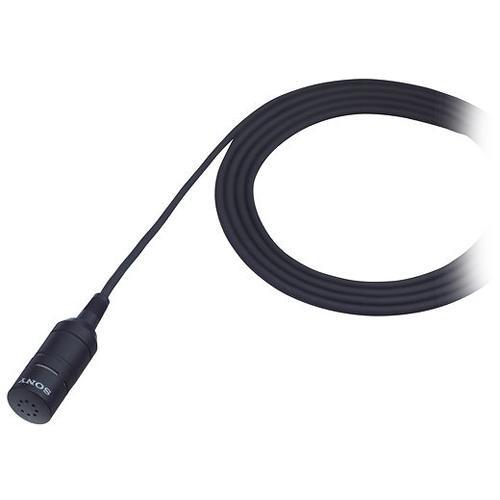

User Manual for Sony ECM-66B Unidirectional Lavalier Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Sony ECM-66B Unidirectional Lavalier Condenser Microphone
- Product category: Lavalier Microphones Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Lavalier Microphones
|
User manual for the Sony ECM-66B Unidirectional Lavalier Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description Essential Guide on How to Mic Talent for Video Read More The black Sony ECM-66B Lavalier Condenser Microphone design yields a clean, natural reproduction of voice or musical instruments while maintaining a suitable isolation from the acoustic environment. Unlike most miniature microphones, this mic has a cardioid polar pattern carefully contoured for better feedback control. The higher voltage supplied to the microphone by the built-in DC to DC converter increases the maximum input sound pressure level to 130 dB SPL.
This construction also complements the electret condenser design, resulting in excellent transient response and thus better tonal quality. For added versatility, the ECM-66B can be powered by a single AA battery or external 48V phantom power. The battery on/off switch on the power supply helps to save the battery. An LED illuminates to show the battery condition when power is turned on. - 2-way powering—AA-size battery or 48V phantom power
- 130 dB maximum input sound pressure level
- Designed for voice or instrumental applications
- Complete with in-line battery unit for 2-way powering
UPC: 027242632479 In the Box Sony ECM-66B - Unidirectional Lavalier Condenser Microphone 2 x Holder Clips Windscreen Protective Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony ECM-66B Unidirectional Lavalier Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony ECM-66B Specs | Transducer | Electret Condenser | | Polar Pattern | Cardioid | | Frequency Response | 70 Hz to 14 kHz | | Dynamic Range (Typical) | > 101 dB | | Signal-to-Noise Ratio | > 65 dB, (@ 1 kHz) | | Maximum Input Sound Level | 130 dB | | Power Requirements | AA Battery (1.5 V), or Phantom | | Output Impedance | 100 Ohms ±20% (1 kHz) | | Output Connectors | XLR-3M Type | | Pad | None | | Low Frequency Roll-Off | None | | Dimensions | Microphone: 1.0 x 0.4" / 24.2 x 10.6 mm
Power Supply: 6.4 x 0.8" / 163 x 20 mm
Cable: 10' x 0.1" / 3 m x 2.3 mm | | Weight | Microphone: .25 oz / 7 g
Power Supply: 4.2 oz / 120 g | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 9.3 x 4.3 x 1.8" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 08 owners. Add your rating and experience with the product.
