User Manual for Sony ECM-673 9X Shotgun Microphone Click to enlarge the picture
Contents of the user manual for the Sony ECM-673 9X Shotgun Microphone
- Product category: Shotgun Microphones Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Shotgun Microphones
 |
User manual for the Sony ECM-673 9X Shotgun Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|

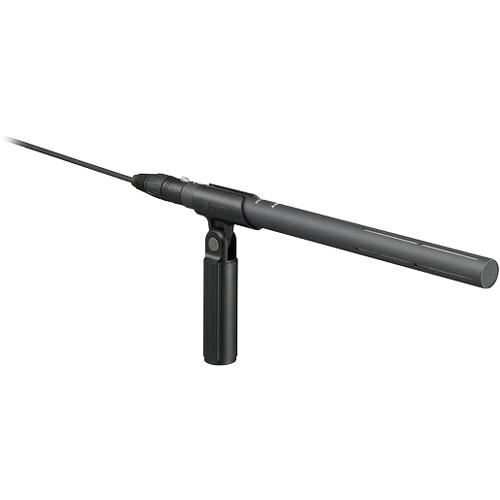

Product description The Sony ECM-673/9X is a low cost, electret condenser shotgun microphone designed for maximum frontal pick up while minimizing off-axis (side) signal and noise. The wide frequency response and excellent sensitivity deliver superb sound for interviews, field audio and more. The ECM-673/9X features a low-cut filter switch for minimizing low frequency response and proximity effect. The ECM-673/9X is light weight and ideal for camera, boom and stand mounting. - The focused pick up pattern provides maximum pickup while rejecting off-axis noise
- The highly sensitive capsule results in great detail and pristine audio quality
- The wide frequency response reproduces audio in great detail
- Shotgun Microphone, Phantom Powered

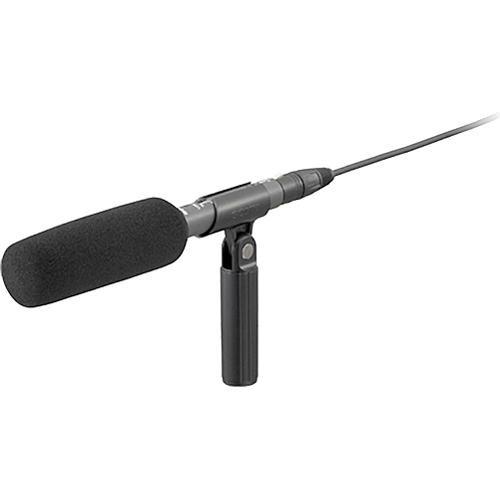

UPC: 027242695375 In the Box Sony ECM-673/9X Shotgun Microphone Windscreen Microphone Holder Microphone Spacer Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony ECM-673 9X Shotgun Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony ECM-673/9X Specs | Transducer | Electret Condenser | | Polar Pattern | Uni-directional (supercardioid) | | Frequency Response | 40Hz - 20kHz | | Dynamic Range (Typical) | 107dB or more | | Signal-to-Noise Ratio | 77dB or more | | Maximum Input Sound Level | 124dB SPL | | Power Requirements | DC 40 to 52V | | Output Impedance | 220Ω +/- 20% | | Output Connectors | 3-pin XLR | | Pad | No | | Low Frequency Roll-Off | Built-In Switch | | Dimensions | 7.87 x 0.78" (200 x 20mm) (Length x Diameter) | | Weight | Approx. 4.76 oz (135g) | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 16.0 x 5.5 x 3.5" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 81 owners. Add your rating and experience with the product.
