Product description

• Sony ECM-674/9X Electret Condenser Shotgun Microphone The Sony ECM-674/9X Shotgun Microphone provides professional level signal reproduction while remaining cost effective. The ECM-674/9X's compact size, audio character and sensitivity result in the level of performance suitable for use with professional and semi-professional video cameras.The ECM-674/9X features a supercardioid polar pattern for excellent directivity and minimal noise at the off-axis sections of the capsule. The result is a detailed, audible signal while used in noisy environments. The microphone provides a wide, flat frequency response which results in smooth, accurate signal reproduction with crisp detail and no added coloration. The ECM-674/9X is powered with an internal AA-size battery or external 48-volt phantom power.The ECM-674/9X's size and sound quality make it an excellent choice for event video shoots, film, documentary shooting, court room depositions, etc.
  Battery or Phantom Power
  • The ECM-674/9X is capable of powering via AA size internal battery or external 48 Volt phantom power.
  Supercardioid Polar Pattern
  • The supercardioid polar pattern is effective in minimizing noise and ambient audio at the off-axis sections of the microphone capsule.
  Low Frequency Roll-Off Switch
  • The 2-position low frequency roll-off switch minimizes low frequency rumble and noise due to wind, proximity effect, ambiance, etc.
  Compact Design
  • The ECM-674/9X features a low-profile and light weight construction. The compact design is suitable for mounting on smaller cameras without obstructing the view.
  UPC: 027242702240
• Auray DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles The Auray DUSM-1 Universal Shockmount features a four-point suspension to accommodate shotgun and other cylindrical microphones measuring 0.74-0.98" (19-25mm) in diameter. The shockmount is easily angled with its rubberized adjustment knob. There is a built-in shoe for camera mounting, and a 3/8"-16 thread connection at the base mounts the shockmount to boompoles and universal hand-grips. UPC: 847628562776
• Auray WSS-2012 Professional Windshield for Shotgun Microphones - (12cm) The Auray WSS Series Professional Windshields deliver superior 360° wind protection with acoustic transparency. They are engineered for dramatic reduction of unwanted broadband wind noise and vocal pops with very little high frequency loss, for exceptionally accurate recordings.

  This WSS-2012 Professional Windshield has an inside depth of 12cm and is designed for use with many shotgun microphones. It features a specially manufactured open-cell foam matrix surrounded by a layer of 25mm-thick simulated rabbit fur. This diffusion technology lowers wind velocity in a controlled air space around the microphone, thereby reducing wind noise without muffling the sound. It also features an airtight tapered rubber base that seals out wind from the rear of the microphone, greatly improving isolation and rear wind protection.

  When used on a shotgun microphone, this slip-on windshield is effective in minimizing wind noise and plosive sounds. It is most effective in light breeze to strong breeze conditions (4-25 mph) and users can generally expect a 24dB to 40dB reduction in wind noise with negligible dampening of high frequencies. For most applications, the negligible high frequency dampening is a worthwhile exchange for the dramatic wind noise reduction.

  In addition to superior 360° wind protection, the WSS-2012 helps prevent moisture and dirt from damaging your microphone. The windscreen is designed to fit microphones from Audio Technica, Sennheiser, Sony and others.

  The WSS-2012 Professional Windshield for Shotgun Microphones is an advanced solution for outstanding wind protection with acoustic transparency.
  Fits these and other similar sized microphones:
  • Audio-Technica BP4073, AT875R, AT 877, MC-230
  • Azden SGM-PD2
  • Ikegami HL DNS-201W, HL DV-7W, HLV 9, 55, 77, MC-10, 11, 230
  • Panasonic AJ HDC 27, AJ HDX 900, AJ MC 700P, 900P, AJD-700, 800, 910, DV 200, DVC200
  • Schoeps CMIT 5U
  • Shure VP82
  • Sennheiser MKH-8060, MKE-600
  • Sony ECM 673, 674, ECM NV1 (Camera Mic for BVP-550, 570, 950, DSR 130P, 200, 250, 300, PD150, 170, HVR A1U, V1, UVW-100)
  • Zoom SGH-6 (Capsule for H6)
  UPC: 847628552708
• K-Tek KE-89CC Avalon Series Aluminum Boompole with Internal XLR Cable The K-Tek KE-89CC Avalon Series Aluminum Boompole provides a moderately priced, lightweight boompole solution for ENG, EFP, and other field recording applications. Its sturdy aluminum design is tough enough to endure the rigors of road use, while remaining lightweight and travel-worthy. This pole features an internal coiled cable and an XLR connection at the base of the pole. A total of four aluminum sections telescope between 2' 5" to 7' 6" and will easily store in any standard equipment case. The captive-collet coupling system locks each section in place for even further reliability.
  • Internal coiled XLR cable and connection at the base
  • The KE-89CC features a bottom-mounted three-pin XLR connection
  • Designed to fit in any standard equipment case, for ENG, EFP, and DV location production work
  • Jam-resistant collar coupling
  • Unique pole-top design with cable retention slots and replaceable stainless steel mounting stud
  UPC: 791090332033
• Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 20' (6.1 m), Black The black Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable (20') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise.

  Premium Performance 3000 Series cables are made from 24 AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise.
  • Twin-conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core.
  • 24 AWG oxygen-free stranded copper inner core provides the best possible conductivity.
  • Cotton yarn reduces electrostatic and microphonic noise.
  • All solder points shrink-wrapped for protection.
  • Neutrik XX silver connectors offer high conductivity.
  • Caged type contact and improved ground contact.
  UPC: 847628558298
• Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black The black Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable (1.5') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise.

  Premium Performance 3000 Series cables are made from 24 AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise.
  • Twin-conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core.
  • 24 AWG oxygen-free stranded copper inner core provides the best possible conductivity.
  • Cotton yarn reduces electrostatic and microphonic noise.
  • All solder points shrink-wrapped for protection.
  • Neutrik XX silver connectors offer high conductivity.
  • Caged type contact and improved ground contact.
  UPC: 847628558229
• Auray Neoprene Boompole Bag for 34" Closed Boompole with Shotgun Mic and Softie The Auray Neoprene Boompole Bag for 34" Closed Boompole with Shotgun Mic and Softie is a case designed to hold up to a 34" closed boompole with shotgun microphone, softie, and shock mount. Its interior end cap is strengthened to protect the bag from punctures. It features a zipper closure with protective interior lining to prevent snags and scratches. The bag is built with an interior pocket for accessories that opens or closes with hook and loop fasteners. An adjustable shoulder strap is included with a nametag holder. UPC: 847628562790
• Auray Universal Microphone Pistol Grip The Auray Universal Microphone Pistol Grip is a handheld grip that features an ergonomic cushioned handle. This grip is great in "run & gun" situations in which a boom pole would be cumbersome, and in video scenarios in which the cameraman is also responsible for audio recording. The grip can be held with one hand, as opposed to a boom pole which requires two. It also provides the option of being able to record audio from a different direction than the camera is pointing, an advantage over camera mounting the mic. Furthermore, having the mic mounted off the camera prevents it from picking up motor noise from the lens focusing.

  In addition, the grip features standard 3/8" threads on both ends. This allows you to attach your shotgun mic (with shockmount) to one end of the grip and mount the other end to a boom pole. This gives you the flexibility of being able to quickly detach the pistol grip and the attached shotgun mic from the boom, an option that can come in handy for entering areas that are too small for a boom pole. UPC: 847628562738

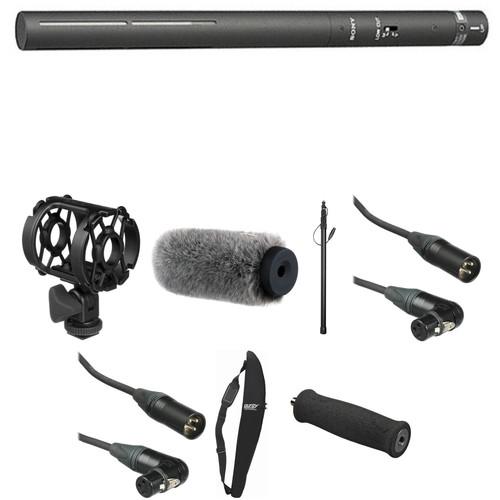

• ECM-674/9X Electret Condenser Shotgun Microphone ecszqfxydxtzdxrd
• Windscreen
• Microphone Spacer
• Limited 1-Year Warranty

• Auray - DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles

• Auray - WSS-2012 Professional Windshield for Shotgun Microphones - (12cm)

• K-Tek - KE-89CC Avalon Series Aluminum Boompole with Internal XLR Cable

• Kopul - Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 20' (6.1 m), Black

• Kopul - Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black

• Auray - Neoprene Boompole Bag for 34" Closed Boompole with Shotgun Mic and Softie

• Auray - Universal Microphone Pistol Grip
