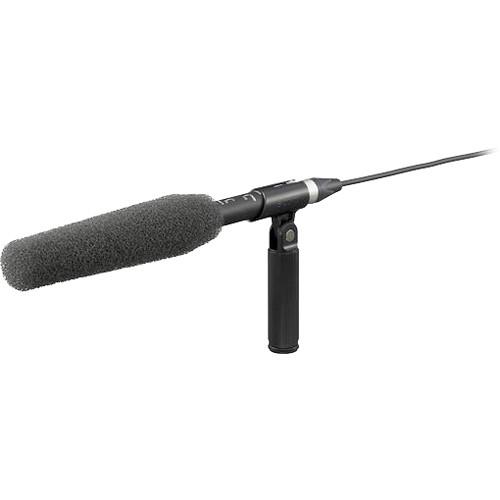

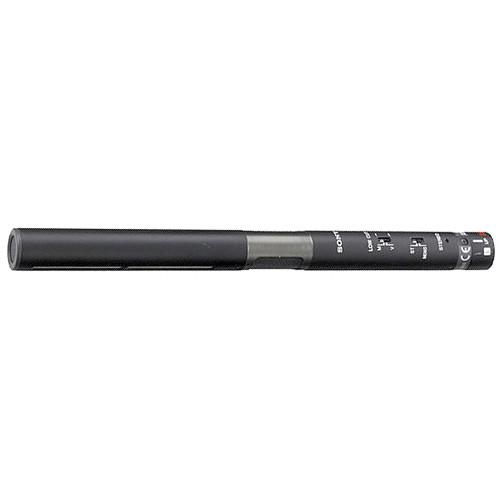

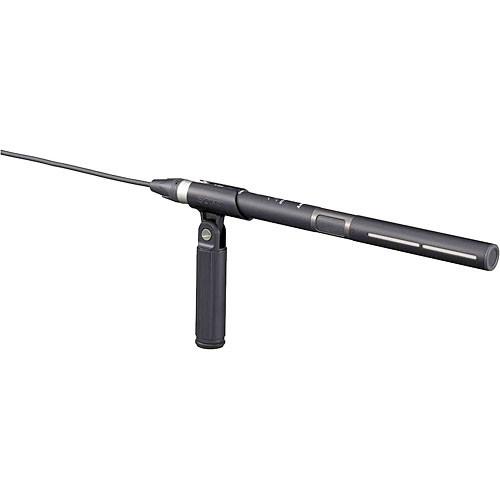

User Manual for Sony ECM-680S M S Stereo Shotgun Microphone Click to enlarge the picture
Contents of the user manual for the Sony ECM-680S M S Stereo Shotgun
- Product category: Shotgun Microphones Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Shotgun Microphones
 |
User manual for the Sony ECM-680S M S Stereo Shotgun contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The Sony ECM-680 Stereo Shotgun Microphone provides both M/S (Mid-Side) stereo, and mono audio capturing, at the touch of a switch. The electret-condenser, unidirectional (cardioid) ECM-680, features internal M/S decoding for true stereo placement.In mono mode, the ECM-680 captures audio like a true shotgun microphone, with superb audio rejection and increased range. The wide frequency response, excellent signal-to-noise ratio and wide dynamic range result in pristine audio reproduction. Measuring only 9-inches long, the ECM-680 is an ideal solution for camera mount applications. - M/S Stereo and Mono Capturing
- The electret-condenser, unidirectional (cardioid) ECM-680 features internal M/S decoding for true stereo placement. In mono mode, the ECM-680 captures audio like a true shotgun microphone, with superb audio rejection and increased range.
- Pristine Audio Quality
- The wide frequency response, excellent signal-to-noise ratio and wide dynamic range result in pristine audio reproduction.
- Built-in Low Cut Filter
- Built-in, two position low-cut filter switch eliminates unwanted low-frequency noise and ambiance.
UPC: 027242714670 In the Box Sony ECM-680S M/S Stereo Shotgun Microphone Windscreen Microphone Holder Microphone Spacer 5-pin XLR to 5-pin XLR Microphone Cable Stand Adapter Carrying Case Operating Instructions Limited 1-Year Warranty Brochure PDF 974.4kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony ECM-680S M S Stereo Shotgun Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony ECM-680S Specs | Transducer | Electret Condenser | | Polar Pattern | M/S (Mid-Side) Stereo
Unidirectional (Cardioid) | | Frequency Response | Stereo: 50Hz to 20kHz
Mono: 40Hz to 20kHz | | Dynamic Range (Typical) | Stereo: 104dB or more
Mono: 106dB or more | | Signal-to-Noise Ratio | Stereo: 74dB or more
Mono: 76dB or more | | Maximum Input Sound Level | 124dB SPL | | Power Requirements | DC 40 to 52V
Consumption: Stereo - 4mA or less x 2ch
Mono - 4mA or less | | Output Impedance | 100 ohms +/- 20% | | Output Connectors | 5-pin XLR (Cable Supplied) | | Pad | No | | Low Frequency Roll-Off | Two Position (M,V) Low-Cut Filter | | Dimensions (LxDiameter) | 9.84 x 0.78" (250 x 20mm) | | Weight | 140g (4.9 oz) | | | | Package Weight | 2.1 lb | | Box Dimensions (LxWxH) | 15.7 x 5.4 x 3.5" |
