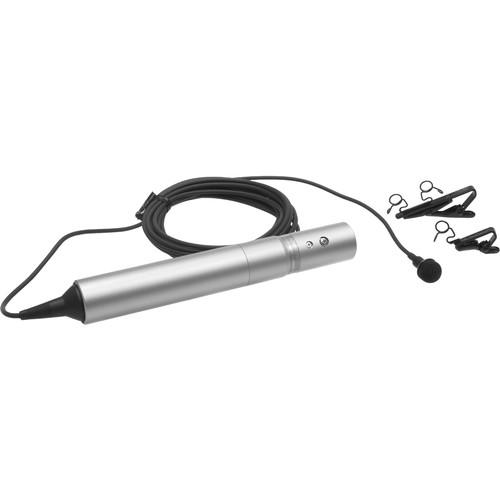

User Manual for Sony ECM-77B - Miniature Omni-directional Lavalier Mic Click to enlarge the picture
Contents of the user manual for the Sony ECM-77B - Miniature Omni-directional Lavalier
- Product category: Lavalier Microphones Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Lavalier Microphones
|
User manual for the Sony ECM-77B - Miniature Omni-directional Lavalier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description Essential Guide on How to Mic Talent for Video Read More The Sony ECM-77B is a miniature omni-directional lavalier microphone designed for professional broadcast, sound reinforcement and recording applications. The condenser element features a miniature profile allowing it to be easily concealed in performance and broadcast situations. The omni-directional pattern provides even frequency and sensitivity response at the direct and off-axis sections of the microphone capsule.The ECM-77 provides a wide frequency response of 40Hz - 20kHz. The wide frequency response enables the microphone to accurately reproduce audio signal from a wide variety of sources. The ECM-77B is powered with an external 48 Volt phantom power source or AA alkaline battery. The ECM-77B is manufactured with a variety of connectors to accommodate various input devices, this version features a standard 3-pin XLR male connection. - Omni-directional Pattern
- The omni-directional pattern provides even sensitivity and frequency response at the direct and off-axis sections of the microphone capsule.
- Dual Power
- The ECM-77B is powered with a single AA alkaline battery or external 48 volt phantom power source.
- Miniature Profile
- The miniature, unobtrusive profile enables the microphone to be easily concealed in broadcast and performance situations.
- Standard XLR Connection
- The ECM series is available in a variety of connections, this version features a standard 3-pin XLR male connection.
UPC: 027242632486 In the Box Sony ECM-77B - Miniature Omni-directional Lavalier Condenser Microphone Holder Clips Windscreen Protective Carrying Case 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony ECM-77B - Miniature Omni-directional Lavalier Mic in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony ECM-77B Specs | Transducer | Electret Condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 40 Hz - 20 kHz | | Dynamic Range (Typical) | > 90 dB | | Signal-to-Noise Ratio | 64 dB, (@ 1 kHz) | | Maximum Input Sound Level | 120 dB, (@ 1 kHz, 1% THD) | | Power Requirements | 'AA' Battery (1.5v DC), or Phantom Power 48v DC | | Output Impedance | 150 Ohms, (+/-20%, 1 kHz Balanced) | | Output Connectors | XLR-3M Type | | Pad | None | | Low Frequency Roll-Off | None | | Applications | Radio, Television and Broadcast. | | Dimensions | Microphone: .5 x .25" (12.5 x 5.6mm) LxDiameter
Power supply: 5.25 x .82 (131.5 x 20mm) LxW
Cable: 10' x .09" (3m x 2.3mm) LxW | | Weight | Microphone: 0.053 oz. (1.5 g)
Power Supply: 4.2 oz. (120 g) | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 9.291 x 4.252 x 1.732" |
