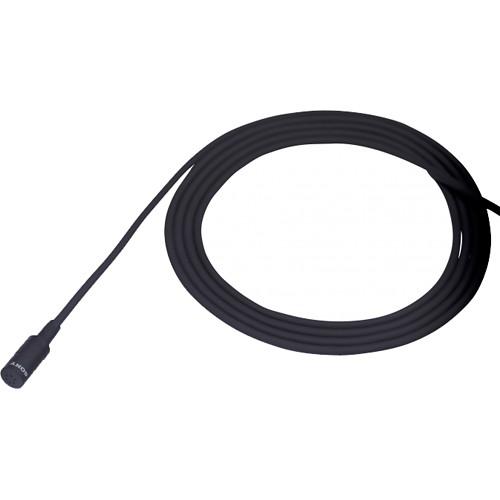

User Manual for Sony ECM-77BPT Omnidirectional Lavalier Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Sony ECM-77BPT Omnidirectional Lavalier Condenser Microphone
- Product category: Microphones for Wireless Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Microphones for Wireless
|
User manual for the Sony ECM-77BPT Omnidirectional Lavalier Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The Sony ECM-77BPT is a miniature omnidirectional lavalier microphone designed for professional broadcast, sound reinforcement, and recording applications.
The condenser element features a miniature profile allowing it to be easily concealed in performance and broadcast situations. The omnidirectional pattern provides even frequency and sensitivity response at the direct and off-axis sections of the microphone capsule.The ECM-77BPT provides a wide-frequency response of 40 Hz to 20 kHz, which enables the microphone to accurately reproduce an audio signal from a wide variety of sources. This pigtail version of the ECM-77BPT is sold without a plug so that users can attach their own custom connections. - Omnidirectional Pattern
- The omnidirectional pattern provides even sensitivity and frequency response at the direct and off-axis sections of the microphone capsule.
- Miniature Profile
- The miniature, unobtrusive profile enables the microphone to be easily concealed in broadcast and performance situations.
- Unterminated Connection
- The ECM series is available in a variety of connections; this version is sold without a plug so that users can attach their own custom connections.
UPC: 027242632516 In the Box Sony ECM-77BPT Omnidirectional Lavalier Condenser Microphone (Pigtail) Holder Clips Windscreen Protective Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony ECM-77BPT Omnidirectional Lavalier Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony ECM-77 Specs | Transducer | Electret Condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 40 Hz to 20 kHz | | Dynamic Range (Typical) | >90 dB | | Signal-to-Noise Ratio | 64 dB, (@ 1 kHz) | | Maximum Input Sound Level | 120 dB, (@ 1 kHz, 1% THD) | | Power Requirements | 1.1 to 10 VDC, ≤0.4 mA | | Output Impedance | 2.5 kOhms, (±30%, 1 kHz, Unbalanced) | | Output Connectors | No Connector (Pigtail) | | Pad | None | | Low Frequency Roll-Off | None | | Dimensions | Microphone: .5 x .25" / 12.5 x 5.6 mm LxDiameter
Cable: 9.8' x .09" / 3 m x 2.3 mm LxW | | Weight | 0.8 oz / 22.7 g | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 6.4 x 1.7 x 0.9" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 35 owners. Add your rating and experience with the product.
