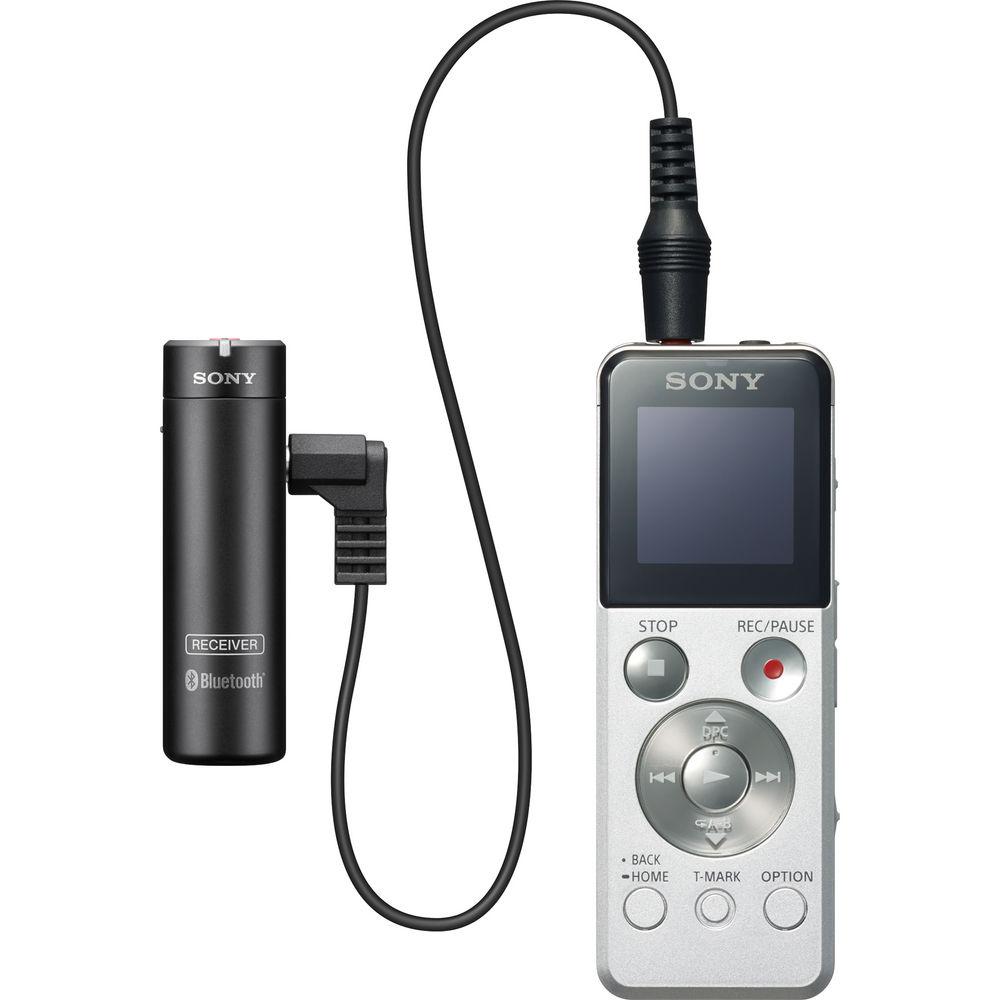

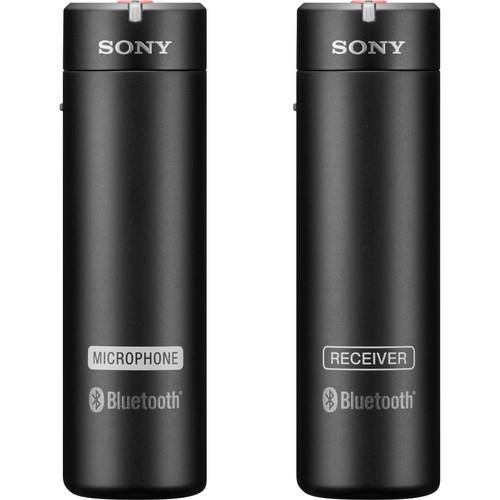

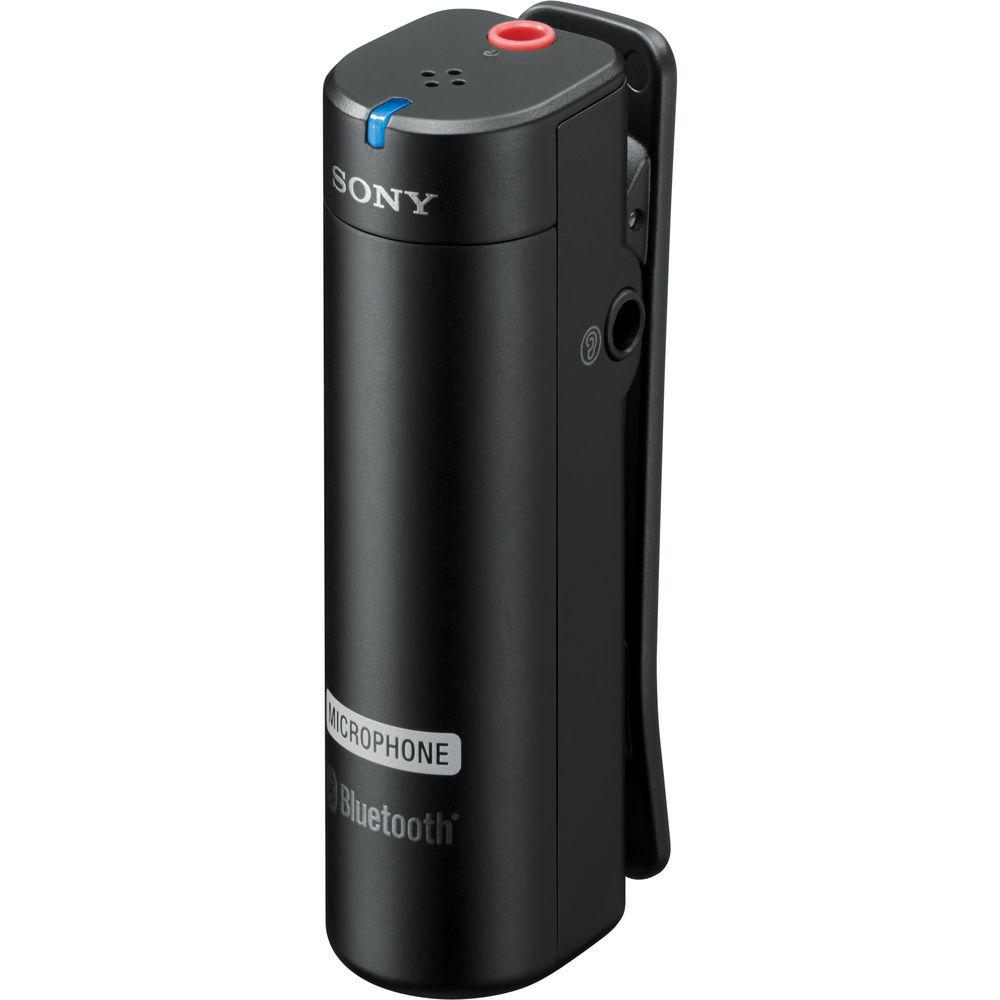

Product description The ECM-AW4 Bluetooth Wireless Microphone System from Sony is a complete battery-powered Bluetooth wireless microphone system. It plugs into virtually any kind of video camera, DSLR, or recording device that features a 3.5mm mini-jack microphone input. The transmitter has a built-in mic, or you can use a separately available external mic with 3.5mm output (Plugin Power supported). Receiver unit has a talk-back function that allows the camera operator to communicate clearly with the subject. The mic has a range of up to 150 feet.
This mic system allows a subject and a device operator to communicate, eliminating the need for a separate intercom system. In this way the camera operator can act as a director, giving direction or suggesting interview questions to the onscreen talent, even if they are out of ear shot. A 3.5mm headphone jack/audio output is provided on both the transmitter and the receiver to facilitate this feature.

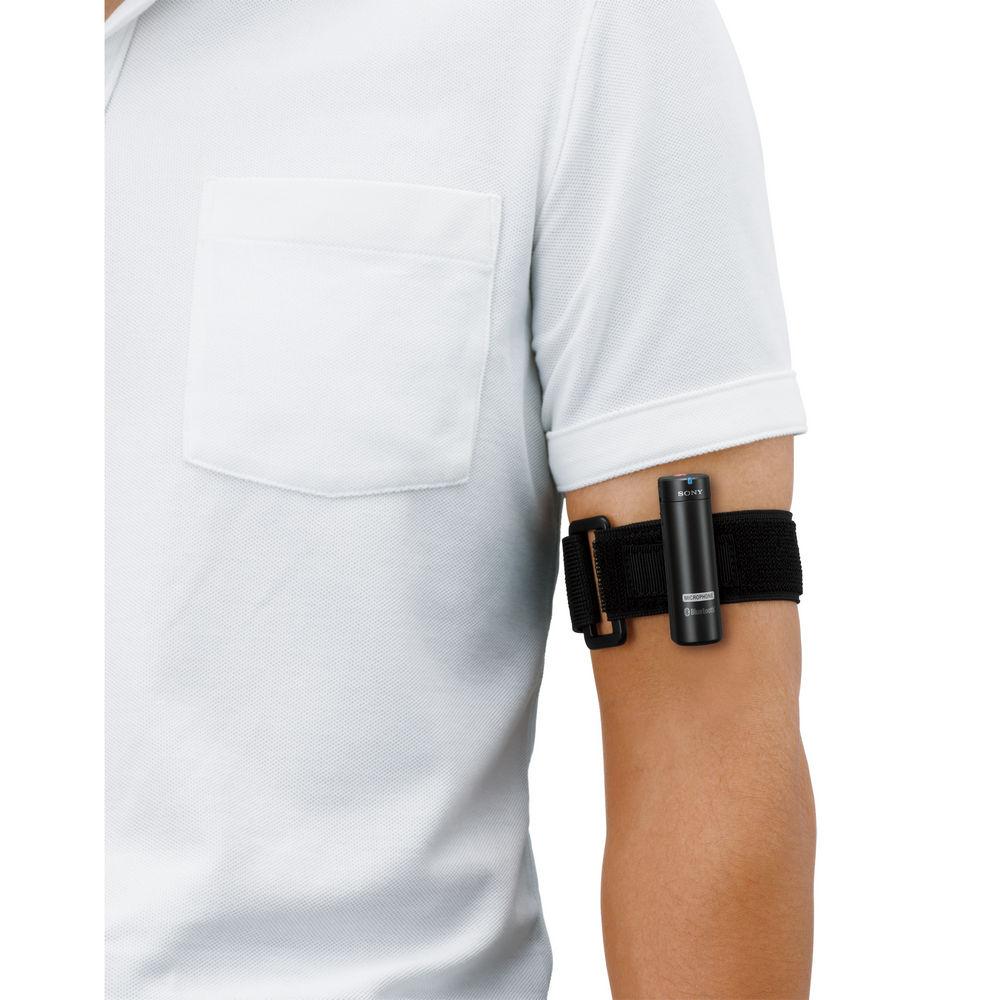

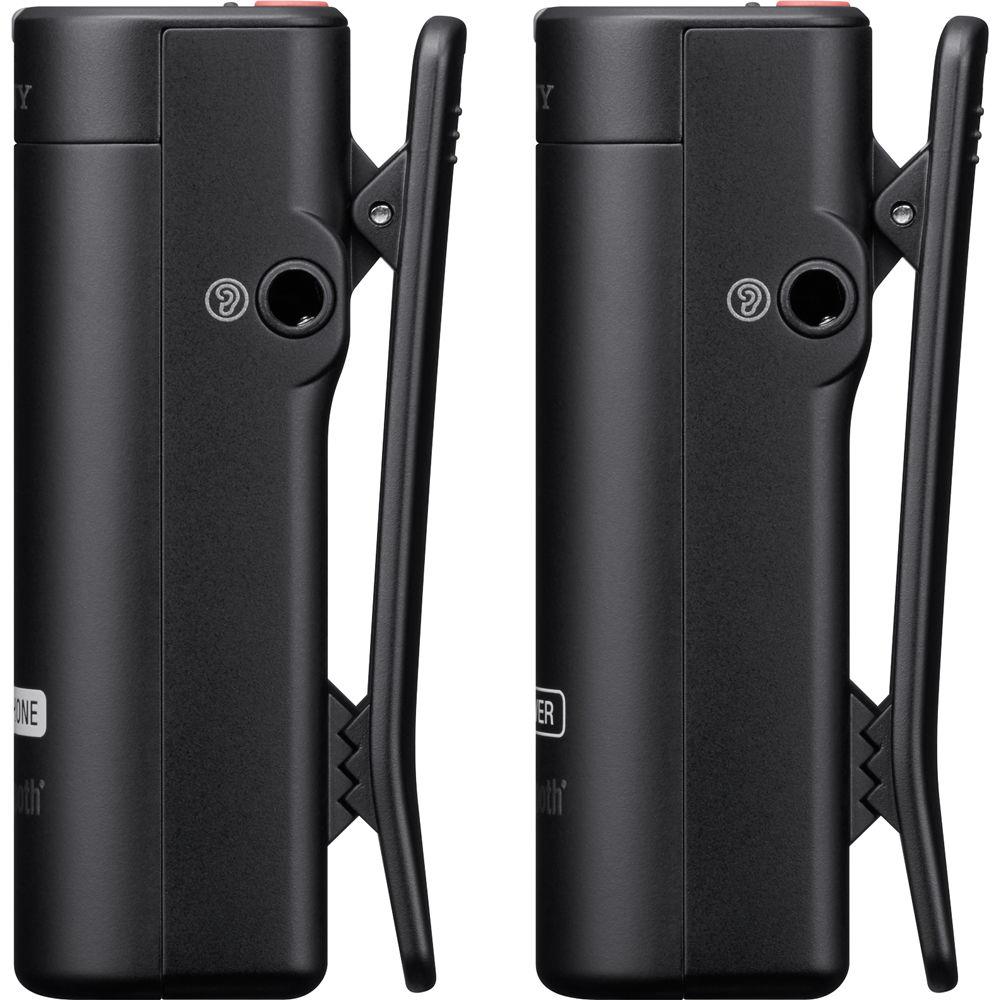

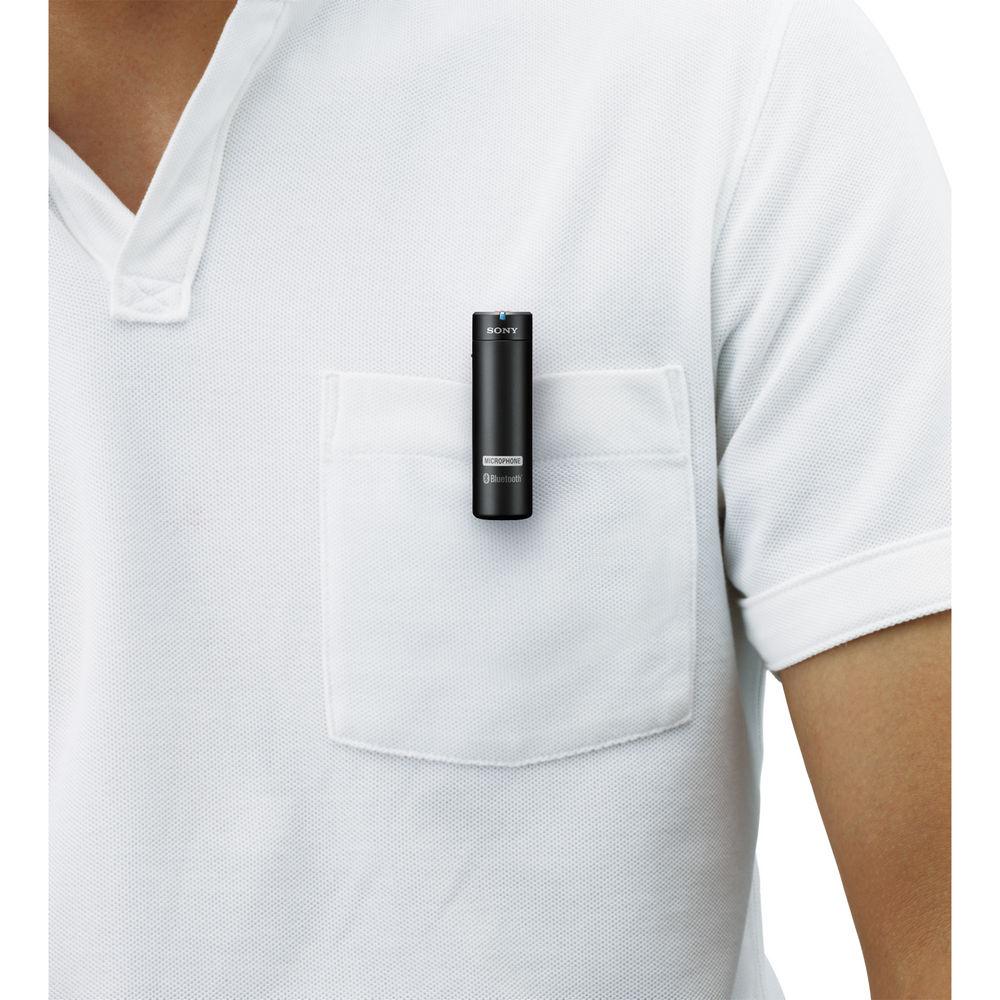

For mounting or wearing the microphone and receiver, a belt clip and an arm band are included. The arm band enables you to attach the transmitter to a subject that is wearing clothing that cannot accommodate a belt clip. An included carrying pouch will help to protect the transmitter. - Wide Compatibility
- Compatible with nearly any video camera or portable audio recorder with a 3.5mm mini-jack microphone input
- Two Way Communication
- From up to 150 feet line-of-sight away from the camcorder, you can shoot while recording whole conversations with each other
- One Way Communication
- Select to pick-up only the voice of the subject, or both the subject's and the camera operator's voices
- Separate Earphones
- Two separate earphones are provided for both the microphone and the receiver units
- Up to Three Hour Battery Life
- Operates for up to three hours when running continuously

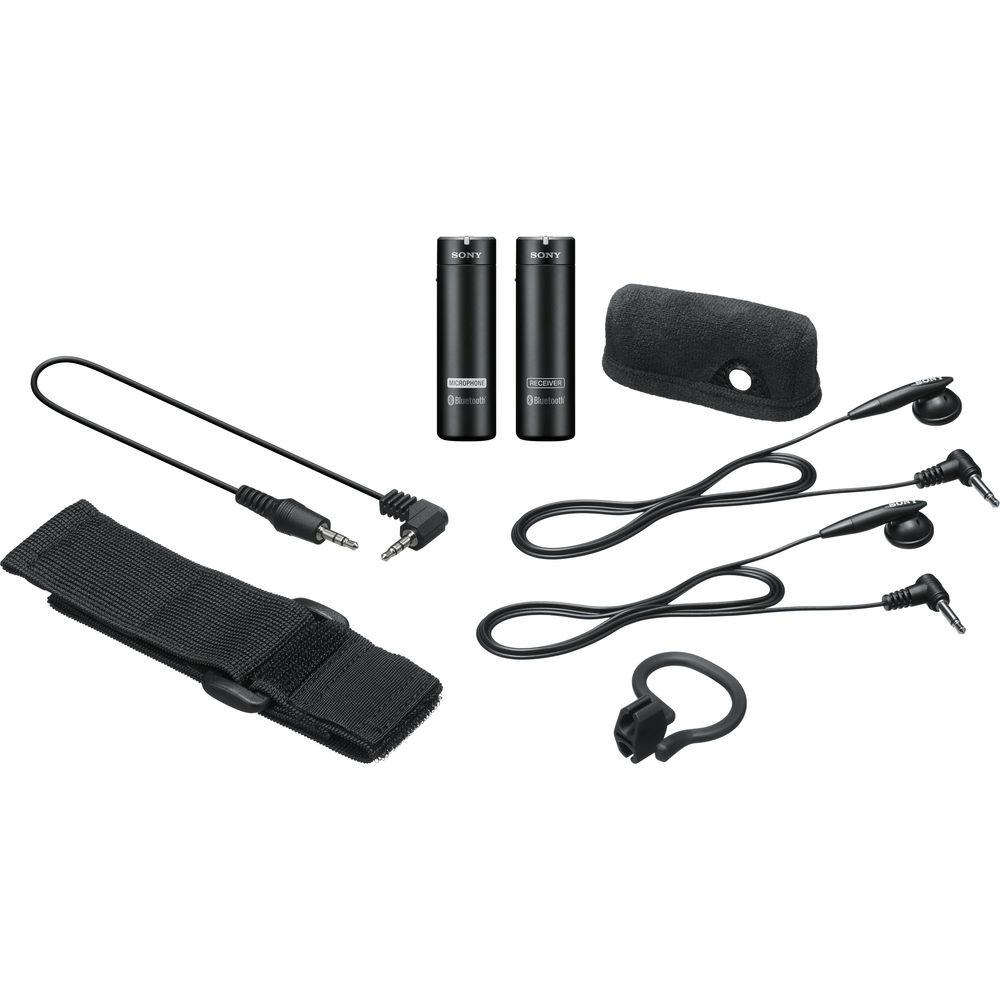

In standby the microphone battery lasts up to nine hour and the receiver battery up to three hours UPC: 027242878594 In the Box Sony ECM-AW4 Bluetooth Wireless Microphone System Arm Band Windscreen 2 x Earphones Earphone Hanger Carrying Pouch Receiver Cable Limited 1-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony ECM-AW4 Bluetooth Wireless Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony ECMAW4 Specs | Microphone | Mono Electret Condenser Microphone | | Polar Pattern | Non-Directional Microphone | | Wireless Range | Up to 150' (46 m) line-of-sight | | Wireless Interface | Bluetooth
Note: Interoperability with third-party Bluetooth devices is not assured | | Connectors | Transmitter (Microphone):
1 x 3.5 mm microphone input (supports Plugin Power) 1 x 3.5 mm mono headphone out
Receiver:
1 x 3.5 mm microphone input (for talk-back; supports Plugin Power) 1 x 3.5 mm mono headphone/audio out | | Power Requirements | Transmitter (Microphone): 1 x AAA battery
Receiver: 1 x AAA battery
Note: Alkaline and Ni-MH rechargeable batteries supported | | Operating Temperature | 41 to 104°F (5 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Dimensions | Receiver: 1 x 3 x 1.3" (24 x 75 x 33.5 mm) | | Weight | Receiver: 1 oz (26 g) | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 8.425 x 5.276 x 2.205" |
