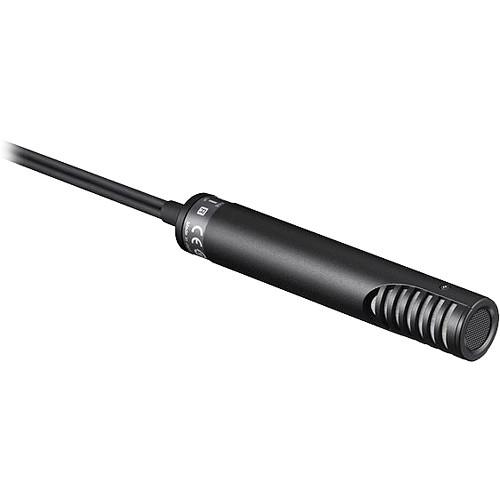

User Manual for Sony ECM-MS2 Stereo Electret Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Sony ECM-MS2 Stereo Electret Condenser Microphone
- Product category: Stereo & Specialty Microphones Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Stereo & Specialty Microphones
|
User manual for the Sony ECM-MS2 Stereo Electret Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The Sony ECM-MS2 Stereo Electret Condenser Microphone is designed for mounting on professional camcorders equipped with 2 XLR inputs and phantom powering. The microphone also delivers good sound performance in field and studio-production applications. The MS microphone signal of the ECM-MS2 microphone is internally decoded, and provides L and R (stereo) outputs. The MS2 stereo microphone also supports mono operation by simply unplugging the right channel (disabling phantom power from the right channel XLR connector). - Compact Design
- The compact 5.39" (137mm) length of the microphone prevents inadvertent vignetting of the microphone when it is attached to a handheld professional camcorder such as the PMW-100. Additionally, this short length is convenient when packing and transporting the microphone with a compact camcorder.
- Stereo & Mono Operation
- The microphone offers mono operation when stereo is not required, simply by cutting off the power supply to the right channel; for example, when a wireless microphone system is connected on 1 channel or while recording environmental sounds on the other channel. The microphone is designed for applications such as news gathering and documentary shooting on location.
- Professional Quality
- Professional quality is assured through the XLR3P's outputs, which enable connection to professional camcorders for 48V phantom powering. The microphone's metal body also enhances audio performance by blocking vibration, resonance, and RF noises.
- Handy Accessory
- The supplied furry windscreen is used to suppress the strong wind present in typical harsh-climate operating conditions. A cable tie is also supplied to fasten the unplugged microphone cable during mono operation.
- Compatibility
- This microphone is compatible with PMW-100, NEX-FS700, and HXR-NX30 Camcorders
UPC: 027242842632 In the Box Sony ECM-MS2 Stereo Electret Condenser Microphone Windscreen Cable Tie Operating Instructions Warranty Booklet Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony ECM-MS2 Stereo Electret Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony ECM-MS2 Specs | | | Frequency Response | Stereo: 80 Hz to 20 kHz Mono: 70 Hz to 20 kHz | | Directivity | Unidirectional | | Output Impedance | 30 Ohms ±20%, balanced | | Sensitivity | Stereo: -32 dB (deviation ±3 dB) 0 dB SPL = 1 V/Pa, 1 kHz | | Signal-to-Noise Ratio | 69 dB or more (IEC 179 A-weighted, 1 kHz, 1 Pa) | | Noise | Inherent: 25 dB SPL or less
Wind: 45 dB SPL or less (with windscreen)
65 dB SPL or less (without windscreen)
Induction: 0 dB SPL/1 x 10-7 T (1 mG) or less (from external magnetic field) 0 dB SPL = 2 x 10-5 Pa | | Maximum Sound Pressure Level (SPL) | 125 dB SPL or more (input level for 1% waveform distortion at 1 kHz, converted into equivalent input sound pressure level) 0 dB SPL = 2 x 10-5 Pa | | Dynamic Range | 100 dB SPL or more | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | | | Type | Back electret condenser microphone
Stereo: MS (Mid-Side) stereo microphone | | Power Supply | External power supply of 40 to 52 VDC (IEC 61938 P48) | | Power Consumption | Stereo: 3 mA or less x 2 Channel | | Output Connector | 2x Cannon XLR-3-12C type | | Dimensions | 0.96 x 5.5" (24 x 137 mm) | | Weight | Approximately 5.6 oz (160 g) | | | | Package Weight | 0.79 lb | | Box Dimensions (LxWxH) | 9.45 x 5.2 x 3.0" |
