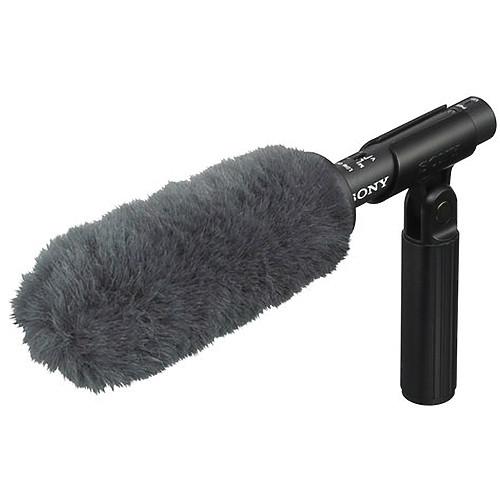

User Manual for Sony ECM-VG1 Electret Condenser Shotgun Microphone Click to enlarge the picture
Contents of the user manual for the Sony ECM-VG1 Electret Condenser Shotgun Microphone
- Product category: Shotgun Microphones Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Shotgun Microphones
|
User manual for the Sony ECM-VG1 Electret Condenser Shotgun Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The Sony ECM-VG1 Electret Condenser Shotgun Microphone is a rugged, all-metal short shotgun microphone with a supercardioid polar pattern, making it a well suited choice for camcorder-mounted and boom pole operation alike. The included windscreen has been designed to maximize wind-noise rejection.The windscreen's rigid construction creates space between the microphone and outer part of the windscreen, minimizing the transfer of energy from the windscreen to the microphone itself. Also included are a microphone boom mount, spacer, 2 stand adaptors and a short XLR cable. A low-cut roll off switch further minimizes low-frequency noise due to wind noise, mechanical noise and proximity effect. The ECM-VG1 requires external 40 to 52V phantom power, and is terminated with an XLR output connector. - Specially designed windscreen creates space between the microphone and outer layer of the windscreen, resulting in maximum wind noise suppression
- Supercardioid polar pattern effectively minimizes off-axis noise
- Ideal for camera and boom mounted applications
- Includes a threaded microphone mount for easy boom attachment
- Low-cut roll off filter eliminates low-frequency noise
UPC: 027242814646 In the Box Sony ECM-VG1 Electret Condenser Shotgun Microphone Windscreen Microphone Holder Microphone Spacer 2 x Stand Adaptor Short XLR Cable Limited 1-Year Warranty Brochure PDF 347.8kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony ECM-VG1 Electret Condenser Shotgun Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony ECM-VG1 Specs | Transducer | Mono Electret Condenser | | Polar Pattern | Supercardioid | | Frequency Response | 40 Hz to 20 kHz | | Dynamic Range (Typical) | 107 dB or more | | Signal-to-Noise Ratio | 76 dB or more (IEC179 A-weighted, 1 kHz, 1Pa) | | Maximum Input Sound Level | 125 dB SPL | | Power Requirements | 40 to 52 VDC | | Output Connectors | 3-pin XLR | | Low Frequency Roll-Off | Yes, Low-Cut Filter | | Dimensions (Diam. x L) | 13/16 x 8-3/8" (20.63 x 212.59 mm) | | Weight | 2.3 oz (65.20 g) | | | | Package Weight | 0.92 lb | | Box Dimensions (LxWxH) | 9.4 x 5.2 x 3.05" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 40 owners. Add your rating and experience with the product.
