User Manual for Sony ECM-W1M Wireless Microphone for Cameras with Multi-Interface Shoe Click to enlarge the picture
Contents of the user manual for the Sony ECM-W1M Wireless Microphone for Cameras
- Product category: Other System Accessories Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Other System Accessories
 |
User manual for the Sony ECM-W1M Wireless Microphone for Cameras contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|

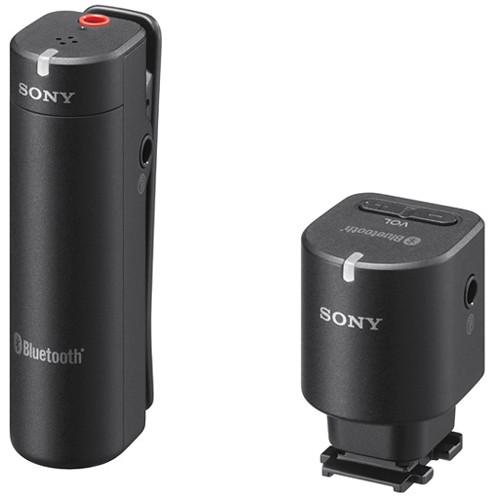

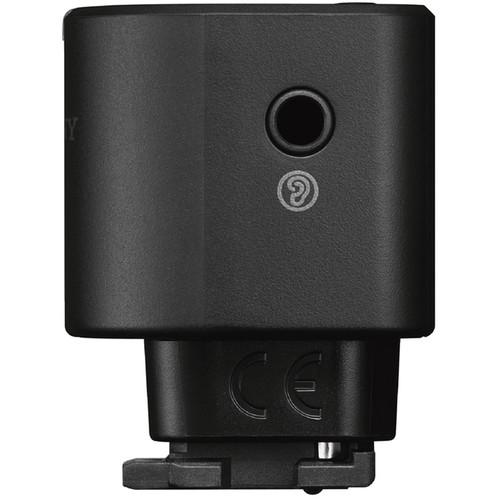

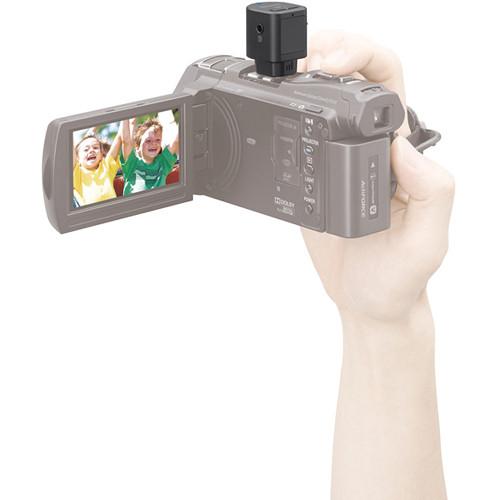

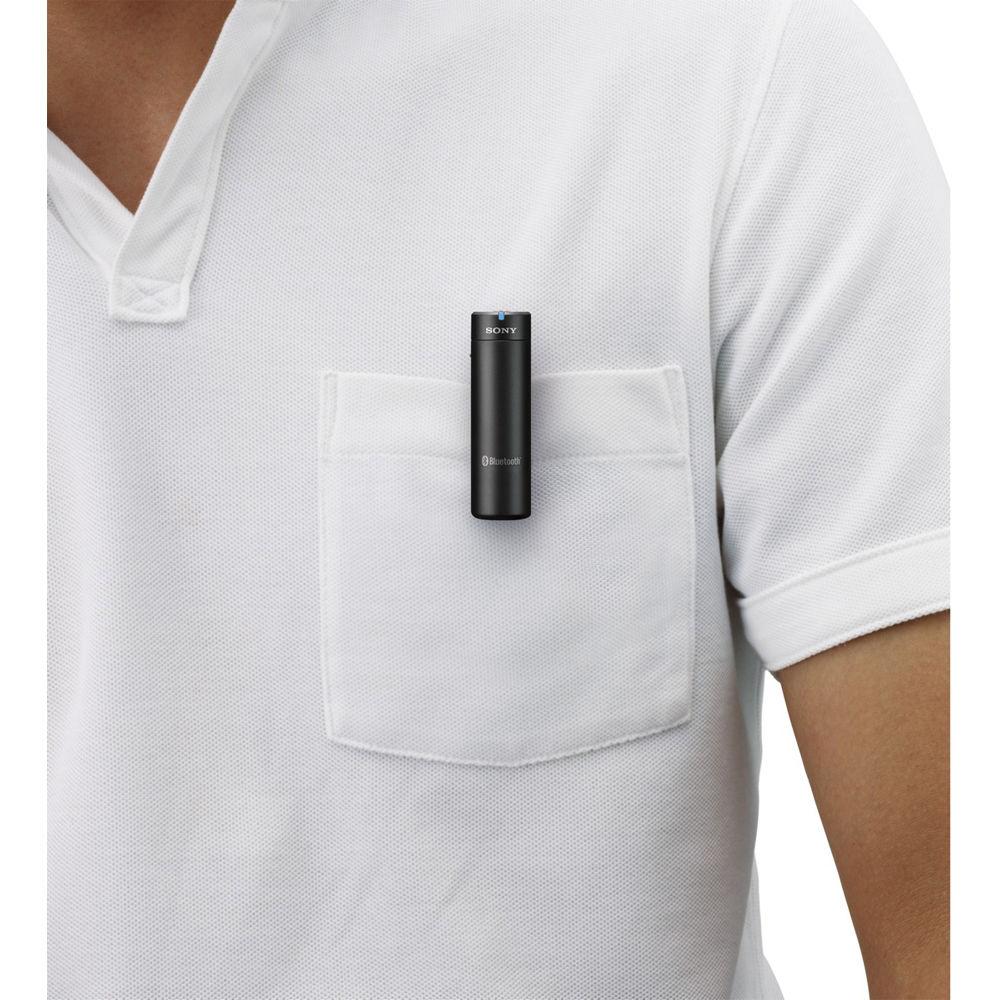

Product description The Sony ECM-W1M Wireless Microphone is designed specifically for Sony cameras and camcorders that feature the proprietary Multi-Interface Shoe. The microphone comprises two components: a transmitter and a receiver. They communicate wirelessly with each other using Bluetooth technology and feature a range of up to 100', depending on conditions. With the receiver attached to your camera it is still possible to capture additional audio using the camera's built-in microphone. In addition, audio picked up by the camera can be relayed back to the transmitter. The transmitter features a headphone jack that allows the camera operator to communicate with the person wearing the transmitter by speaking into the camera's microphone. There is also a headphone jack on the receiver so that the camera operator can monitor audio even if the camera itself doesn't provide a headphone out of its own. Finally, the transmitter features a 3.5mm mic input allowing you to use a third-party microphone rather than the built-in one. - The transmitter can either clip on your belt, or be worn using the included elastic arm band

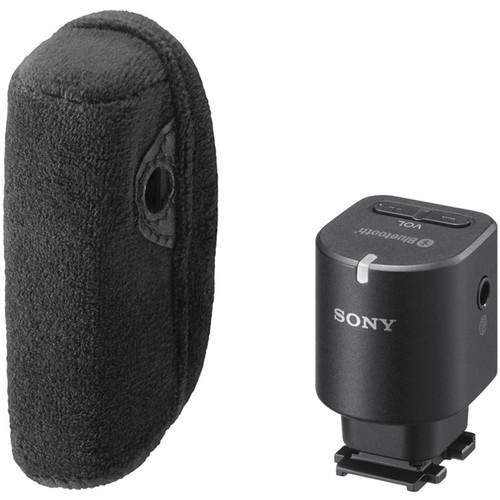

- Includes windscreen to help reduce wind noise when filming outdoors
- Includes two earphones for monitoring audio and a pouch to store everything in
- For Sony cameras and camcorders with Multi-Interface Shoe
- Transmitter powers from a single AAA battery; receiver power directly from the camera

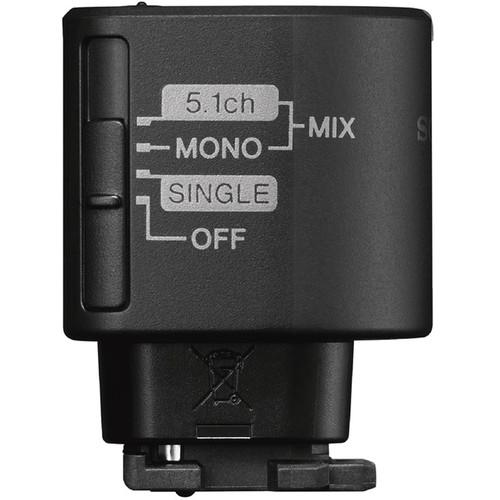

- Corresponds to "5.1-channel Center Mic" mode

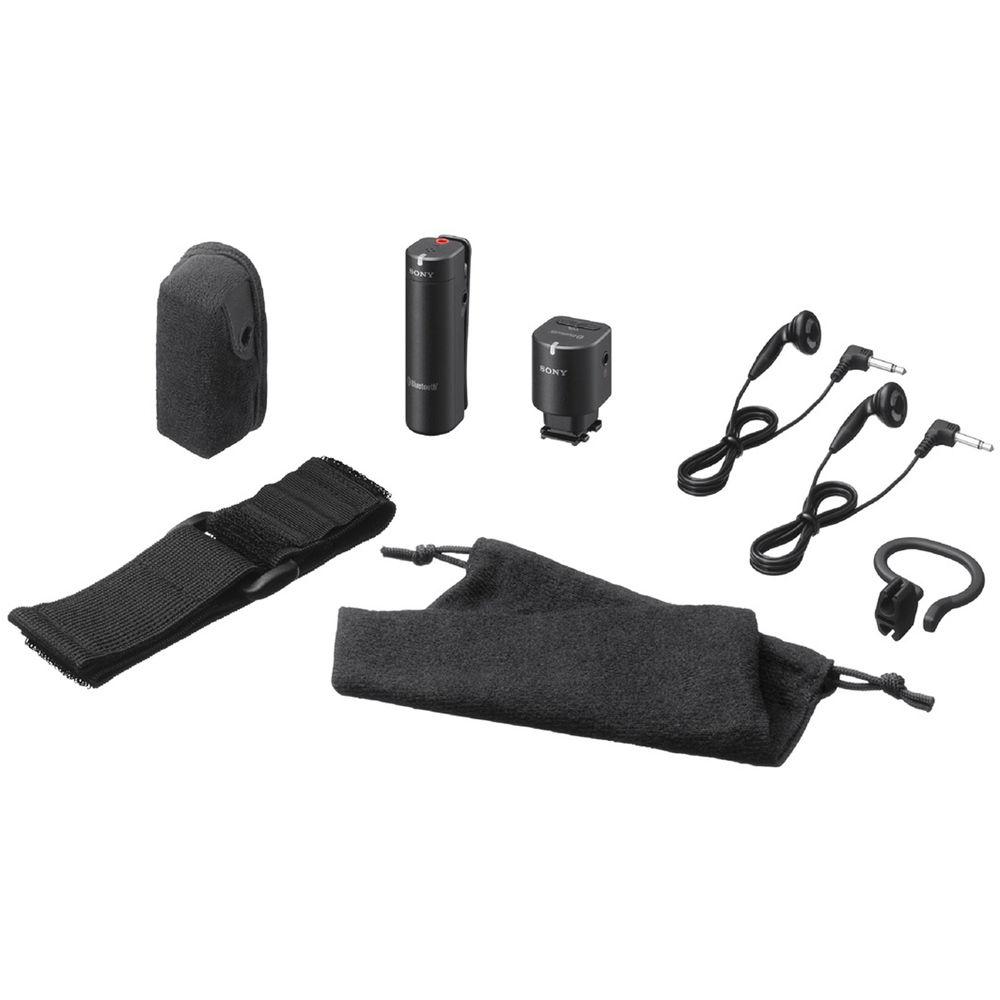

UPC: 027242873353 In the Box Sony ECM-W1M Wireless Microphone for Cameras with Multi-Interface Shoe Wind Screen Arm Band 2 x Ear Phone Earphone Hanger Connector Protection Cap Carrying Pouch Limited 1-Year Warranty User Manual PDF 856.2kbxdwvbfeqfscuazcwzqcffcvxdxbcabuu More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony ECM-W1M Wireless Microphone for Cameras with Multi-Interface Shoe in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony ECM-W1M Specs | Compatibility | Receiver: Sony cameras and camcorders with Multi-Interface Shoe | | Capsule | Monaural electret condenser | | Pick-up Pattern | Non-directional | | Frequency Response | 300 Hz to 9 kHz | | Wireless Interface | Bluetooth - interoperability with other Bluetooth products is not guaranteed | | Wireless Range | Up to 100' / 30 m - depends on conditions | | Connectivity | Transmitter: 1 x 3.5 mm mini headphone jack
1 x 3.5 mm microphone input
Receiver: 1 x 3.5 mm mini headphone jack | | Power Source | Transmitter: 1 x AAA battery
Receiver: Power from Multi-Interface Shoe | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | 4 to 140°F / -20 to 60°C | | Dimensions | Transmitter: 0.7 x 2.6 x 1.2" / 19 x 66 x 30 mm
Receiver: 1.1 x 1.5 x 1.1" / 27 x 38 x 29 mm | | Weight | Transmitter: 0.7 oz / 19 g
Receiver: 0.6 oz / 17 g | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 8.5 x 5.95 x 2.6" |
