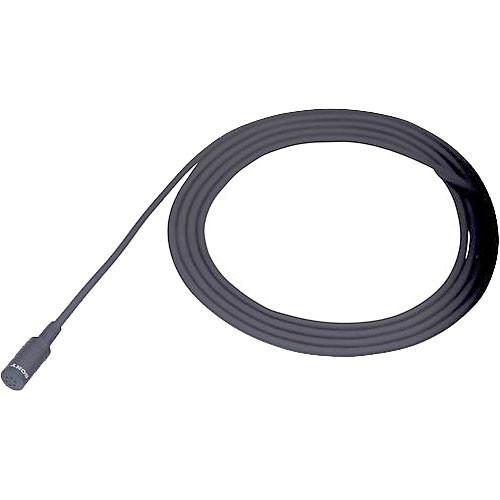

User Manual for Sony ECM77BC9X Microphone Head Click to enlarge the picture
Contents of the user manual for the Sony ECM77BC9X Microphone Head
- Product category: Microphones for Wireless Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Microphones for Wireless
|
User manual for the Sony ECM77BC9X Microphone Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The Sony ECM-77BC9X is a miniature omnidirectional lavalier microphone designed for professional broadcast, sound reinforcement and recording applications. The condenser element features a miniature profile, allowing it to be easily concealed in performance and broadcast situations. The omnidirectional pattern provides even frequency and sensitivity response at the direct and off-axis sections of the microphone capsule.The ECM-77 provides a wide frequency response of 40Hz - 20kHz. The wide frequency response enables the microphone to accurately reproduce audio signals from a wide variety of sources. The ECM-77 is manufactured with a variety of connectors to accommodate various input devices. This version features a 4-pin Hirose connection for use with compatible beltpack transmitters. Phantom power is supplied via the connected body-pack transmitters. - Omnidirectional Pattern
- The omnidirectional pattern provides even sensitivity and frequency response at the direct and off-axis sections of the microphone capsule.
- Miniature Profile
- The miniature, unobtrusive profile enables the microphone to be easily concealed in broadcast and performance situations.
- 4-pin Hirose Wireless Transmitter Connection
- The ECM series is available in a variety of connections. This version features a 4-pin Hirose connection for use with compatible beltpack transmitters. Phantom power is supplied via the connected body-pack transmitters.
UPC: 027242632493 In the Box Sony ECM77BC9X Microphone Head (4-pin Hirose) Holder Clip Windscreen Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony ECM77BC9X Microphone Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony ECM-77 Specs | Transducer | Electret Condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 40 Hz - 20 kHz | | Dynamic Range (Typical) | Greater than 90 dB | | Signal-to-Noise Ratio | 64 dB @ 1 kHz | | Maximum Input Sound Level | 120 dB @ 1 kHz, (1% THD) | | Power Requirements | Phantom (48v DC) | | Output Impedance | 150 Ohms +/-20% (1 kHz) Balanced | | Output Connectors | 4-pin Hirose | | Pad | None | | Low Frequency Roll-Off | None | | Applications | Radio, Television, and Broadcast | | Dimensions (LxDiameter) | 0.5 x 0.25" / 12.5 x 5.6 mm | | Weight | 0.05 oz / 1.5 g | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 6.5 x 1.6 x 1.0" |
