User Manual for Sony ECM88B - Miniature Omni-Directional Lavalier Microphone and DC-78 Power Supply Click to enlarge the picture
Contents of the user manual for the Sony ECM88B - Miniature Omni-Directional Lavalier
- Product category: Lavalier Microphones Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Lavalier Microphones
 |
User manual for the Sony ECM88B - Miniature Omni-Directional Lavalier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|

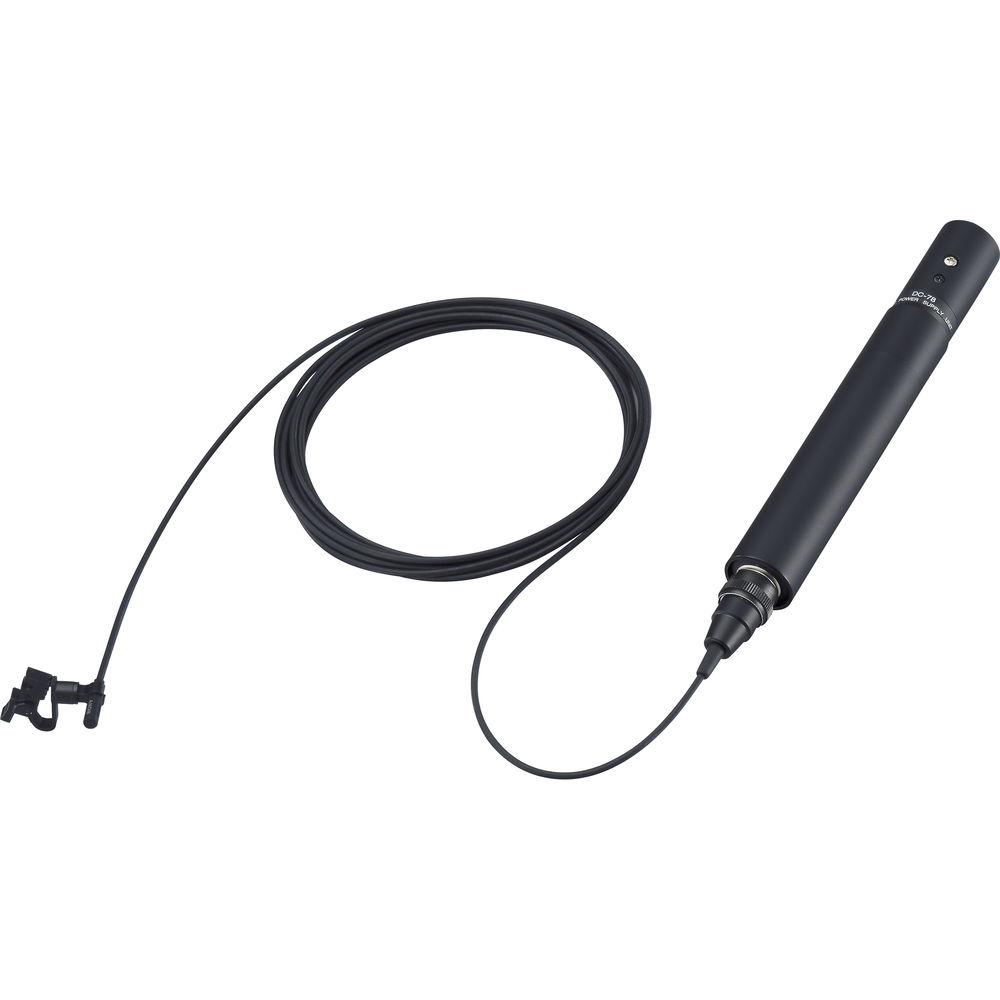

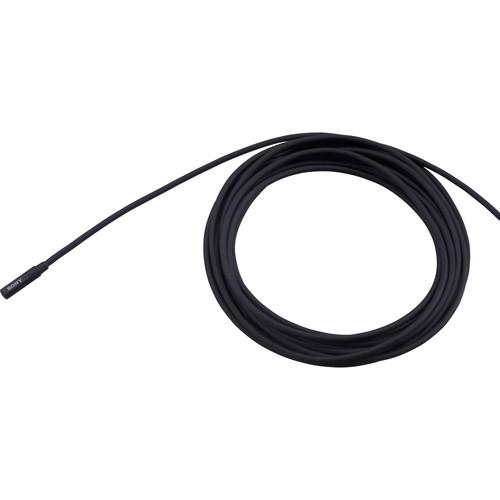

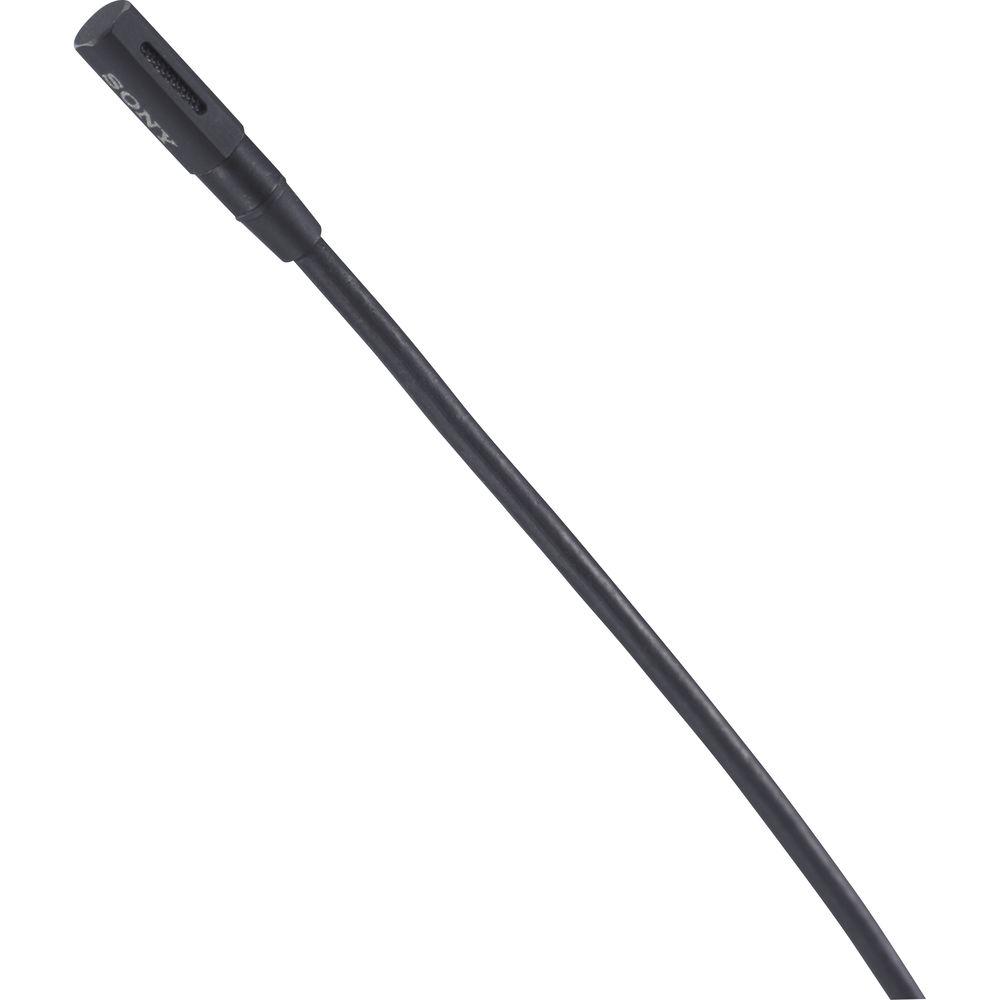

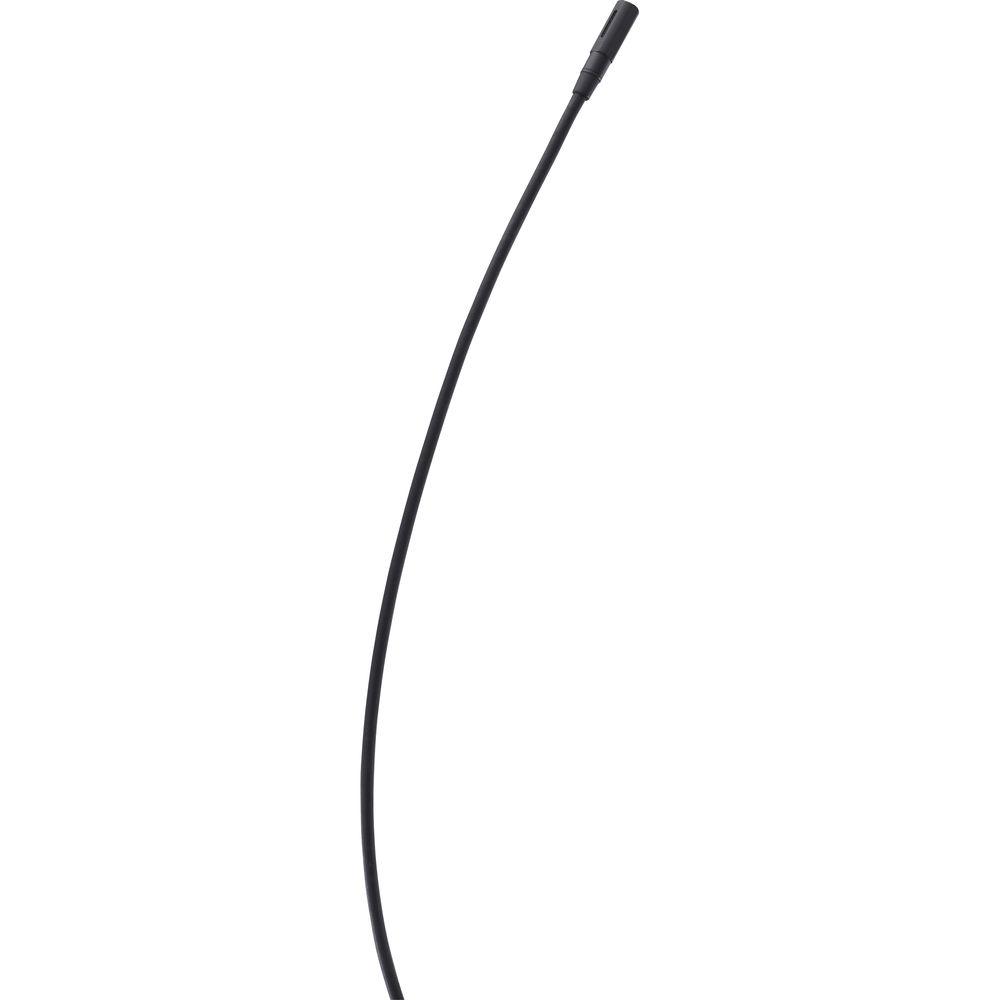

Product description Essential Guide on How to Mic Talent for Video Read More The Sony ECM 88B is a miniature condenser, lavalier microphone. This version includes the DC-78 power supply with XLR output connection. The capsule is 3.5 x 3.5 x 16.8mm, allowing natural-looking concealment on stage or camera. The electret condenser element uses a dual-diaphragm mechanism, resulting in high sensitivity.The microphone provides a flat, wide frequency response (20Hz to 20kHz) resulting in a natural sound reproduction, capturing in great detail. The water resistant design assures durability from the elements as well as moisture caused by sweat in stage applications. - Miniature Design
- The microphones ultra-miniature design provides the level of concealment needed for the stage and on camera.
- DC-78 Power Supply
- The ECM88B includes the DC-78 phantom power supply with 3-pin XLR male output connection.
- High Sonic Character
- The condenser element provides a wide, flat frequency response and high dynamic range resulting in clean, quiet recordings.
- Water Resistant
- The microphone is designed to resist moisture caused by the elements or sweat.
UPC: 027242667358 In the Box Sony ECM88B - Miniature Omni-Directional Lavalier Microphone and DC-78 Power Supply DC-78 Power Connector Horizontal Clip Vertical Clip Double Clip Urethane windscreen Carrying Case 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony ECM88B - Miniature Omni-Directional Lavalier Microphone and DC-78 Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony ECM-88B Specs | Transducer | Electret Condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 20Hz - 20kHz | | Dynamic Range (Typical) | Greater than 99 dB | | Signal-to-Noise Ratio | 62 dB @ 1kHz (A-weighted, 1khz, 1Pa.) | | Maximum Input Sound Level | 125 dB SPL | | Power Requirements | DC 1.1 to 10 Volts | | Output Impedance | 100 ohms +/- 20% (when used in combination with the DC-78) | | Output Connectors | ECM-88B: Sony SMC9-4P Integrates with DC-78 with XLR output | | Pad | None | | Low Frequency Roll-Off | None | | Applications | Radio, Television and Broadcast. | | Dimensions | 0.14 x 0.14 x 0.66" (3.5 x 3.5 x 16.8mm) | | Weight | 0.71 oz. (32 grams) (with cable) | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 9.2 x 4.2 x 1.9" |
